The OFFICIAL "I have a wheel offset / tire fitment question!" thread - Page 138 - MyG37



The OFFICIAL "I have a wheel offset / tire fitment question!" thread

Reply



Thread Tools Search this Thread
Old 10-10-2017, 10:30 AM   #2056
BrianHasAg37
Registered User

Join Date: Oct 2017
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by blnewt View Post
Welcome to the site.
Is your G lowered or planning to lower? Are you going to run in-spec camber?
Do you want to run even more tire there?

Since Forgestar lets you select exact offsets you could run up to a 305 width tire in back and 255s or 265s in front depending on the width & offsets you select.

For a lowered G you could run a 19x9.5 super deep concave in a +25 offset running a 255/40 tire in front, and a 19x11 Super deep concave in a +40 w/ a 285/35 tire in back for a nice flush setup. As far as brake clearance, this is something that must be confirmed w/ vendor. If the brakes won't clear you may have to go to a deep concave instead of a super deep concave.
Thanks blnewt
I plan on lowering about an inch or two to get less fender gap. I want go with in spec camber, so no negative. I am going to go with deep concave rather than super deep. Is there any difference on offset between the two? I don't want to do any trimming if the wheels are rubbing so will these for sure fit? Will there be little room or plenty?
19x9.5 +25mm 255/40 deep concave
19x11 +40mm 285/35 deep concave
Also, are the tires long enough to protect the wheels? Or will they stretch, leaving the wheels exposed. I would prefer having the tires protect the wheels. Thanks again
BrianHasAg37 is offline   Reply With Quote
Old 10-10-2017, 11:27 AM   #2057
blnewt
Modr8r & DIY cheapsk8
iTrader: (11)

blnewt's Avatar

Join Date: Nov 2009
Location: New Mexico
Posts: 22,508
Thanked 4,284 Times in 3,639 Posts
Quote:
Originally Posted by BrianHasAg37 View Post
Thanks blnewt
I plan on lowering about an inch or two to get less fender gap. I want go with in spec camber, so no negative. I am going to go with deep concave rather than super deep. Is there any difference on offset between the two? I don't want to do any trimming if the wheels are rubbing so will these for sure fit? Will there be little room or plenty?
19x9.5 +25mm 255/40 deep concave
19x11 +40mm 285/35 deep concave
Also, are the tires long enough to protect the wheels? Or will they stretch, leaving the wheels exposed. I would prefer having the tires protect the wheels. Thanks again
Those will fit well, as far as tire protection, both front & rear tire widths are a bit stretched on those wheel widths. Not excessive, but the sidewalls will be angled in to the road rather than vertical. Some tires have a protection rib in the sidewall so depending on tire model you may or may not get much protection there. FWIW I just avoid curbs like grim death, even avoid those great parking spots on the end w/ a curb on one side, and take wider turns around curbed areas.

This would work well at in spec camber (camber around -1.2 give or take) and have more brake clearance since they wouldn't be super deep concave.
But I would check & see if super deep concave will clear as this is a great look and would set your G apart IMO vs. deep concave face.
blnewt is offline   Reply With Quote
Old 10-12-2017, 12:03 AM   #2058
BrianHasAg37
Registered User

Join Date: Oct 2017
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by blnewt View Post
Those will fit well, as far as tire protection, both front & rear tire widths are a bit stretched on those wheel widths. Not excessive, but the sidewalls will be angled in to the road rather than vertical. Some tires have a protection rib in the sidewall so depending on tire model you may or may not get much protection there. FWIW I just avoid curbs like grim death, even avoid those great parking spots on the end w/ a curb on one side, and take wider turns around curbed areas.

This would work well at in spec camber (camber around -1.2 give or take) and have more brake clearance since they wouldn't be super deep concave.
But I would check & see if super deep concave will clear as this is a great look and would set your G apart IMO vs. deep concave face.
I got an email from a vendor saying that the Super Deep Concave will clear a BBK if the rear offset is set to +35mm. I would have liked to do this setup, but I don't like the look or the cons of having stretched tires. Would going with smaller width wheels fix this? How about 19x9 19x10 and 255/40 285/35 both deep concave with in spec camber and lowered an inch or 2? Would they still be stretched? What offset to get them flush? I have some other questions. Do wheels tuck in when you lower your car with coilovers without a camber kit? Does a camber kit fix this or lessen the tuck? Do you have to take into account how much you are going to lower your car when choosing the offset? Man, this is a lot more complicated than I thought it was going to be. Almost makes me want to keep my G stock. Almost.
BrianHasAg37 is offline   Reply With Quote
Old 10-12-2017, 11:05 AM   #2059
blnewt
Modr8r & DIY cheapsk8
iTrader: (11)

blnewt's Avatar

Join Date: Nov 2009
Location: New Mexico
Posts: 22,508
Thanked 4,284 Times in 3,639 Posts
If you went with that last combo you could run a wider tire set. FWIW I ran 245/285 (and even 295s for a while) on a 8.5/10" wheel width. Running 255/285 on the 9/10" set would give you a more standard mount. A +25 front offset and +35 offset in back will get you pretty flush without running into any rubbing issues.

Camber goes in an arc as you lower, so the lower you go the more tuck you will get. The camber arms will pull the lower section of the wheel in or out depending how they are adjusted. It's a bit hard to explain, but this arm is offset so the bottom will swing in or out more than the top of the tire.

Camber & toe are related so you need a rear toe kit as well as the rear camber arms to keep everything in spec when you drop. The SPC rear set includes the camber & toe parts but the toe bolts require that you elongate the toe slot w/ a dremel tool.

If you just drop without any camber/toe help your tires will wear very poorly.

And yes, it is a PITA to do all of this the right way, but better that you know this first
blnewt is offline   Reply With Quote
Old 10-12-2017, 07:34 PM   #2060
the93owner
Registered User

Join Date: Jul 2015
Location: Maryland
Posts: 1,292
Thanked 287 Times in 233 Posts
Just got new wheels, and I'm looking at running a 285/30/20 in the rear on a 10.5 +45 wheel. Should fit based on what blnewt is running, yes? My camber is in spec at about -1.5
the93owner is offline   Reply With Quote
Old 10-12-2017, 08:00 PM   #2061
StarKiller
Registered User

Join Date: Apr 2016
Location: Twin Cities
Posts: 11
Thanked 3 Times in 1 Post
Got a question, running a str 607 rim 19x8.5 +30 with 10mm spacers and 2454019 all the way around. looking for a taller and wider tire would a 2554019 work? or should i buy a different wheel?
StarKiller is offline   Reply With Quote
Old 10-12-2017, 08:10 PM   #2062
the93owner
Registered User

Join Date: Jul 2015
Location: Maryland
Posts: 1,292
Thanked 287 Times in 233 Posts
Quote:
Originally Posted by StarKiller View Post
Got a question, running a str 607 rim 19x8.5 +30 with 10mm spacers and 2454019 all the way around. looking for a taller and wider tire would a 2554019 work? or should i buy a different wheel?
That should be fine.
the93owner is offline   Reply With Quote
Old 10-13-2017, 01:03 PM   #2063
BrianHasAg37
Registered User

Join Date: Oct 2017
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by blnewt View Post
If you went with that last combo you could run a wider tire set. FWIW I ran 245/285 (and even 295s for a while) on a 8.5/10" wheel width. Running 255/285 on the 9/10" set would give you a more standard mount. A +25 front offset and +35 offset in back will get you pretty flush without running into any rubbing issues.

Camber goes in an arc as you lower, so the lower you go the more tuck you will get. The camber arms will pull the lower section of the wheel in or out depending how they are adjusted. It's a bit hard to explain, but this arm is offset so the bottom will swing in or out more than the top of the tire.

Camber & toe are related so you need a rear toe kit as well as the rear camber arms to keep everything in spec when you drop. The SPC rear set includes the camber & toe parts but the toe bolts require that you elongate the toe slot w/ a dremel tool.

If you just drop without any camber/toe help your tires will wear very poorly.

And yes, it is a PITA to do all of this the right way, but better that you know this first
Looks like I am going to go with deep concave 19x9 25mm 255/40 front and 19x10 35mm 285/35 rear. Last question I promise How come you suggested the same 25mm offset for the 19x9.5 as the 19x9? Is one closer to flush than the other?

Thank you for clarifying about camber and lowering. I can visualize the camber moving like an arc when lowering. You have been a big help
BrianHasAg37 is offline   Reply With Quote
Old 10-13-2017, 01:56 PM   #2064
blnewt
Modr8r & DIY cheapsk8
iTrader: (11)

blnewt's Avatar

Join Date: Nov 2009
Location: New Mexico
Posts: 22,508
Thanked 4,284 Times in 3,639 Posts
Quote:
Originally Posted by BrianHasAg37 View Post
Looks like I am going to go with deep concave 19x9 25mm 255/40 front and 19x10 35mm 285/35 rear. Last question I promise How come you suggested the same 25mm offset for the 19x9.5 as the 19x9? Is one closer to flush than the other?

Thank you for clarifying about camber and lowering. I can visualize the camber moving like an arc when lowering. You have been a big help
The 19x9.5 with the same offset would be an additional 6mm further out. But giving you that extra wiggle room in front is a good plan, the front fender edges aren't flat rolled like the rear so having a bit more room inside the fender works well. I suggested the +25 on those 9.5s because they were a super deep concave that we were talking about, and with those you need a bit more offset for caliper clearance.
blnewt is offline   Reply With Quote
Old 10-13-2017, 09:45 PM   #2065
EcstaticG37XS
Registered User

Join Date: Jul 2015
Posts: 17
Thanked 4 Times in 2 Posts
Opinions on this setup?

18x9.5 +38 275/40/18 all around on a AWD sedan lowered to 26.5" ground to fender.

Are the 275/40/18 too much for the front fenders or can this work?
EcstaticG37XS is offline   Reply With Quote
Old 10-13-2017, 10:22 PM   #2066
blnewt
Modr8r & DIY cheapsk8
iTrader: (11)

blnewt's Avatar

Join Date: Nov 2009
Location: New Mexico
Posts: 22,508
Thanked 4,284 Times in 3,639 Posts
Quote:
Originally Posted by EcstaticG37XS View Post
Opinions on this setup?

18x9.5 +38 275/40/18 all around on a AWD sedan lowered to 26.5" ground to fender.

Are the 275/40/18 too much for the front fenders or can this work?
I've got the same wheel specs, 275/40s will work in back, to fit in front you'd probably need to flat roll the fenders and possibly run a bit more camber. If you really want to try them I'd roll the fenders first (the rears are already rolled from the factory) and only run extra camber as a last resort.

I currently run 245/45s in front (285/40 in back) and when the time comes I'll bump the fronts up to at least a 255/45 and possibly a 265/40 if they have that size in the tire I want. Not quite sure I'd go up to a 275 there.
blnewt is offline   Reply With Quote
The Following User Says Thank You to blnewt For This Useful Post:
EcstaticG37XS (10-14-2017)
Old 10-15-2017, 08:26 PM   #2067
RJ's_G37
Registered User

RJ's_G37's Avatar

Join Date: May 2013
Location: Visalia Ca
Posts: 157
Thanked 15 Times in 11 Posts

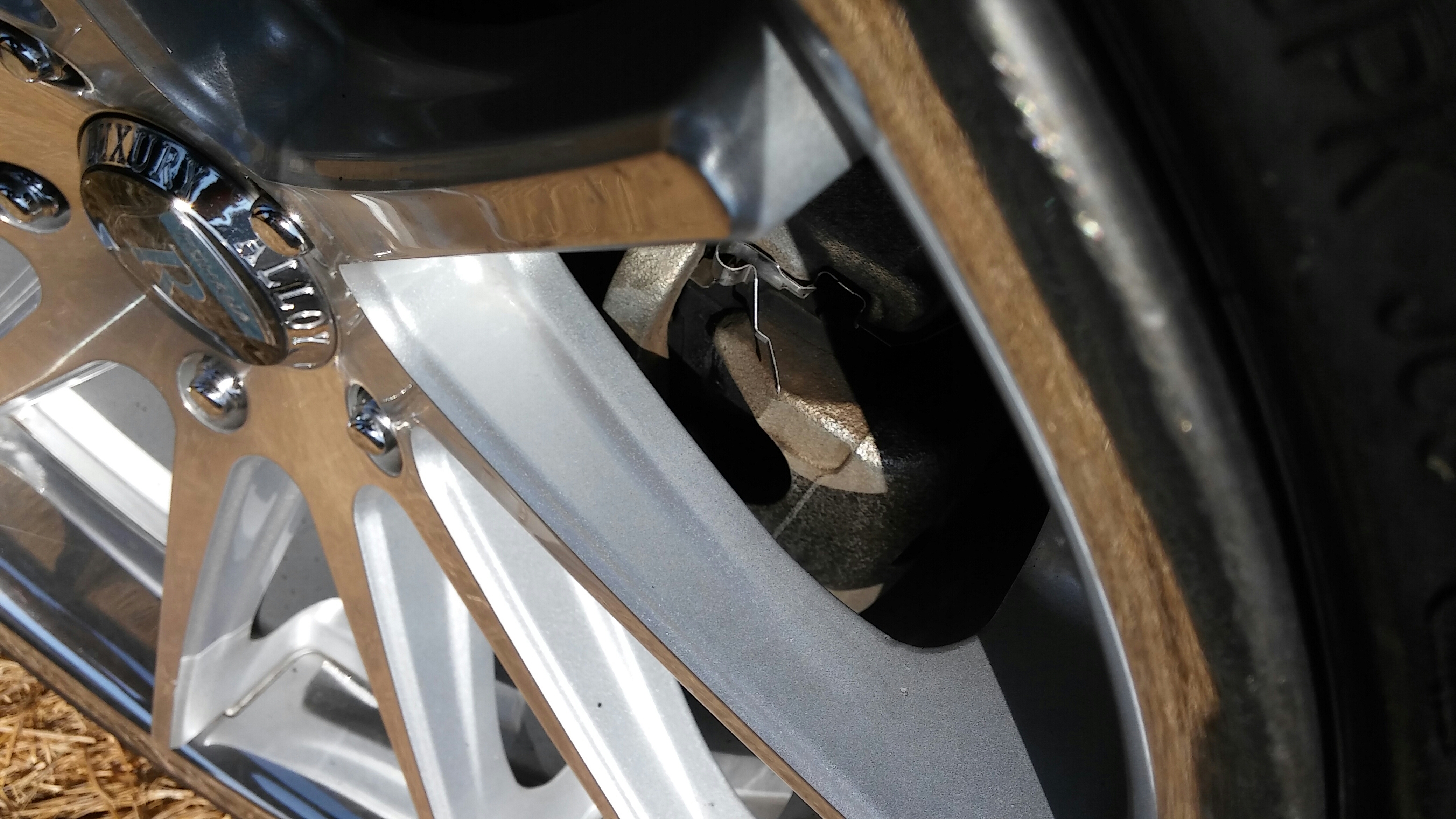

So im running a 19x9.5 setup square with 255/40..im planning to run 265 35 but i feel like the rim is too close to my brakes..maybe im paranoid but it bugs me..question is can i run a 255/35 setup and maybe buy 3-5 mm spacers for the front?
Attached Thumbnails
The OFFICIAL "I have a wheel offset / tire fitment question!" thread-20171015_125048.jpg
RJ's_G37 is offline   Reply With Quote
Old 10-15-2017, 10:58 PM   #2068
blnewt
Modr8r & DIY cheapsk8
iTrader: (11)

blnewt's Avatar

Join Date: Nov 2009
Location: New Mexico
Posts: 22,508
Thanked 4,284 Times in 3,639 Posts
How many mm clearance do you have there? 3mm or more and I wouldn't worry, less than that is pretty tight. Subaru STIs run real tight clearance at their brakes, like 2mm from what I've read w/ some of their OEM wheel sets so I wouldn't worry too much if you've been fine so far.
blnewt is offline   Reply With Quote
Old 10-16-2017, 11:40 AM   #2069
stiizy
Registered User

Join Date: Jan 2008
Location: Staten Island
Posts: 98
Thanked 3 Times in 3 Posts
19X11 +18 for rears, will that work? wrapped in 275's?
X Sedan
stiizy is offline   Reply With Quote
Old 10-16-2017, 12:25 PM   #2070
RJ's_G37
Registered User

RJ's_G37's Avatar

Join Date: May 2013
Location: Visalia Ca
Posts: 157
Thanked 15 Times in 11 Posts
Quote:
Originally Posted by blnewt View Post
How many mm clearance do you have there? 3mm or more and I wouldn't worry, less than that is pretty tight. Subaru STIs run real tight clearance at their brakes, like 2mm from what I've read w/ some of their OEM wheel sets so I wouldn't worry too much if you've been fine so far.
2 maybe 3mm..ive had them on for maybe 2 weeks no issues just me being paranoid..i havent been able to get my front fenders rolled and my 265 35s will be here thursday..i will only rub on on a massive impact but im good to drive right?
RJ's_G37 is offline   Reply With Quote
