The OFFICIAL "I have a wheel offset / tire fitment question!" thread

Old 04-06-2019, 10:08 AM
  #2431
RJ's_G37
Registered Member

RJ's_G37's Avatar

Join Date: May 2013
Location: Visalia Ca
Posts: 173
Received 15 Likes on 11 Posts
Originally Posted by blnewt
Gonna have to stretch them out in the back I'm afraid, and maybe some camber, fronts will be ok w/ a standard mount. Something like a 245/35 front 255/35 rear
By stretching them in the back will that give me any issues?
Old 04-08-2019, 10:23 PM
  #2432
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,940 Likes on 4,174 Posts
Originally Posted by RJ's_G37
By stretching them in the back will that give me any issues?
255s on 10.5 width is fairly common, not what I'd want to run but better than running a real wide tire on a narrow wheel since you'll have better sidewall stability on a stretch vs a pinch mount. Also your wheel edge will be much more exposed. And running them on a sedan you will probably need to add some camber to keep off the fenders too

Last edited by blnewt; 04-08-2019 at 10:33 PM.
Old 04-08-2019, 10:47 PM
  #2433
RJ's_G37
Registered Member

RJ's_G37's Avatar

Join Date: May 2013
Location: Visalia Ca
Posts: 173
Received 15 Likes on 11 Posts
Originally Posted by blnewt
255s on 10.5 width is fairly common, not what I'd want to run but better than running a real wide tire on a narrow wheel since you'll have better sidewall stability on a stretch vs a pinch mount. Also your wheel edge will be much more exposed. And running them on a sedan you will probably need to add some camber to keep off the fenders too
Ok I see thanks,yeah I was reading up a bit on camber in the rear,might have to get a camber kit...I plan on bagging the car at the end of the year so I wanted to play around with a 20s setup since I have 19s
Old 04-12-2019, 10:58 AM
  #2434
Gigatron
Registered Member

Gigatron's Avatar

Join Date: Sep 2018
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by blnewt
Offsets will be close but tires are off a bit, it's better to run 245/40 w/ a 275/35 otherwise your diameters will be different, you really want the same sidewall height on all 4 for the best look.
Actually, that's wrong as well. 275/40/19 and 245/45/19 are the EXACT same except for width.
Old 04-13-2019, 11:44 AM
  #2435
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,940 Likes on 4,174 Posts
Originally Posted by Gigatron
Actually, that's wrong as well. 275/40/19 and 245/45/19 are the EXACT same except for width.
Do you have the original reply from my quote? probably didn't suggest that combo from the difference from OEM (245/40/19) baseline, but ???
Old 04-18-2019, 02:24 PM
  #2436
flipmodeq60ipl
Registered Member

flipmodeq60ipl's Avatar

Join Date: Apr 2019
Location: Bronx, NY
Posts: 3
Received 0 Likes on 0 Posts
hello everyone new to the forum, I wanted to know what size spacers to get for my stock ipl vert rims for rear and front to make it pop out a bit. stock height no other suspension mods for now. Appreciate the answers and a pic would be nice as well. Thanks
Old 04-18-2019, 07:10 PM
  #2437
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,940 Likes on 4,174 Posts
I'd get a piece of foam or a few stacked magazines and rest along your sidewall, get the thickness exactly where you want at the fender, then measure how thick that is, then get the closest spacer to that measurement.
The following users liked this post:
flipmodeq60ipl (04-19-2019)
Old 05-03-2019, 05:58 PM
  #2438
RJ's_G37
Registered Member

RJ's_G37's Avatar

Join Date: May 2013
Location: Visalia Ca
Posts: 173
Received 15 Likes on 11 Posts

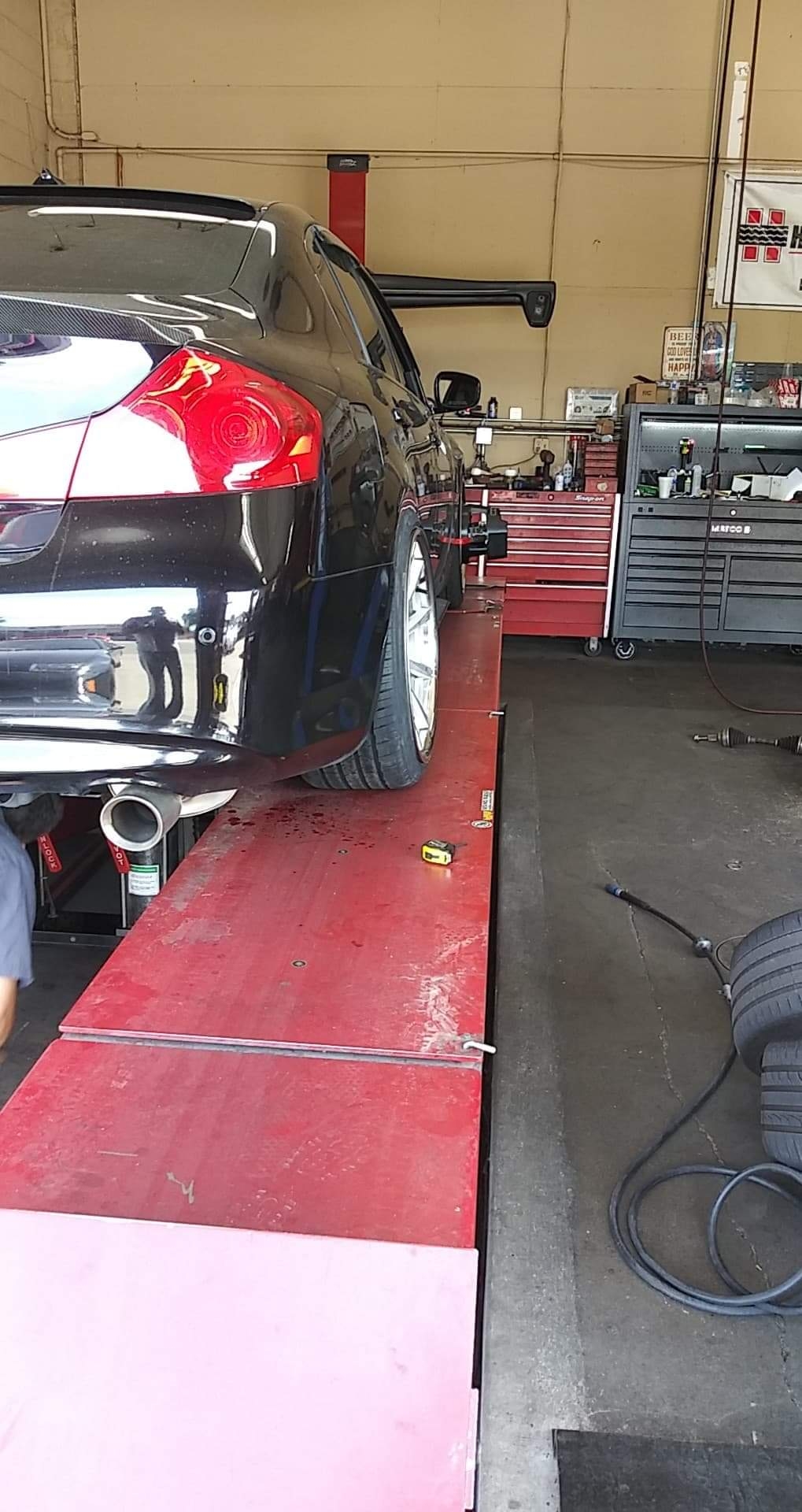

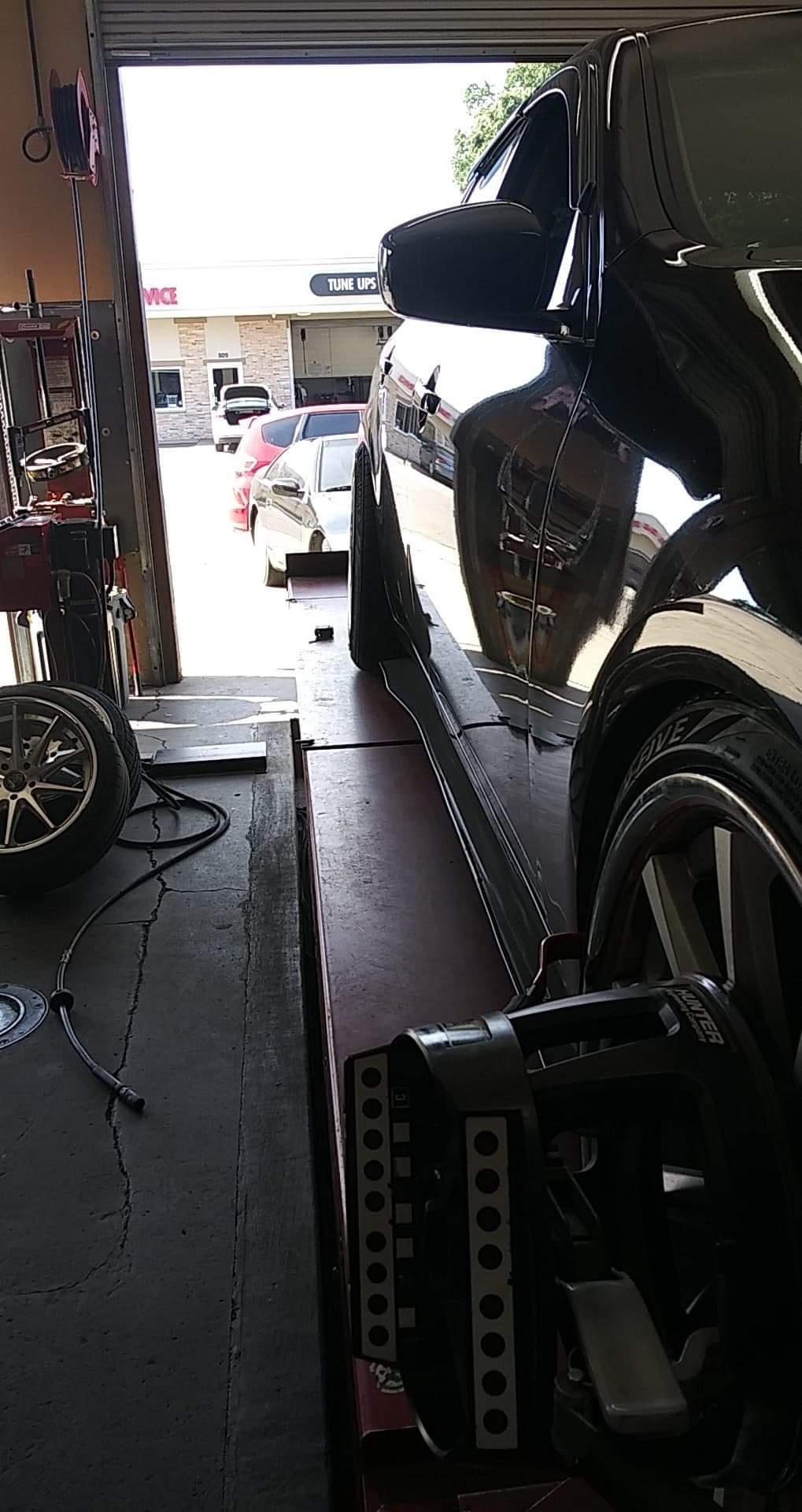

Tried to fit my wheels on last weekend and I just couldn't, idk if it's the 255/35 or maybe a 10.5 won't fit 😞
Attached Thumbnails The OFFICIAL "I have a wheel offset / tire fitment question!" thread-received_468351130578471.jpeg   The OFFICIAL "I have a wheel offset / tire fitment question!" thread-received_405194043649971.jpeg
Old 05-03-2019, 06:18 PM
  #2439
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,940 Likes on 4,174 Posts
Looks like they're barely inside the fenders or are the pics not very accurate? I knew it was going to be a tough fit but what camber are you running?
Old 05-04-2019, 01:28 AM
  #2440
RJ's_G37
Registered Member

RJ's_G37's Avatar

Join Date: May 2013
Location: Visalia Ca
Posts: 173
Received 15 Likes on 11 Posts
Originally Posted by blnewt
Looks like they're barely inside the fenders or are the pics not very accurate? I knew it was going to be a tough fit but what camber are you running?
Yeah man barely inside,wheel wouldn't even turn because it was sitting on the fender, went all the way negative,lifted up the coils but nada..I like how the 10.5 looks but I might have to get one with a higher offset or or just go 10 in the rear, bit these came off a coupe so I'm like what the hell lol
Old 05-23-2019, 12:33 PM
  #2441
G3SIETE
Registered Member

G3SIETE's Avatar

Join Date: May 2019
Location: Denver, CO
Posts: 17
Likes: 0
Received 2 Likes on 2 Posts
Hi everyone, newbie here. Been looking on the forum for seems like forever to find the right wheel size and offset that I would like.

I narrowed it down to a square setup for my Journey Coupe
19x9.5 +20 to +25 w/ 255/40 tire
(may need a spacer in the rear but i'm ok with that)

I want something as flush as possible yet functional. I am going to be putting Eibach springs. Jut want to make sure this setup will work before I start looking at wheels so I know exactly what to look for.
Thanks!
Old 05-24-2019, 10:16 PM
  #2442
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,940 Likes on 4,174 Posts
Originally Posted by G3SIETE
Hi everyone, newbie here. Been looking on the forum for seems like forever to find the right wheel size and offset that I would like.

I narrowed it down to a square setup for my Journey Coupe
19x9.5 +20 to +25 w/ 255/40 tire
(may need a spacer in the rear but i'm ok with that)

I want something as flush as possible yet functional. I am going to be putting Eibach springs. Jut want to make sure this setup will work before I start looking at wheels so I know exactly what to look for.
Thanks!
You'll have a good fit w/ those specs once lowered, I'd lean toward the +25 just to have a bit more room at in-spec camber.
Old 05-28-2019, 03:17 PM
  #2443
G3SIETE
Registered Member

G3SIETE's Avatar

Join Date: May 2019
Location: Denver, CO
Posts: 17
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by blnewt
You'll have a good fit w/ those specs once lowered, I'd lean toward the +25 just to have a bit more room at in-spec camber.
Thanks for chiming in blnewt - do you think a 245/40 would be better to be into spec? The wheels I am currently looking at are 19x9.5 +22

Last edited by G3SIETE; 05-29-2019 at 09:58 AM.
Old 06-15-2019, 01:32 PM
  #2444
GLodi_31
Registered Member
iTrader: (1)

GLodi_31's Avatar

Join Date: May 2014
Location: Stoneham, MA
Posts: 81
Received 2 Likes on 2 Posts
Alright so I am ready for another set of wheels, and this time I have decided to going with 2 piece wheels. I am looking at getting a custom built set from GMR wheels. Anyways I have a 2012 Infiniti G37x AWD coupe. I have the Fly1 Motorsports 12mm wider fenders in the front and I am on airlift with an bbk upgrade. I was thinking of running 19x10 in front and 19x11 in rear. Not sure on offsets my knowledge isn't so great. Tires I was thinking 245/35 in front and 275/35 in rear. Whats y'all opinion on fitment? any information would greatly be appreciated. Don't want to spend the money if its not going to look great.
Old 06-16-2019, 12:08 AM
  #2445
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,940 Likes on 4,174 Posts
Originally Posted by GLodi_31
Alright so I am ready for another set of wheels, and this time I have decided to going with 2 piece wheels. I am looking at getting a custom built set from GMR wheels. Anyways I have a 2012 Infiniti G37x AWD coupe. I have the Fly1 Motorsports 12mm wider fenders in the front and I am on airlift with an bbk upgrade. I was thinking of running 19x10 in front and 19x11 in rear. Not sure on offsets my knowledge isn't so great. Tires I was thinking 245/35 in front and 275/35 in rear. Whats y'all opinion on fitment? any information would greatly be appreciated. Don't want to spend the money if its not going to look great.
For your AWD to function properly you need to be under 1% diameter variance front to back, a 245/40 front and 275/35 rear will be MUCH better at only 0.52% smaller in back, your 35 series on both would cook your transfer case w/ a whopping 3.11% off. For a bit less stretch a 255/40 F 285/35 R will be at 0.66 variance.
As far as offsets, really depends how much camber you want to run at drive height, for in spec camber at drive height offset in the +25 range in front and +35 in back would seem pretty. close. If you're wanting a cambered look when running you can run less positive on the offsets
Need to confirm BBK clearance w/ vendor too.
