DIY: G37 Automatic Transmission Fluid Change, Pan Drop/Clean
Registered Member
Joined: Apr 2018
Posts: 454
Likes: 32
There is no need for a dipstick because the fill hole on tranny fluid pan has a welded tube on it and the length of the tube corresponds with the required level of tranny fluid. Get yourself CTA Tools 7425 ATF Filler Adapter available on Amazon for 20 bucks screw on the filler hole on tranny pan connect your fluid pump and pump ATF until is going to spill from the filler adapter, remove the adapter, level your car and let ATF drain until its stop,screw drain plug on the filler hole and you done with. That how dealers change ATF on our G.
Registered Member
Joined: Aug 2016
Posts: 130
Likes: 48
From: Philadelphia PA
I used transfer pump too,but you need to find something to connect your pump hose to fill hole in the tranny pan and,like i said level of ATF set by lenght of the tube attached to fill hole in a tranny pan,when fluid reach top of the tube and start to spill down is mean you got your ATF filled to requared level.That is mean lengt of that tube actually work as a dipstick.Do not forget to lover your car from the jack to drain ecsessive fluid out.
Moderador
Joined: Jun 2019
Posts: 2,626
Likes: 765
From: South Florida
Lol that adapter is $50 in canada. Pass... I'll try doing something different with a fluid transfer pump and see how that goes. And good call with the dipstick, I figured it was a nice to have but not a need. Wasn't sure if there was a specific level that the trans needed to be at, but if it's like doing a diff where its full when spilling out I'm fine with that.
The tapered end of a differential fluid bottle with work with a fluid pump. You can jam this plastic tip inside of the hole and it will do the job.

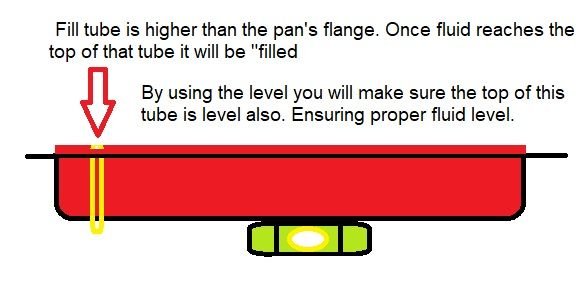

The level will solve all of your guesses. By using the level on the most leveled area of the pan will mean that the internal fill tube will also be leveled, removing the need to put your car on the floor to drain excess.
Also very important, fluid excess needs to be checked on hot fluid while the vehicle is on.
Registered Member
Joined: Apr 2018
Posts: 454
Likes: 32
I don’t really understand what abrecos is saying about the level tube, or something , should have quoted it cause I already forgot
but I see what your saying bull about the temperature. I have a scanner for the car that tells me the internal temp of the fluid, will be testing that today to see what happens from cold to running. And I intend on having the car level on Jack’s when this is done
but I see what your saying bull about the temperature. I have a scanner for the car that tells me the internal temp of the fluid, will be testing that today to see what happens from cold to running. And I intend on having the car level on Jack’s when this is done
Registered Member
Joined: Dec 2020
Posts: 9
Likes: 3
Here's the google listing for that part # maybe you can find something in there, don't have it otherwise
https://www.google.com/search?q=niss...utf-8&oe=utf-8
https://www.google.com/search?q=niss...utf-8&oe=utf-8
Registered Member
Joined: Aug 2016
Posts: 130
Likes: 48
From: Philadelphia PA
Registered Member
Joined: Aug 2016
Posts: 130
Likes: 48
From: Philadelphia PA
All i am saying that there is a welded tube on the fill hole inside the pan and you fill ATF until is start dripping from that hole, make sure your car is leveled,and when is dripping of ATF fluid stops put your plug in and called it done.
Registered Member
Joined: Dec 2020
Posts: 9
Likes: 3
Registered Member
Joined: Dec 2020
Posts: 9
Likes: 3
hi again and merry Christmas, i do have the x model 2013 can you give me good fluids to add after remplace, im planning to do transfer case transmission and rear and front diferential ... thanks in advance
Registered Member
Joined: Aug 2016
Posts: 130
Likes: 48
From: Philadelphia PA
This is for transfer case get two bottles. https://www.redlineoil.com/d4-atf
Registered Member
Joined: Aug 2016
Posts: 130
Likes: 48
From: Philadelphia PA
And this is for front and rear differential you need 3 bottles.https://www.redlineoil.com/75w90-gl-5-gear-oil
Registered Member
Joined: Aug 2016
Posts: 130
Likes: 48
From: Philadelphia PA
I have 2010 G37x also and i use Red line products a long time,except tranny fluid cause is better for our cars to use genuine matic s.Products what i recommend you is currently in my transfer case and both differentials.And,if you want to try here is full syntetic ester oil i use Red line here is the link
Registered Member
Joined: Dec 2020
Posts: 9
Likes: 3
I have 2010 G37x also and i use Red line products a long time,except tranny fluid cause is better for our cars to use genuine matic s.Products what i recommend you is currently in my transfer case and both differentials.And,if you want to try here is full syntetic ester oil i use Red line here is the link https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1
