2011 Infiniti G25x G37 Car audio build Rockford Fosgate 3sixty.3 Polk Audio Zed

Old 06-25-2015, 03:33 PM
  #46
andylap6891
Registered User

Join Date: Jun 2015
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts

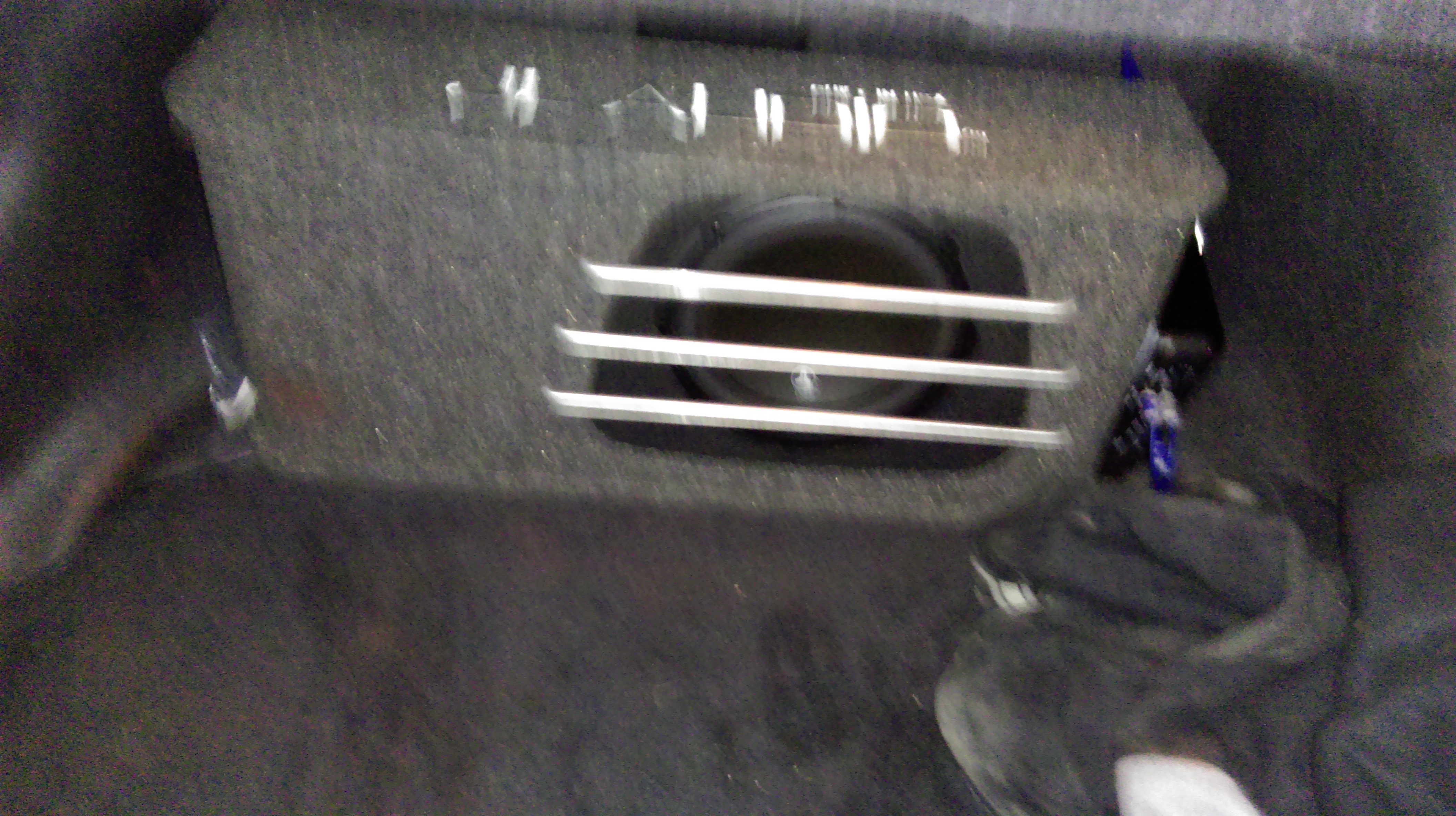

this is the little setup i just put in my g25

[/IMG]
Attached Thumbnails 2011 Infiniti G25x G37 Car audio build Rockford Fosgate 3sixty.3 Polk Audio Zed-imag0248.jpg
andylap6891 is offline
Old 08-30-2015, 12:07 AM
  #47
m3clubracer
Registered User

m3clubracer's Avatar

Join Date: Aug 2015
Location: Indianapolis
Posts: 738
Thanked 59 Times in 56 Posts
Spingjp, very nicely done. Would it be safe to say that mot if not all 12" subs would not fit largely due to the middle seatbelt anchor?
m3clubracer is offline
Old 02-06-2016, 07:59 AM
  #48
m3clubracer
Registered User

m3clubracer's Avatar

Join Date: Aug 2015
Location: Indianapolis
Posts: 738
Thanked 59 Times in 56 Posts
Originally Posted by blazeplacid View Post
what exactly do you do with the
70-7552 harness and 71-7552 Harness?

Why not use a posi-tap instead of using both harness?
Originally Posted by Spingjp View Post
i used the harnessed to tap into the factory harness, i didnt want to cut any wires or tap, just so incase i ever want to remove everything it will come out easily, you can use the tap connectors if you want.. the harnesses are inexpensive anyways...
blazeplacid, did you get from this that the two connectors were used in series together, (exactly same pin out one male and other female) and not independently, in order to get the front L/R signals to the amp enabling removal to quickly go back to the HU powering the speakers? Like Lkoh's setup diagram mine should be the same although I didn't label the metra harnesses. See attached pics.

I want to add an amp and sub now and later add a processor + amp to power component speakers.
Attached Thumbnails 2011 Infiniti G25x G37 Car audio build Rockford Fosgate 3sixty.3 Polk Audio Zed-wiringchartnonbosesedanrev1.jpg
Attached Files
File Type: pdf
radio diag.pdf (47.6 KB, 54 views)
m3clubracer is offline
Old 03-16-2016, 03:25 PM
  #49
dslice
Registered User

Join Date: Jan 2007
Location: FL
Posts: 11
Thanked 1 Time in 1 Post
Nice work SpinJP and thanks for the pics...

I plan to do the same in my G37 Sedan non-Bose as well using an Audiocontrol LC6i...

I was reading about the Metra 70-7552 and 71-7552 Harness and it seem that you loose illumination on your Head-unit, is that true?

Thanks
dslice is offline
Old 03-16-2016, 04:13 PM
  #50
m3clubracer
Registered User

m3clubracer's Avatar

Join Date: Aug 2015
Location: Indianapolis
Posts: 738
Thanked 59 Times in 56 Posts
No but you lose steering wheel control unless you tap splice connect them. They are not in the harness side 71? harness.

Last edited by m3clubracer; 06-22-2017 at 04:34 PM.
m3clubracer is offline
Old 03-17-2016, 09:18 PM
  #51
kennyz424
Moderator
iTrader: (147)

kennyz424's Avatar

Join Date: Apr 2013
Location: Florida
Posts: 6,360
Thanked 1,482 Times in 1,266 Posts
Great work and thanks for the detailed pictures! Really came out very nicely
kennyz424 is offline
Old 03-23-2016, 02:09 PM
  #52
dslice
Registered User

Join Date: Jan 2007
Location: FL
Posts: 11
Thanked 1 Time in 1 Post
Thanks m3clubracer!

Good to know...
dslice is offline
The Following User Says Thank You to dslice For This Useful Post:
m3clubracer (06-22-2017)
Old 06-22-2017, 02:41 PM
  #53
chuck4321
Registered User

Join Date: Jun 2017
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by blazeplacid View Post
that amp does not have speaker level inputs or any type of auto turn on.

I have a 2011 G37 sedan with base audio and tapped into the wires behind the radio.

follow this link
https://www.myg37.com/forums/audio-v...diagram-s.html

harness 201 is for base audio WITH back up camera
Harness 81 is base audio no camera

it depends on which options your car has.

I would use the smallest wire taps you can find. There is room but not much.

Also the rear channels put out VERY little signal.
Im guessing the rear speakers are very efficient.


If I had to do it again I would only tap into the front left and right and not even worry about the rear channels

most processors can sum 2 channels and turn them into 4,6, or 8 channels
Don't mean to revive an old thread, but I'm currently planning out an install for a 2011 G25x and had a few questions. Speakers are these Kappas from Infinity. Looks like I shouldn't need spacers.

I've decided against running a LOC. I purchased a RD900/5 from JL, and it seems prepared to take high-level signals.

I was thinking about running signal from the head unit using the Metra, but I hate the idea of losing steering wheel controls. Also, my installer has mentioned that he prefers to get his signals from the rear speakers.

1) Is there enough of a signal in the rears or would the head unit method give me a better signal with a broader range of frequencies?

2) Would I retain full use of my steering wheel controls if I tapped signal from the rears?

3) I'm not interested in changing out the rear door speakers. Is it possible to amplify my new components using the JL, but run the stock rear speakers from the head unit?

Sorry if these are rookie questions.

Last edited by chuck4321; 06-22-2017 at 02:56 PM.
chuck4321 is offline
Old 07-05-2017, 12:49 PM
  #54
blazeplacid
Registered User
iTrader: (1)

Join Date: Apr 2012
Posts: 670
Thanked 37 Times in 36 Posts
If you plan on running that JL amp you will need a LOC. That amp will not accept speaker level inputs.

1 - I would only tap into the fronts unless you can get an LOC with gain adjustment. Trial and error would be the best bet on the rear speakers. Your installer is trying to save time by only tapping into the rear speakers which I understand. I would still only recommend tapping into the front especially if you are going to run a 5 channel amp.

2 - The only way you would lose steering wheel control is by removing the factory head unit. Tapping into speaker wires will cause no issues.

3- You can power the rears via the headunit and power the other speakers via an amp.
You will probably fade the signal to the front because the rear speakers will sound terrible compared to a new set up in the front =)
blazeplacid is offline
Old 06-30-2018, 04:25 AM
  #55
mikus
Registered User

Join Date: Oct 2013
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
I noticed the metra interconnect isn't a 1 to 1 interconnect between them, a bit hesitant to use it on my '11 g37 convertible.

I'm thinking more going to tap the input, or the outputs off the bose amp in the rear, about the same at a high level input, but otherwise hoping the amp can clean them up enough.

I've no room for a sub being a convertible, I'm just hoping to add some decent 6x9 in the rear and 6.5 components up front, likely JL, but looking at a small/mini amp to drive I can mount in the trunk still. Maybe a cleansweep or 360.3 type dsp for main front/rear, otherwise leave the center/headrest speakers off the bose...

Anyone else struggle with sound on a 'vert?
mikus is offline
