Spingjp

Here is my Infiniti G25x complete audio build
This is the Non bose version of the car, It is identical the same to the g37 non bose.

Everything done to the car is completely OEM integrated


Project includes..

Rockford Fosgate 3sixty.3
Zed Audio Leviathan III
Polk audio MM6501 component
Polk audio MM651 Coaxial
Polk audio MM1040DVC sub
Stinger 8 gauge amp kit
Stinger RCA’s
250 ft+ Stinger Speaker wire
Stinger Road Kill Sound dampening
Metra 70-7552 harness
Metra 71-7552 Harness

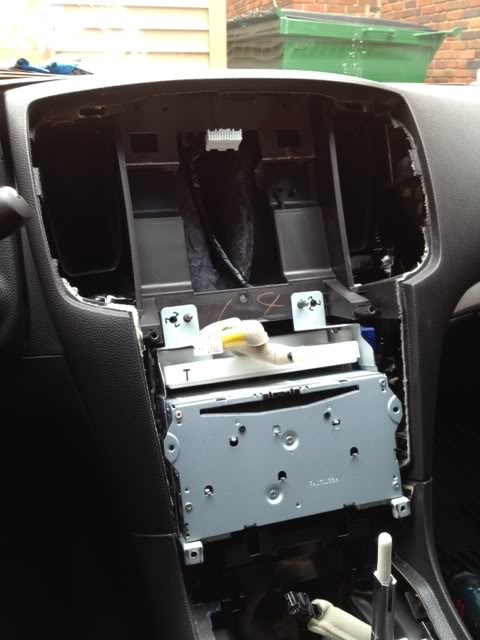

Removing Radio

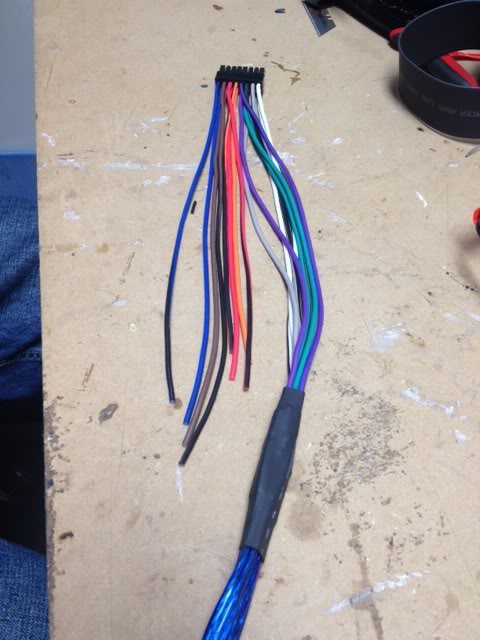

This is where I used the Metra 70-7552, and Metra 71-7552 to tap my signal from the back of the radio

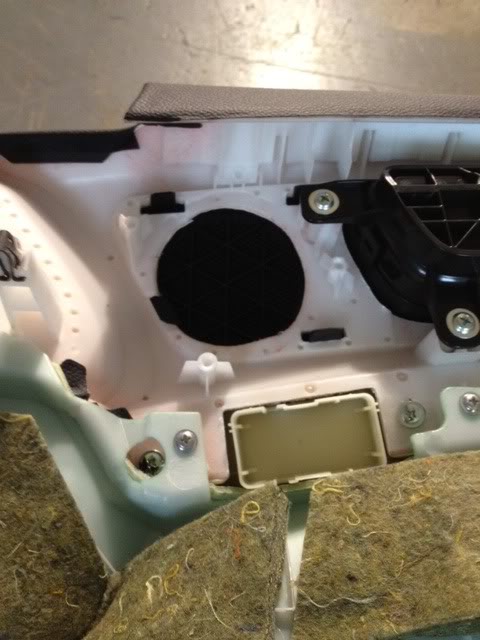

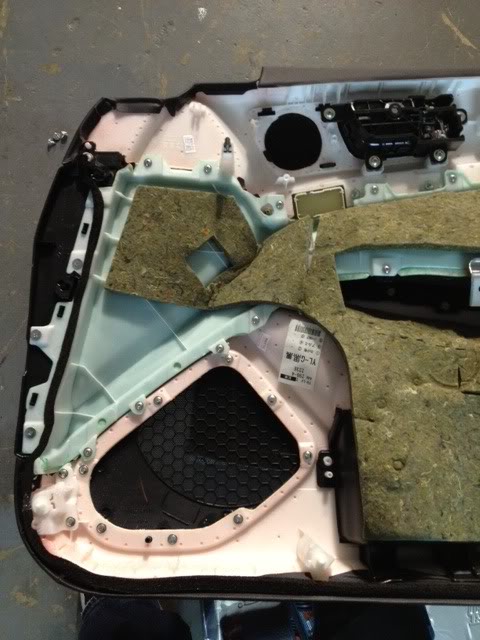

Front door tweeter install prep

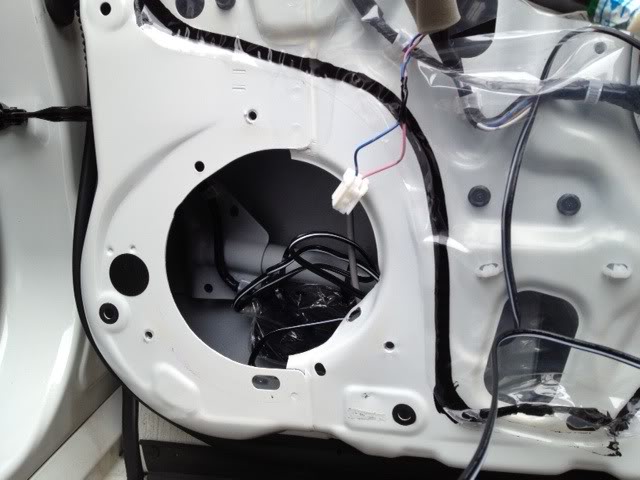

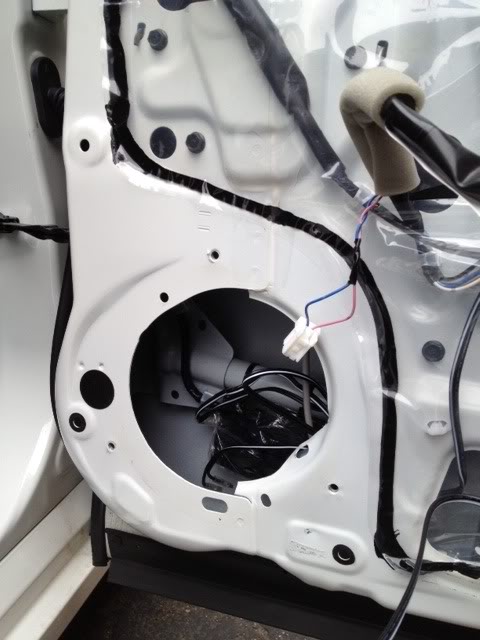

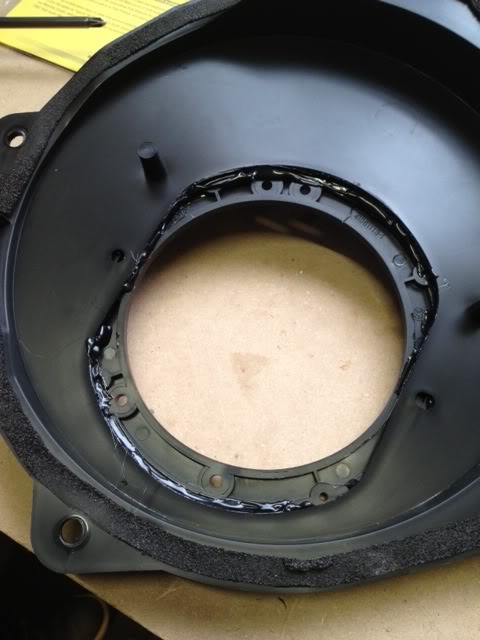

Original front door speaker bracket modification

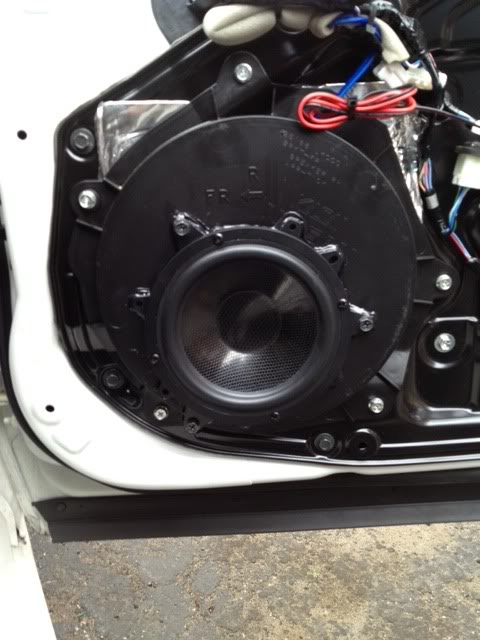

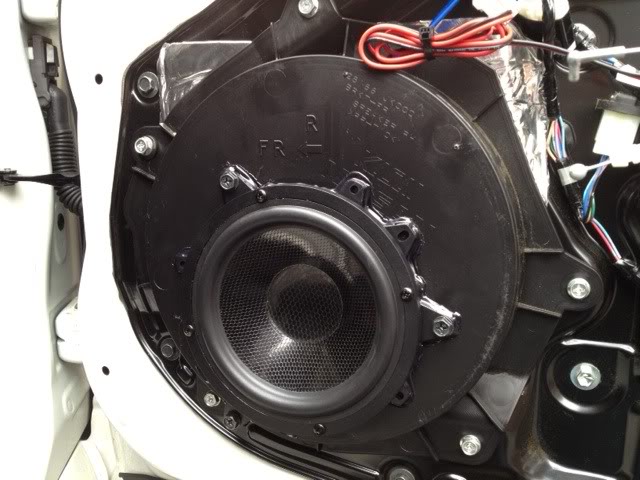

Front door speaker install Polk audio MM6501 component

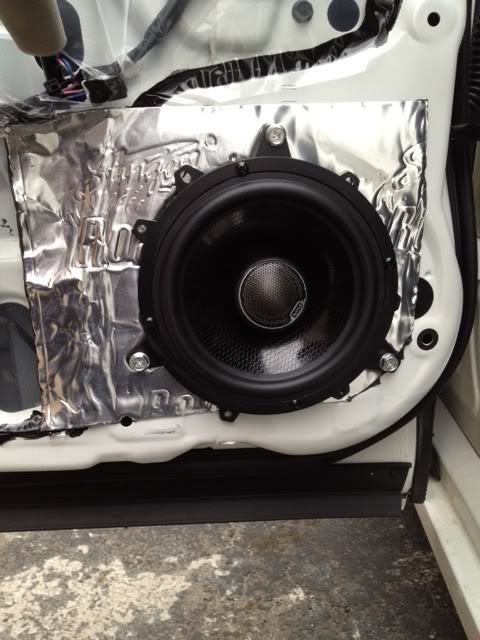

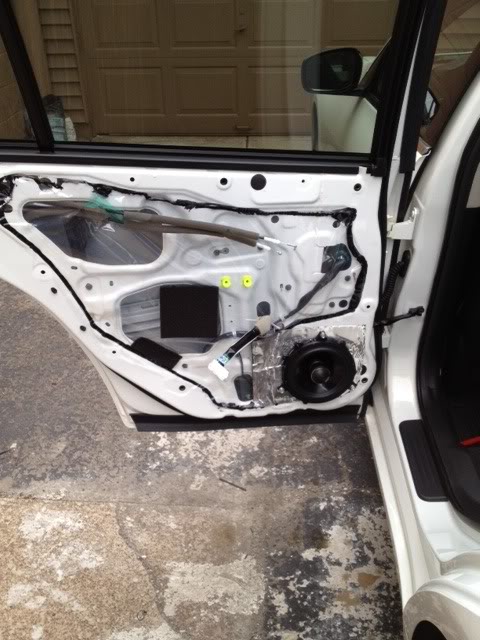

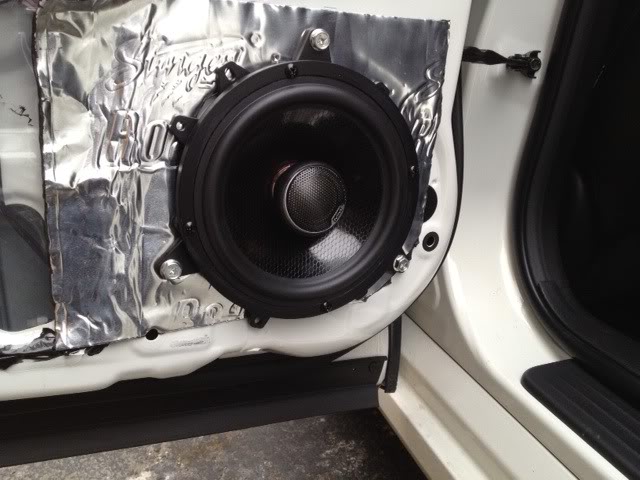

Rear doors speaker install Polk audio MM651 coxial

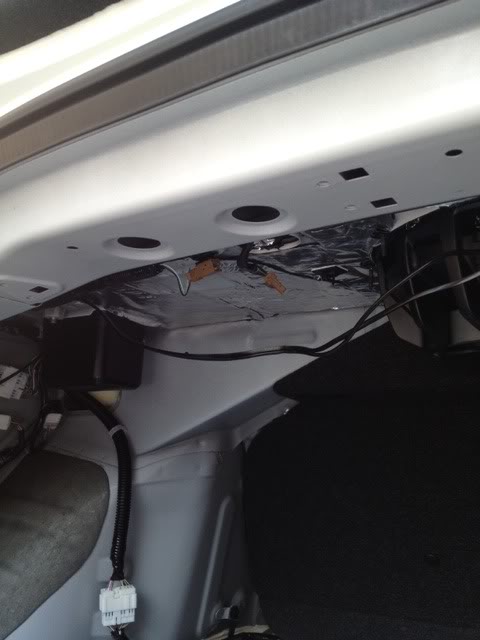

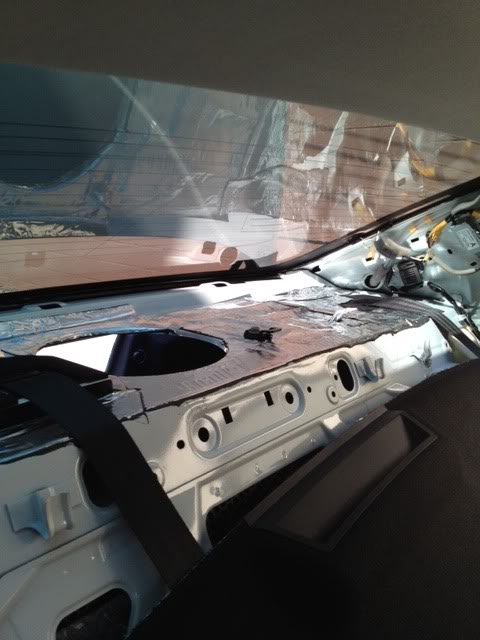

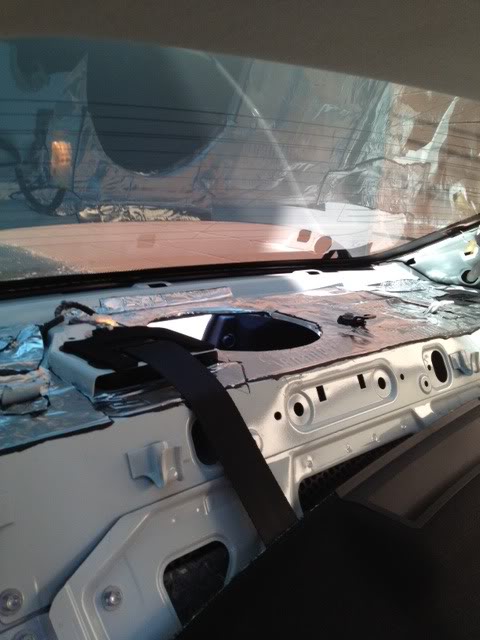

Rear Deck lid Used Stinger Road kill to dampen sound

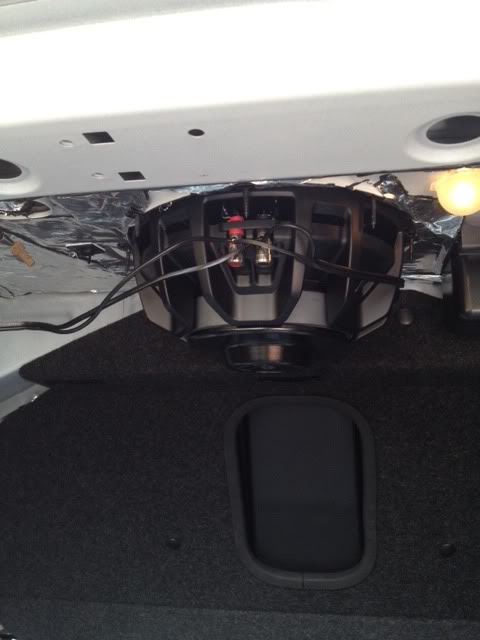

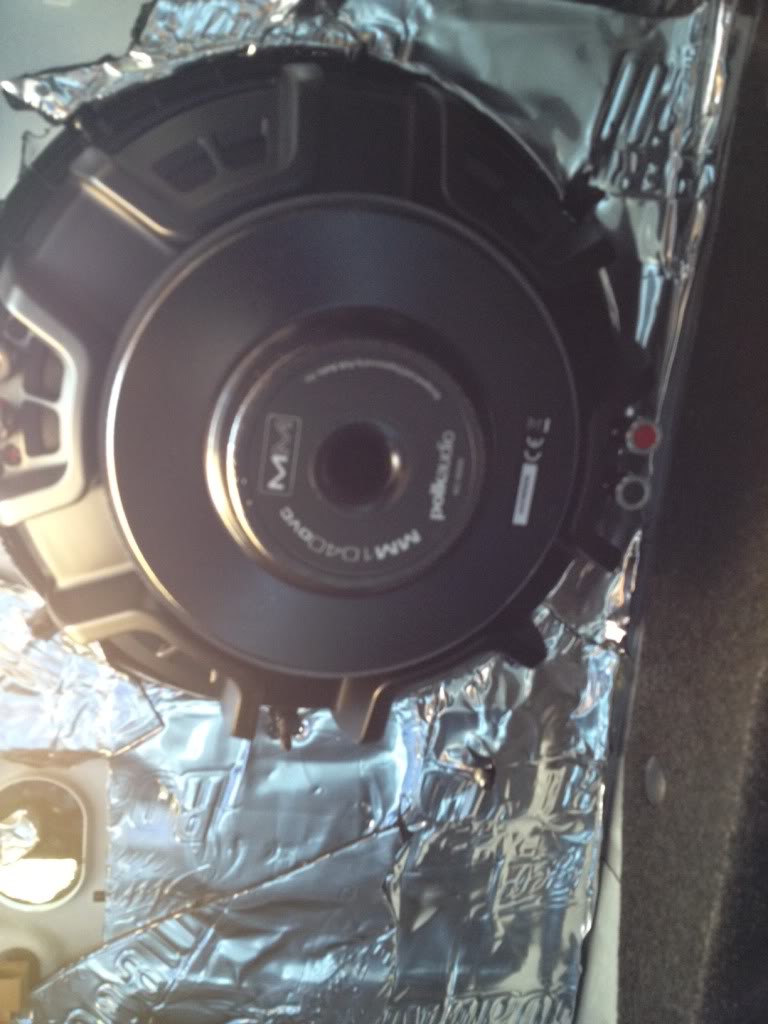

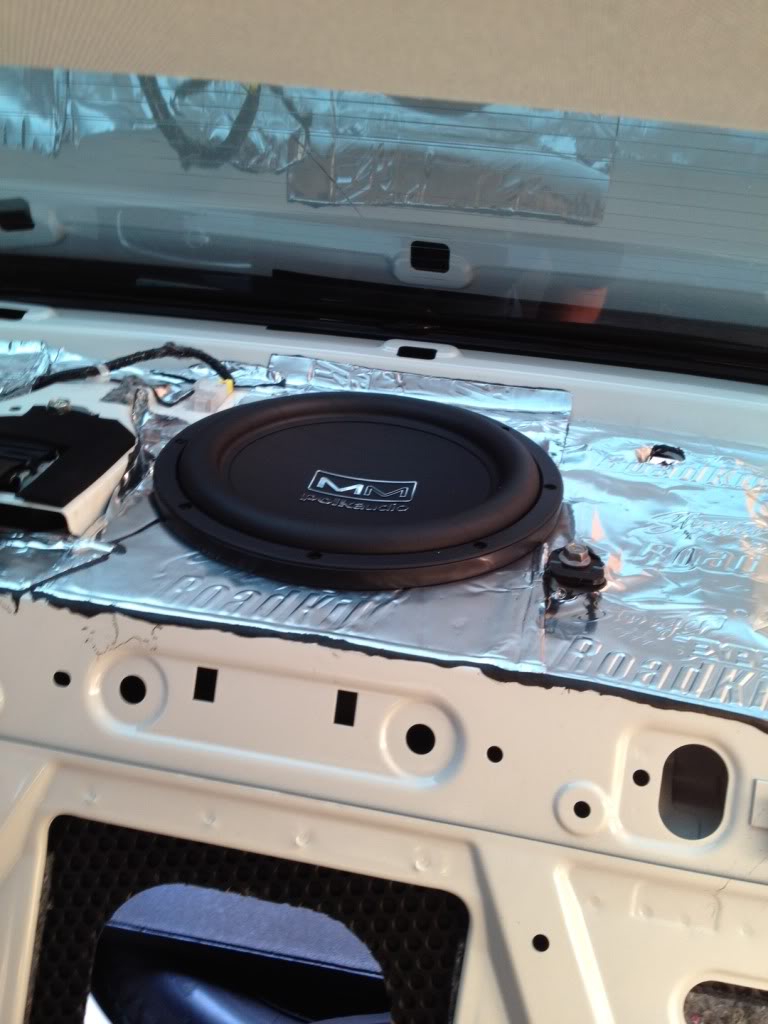

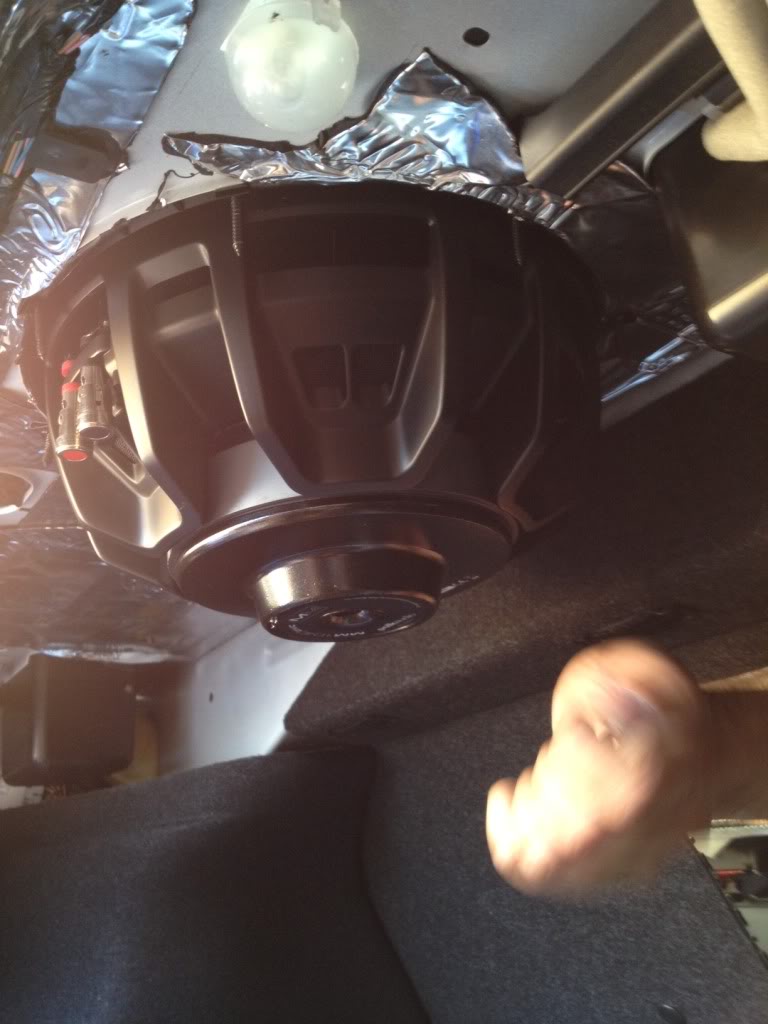

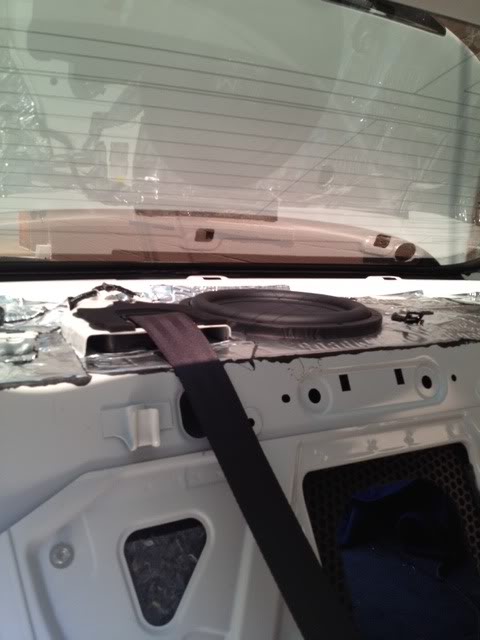

Rear sub install Polk Audio MM1040 DVC

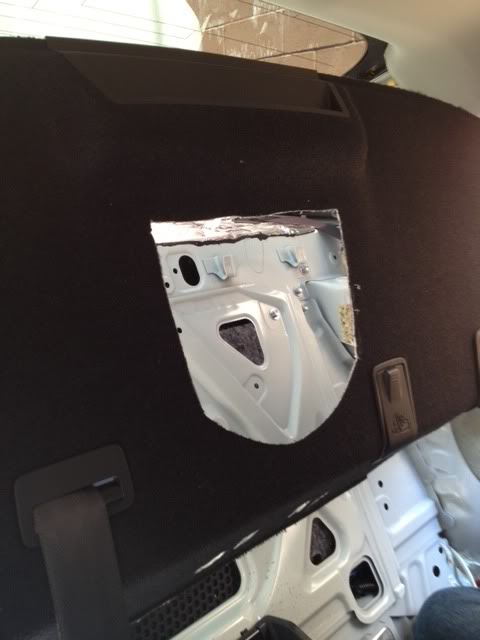

Cut the rear decklid to install OEM Bose grill

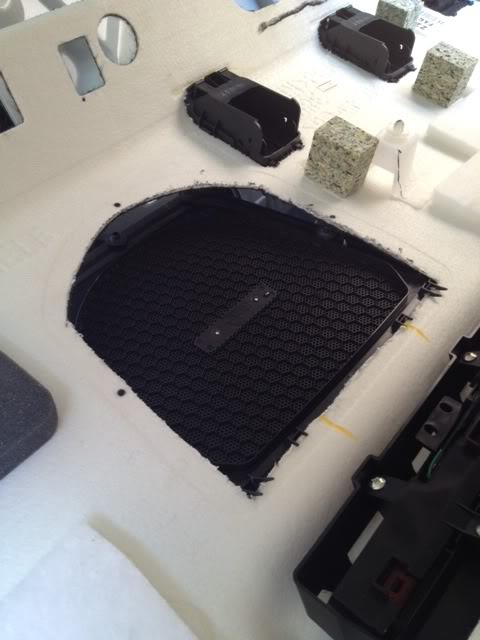

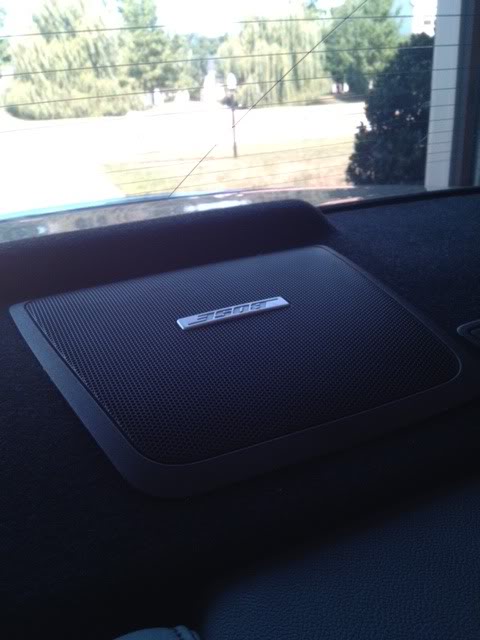

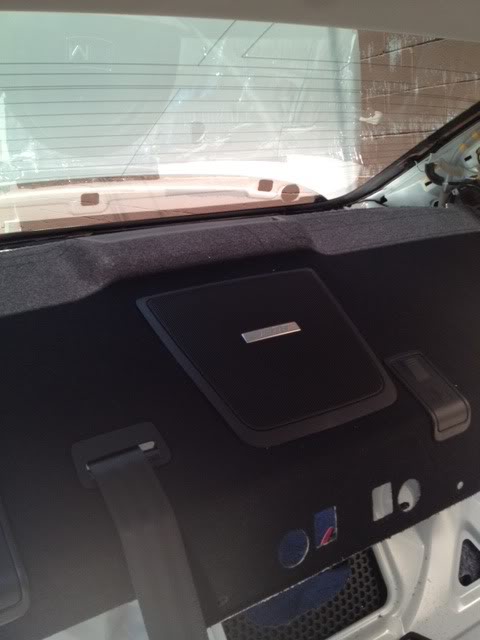

Grill install

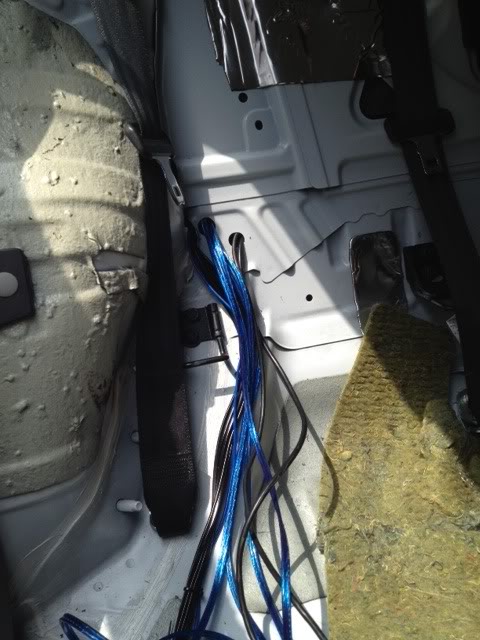

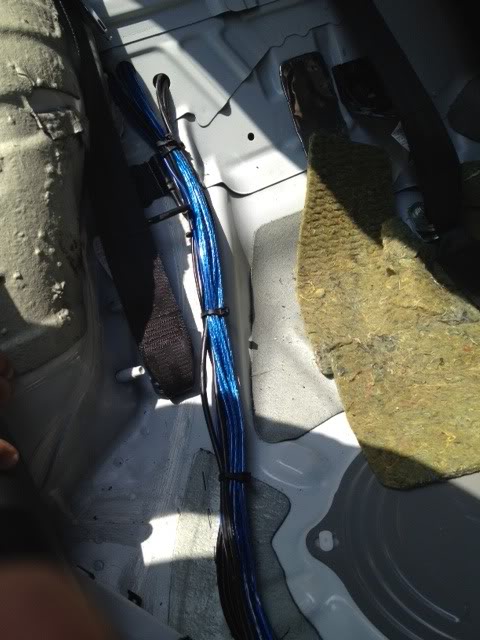

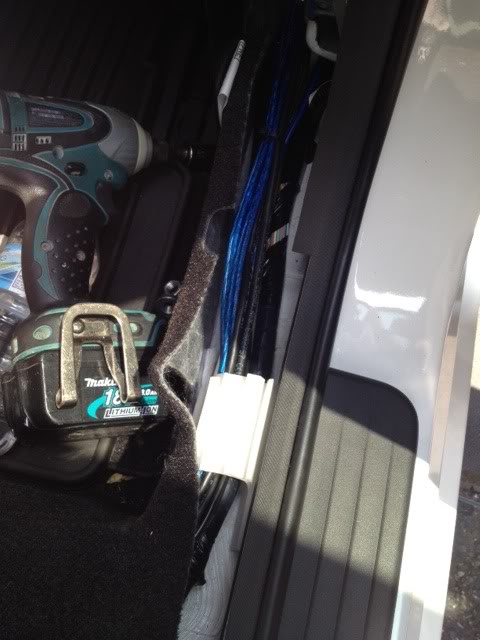

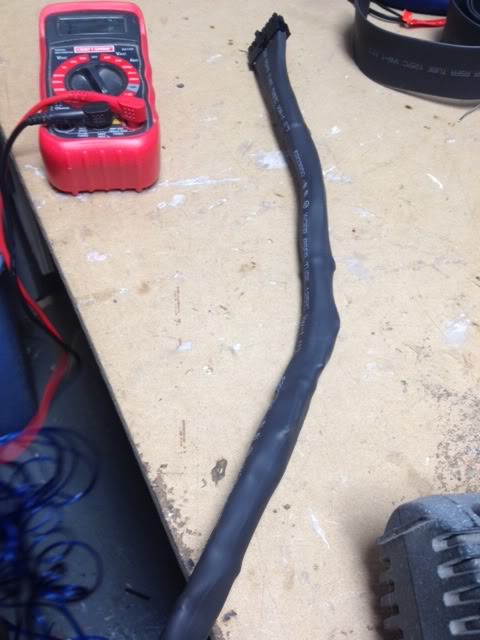

Wiring

Spingjp

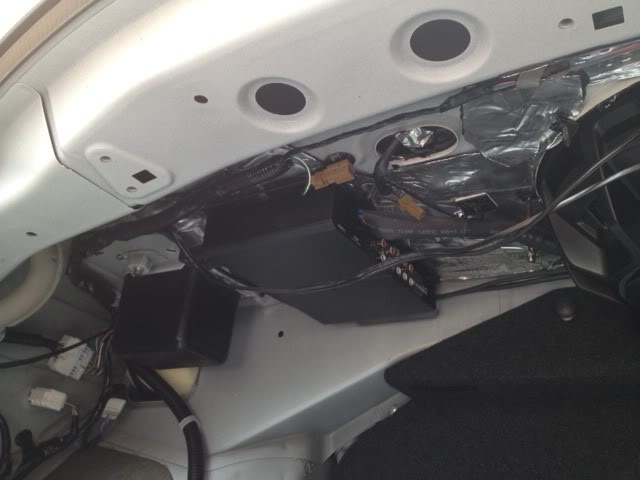

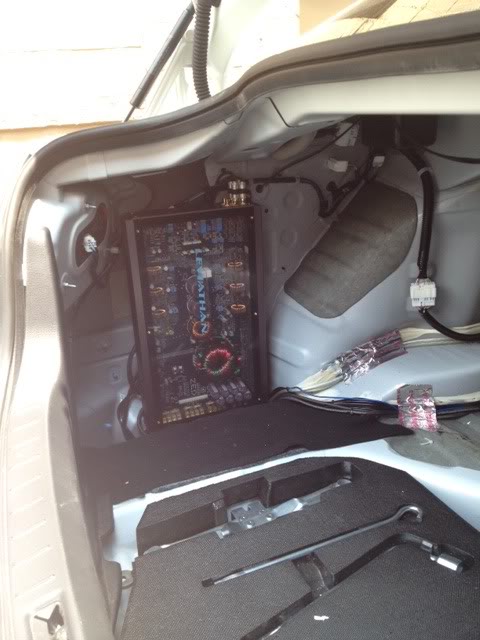

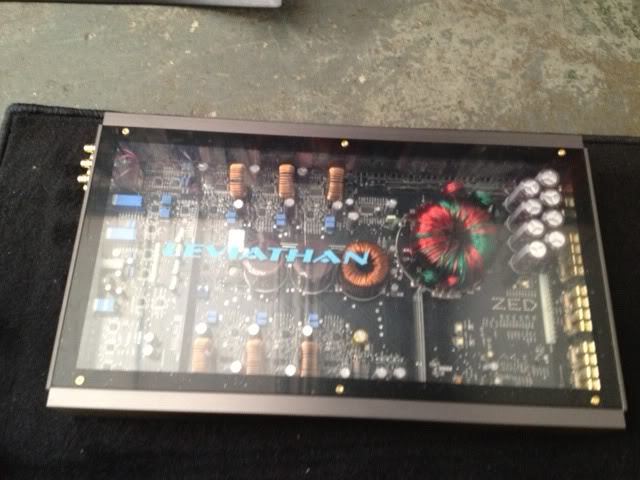

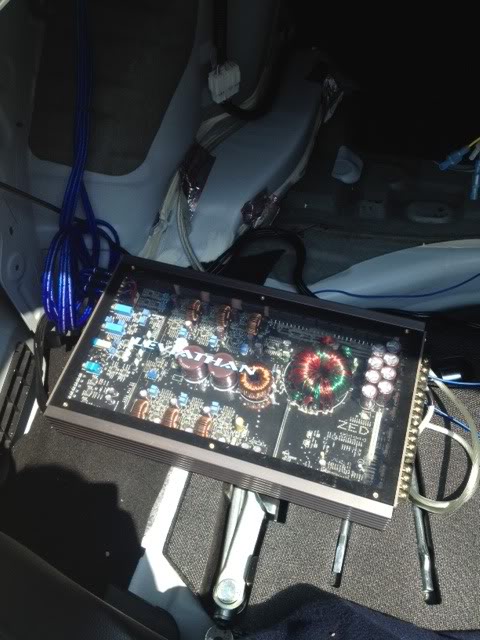

Zed Audio Leviathan III Amp Install









Rockford fosgate 3sixty 3 install








Everything was put into this

Dulanicki

Nice.
How long did it take you to do the install? Also, one of the pics shows you using a laptop, what was the purpose? Where you able to tap into head unit and configure?

Spingjp

the install was about a few days of work, we were just waiting on the Rockford Fosgate 3sixty.3 DSP

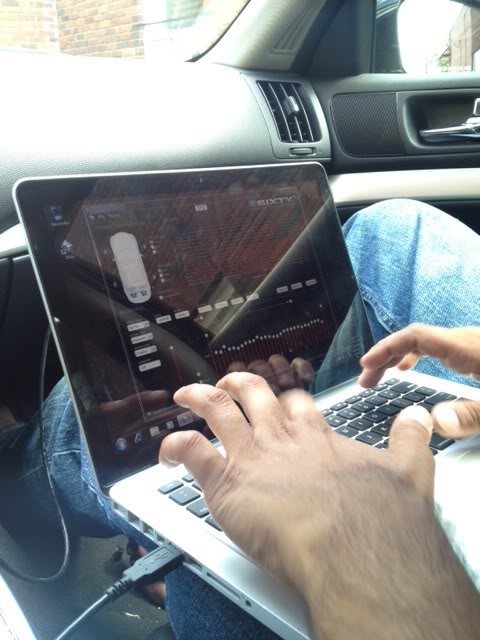

The laptop was to configure the EQ on the 3sixty.3 which is a digital sound processor..

lkoh

I like it! So you managed to get the front tweeters to fit into the OEM brackets? I couldn't tell from the pictures.
I see you were conservative with the sound deadener on the doors... approved.

Spingjp

Yeah I put the tweeters in the same spot just made my own bracket to mount them,

Yes the deadener is a must on doors, and deck lid, vibration just sounds bad..

zinfiniti

Very nice! Bravo!

How does the Polk Audio MM1040 DVC sound since you have it installed without an enclosure??

What exactly did you modify to get the component speaker installed? Wouldn't an adapter like the ones from zenclosure have worked?

Black Betty

iTrader: (60)

Nice install. Thanks for sharing.

Spingjp

The mm1040dvc sounds great, i have it hitting in reverse so it makes it sound better..

to get the components in the door i actually used the speaker bracket that came with the polk components.. i didn't have to cut or modify anything in the doors to make them fit.. just basically use the polk speaker adapter and screw it on top of the original infiniti door speaker adapter plate they have already installed...

Spingjp

Maybe this thread will become a sticky?

G37Avi

Hey man, audio install came out awesome. Im in the process of doing mine, i have a 2012 g37, basically same car.

Ive been going back and forth between replacing the factory rear deck subwoofer and putting an amp on it, VS fiberglass enclosures for the trunk. I like the subwoofer in the rear deck better. Are you happy with the sound of it? Is that subwoofer a free-air subwoofer? What did you mean you have it hitting in reverse?

I appreciate the insight.

datboiroy

iTrader: (1)

Just wondering why did you go with a 8awg wiring kit? Why not 4awg?

Spingjp

the sub is not a free air sub but it sounds great, i have the polarity reversed so it makes the sub hit in reverse..

you should definitely look into the Rockford 3sixity3 dsp

Spingjp

just the fact that it was just easier to work with and im running some crazy system setup..

InfiniteSmoke

Damn that sub looks beefy. Nice setup. Stealthy!
