Old 04-18-2017, 12:27 PM   #271
bPChaos
Registered User

Join Date: Nov 2010
Location: Los Angeles, CA
Posts: 137
Thanked 20 Times in 17 Posts
Quote:
Originally Posted by slartibartfast View Post
I seem to recall that the oil cooler and power steering fluid cooler violate the Pauli Exclusion principle. Power steering fluid spitting out the top of the reservoir is a known issue on tracked cars without a heat exchanger. Can't remember if I saw that here or on My370Z forums.

Front brake cooling ducts were never considered by Nissan and are a bear to install.
My power steering fluid has yet to spit out - though i know that it's boiling for sure (it's definitely not happy in the reservoir... lol). We have a small cooler from factory, but it could definitely use a larger one.

Bsanalyst, you might be right about the limp mode. May not be the trans overheating, but rather the oil. Not sure.
bPChaos is online now   Reply With Quote
Old 04-18-2017, 12:57 PM   #272
slartibartfast
Registered User
iTrader: (4)

Join Date: Oct 2014
Location: Houston, Tx
Posts: 1,744
Thanked 152 Times in 139 Posts
Aftermarket power steering heat exchanger. A reservoir cap that fit tighter would also alleviate the problem.
slartibartfast is offline   Reply With Quote
Old 04-18-2017, 01:24 PM   #273
4DRZ
Registered User
Thread Starter
iTrader: (4)

4DRZ's Avatar

Join Date: Sep 2015
Location: Appleton, WI
Posts: 1,600
Thanked 128 Times in 106 Posts
Quote:
Originally Posted by slartibartfast View Post
Front brake cooling ducts were never considered by Nissan and are a bear to install.
Really? I didn't think they would be too bad. Damn, I was planning to do those soon and maybe some 2pc. front rotors. I think I can pull the fog lights from my sedan and route them through the fender liner. I was going to get Stillen/Z1 ducts. I hear you have to remove the hub to mount them behind the rotor though. No really looking forward to that step.

Quote:
Originally Posted by bPChaos View Post
My power steering fluid has yet to spit out - though i know that it's boiling for sure (it's definitely not happy in the reservoir... lol). We have a small cooler from factory, but it could definitely use a larger one.

Bsanalyst, you might be right about the limp mode. May not be the trans overheating, but rather the oil. Not sure.
You are lucky. My first track day in this car was my favorite local track that is really technical with 14 corners in 1 mile. The power steering fluid leaked all over. I noticed it from underneath and actually thought the oil cooler was leaking. I got redline fluid to replace it (I think they recommended their trans fluid for the power steering fluid). After the power steering flush later at Road America, (just as many corners, but spread further apart) I did not have nearly the same issues so I think it is helping. A cooler would probably be even better, but no good places to mount it with the oil cooler and its lines running right where it is supposed to mount.

More than likely you are hitting limp mode from the engine oil. That and the rear diff fluid will run hot much earlier than the trans fluid. My trans fluid still looked decent when I flushed it recently and the diff fluid was black.
4DRZ is offline   Reply With Quote
Old 04-18-2017, 01:29 PM   #274
slartibartfast
Registered User
iTrader: (4)

Join Date: Oct 2014
Location: Houston, Tx
Posts: 1,744
Thanked 152 Times in 139 Posts
My370Z forum has several threads about installing brake ducts. The G can't be anything but worse.
slartibartfast is offline   Reply With Quote
Old 04-18-2017, 01:32 PM   #275
4DRZ
Registered User
Thread Starter
iTrader: (4)

4DRZ's Avatar

Join Date: Sep 2015
Location: Appleton, WI
Posts: 1,600
Thanked 128 Times in 106 Posts
Quote:
Originally Posted by slartibartfast View Post
My370Z forum has several threads about installing brake ducts. The G can't be anything but worse.
Boo! Well, I am sure I will be able to give you the lowdown on these in the next couple of months.
4DRZ is offline   Reply With Quote
Old 04-18-2017, 04:42 PM   #276
Splitter
Registered User
iTrader: (1)

Join Date: Jan 2016
Location: Houston, TX
Posts: 182
Thanked 18 Times in 16 Posts
I have brake ducts. It was simple enough, little bit of cutting but nothing major. The Stillen kit calls for you to route it around the chassis rails, right where my oil cooler lines go, so I couldn't follow their instructions and had to squeeze it in/around the undertray of the engine. I now have 2 plastic connectors that don't fit, but no big deal.

Will post pics of the routing tonight when I get home.
Splitter is offline   Reply With Quote
Old 04-18-2017, 04:59 PM   #277
Lt8Che
'Cuz Racemod-erator
iTrader: (6)

Lt8Che's Avatar

Join Date: Apr 2011
Location: San Antonio, TX
Posts: 2,679
Thanked 278 Times in 177 Posts
Quote:
Originally Posted by Splitter View Post
I have brake ducts. It was simple enough, little bit of cutting but nothing major. The Stillen kit calls for you to route it around the chassis rails, right where my oil cooler lines go, so I couldn't follow their instructions and had to squeeze it in/around the undertray of the engine. I now have 2 plastic connectors that don't fit, but no big deal.

Will post pics of the routing tonight when I get home.

Interested on this as well! Been thinking about it for some time now.
Lt8Che is offline   Reply With Quote
Old 04-18-2017, 05:17 PM   #278
4DRZ
Registered User
Thread Starter
iTrader: (4)

4DRZ's Avatar

Join Date: Sep 2015
Location: Appleton, WI
Posts: 1,600
Thanked 128 Times in 106 Posts
Quote:
Originally Posted by Splitter View Post
Will post pics of the routing tonight when I get home.
Thanks! I thought about brake ducting routes when I installed the oil cooler on my car so I tried to leave room, but I cannot remember if I was thinking I would need a shorter container for washer fluid or not. At least I have an alum. skid plate under my car so the brake ducts will at least have a chance of surviving. On all my other cars, they have gotten torn to shreds in the winter.
4DRZ is offline   Reply With Quote
Old 04-18-2017, 06:26 PM   #279
Splitter
Registered User
iTrader: (1)

Join Date: Jan 2016
Location: Houston, TX
Posts: 182
Thanked 18 Times in 16 Posts
I don't know how we save these for reference, maybe make it a DIY page? Either way, pic attached.

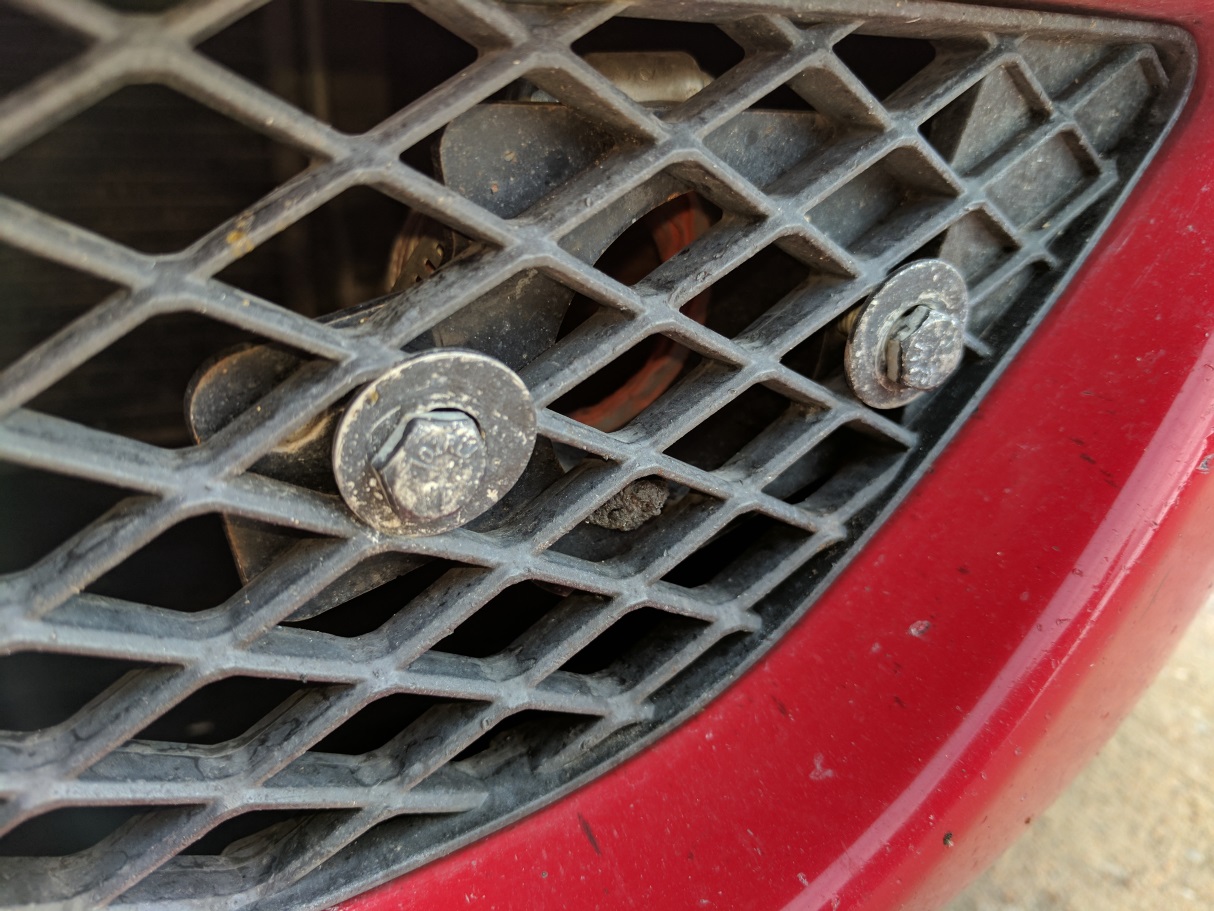

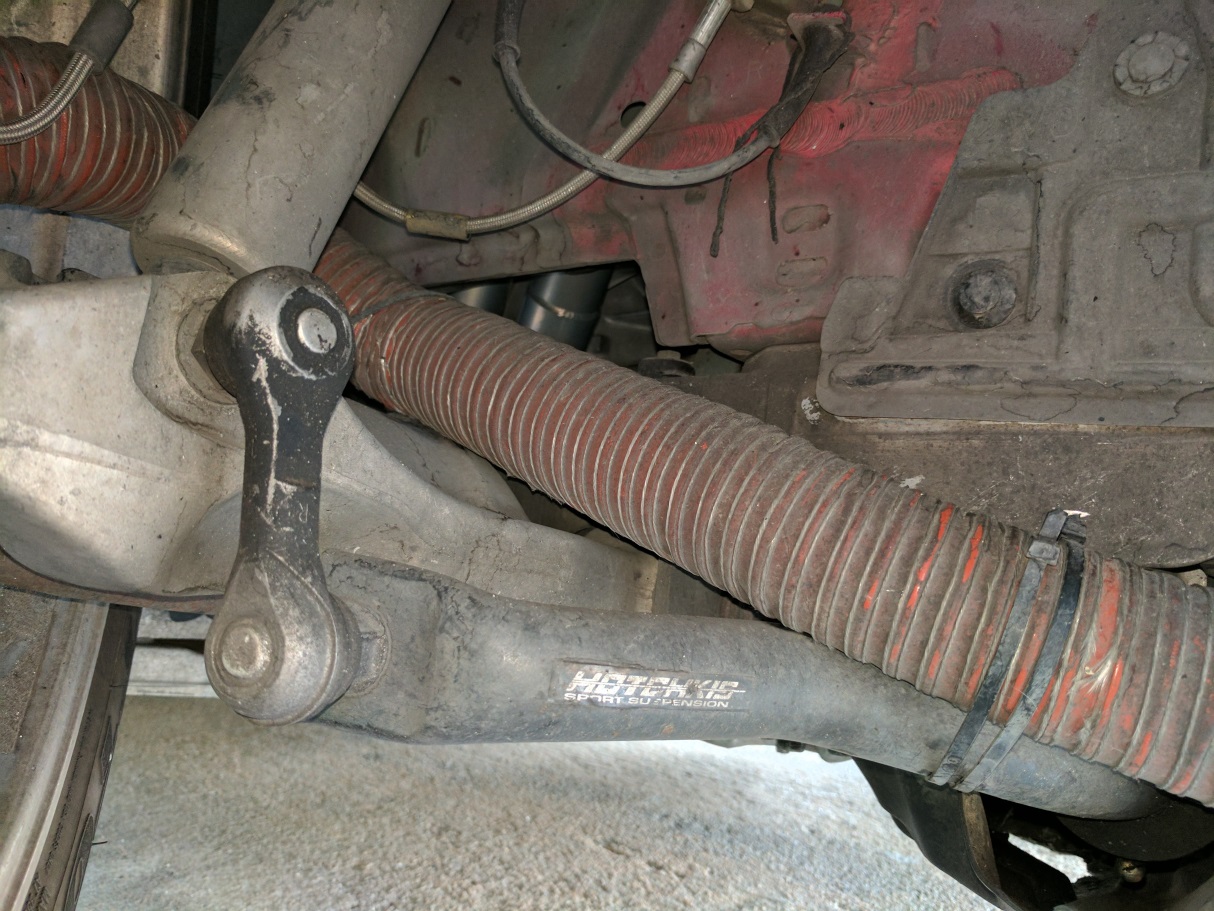

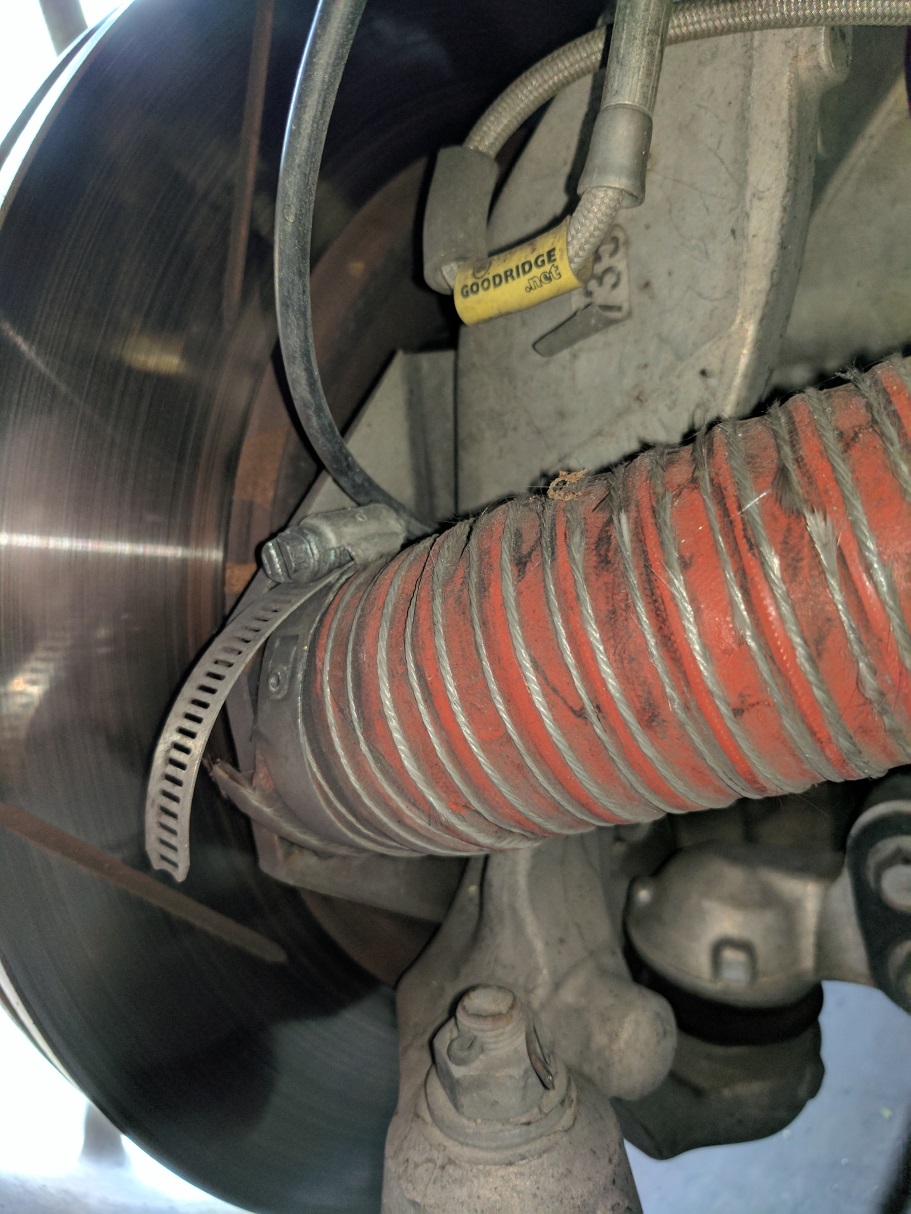

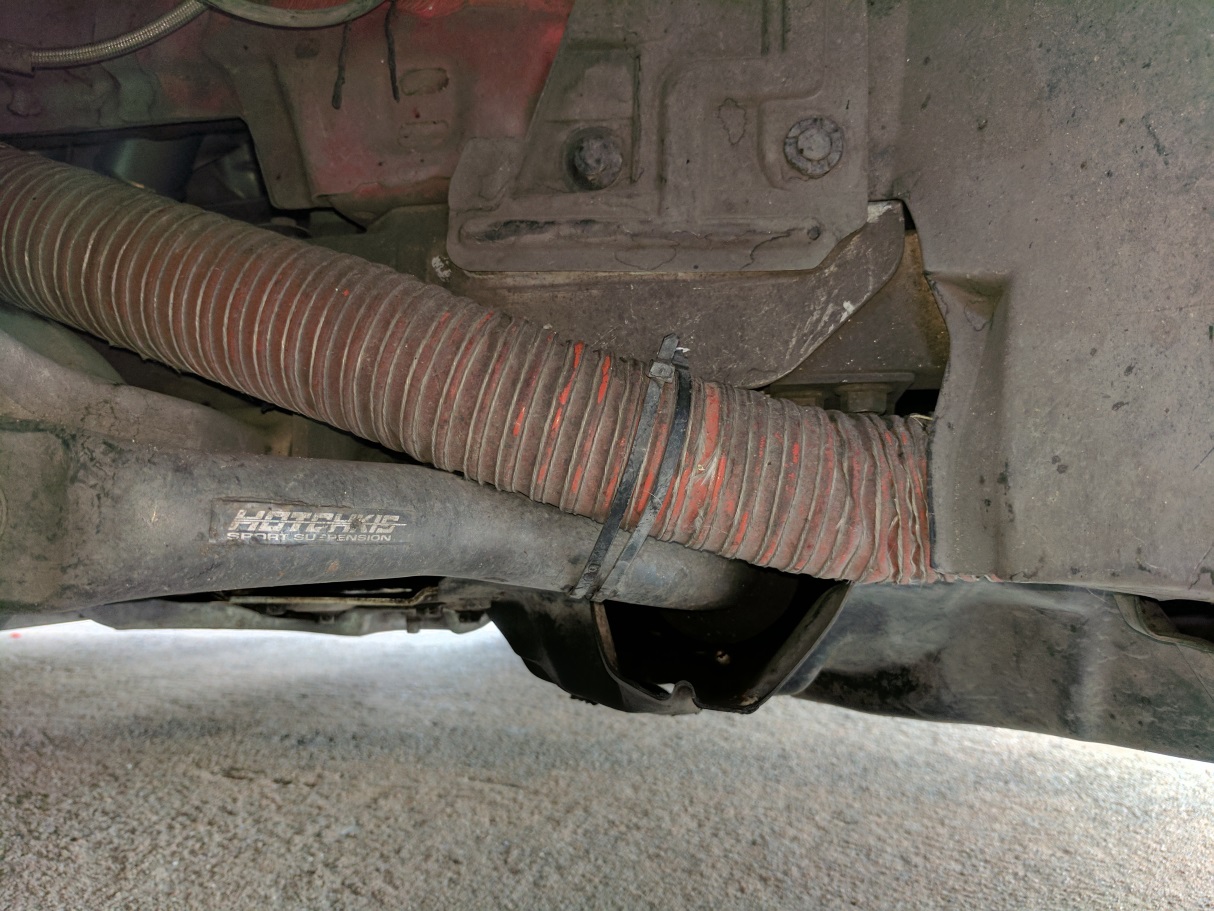

Clean car is mine. Dirty car is a friends, I used his for inspiration and just made it all fit where I could. I could only view his car on the ground 'jacked up' parked on a curb so I don't know what the routing is like under the engine shroud, but I really didn't like how low his hangs, it's about 3" from the ground MAX. His is a track only car, so it's less important, but I wanted to maintain ground clearence. Like I said, 2 of the plastic rivets don't fit - the one by the sway bar, but the shroud is still on tightly. All wheel well trim pieces also fit, without rubbing, but it is all a little tight. After about 6,000 miles I have no rubbing on road or track despite how close it looks with the tyre, that's due to the extra clearance you gain when weight is on the car - pushes the tyre from the sway bar a little.

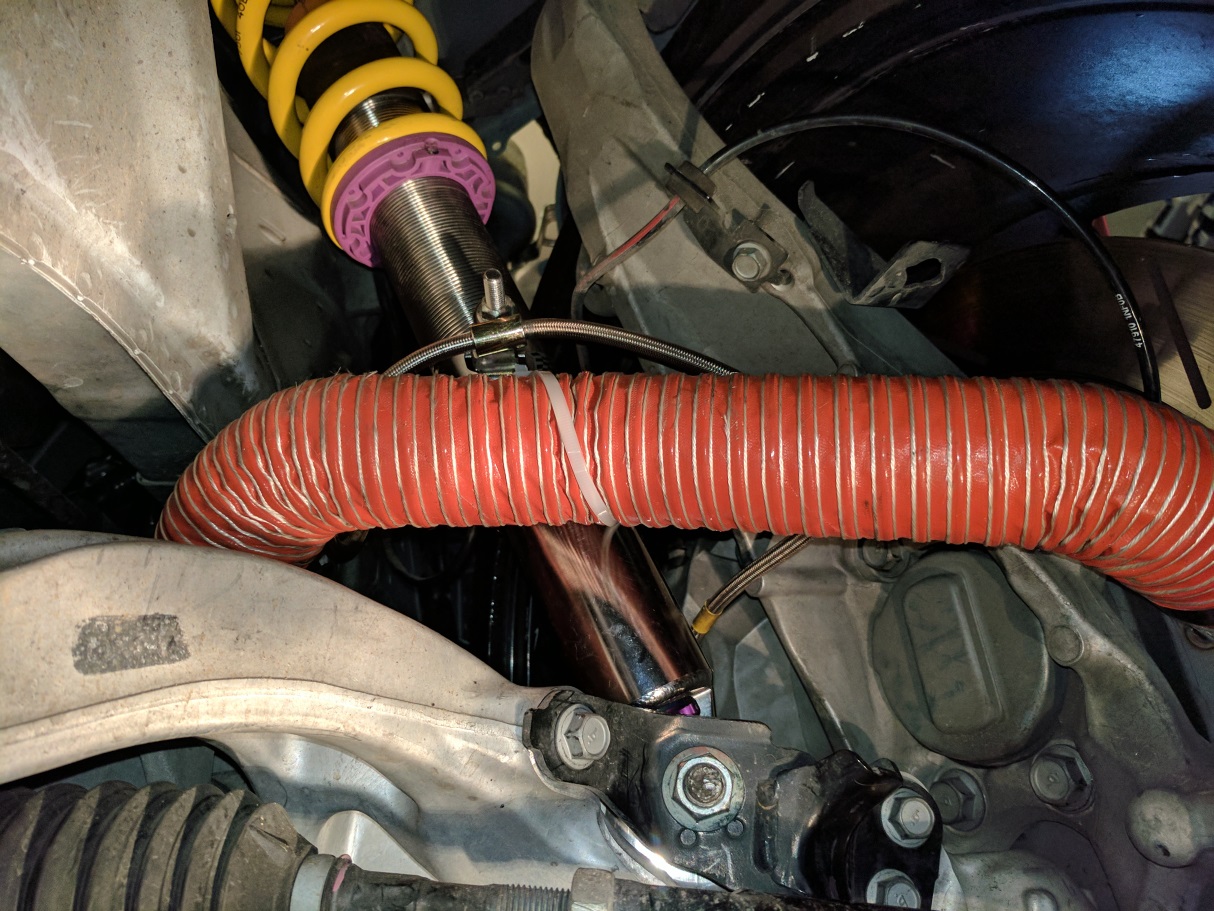

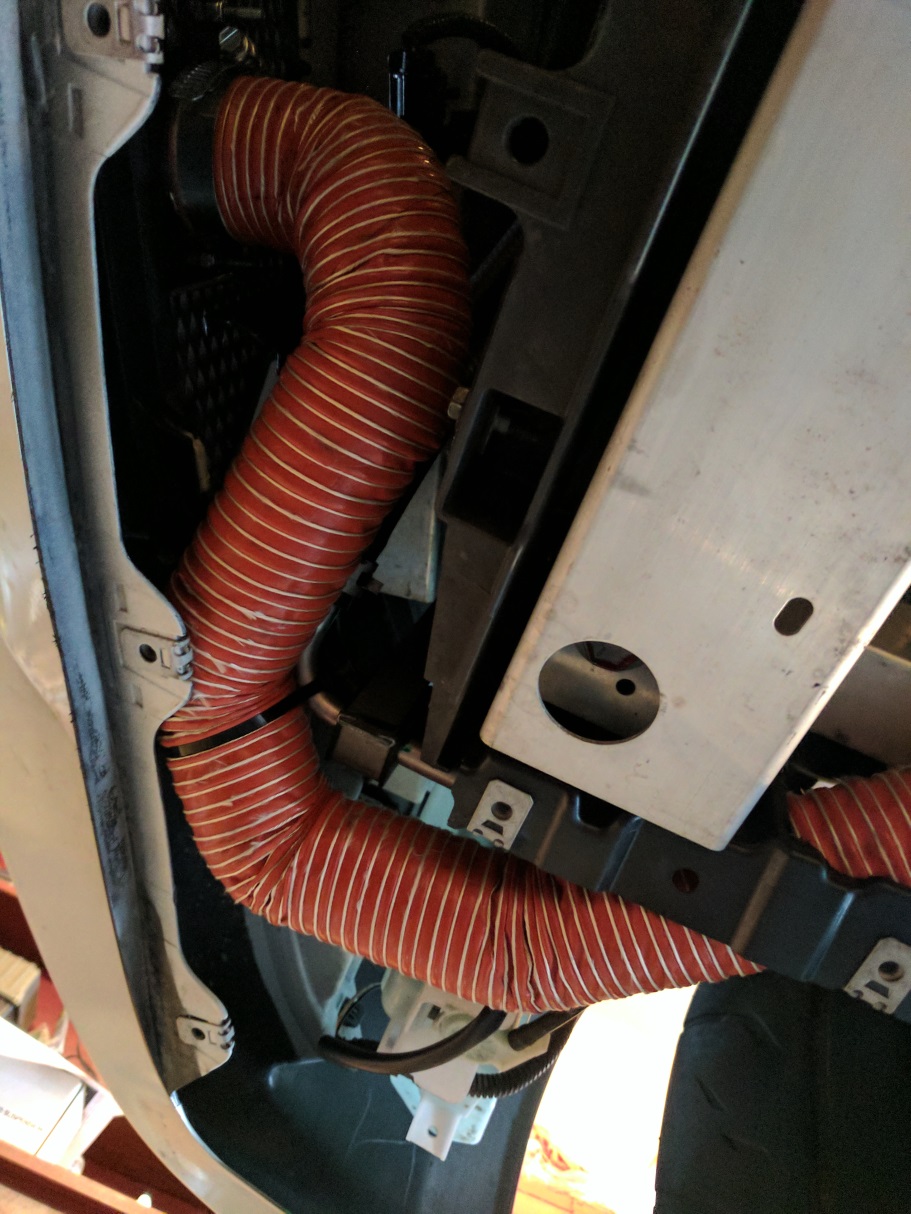

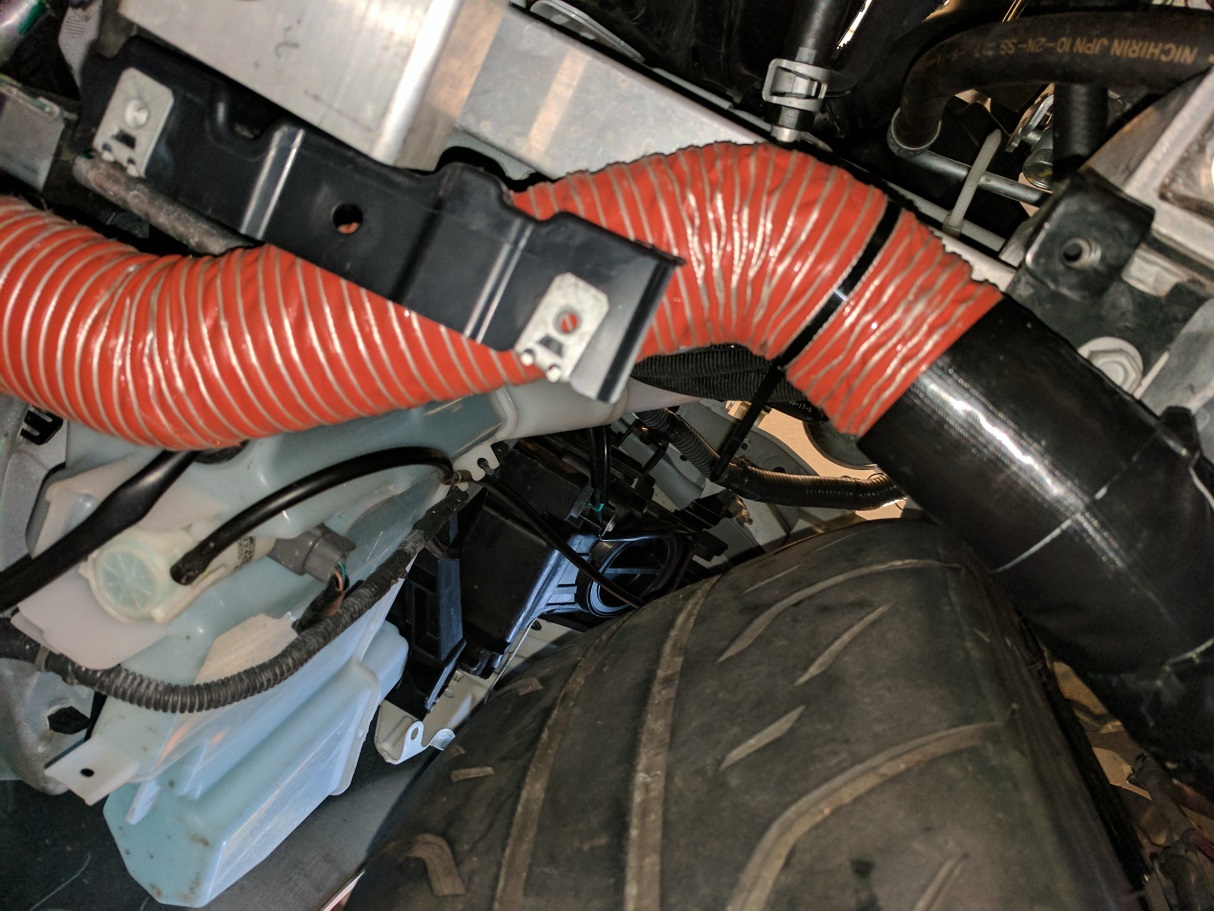

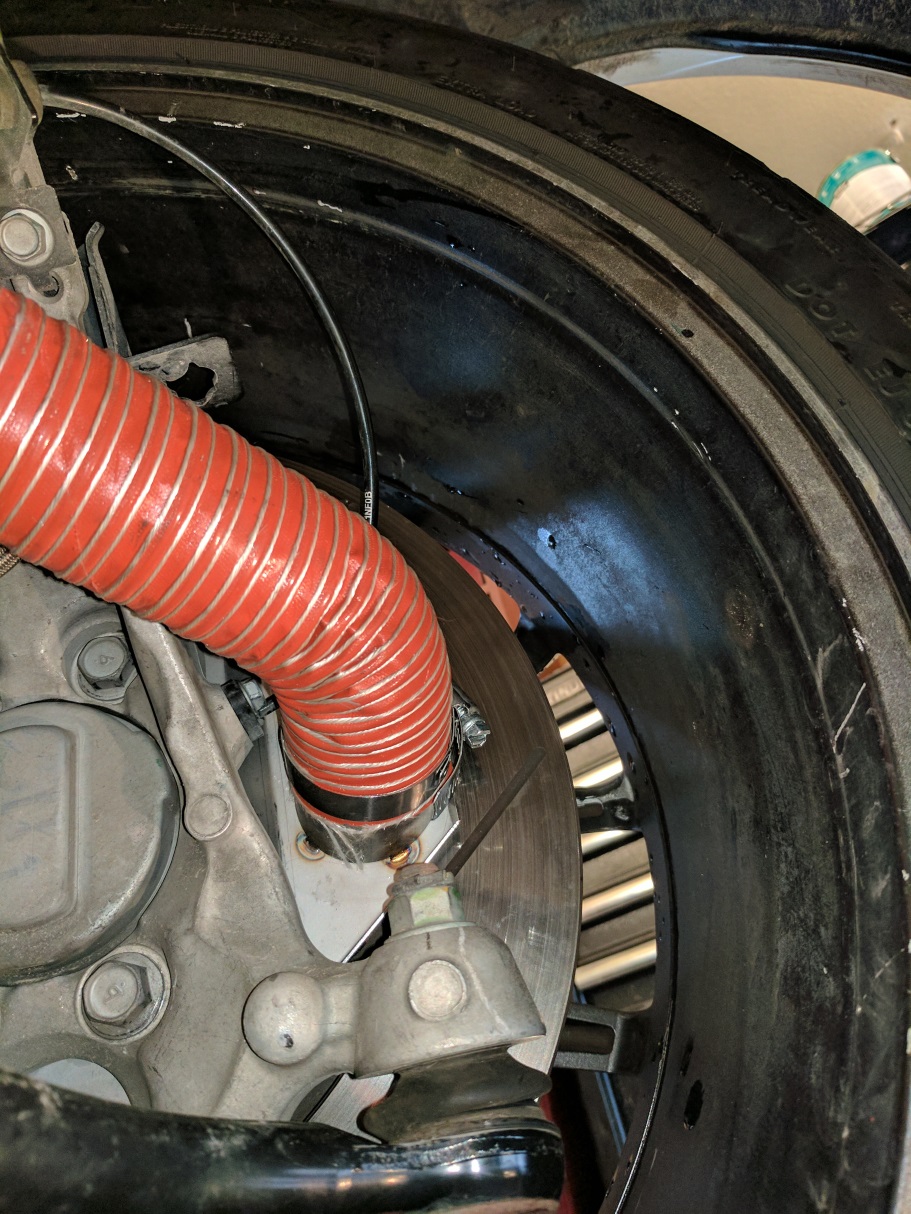

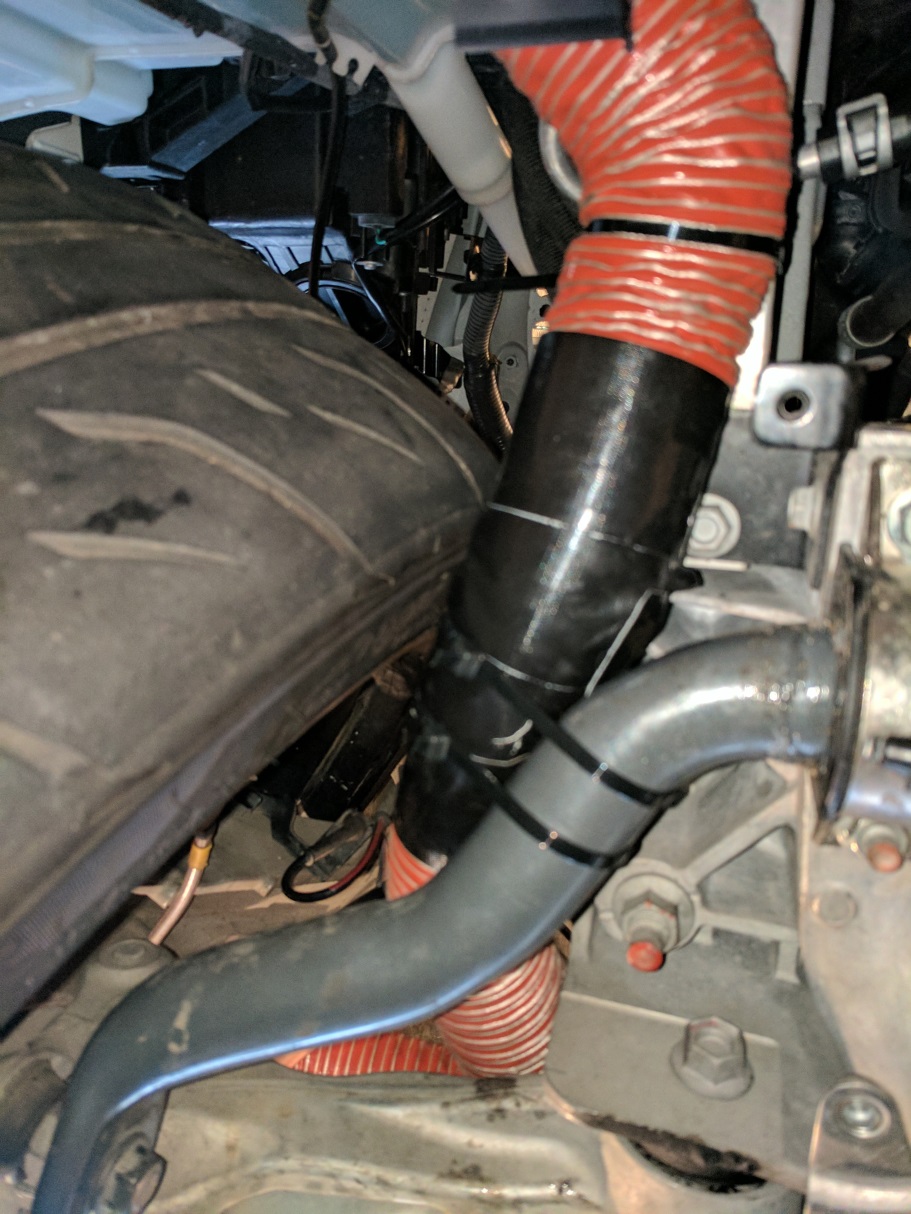

I only have photos from the passenger side of my car, as the clearance with the washer bottle is the hardest part. The other side of the car is exactly the same tho, just less bends and easier.

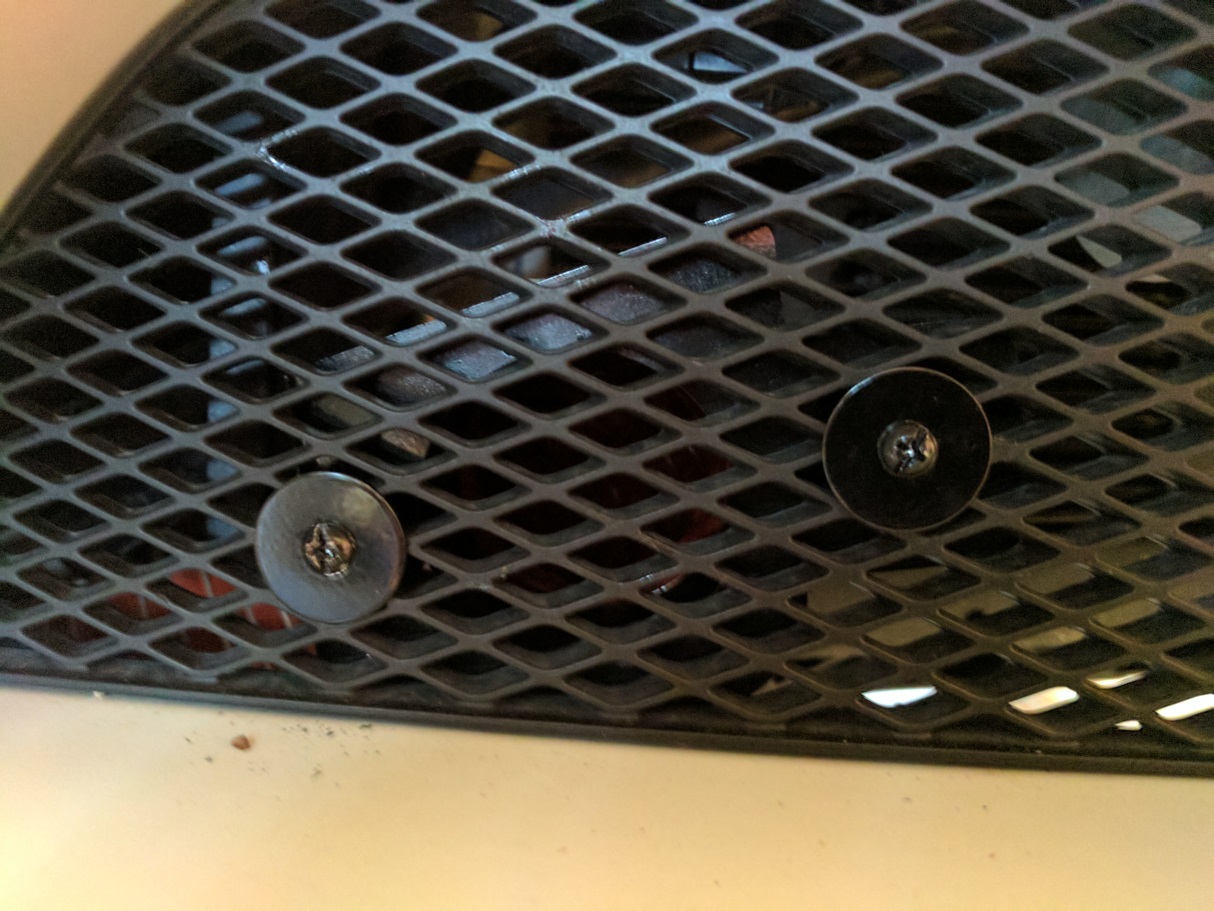

I used the stillen kit (non NISMO front fascia) and drilled a second hole in the inlet adapter so that I could run bolts and washers to mount it to the grill. I had about 10" of hose longer than I needed on each side because I did not route a loop around the chassis rails. I tried, but it wouldn't have fit for length anyways due to the inlet ducts being closer to the center of the car than on a 370.

I really wanted to use the fog lights, but I couldn't find a set of fog light plastics for less than $200 per side so I abandoned that idea. I think (know) you wont have space on the passenger side anyways due to the washer bottle.

Getting the hubs off was super simple. 12 or 14mm socket on a breaker bar, using a little 1-2" extension adapter and it was done. Same to put back on. Just turn the wheel fully one way to get the first 2 or 3, then the other to get the remaining bolt. You have to pull the brakes off to do this, so if you are going to do stainless lines, coil overs, rotors, etc. Now is the time to do it and save pulling it all again another time.

A much smaller washer bottle would make this and the oil cooler SO much easier to install!!!!
Attached Thumbnails
The G37S is a great track car-img_20161231_160146.jpg   The G37S is a great track car-img_20161231_160207.jpg   The G37S is a great track car-img_20161231_160220.jpg   The G37S is a great track car-img_20161231_160230.jpg   The G37S is a great track car-img_20161231_160240.jpg

The G37S is a great track car-img_20161231_160246.jpg   The G37S is a great track car-img_20161118_145144.jpg   The G37S is a great track car-img_20161118_145419.jpg   The G37S is a great track car-img_20161118_145414.jpg   The G37S is a great track car-img_20161118_145327.jpg


Last edited by Splitter; 04-18-2017 at 06:41 PM.
Splitter is offline   Reply With Quote
The Following 3 Users Say Thank You to Splitter For This Useful Post:
4DRZ (04-20-2017), bsanalyst (04-19-2017), Hashim (04-21-2017)
Old 04-18-2017, 11:41 PM   #280
slartibartfast
Registered User
iTrader: (4)

Join Date: Oct 2014
Location: Houston, Tx
Posts: 1,744
Thanked 152 Times in 139 Posts
Nice! Sure is cramped under there. So, the fog light openings aren't usable for the front of the tubing? Darn.
slartibartfast is offline   Reply With Quote
Old 04-19-2017, 08:44 AM   #281
Splitter
Registered User
iTrader: (1)

Join Date: Jan 2016
Location: Houston, TX
Posts: 182
Thanked 18 Times in 16 Posts
Quote:
Originally Posted by slartibartfast View Post
Nice! Sure is cramped under there. So, the fog light openings aren't usable for the front of the tubing? Darn.
I really doubt it on the passenger side. The wiring loom comes out of the back of the fog light and takes a 90 degree turn to miss the washer bottle. There is about 1/4" of space. You can see it in one of the shots where I show the tubing routing around the plugs on the bottom of the washer bottle.

Like I said, if you had a smaller washer bottle it would be MUCH simpler. I have toyed with the idea of purchasing the stillen washer bottle that comes with their intake kit. I don't think they offer them seperately and I found one second hand but they wanted crazy money. Plus, like I said, fog light plastic trim is EXPENSIVE.

Would look neat, but $500 neat? not to me.

Also, the stillen kit comes with 2" tubing and that is about all that will fit along the route I used. Any thicker and it'd be crushed through a few of the tight spots and likely wouldn't clear the wheel at lock.
Splitter is offline   Reply With Quote
Old 04-20-2017, 02:41 PM   #282
4DRZ
Registered User
Thread Starter
iTrader: (4)

4DRZ's Avatar

Join Date: Sep 2015
Location: Appleton, WI
Posts: 1,600
Thanked 128 Times in 106 Posts
Awesome! Thanks for posting up about the brake ducts Splitter. I am glad to hear that the hubs were not a big deal. Spencer at Z1 made it sound like a PITA for some reason. Maybe I misunderstood him.

I was planning on pulling the fog lights out and seeing if I could hook the brake ducts up right behind them somehow. Think that would work?

Looks like it is going to be a really tight fit for me with the oil cooler lines on the passenger side. Might have to do some MacGyver-ing
4DRZ is offline   Reply With Quote
Old 04-21-2017, 12:18 AM   #283
bsanalyst
Registered User

Join Date: Aug 2016
Location: Northern California
Posts: 90
Thanked 11 Times in 8 Posts
I'm surprised few have considered putting the G35 coupe forged Rays wheels on the sedan. I know it may not LOOK the best but they're not terribly difficult to source from the used market, are well priced, and very lightweight (I believe the 19"x8.5" rear wheels are 20lbs).

It is currently my top choice, I saw someone on youtube with a G37 sedan who bought 2 sets of rear G35 rays to run a square setup with 255 tire.
bsanalyst is offline   Reply With Quote
Old 04-21-2017, 08:05 AM   #284
RMB5190
Registered User
iTrader: (1)

Join Date: Dec 2016
Location: Maryland
Posts: 794
Thanked 71 Times in 65 Posts
If you were 100% interested in just budget track performance - yea, I can see picking up the Rays but there are "prettier" options out there and at the same weight or lighter. Just have to fork out the cash.

Might be just speaking for myself, but I'd rather spend anywhere from 1,200-1,800 on nice rims that are light and look great rather than a set at <800 that I'm not crazy about just because they're cheap and light; but if the track is your sole focus then go for it I guess...Shoot - I'll stop beating around the bush, I think they're ugly.
RMB5190 is offline   Reply With Quote
Old 04-21-2017, 10:15 AM   #285
Splitter
Registered User
iTrader: (1)

Join Date: Jan 2016
Location: Houston, TX
Posts: 182
Thanked 18 Times in 16 Posts
Quote:
Originally Posted by 4DRZ View Post
I was planning on pulling the fog lights out and seeing if I could hook the brake ducts up right behind them somehow. Think that would work?
If you look closely in one of my pics with the washer bottle, you'll see there is a bee's **** of room behind the fog light. If you pulled the entire plastic surround out and made a custom inlet duct you may be able to make it fit, but I really really doubt it'll work any other way. Do have a look tho, like I said I gave up before really taking a good measure, but I think your problem will be the bend radius of the hose. Hell, on the front grill it almost touches the PS cooler and oil cooler, so you do need a lot of space.

As for wheels. As above, you could get lots of cheap options that would work, but personally I really wanted to go as wide - and square - as I could fit without rolling guards and that's a 9.5. I am of the opinion that a 19x10+32/+35 could squeeze in, but I couldn't find anyone who had done it with proper rubber - it was all the stance crowd with biig camber and stretch. Also, the Enkei's (cheap) would need a spacer and I didn't want to do that, so I settled for not being the guinea pig and sticking with a 9.5" rim with 275 section tire instead of 10" rim with a 285 section tire.

Speaking of, these showed up today:
Attached Thumbnails
The G37S is a great track car-img_20170419_182408.jpg
Splitter is offline   Reply With Quote
