Stillen Gen 3 vs. A/C lines

My dealership told me that my CAI has rubbed a small hole in my A/C coolant lines, thus draining all the fluid. I get the car back tomorrow morning and they sold me the line for me to put on instead of paying the $450 or some odd amount for them to do it.

Anywho, does anybody have any experience with this?
And has anyone swapped coolant lines that can give me some pointers?
What kind of coolant should I add to the system when finished?
Old 07-11-2012, 08:08 PM
  #2
TVPostSound
Registered Member
iTrader: (9)

TVPostSound's Avatar

Join Date: May 2010
Location: Granada Hills, CA
Posts: 3,613
Received 114 Likes on 87 Posts
That would be freon not coolant, and you should not mess with it.

Who installed the Stillen?? There IS a warning to insulate the "refrigerant" lines on the instruction sheet.
Old 07-11-2012, 10:26 PM
  #3
MalbecG37S
Registered User

MalbecG37S's Avatar

Join Date: Jan 2012
Location: Southlake, TX
Posts: 452
Received 30 Likes on 21 Posts
You really need a qualified A/C tech. As others mentioned - it isn't coolant that leaked.

Actually - IMO $450 isn't bad.

Good Luck...
Old 07-13-2012, 11:29 PM
  #4
paleryeder
Registered User
iTrader: (5)

paleryeder's Avatar

Join Date: Jan 2012
Location: So Cal
Posts: 122
Likes: 0
Received 0 Likes on 0 Posts
$450 might not be bad for the dealer to do it but you can get it done for less than half that at any good a/c shop. All that needs to be done is vacuum pulled, make sure it holds vacuum then recharge with the correct amount of 134. If it was a slow leak you probably didn't loose enough oil to worry about. If it blew hard it's possible you might need to add a ounce or two of oil before the vacuum is pulled.
If you've never done it before don't try...... no need to have the dealer do it a good ac shop can actually be better at it since it's all they do.
Old 07-14-2012, 12:04 AM
  #5
ECain18
Registered User
iTrader: (15)

ECain18's Avatar

Join Date: Feb 2010
Posts: 954
Received 19 Likes on 18 Posts
Name:  IMG_0323.jpg
Views: 1253
Size:  114.5 KB

Name:  IMG_0322.jpg
Views: 1243
Size:  134.5 KB

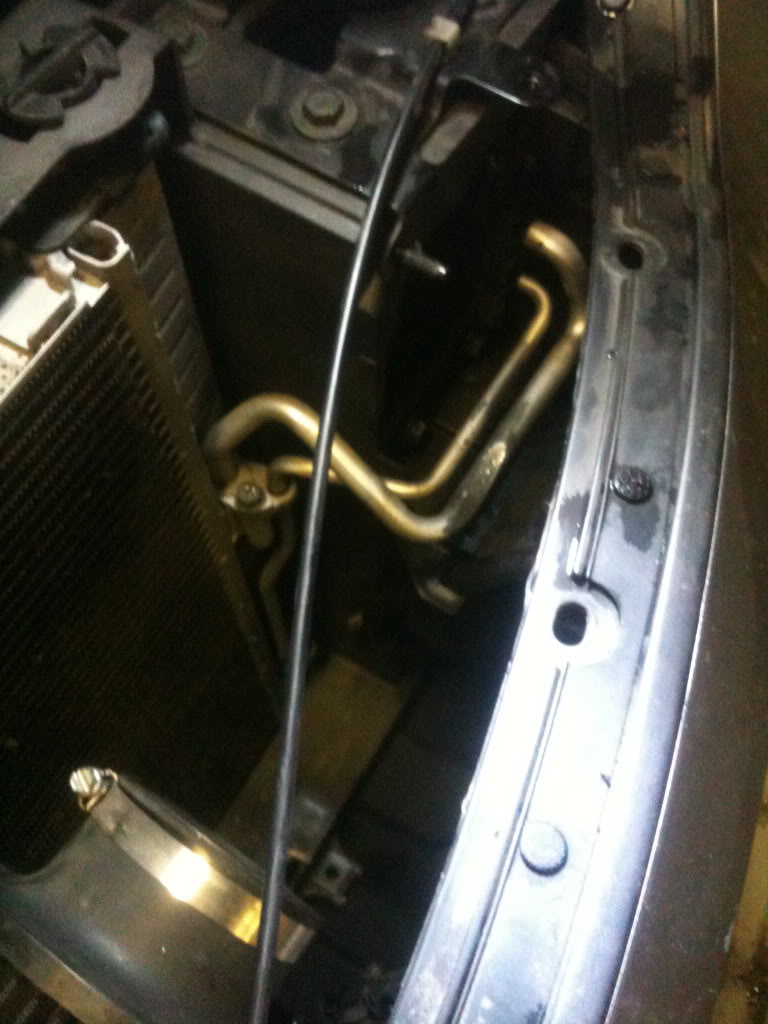

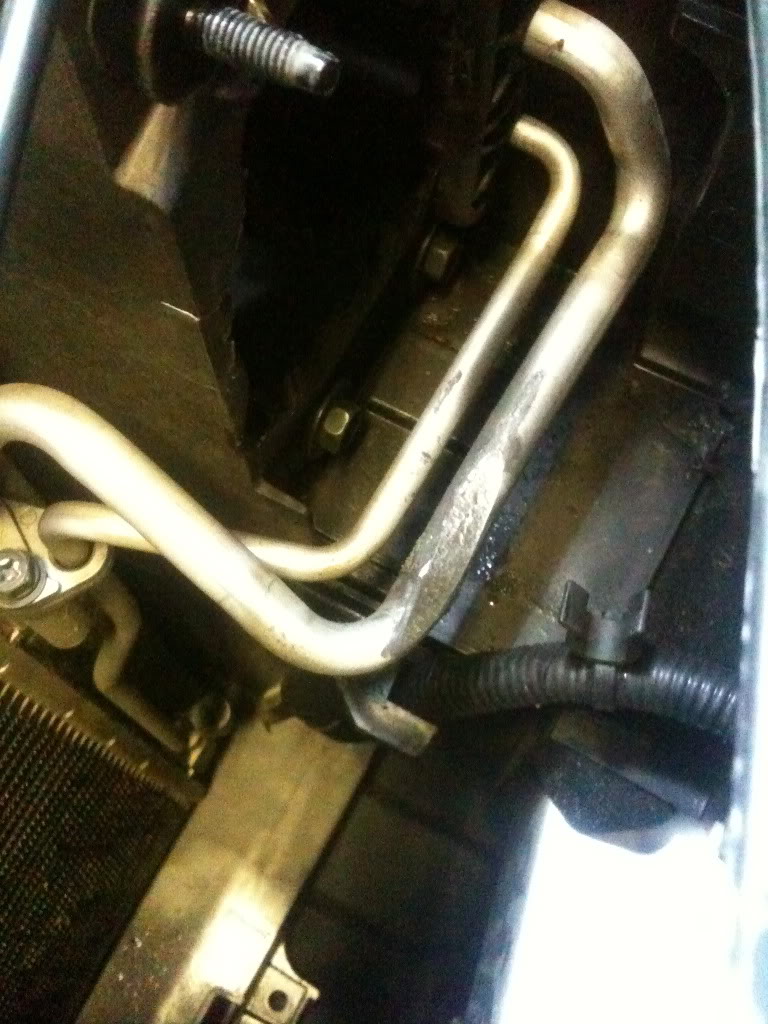

This was mine with my stillen. I was told to pay $117 for the part from infiniti. I called my nissan dealer and got the ac line for $23 for a 370z and it it myself. Advance sells ac line wrench kits you just have to get it filled then by a reputable place
Old 07-21-2012, 11:38 PM
  #6
bat6wc
Registered User
iTrader: (31)

bat6wc's Avatar

Join Date: Feb 2009
Location: St. Louis, MO
Posts: 1,494
Received 38 Likes on 31 Posts
Intakes causing AC lines to rip? - Nissan 370Z Forum
Old 07-22-2012, 05:22 AM
  #7
SoulSeeker
Registered User

SoulSeeker's Avatar

Join Date: Jan 2011
Location: Sag Harbor, NY
Posts: 266
Received 3 Likes on 1 Post
i will be checking my lines tomorrow
Old 07-22-2012, 10:46 AM
  #8
Diego@Vossen
Former Sponsor
iTrader: (2)

Diego@Vossen's Avatar

Join Date: Aug 2010
Location: Miami, FL
Posts: 3,838
Received 271 Likes on 232 Posts
I just checked my intakes and my pipes are nowhere near those AC lines it's not rubbing or close to it!
Old 07-22-2012, 10:56 AM
  #9
Devildog37
Registered User
Thread Starter
iTrader: (5)

Devildog37's Avatar

Join Date: Dec 2009
Location: NC
Posts: 194
Received 3 Likes on 2 Posts
Originally Posted by ECain18
This was mine with my stillen. I was told to pay $117 for the part from infiniti. I called my nissan dealer and got the ac line for $23 for a 370z and it it myself. Advance sells ac line wrench kits you just have to get it filled then by a reputable place

This is exactly the line that they sold me to replace. I'm going to get out there today to see what I can figure out. Hopefully it's an easy swap and won't take too much time, but we'll see. I'll take some pictures of the job too and post them up here.
Old 07-22-2012, 11:04 AM
  #10
Diego@Vossen
Former Sponsor
iTrader: (2)

Diego@Vossen's Avatar

Join Date: Aug 2010
Location: Miami, FL
Posts: 3,838
Received 271 Likes on 232 Posts
Correction I looked at the wrong spot I just realized your radiator shroud was taken off! I need to double check this.
Old 07-22-2012, 11:13 AM
  #11
Diego@Vossen
Former Sponsor
iTrader: (2)

Diego@Vossen's Avatar

Join Date: Aug 2010
Location: Miami, FL
Posts: 3,838
Received 271 Likes on 232 Posts
So glad I did it correctly lol I just noticed through the grill that we did use the zip ties and rubber to protect it. I almost had a heart attack!
Old 07-22-2012, 01:19 PM
  #12
Devildog37
Registered User
Thread Starter
iTrader: (5)

Devildog37's Avatar

Join Date: Dec 2009
Location: NC
Posts: 194
Received 3 Likes on 2 Posts
Update.

I just took apart my car, took as much of the intake off as possible without taking off the front bumper and found this. I originally had a piece of rubber ziptied to the area, but the zipties must have broken off because the rubber is still there hanging loosely around the ac line. Looks like a long days work and it's about to rain...silver lining is that it looks like I only have to replace the larger of the two lines.
Attached Thumbnails Stillen Gen 3 vs. A/C lines-imag0077.jpg
Old 07-22-2012, 02:17 PM
  #13
soolman32
Registered User
iTrader: (15)

soolman32's Avatar

Join Date: Mar 2008
Location: MN
Posts: 8,127
Received 127 Likes on 108 Posts
Interesting... Good luck and keep us posted.
Old 07-27-2012, 12:50 AM
  #14
Nashville G
Registered User

Nashville G's Avatar

Join Date: Dec 2011
Location: Nashville, TN
Posts: 140
Received 1 Like on 1 Post
I had a friend have the same problem with his 350z because his intake rubbed a hole in it. Its really not that difficult to replace just takes some time.
Old 08-06-2012, 04:04 PM
  #15
chuckie311
Drop A Gear and Disappear

iTrader: (3)

chuckie311's Avatar

Join Date: Jan 2011
Location: Las Vegas
Posts: 2,449
Received 194 Likes on 160 Posts
any updates??
