Originally Posted by Modme

How many times have we had the tire light come on, whether due to rotating tires, changing wheels, etc? In the past, there was no way of resetting the light unless we brought it to the dealer, which would cost 50-150 bucks. I didnt want to pay for something that would've taken anyone 5 minutes to do. After doing a lot of research, I finally found a DIY method to reset it using only a paper clip.

Step 1: Set the tires to the following pressures, they have to be exact:

Tire position Tire pressure kPa (kg/cm2, psi)
Front LH 240 (2.4, 34)
Front RH 220 (2.2, 31)
Rear RH 200 (2.0, 29)
Rear LH 180 (1.8, 26)

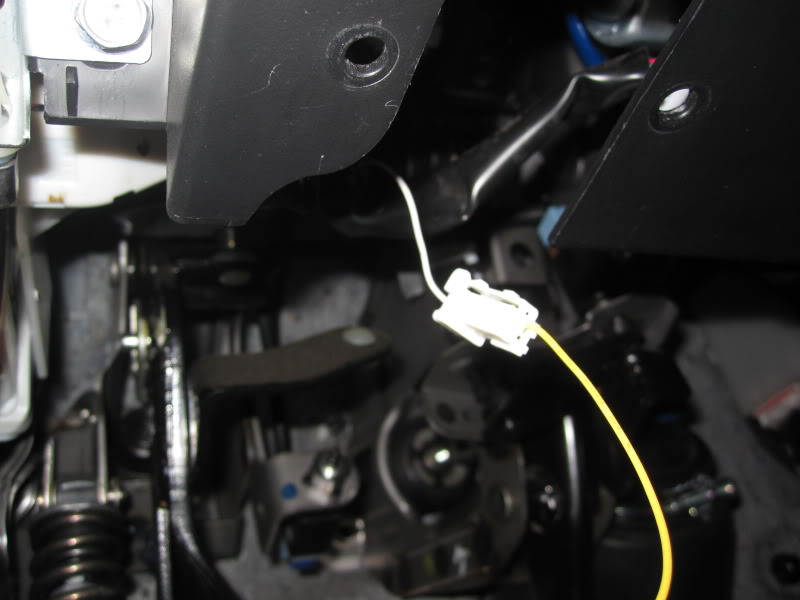

Step 2: Locate the TPMS interface plug. This is a white female plug that is attached to the OBD II wire loom under the dash right about where your left knee would be when sitting in the driver's seat. You may have to cut the tape that is holding the TPMS interface plug to the OBD II wire loom.
Attachment 171589

Step 3: Attach a paper clip or wire into the interface plug.

Step 4: Put your key in the ignition and turn it to the last click before the engine starts. This is the KOEO position (Key On, Engine Off).

Step 5: Tap the end of the paper clip (the end NOT in the interface plug, duh!) on any exposed ground (metal) 6 times.

Step 6: If you completed step 5 then the TPMS warning light will start to slowly flash and you have activated the TPMS relearn process. If it flashes fast that's not right. If yours isn't flashing slowly then check your connections, turn the ignition off and start over at step 4.

Note: if you're having trouble getting it into the relearn mode, try grounding the connector, turn the car on, then turn the car off while still grounding it. Then repeat the above steps.

Step 7: Once you confirm the lights do not stop flashing, step on the clutch/brake and start the car. Do not turn the car to OFF position. Start driving >25mph until the light goes out. It could take as long as ten minutes.

Step 8: The light will quickly come back on due to the low tire pressures. Refill your tires to the correct pressure.

Step 9: Donate 30 bucks to me for saving you >$50 at the dealership for each reset.



If you are having problems with the above procedures:

If the instructions did not work for you, there might be a problem with one of your sensors. To find out, you need to enter the diagnostic mode.

To do that, first turn the car to the on position and ground terminal of the tire pressure warning check connector. The malfunction location is indicated by the low tire pressure warning lamp blinking.

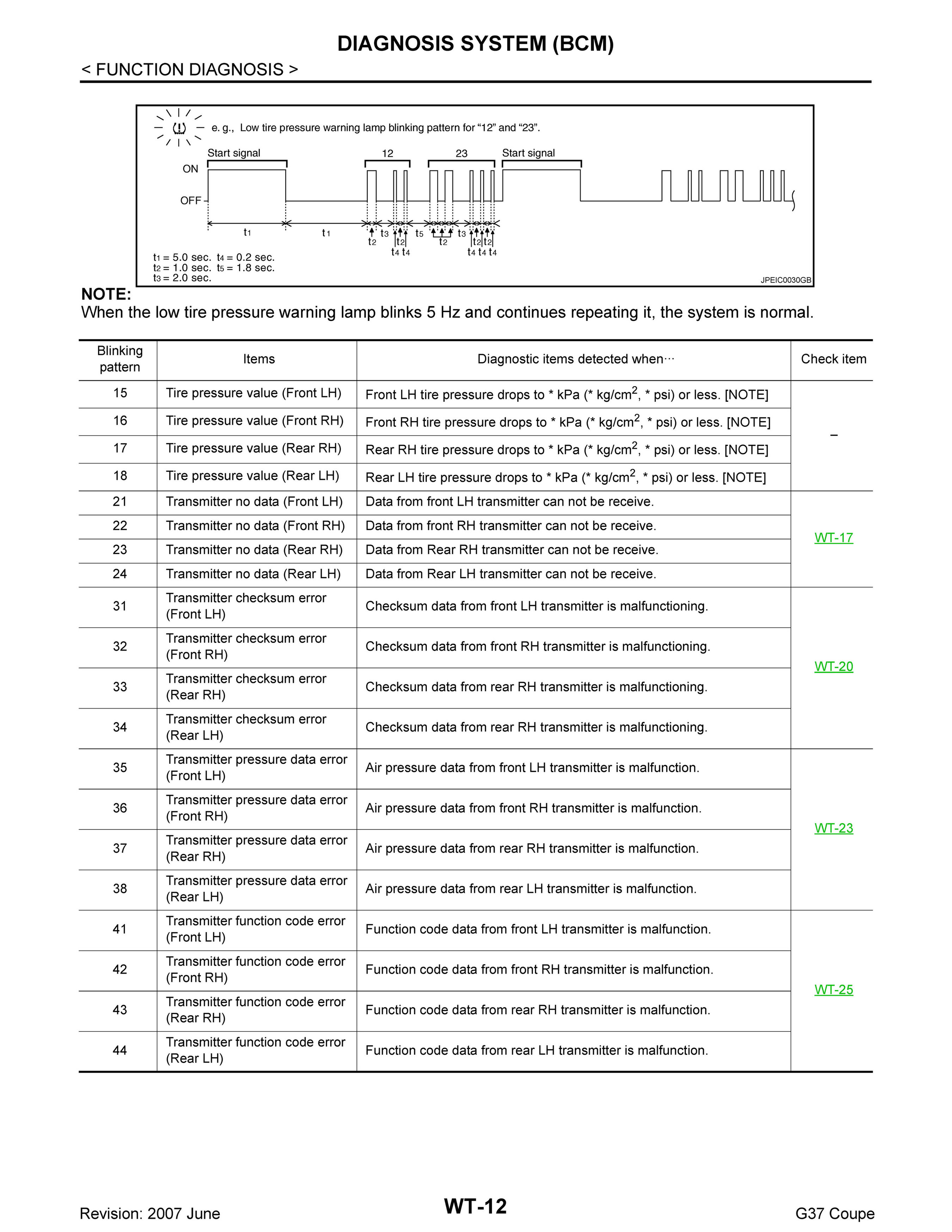

Refer to the following chart to find out the problem:

Attachment 171590


After you are done reading the code, you can turn off the car while the connector is still grounded. This will clear the stored codes. Then repeat the steps in the top of the page.
