The GNTLMN Z Build
#1
Registered Member
Thread Starter
The GNTLMN Z Build
I've been meaning to start this thread for sometime but have always had a project or two going on which kept me from spending some time to get this started. But here it is.
Starting late 2015 I started looking for a new car. I had a few things that were really important to me; 4 doors, RWD and a sunroof, which didn't really narrow it down. But then I added one other BIG criteria, a manual transmission. This quickly narrowed down the options once price was factored in.
I had always been a fan of the Nissan Z cars and when the V35 sedans were first released back in the early 2000s I liked the combination of sporty and reliable luxury at an affordable price. This led me to look into the G37 sedans. I wasn't in any hurry and so I spent time looking for a nice example available within California. I knew I wanted a low mileage, well maintained, and COMPLETELY original car so I reduced my search to just 2012 and 2013 examples.
I found a few cars that were fairly local but they didn't seem to have been well cared for. Then just a few days before Christmas and a spontaneous search of CarMax.com led to a sedan with under 33,000 miles on the clock and located about 75 miles away in the Central Valley. The pictures showed a pristine car with lower than average mileage and a beautiful color which I hadn't originally considered. I placed a hold on the car and scheduled a visit and test drive (a great FREE feature of CarMax which prevents your dream car from being sold to someone else before you get to check it out).
I made the trip to see the car in person and after a test drive I knew it was the one. I went ahead with the purchase and after the easiest and fastest transaction ever, I was the proud new owner of a 2012 Infiniti G37S 6mt sedan in beautiful Graphite Shadow exterior with Graphite interior.

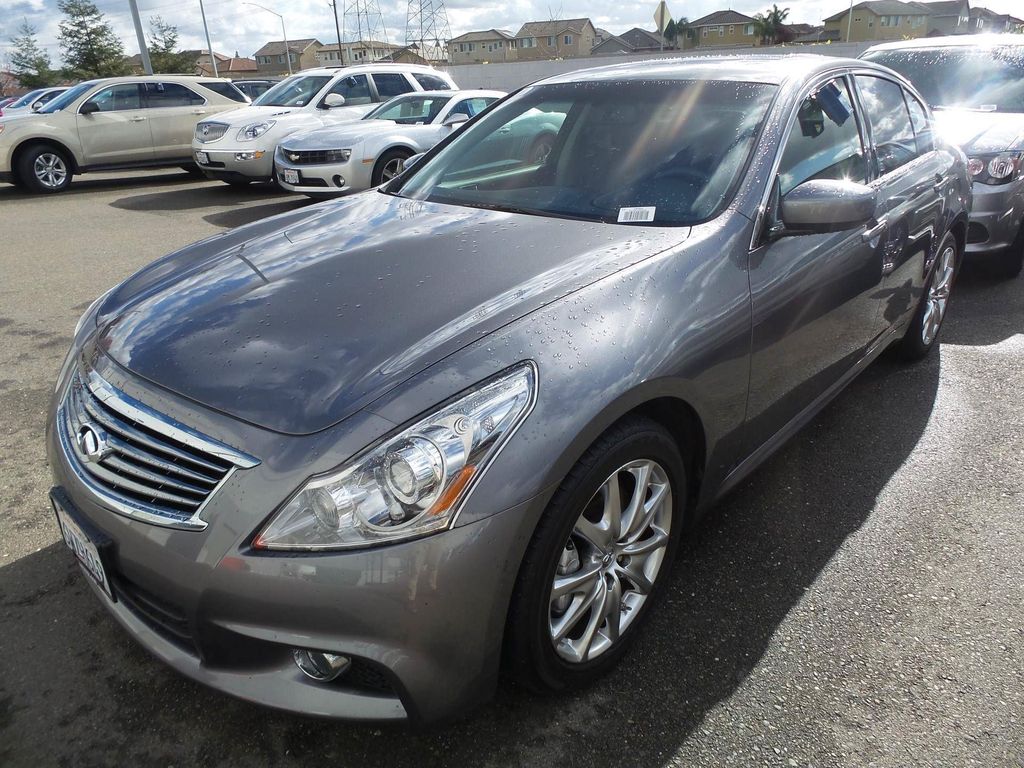

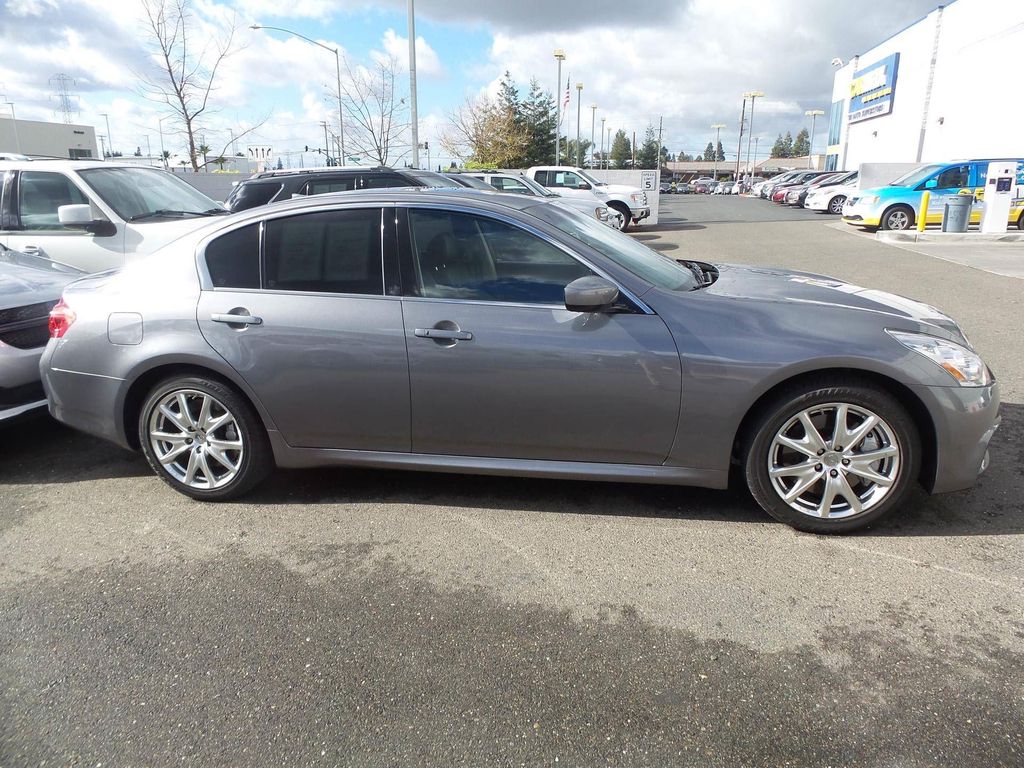

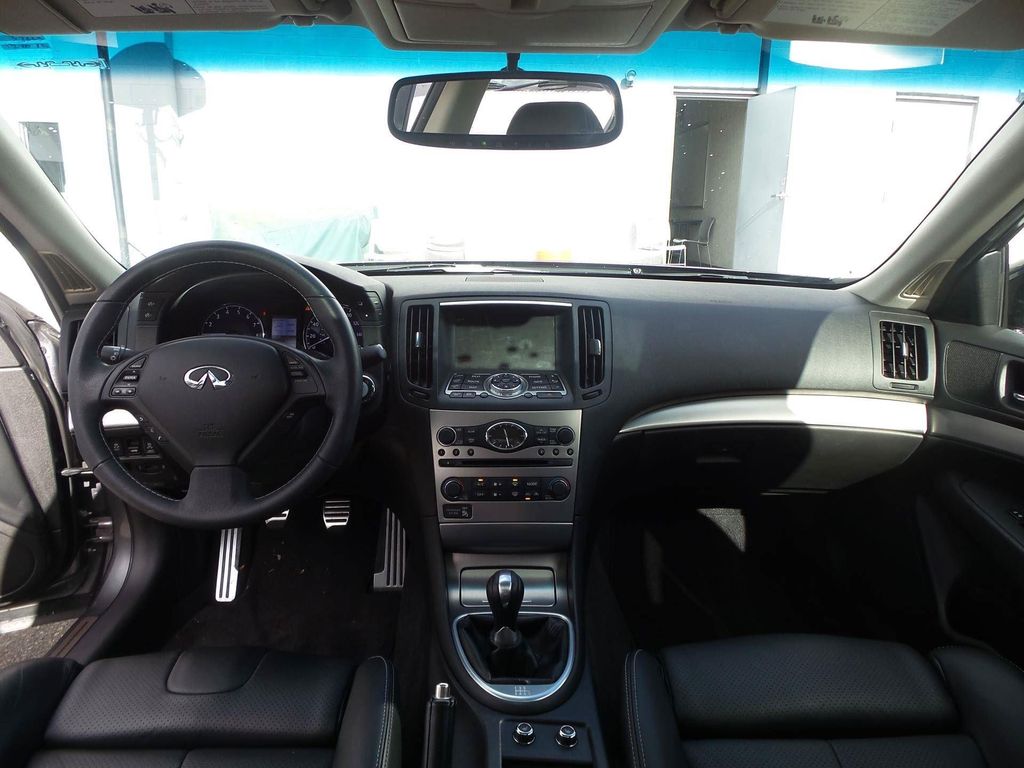

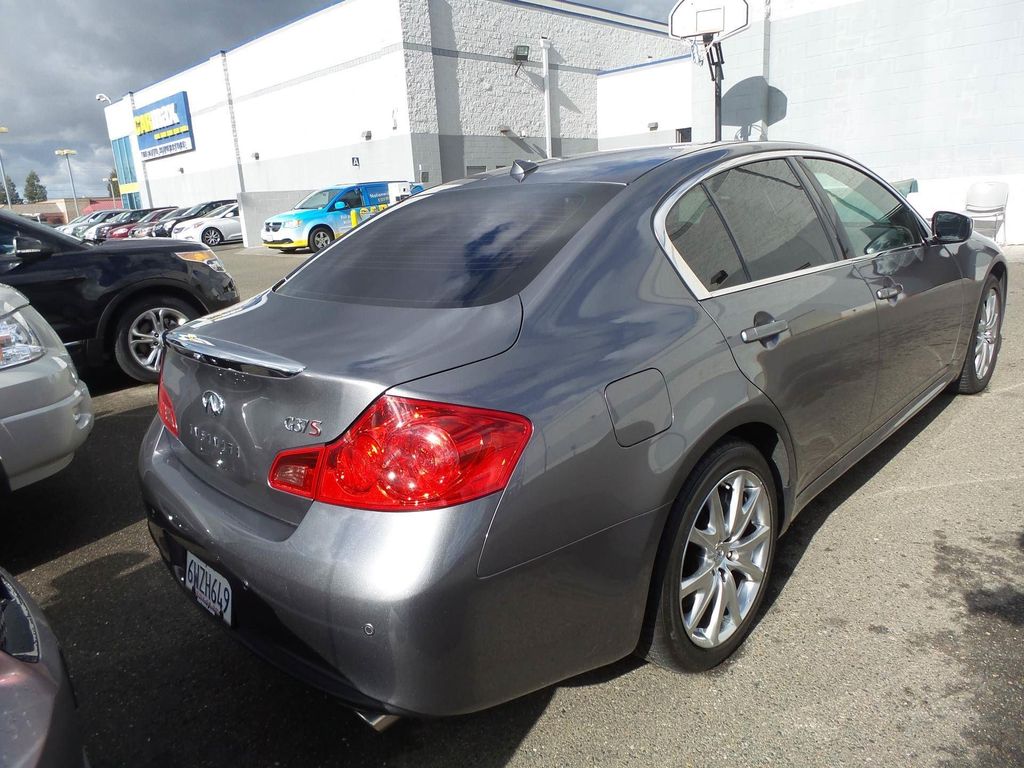

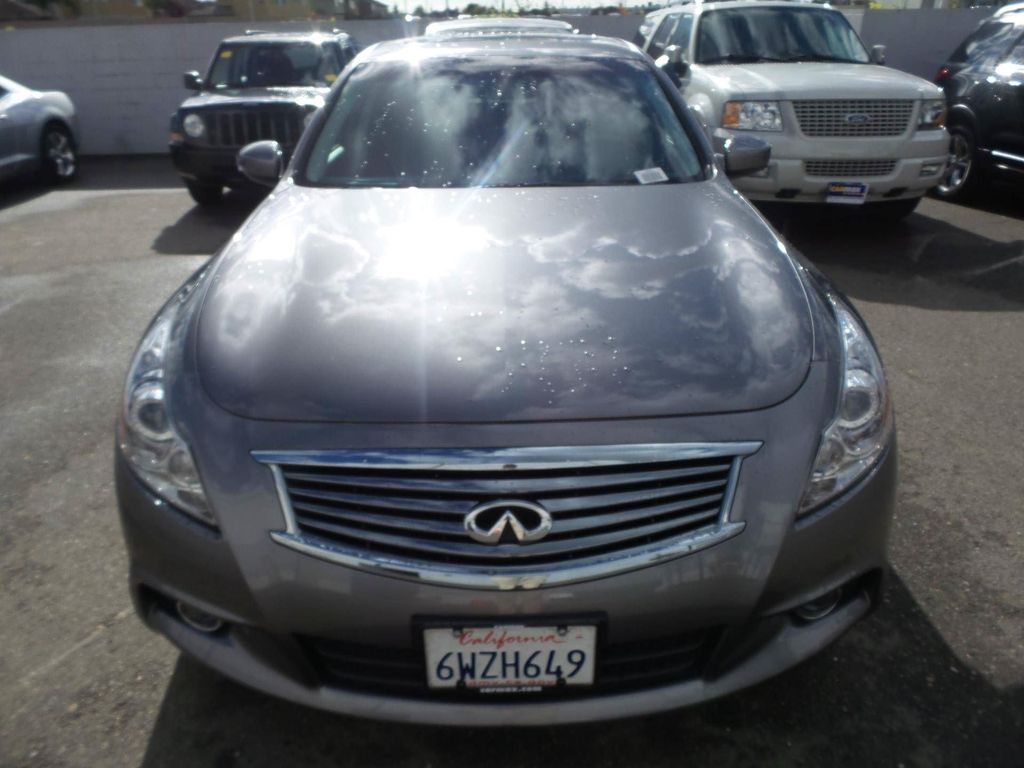

The following pictures are from CarMax so please excuse the quality as they're the ONLY stock pictures I have :
List of modifications since purchasing the car in December 2015 (I'll update this section overtime as the build progresses):
WHEELS
Weds Wheels - Wedssports SA-15R in GBC (gloss bronze clear)
FRONT: 19x9.5" +25
REAR: 19x10.5" +45
TIRES
Michelin - Pilot Super Sport
FRONT: 245/40ZR19
REAR: 275/35ZR19
SUSPENSION
Air Lift - Performance Series air suspension kit
- 30-way damping adjustable shocks front and rear
- sleeve-style front air springs
- double bellows rear air springs
Air Lift - 3H air management system
- full color handheld control unit
- height sensors for height based leveling
- Bluetooth smartphone control
- Specialty Suspension seamless air tank
- 2x Viair 444c compressors
- 1/4" airline
- #becausebags stepped parcel tray air management mounting solution
SPC - front and rear camber kits
Hotchkis - front and rear sway bars
PERFORMANCE
Stillen - Generation 3 ultra-long tube intakes with K&N dry element filters
Motordyne - ART pipes
Fast Intentions - 2.5" cat-back exhaust with 18" resonators
Bosch - 1000cc injectors
Specialty-Z - OEM fuel line with in-line Zeitronix FlexFuel sensor
Specialty-Z - Zeitronix ECA-2 ethanol content analyzer wired to OEM ECU with Specialty-Z custom molded connector
UNI - UP102 breather filters bypassing oil return hoses to upper intake manifold
TUNE
EcuTek - Tuned by Seb at Specialty-Z for FlexFuel on all 5 maps
map1: hot weather map for 100+ degree days
map2: full tuned map
map3: full tuned map with launch control and adjustable traction control
map4: full tuned map with VDC disable for burnouts
map8: valet map with limited throttle and progressive speed reduction based on distance traveled
DRIVING
TWM - short-throw shifter
RJM - Rev3.1 AFP Clutch Pedal System (awaiting install)
EXTERIOR
OEM Infiniti - front lip for sports bumper
OEM Infiniti - front grille painted KH3 Black Obsidian
Successful Automotive
- CF front splitter
- CF side skirts
- CF rear spats
- CF roof spoiler
1CarbonTech - CF side mirror covers
Autokits-X - CF rear diffuser
AliExpress - CF rear spoiler
RhoPlate - tow hook license plate with Go-Pro mount
Cruiser - smoked license plate covers
Well Visors - smoked side window deflectors
Suntek - CXP window tint (35% front, 5% rear)
Vinyl Pinstripe - 1/4" lime green along CF splitter, skirts and spats
INTERIOR
TWM - A6 Leopard stainless steel shift ****
Escort - Passport Max 2 radar detector
-BlendMount
-MirrorTap
Car Kit Company - Satellite Navigation Bypass
CarsMo - stainless steel radio and A/C *****
LIGHTING
OEM Infiniti - hyper LED daytime running lights (converted to stay on at all times)
Diode Dynamics
- 6000k front side marker bulb
- 6000k/amber switchback front turn signal bulb
- amber rear turn signal bulb
- 6000k reverse light bulb
- 6000k license plate bulb
- 6000k complete interior lighting
Morimoto - XB LED fog light housing
Lamin-X - protective films
- light smoke - headlights and DRLs
- yellow - foglights
- charcoal - taillights
This is a pretty exhaustive list but I'm sure I might have missed a thing or two or three .

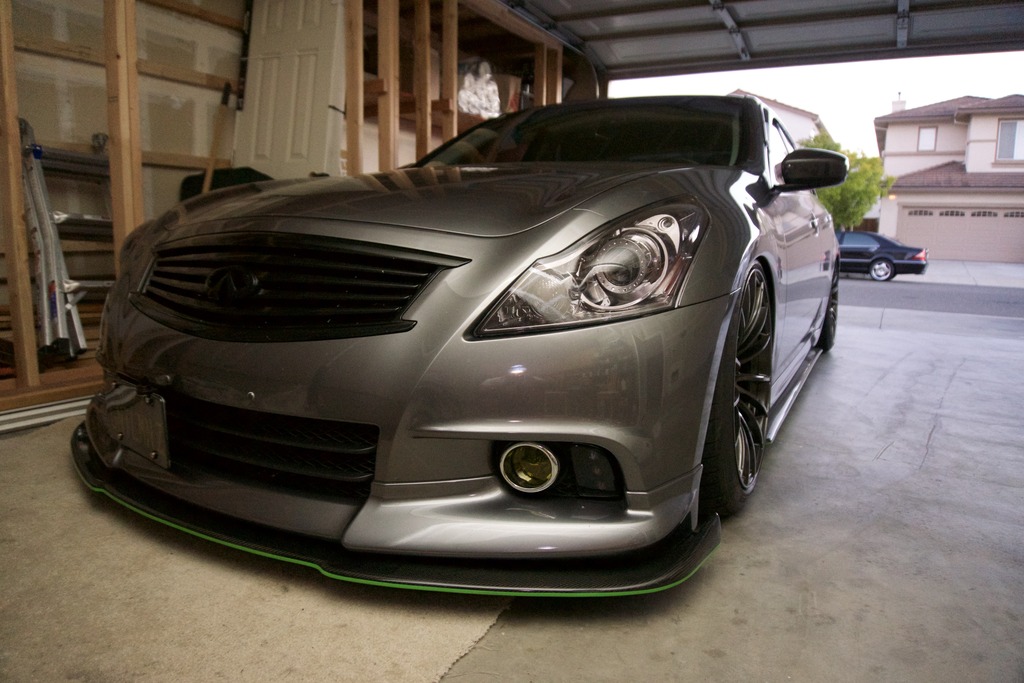

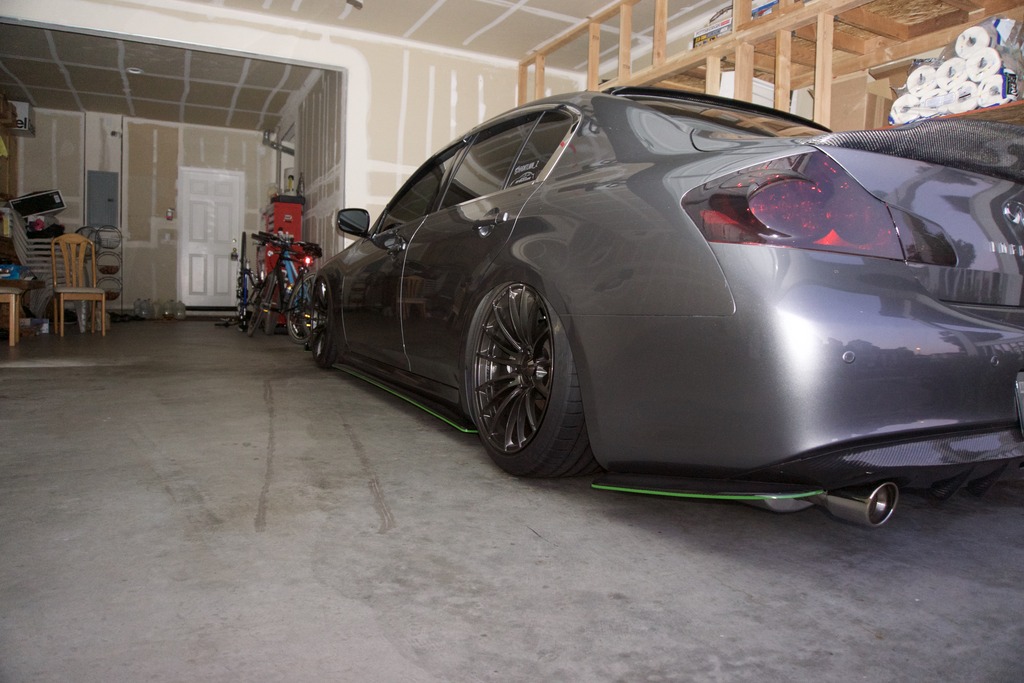

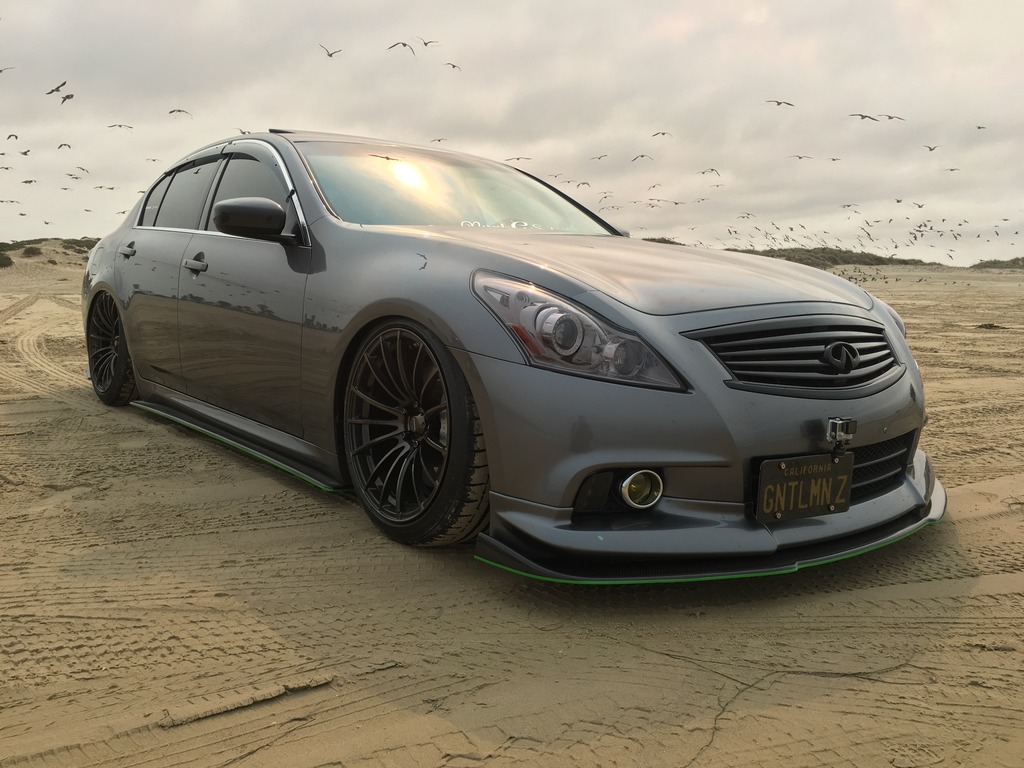

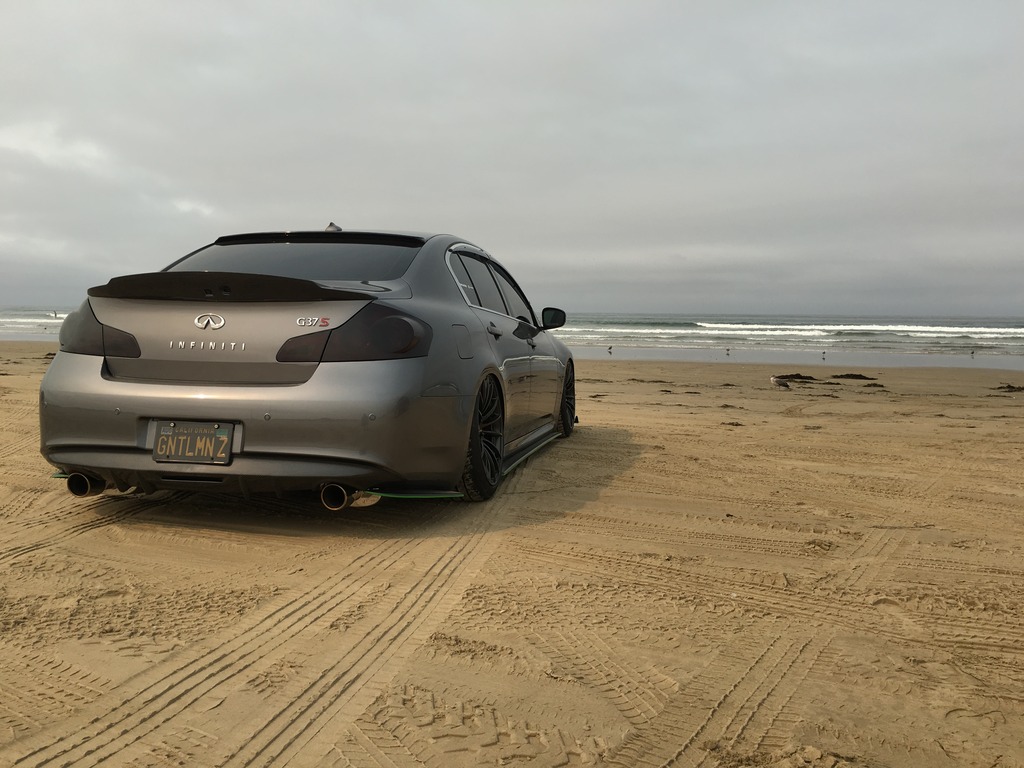

Below are a few pictures of the car as it currently sits (I'll continually add and remove pictures from here as things change):
Thanks for taking the time to view my thread!
As a side note, follow me on Instagram: @gntlmn_z, where I post more pics of the build.
Starting late 2015 I started looking for a new car. I had a few things that were really important to me; 4 doors, RWD and a sunroof, which didn't really narrow it down. But then I added one other BIG criteria, a manual transmission. This quickly narrowed down the options once price was factored in.
I had always been a fan of the Nissan Z cars and when the V35 sedans were first released back in the early 2000s I liked the combination of sporty and reliable luxury at an affordable price. This led me to look into the G37 sedans. I wasn't in any hurry and so I spent time looking for a nice example available within California. I knew I wanted a low mileage, well maintained, and COMPLETELY original car so I reduced my search to just 2012 and 2013 examples.
I found a few cars that were fairly local but they didn't seem to have been well cared for. Then just a few days before Christmas and a spontaneous search of CarMax.com led to a sedan with under 33,000 miles on the clock and located about 75 miles away in the Central Valley. The pictures showed a pristine car with lower than average mileage and a beautiful color which I hadn't originally considered. I placed a hold on the car and scheduled a visit and test drive (a great FREE feature of CarMax which prevents your dream car from being sold to someone else before you get to check it out).
I made the trip to see the car in person and after a test drive I knew it was the one. I went ahead with the purchase and after the easiest and fastest transaction ever, I was the proud new owner of a 2012 Infiniti G37S 6mt sedan in beautiful Graphite Shadow exterior with Graphite interior.
The following pictures are from CarMax so please excuse the quality as they're the ONLY stock pictures I have :
List of modifications since purchasing the car in December 2015 (I'll update this section overtime as the build progresses):
WHEELS
Weds Wheels - Wedssports SA-15R in GBC (gloss bronze clear)
FRONT: 19x9.5" +25
REAR: 19x10.5" +45
TIRES
Michelin - Pilot Super Sport
FRONT: 245/40ZR19
REAR: 275/35ZR19
SUSPENSION
Air Lift - Performance Series air suspension kit
- 30-way damping adjustable shocks front and rear
- sleeve-style front air springs
- double bellows rear air springs
Air Lift - 3H air management system
- full color handheld control unit
- height sensors for height based leveling
- Bluetooth smartphone control
- Specialty Suspension seamless air tank
- 2x Viair 444c compressors
- 1/4" airline
- #becausebags stepped parcel tray air management mounting solution
SPC - front and rear camber kits
Hotchkis - front and rear sway bars
PERFORMANCE
Stillen - Generation 3 ultra-long tube intakes with K&N dry element filters
Motordyne - ART pipes
Fast Intentions - 2.5" cat-back exhaust with 18" resonators
Bosch - 1000cc injectors
Specialty-Z - OEM fuel line with in-line Zeitronix FlexFuel sensor
Specialty-Z - Zeitronix ECA-2 ethanol content analyzer wired to OEM ECU with Specialty-Z custom molded connector
UNI - UP102 breather filters bypassing oil return hoses to upper intake manifold
TUNE
EcuTek - Tuned by Seb at Specialty-Z for FlexFuel on all 5 maps
map1: hot weather map for 100+ degree days
map2: full tuned map
map3: full tuned map with launch control and adjustable traction control
map4: full tuned map with VDC disable for burnouts
map8: valet map with limited throttle and progressive speed reduction based on distance traveled
DRIVING
TWM - short-throw shifter
RJM - Rev3.1 AFP Clutch Pedal System (awaiting install)
EXTERIOR
OEM Infiniti - front lip for sports bumper
OEM Infiniti - front grille painted KH3 Black Obsidian
Successful Automotive
- CF front splitter
- CF side skirts
- CF rear spats
- CF roof spoiler
1CarbonTech - CF side mirror covers
Autokits-X - CF rear diffuser
AliExpress - CF rear spoiler
RhoPlate - tow hook license plate with Go-Pro mount
Cruiser - smoked license plate covers
Well Visors - smoked side window deflectors
Suntek - CXP window tint (35% front, 5% rear)
Vinyl Pinstripe - 1/4" lime green along CF splitter, skirts and spats
INTERIOR
TWM - A6 Leopard stainless steel shift ****
Escort - Passport Max 2 radar detector
-BlendMount
-MirrorTap
Car Kit Company - Satellite Navigation Bypass
CarsMo - stainless steel radio and A/C *****
LIGHTING
OEM Infiniti - hyper LED daytime running lights (converted to stay on at all times)
Diode Dynamics
- 6000k front side marker bulb
- 6000k/amber switchback front turn signal bulb
- amber rear turn signal bulb
- 6000k reverse light bulb
- 6000k license plate bulb
- 6000k complete interior lighting
Morimoto - XB LED fog light housing
Lamin-X - protective films
- light smoke - headlights and DRLs
- yellow - foglights
- charcoal - taillights
This is a pretty exhaustive list but I'm sure I might have missed a thing or two or three .
Below are a few pictures of the car as it currently sits (I'll continually add and remove pictures from here as things change):
Thanks for taking the time to view my thread!
As a side note, follow me on Instagram: @gntlmn_z, where I post more pics of the build.
Last edited by GNTLMN_Z; 08-29-2016 at 04:27 PM. Reason: updates to pictures and mod list
The following 2 users liked this post by GNTLMN_Z:
Daddy Fat Sacs (07-14-2016),
ngolbuff (10-15-2021)
#2
Registered Member
Thread Starter
Thought I'd use this section for a little dyno action!

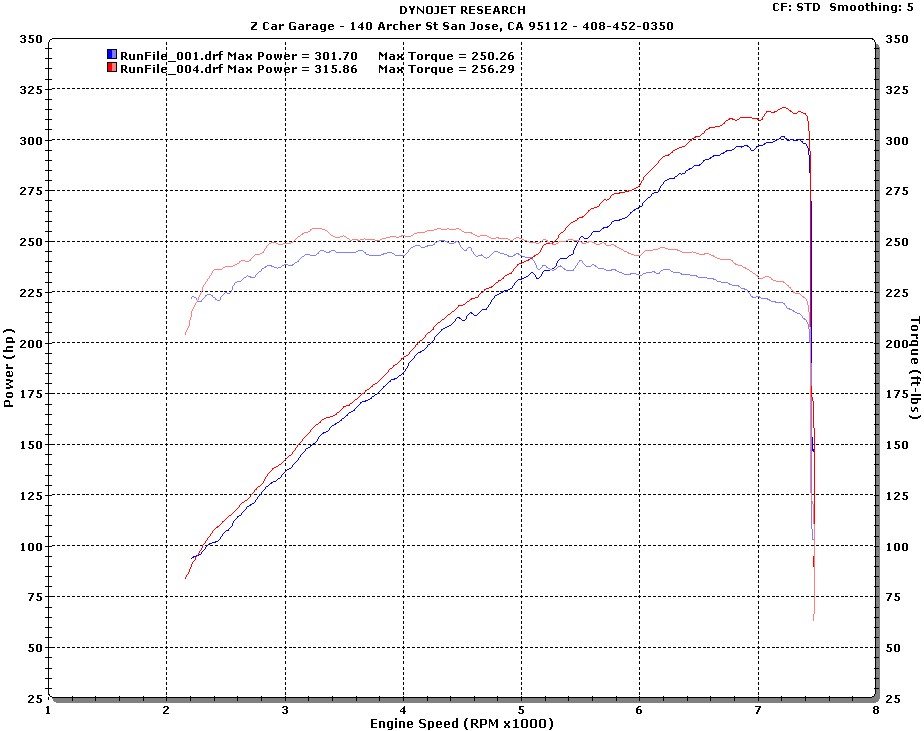

and here's the dyno sheet
Run 1 -
Mods - Stillen Gen3 intakes
Results - 301whp/250wtq
Run 2 -
Mods - Stillen Gen3 intakes, Motordyne ART pipes, Fast Intentions 2.5" cat back exhaust with 18" resonators
Results - 315whp/256wtq
and here's the dyno sheet
Run 1 -
Mods - Stillen Gen3 intakes
Results - 301whp/250wtq
Run 2 -
Mods - Stillen Gen3 intakes, Motordyne ART pipes, Fast Intentions 2.5" cat back exhaust with 18" resonators
Results - 315whp/256wtq
Last edited by GNTLMN_Z; 07-15-2016 at 01:07 AM.
The following users liked this post:
GNTLMN_Z (07-15-2016)
#6
Registered Member
iTrader: (15)
Wow looks great! Not sure im feeling the neon green stripe...but would love to see some more profile shots of this. Also get some more pics of the rear spoiler? Hows the fitment? Ive been eyeing the same one for awhile now and just curious about fitment on the sides? Also hows the fitment on the side mirrors? I know with those overlays, there can be issues.
Any plans on blacking out the fog/window trim to tie the rest of the car together?
Any plans on blacking out the fog/window trim to tie the rest of the car together?
Trending Topics
#8
Registered Member
Thread Starter
Originally Posted by blnewt
Way to go Jimmy, now that's the way to put a build thread together!
G is a stunner all the way around, and what a list of things you've done in such short order. Big congrats on this one, take a bow sir!
G is a stunner all the way around, and what a list of things you've done in such short order. Big congrats on this one, take a bow sir!
TBH though, I should have slowed down with the mods because now I can't think of what else to do??
Originally Posted by Daddy Fat Sacs
Wow looks great! Not sure im feeling the neon green stripe...but would love to see some more profile shots of this. Also get some more pics of the rear spoiler? Hows the fitment? Ive been eyeing the same one for awhile now and just curious about fitment on the sides? Also hows the fitment on the side mirrors? I know with those overlays, there can be issues.
Any plans on blacking out the fog/window trim to tie the rest of the car together?
Any plans on blacking out the fog/window trim to tie the rest of the car together?
Originally Posted by ToXIc
about ficking time!!! looks great! post some more pics!!
#9
Registered Member
Thread Starter
Because I'm happy with where the car is visually, at least for the time being, I've decided to focus strictly on performance. The car is at 315whp/256wtq and the next logical step would be a simple tune to bring those numbers up and get LAUNCH CONTROL!!
But I've thought about taking it further. After a LOT of research, I figured I'd build the entire fuel system. And so, the next mod will be a full return fuel system with larger fuel pump, upgraded fuel rails, larger injectors, upgraded fuel pressure regulator and a return fuel line. But why stop there? The car will also be converted to E85 flex fuel capable.
I've always been curious what a NA motor can do with E85 and now we'll find out!
But I've thought about taking it further. After a LOT of research, I figured I'd build the entire fuel system. And so, the next mod will be a full return fuel system with larger fuel pump, upgraded fuel rails, larger injectors, upgraded fuel pressure regulator and a return fuel line. But why stop there? The car will also be converted to E85 flex fuel capable.
I've always been curious what a NA motor can do with E85 and now we'll find out!
#10
Registered Member
iTrader: (15)
Thank you sir! Yeah the pinstripe is an acquired taste. I might be switching it out to a different color but haven't decided yet. I'll get more pics soon; waiting on a friend for a photoshoot! The fitment on the spoiler is pretty nice. I had ordered the smaller one but they sent this one. The overlays don't fit that well and I'll eventually swap them with true CF covers. Black vinyl on the trim is on the list of future mods.
After seeing this thread...I have to admit that I went looking at air ride kits
#12
Registered Member
Thread Starter
Originally Posted by Daddy Fat Sacs
Really liking the build you have here....I dont need a photoshoot for a few pics of that spoiler
After seeing this thread...I have to admit that I went looking at air ride kits
After seeing this thread...I have to admit that I went looking at air ride kits
The following users liked this post:
Daddy Fat Sacs (07-15-2016)
#13
Registered Member
Thread Starter
Originally Posted by ChinkyChoy
came in here expecting to see a bunch of stock G sedan pics with some tints and plastidip
OP proved me wrong awesome job
OP proved me wrong awesome job
And tints were one of the most recent things I did.
#15
Registered Member
Thread Starter
Originally Posted by ToXIc
did you do the double baffle up front yet?
