Need guidance tc015n wheels / exposed hub axle nut
#1
Need guidance tc015n wheels / exposed hub axle nut

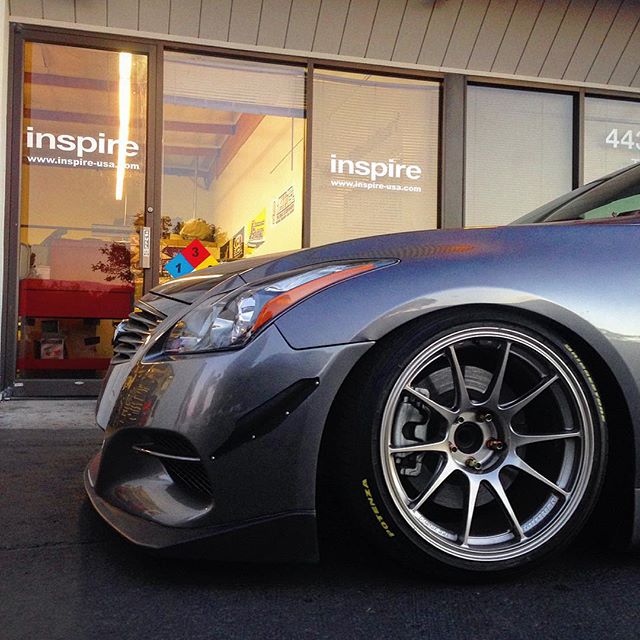

I've been researching like crazy for the past few weeks regarding a lightweight, good looking, and decently affordable 18" wheel selection for my summer set. I was set on going with the enkei nt03+m wheels (8.5" + 38 front 245 tire, 9.5" +40 rear 275 tire), but then I discovered the weds tc105n (8.5" + 32 front 245 tire, 9.5" + 35 rear 275 tire). The tc105n's weight 16.5lb front and 17.6lb rear, which is about 3lbs per wheel less than the nt03+m and look better with a perfect offest(though about $700 more expensive per set). I love these wheels and want to pull the trigger but the weds center caps do not fit on them when fitted with hub rings which i will need (not comfortable putting wheels on lug centric). Has anyone had experience with a similar situation and found a solution for center caps? Alternately, has anyone cleaned/dressed up the exposed hub center/axle nut with pics and a write up of how they did it? I can't drop all this money and have a rusty axle nut as the centerpiece of these beauties. Any and all feedback greatly appreciated.
As an aside, Josh at getyourwheels.com has been really helpful in this quest.
As an aside, Josh at getyourwheels.com has been really helpful in this quest.
#2
Movin On!
iTrader: (13)
Is there any room on the cap to shave it down to give you more clearance? Or is there another Weds Cap that may have more room that will still fit in that center? My Wedsport caps have a fair amount of area in the plastic prongs that could be shaved back if its only a few mm that's needed.
#3
Is there any room on the cap to shave it down to give you more clearance? Or is there another Weds Cap that may have more room that will still fit in that center? My Wedsport caps have a fair amount of area in the plastic prongs that could be shaved back if its only a few mm that's needed.
#5
Registered Member
iTrader: (1)
unfortunately I have no idea. Hours of googling didn’t turn that up as a solution for anyone else running these wheels with hub rings. The frs community has a vendor that developed hub centric center caps that act as both the hub ring and center cap. They only make it for the frs bore size though.
#6
Great point, just sent them an email.
Last edited by 04gtoryder; 02-27-2018 at 12:52 PM. Reason: more info
#7
Registered Member
Hey, it's my car!
A quick google search seems to indicate that the center caps fit from the back - which is pretty weird. I think that simplest way is to have a local machine shop mill down the top of the centering rings, just enough so that the flange of the center cap fits in there along with the rings. I understand why Weds would say that it would not fit, but that's more a legal thing than a "there is no solution to this problem" thing.
The rings only serve to center the wheels, so after you've torqued them down, even with them being a bit thinner it shouldn't matter. Also the lugs help to center, so that in addition to your thinned ring it should be enough to prevent any problems.
For what it's worth, the NT03+Ms' center caps are actually bolted to the wheel from the front, with 5 small hex bolts.
A quick google search seems to indicate that the center caps fit from the back - which is pretty weird. I think that simplest way is to have a local machine shop mill down the top of the centering rings, just enough so that the flange of the center cap fits in there along with the rings. I understand why Weds would say that it would not fit, but that's more a legal thing than a "there is no solution to this problem" thing.
The rings only serve to center the wheels, so after you've torqued them down, even with them being a bit thinner it shouldn't matter. Also the lugs help to center, so that in addition to your thinned ring it should be enough to prevent any problems.
For what it's worth, the NT03+Ms' center caps are actually bolted to the wheel from the front, with 5 small hex bolts.
Trending Topics
#8
Hey, it's my car!
A quick google search seems to indicate that the center caps fit from the back - which is pretty weird. I think that simplest way is to have a local machine shop mill down the top of the centering rings, just enough so that the flange of the center cap fits in there along with the rings. I understand why Weds would say that it would not fit, but that's more a legal thing than a "there is no solution to this problem" thing.
The rings only serve to center the wheels, so after you've torqued them down, even with them being a bit thinner it shouldn't matter. Also the lugs help to center, so that in addition to your thinned ring it should be enough to prevent any problems.
For what it's worth, the NT03+Ms' center caps are actually bolted to the wheel from the front, with 5 small hex bolts.
A quick google search seems to indicate that the center caps fit from the back - which is pretty weird. I think that simplest way is to have a local machine shop mill down the top of the centering rings, just enough so that the flange of the center cap fits in there along with the rings. I understand why Weds would say that it would not fit, but that's more a legal thing than a "there is no solution to this problem" thing.
The rings only serve to center the wheels, so after you've torqued them down, even with them being a bit thinner it shouldn't matter. Also the lugs help to center, so that in addition to your thinned ring it should be enough to prevent any problems.
For what it's worth, the NT03+Ms' center caps are actually bolted to the wheel from the front, with 5 small hex bolts.
Regarding the weds, I don't understand what you mean by "fits from the back". Regarding the solution of a machine shop milling the rings down, it sounds like it could work but that's really a last resort as I wouldn't want to go through that trouble and buy the center caps only to find out it doesn't work. The mounting area on the weds wheel is very thin. I wonder if i can just get some generic center caps that fits the inner diameter of the hub rings? Would the axle stick out beyond the edge of the hub?
#10
Registered Member

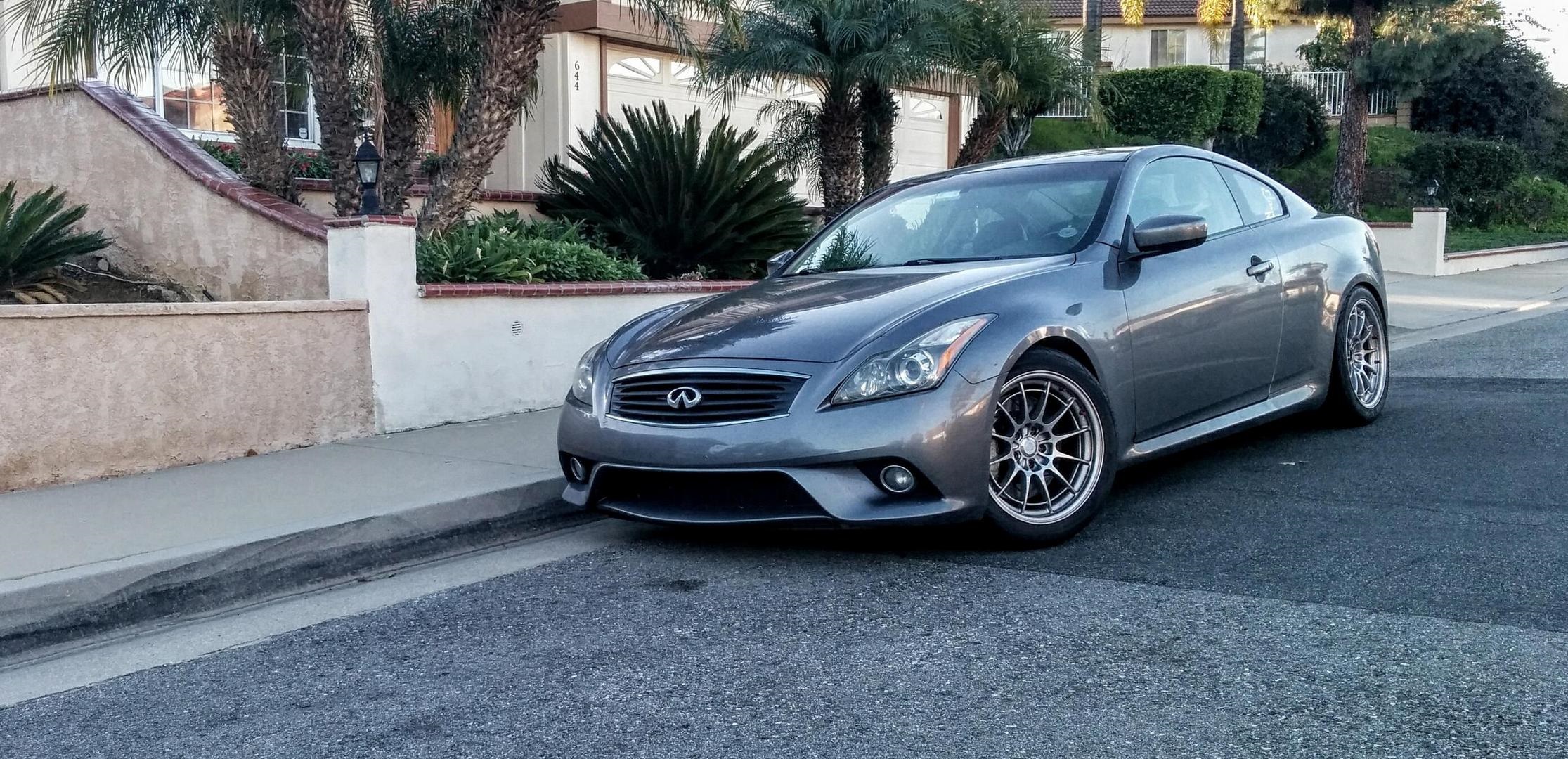

Ha I love the way your car looks. I got into the Nt03 wheels from one of your posts. Do you have a good side shot of your car? I actually looked through your posts when I was set on the Nt03 but all your shots are on a decent angle. Are you still happy with the wheels and their quality?
Regarding the weds, I don't understand what you mean by "fits from the back". Regarding the solution of a machine shop milling the rings down, it sounds like it could work but that's really a last resort as I wouldn't want to go through that trouble and buy the center caps only to find out it doesn't work. The mounting area on the weds wheel is very thin. I wonder if i can just get some generic center caps that fits the inner diameter of the hub rings? Would the axle stick out beyond the edge of the hub?
Regarding the weds, I don't understand what you mean by "fits from the back". Regarding the solution of a machine shop milling the rings down, it sounds like it could work but that's really a last resort as I wouldn't want to go through that trouble and buy the center caps only to find out it doesn't work. The mounting area on the weds wheel is very thin. I wonder if i can just get some generic center caps that fits the inner diameter of the hub rings? Would the axle stick out beyond the edge of the hub?
I sold the wheels a while back because 1. I disliked how I had to run a spacer for it to clear the front brakes, and 2. because I wanted to go wider. I love the design, price point, and weight/strength of these wheels (honestly, for the dollar you spend, they're almost as light and almost as strong as a TE37 or equivalent forged wheel). Gonna try to stuff the 18x10.5 +30 NT03s in there when I have a chance.
As for the center caps, from what I understand, the TC105N center caps are inserted from the back of the wheel when unmounted. And they take up the space that would otherwise be taken up by the centering ring around the hub bore.
You could measure the hole in the front and try to find something that would friction/tab fit in there, but other than that I really have no experience otherwise since I don't actually run hub caps on any of my wheels...
Last edited by bPChaos; 02-28-2018 at 01:46 PM.
#11

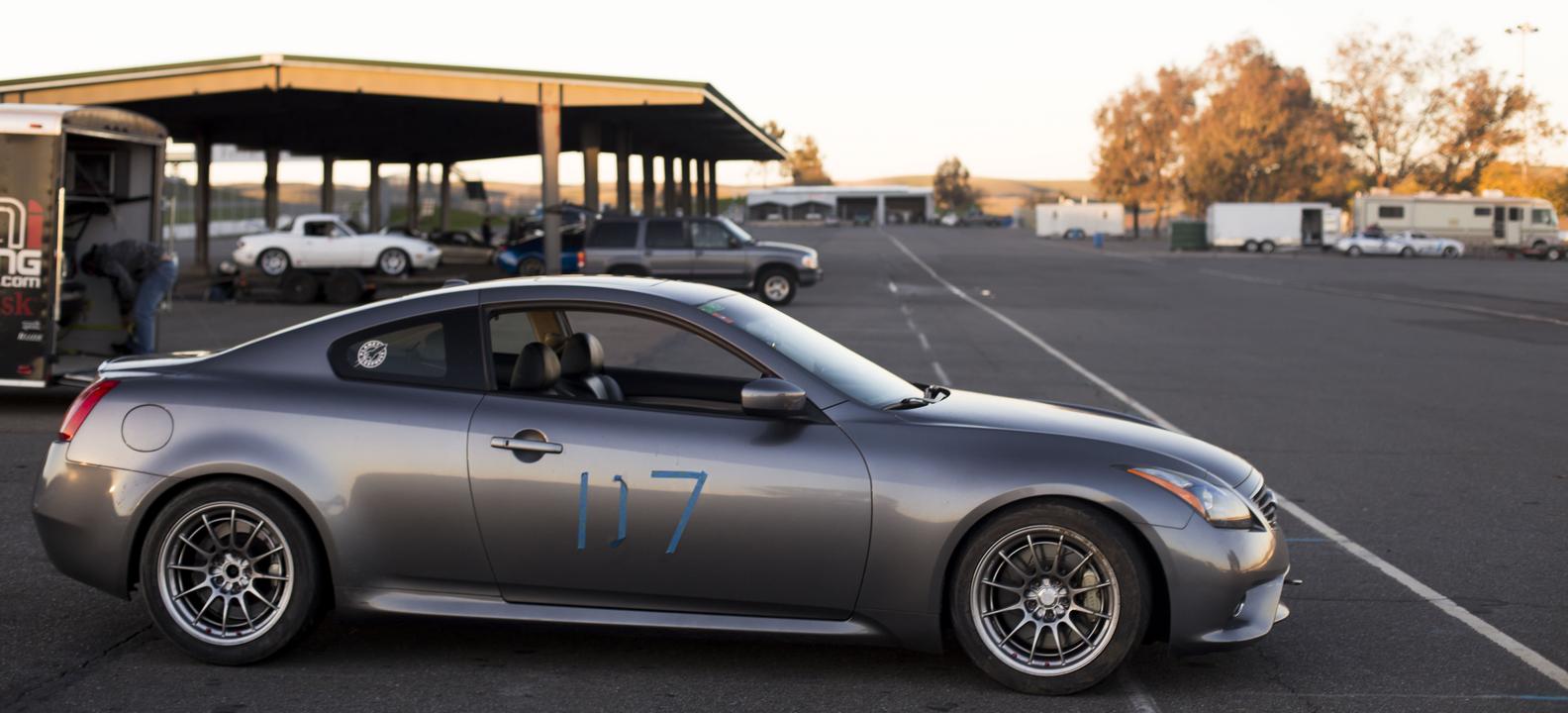

This is probably the only photo I have of my car, side on.
I sold the wheels a while back because 1. I disliked how I had to run a spacer for it to clear the front brakes, and 2. because I wanted to go wider. I love the design, price point, and weight/strength of these wheels (honestly, for the dollar you spend, they're almost as light and almost as strong as a TE37 or equivalent forged wheel). Gonna try to stuff the 18x10.5 +30 NT03s in there when I have a chance.
As for the center caps, from what I understand, the TC105N center caps are inserted from the back of the wheel when unmounted. And they take up the space that would otherwise be taken up by the centering ring around the hub bore.
You could measure the hole in the front and try to find something that would friction/tab fit in there, but other than that I really have no experience otherwise since I don't actually run hub caps on any of my wheels...
I sold the wheels a while back because 1. I disliked how I had to run a spacer for it to clear the front brakes, and 2. because I wanted to go wider. I love the design, price point, and weight/strength of these wheels (honestly, for the dollar you spend, they're almost as light and almost as strong as a TE37 or equivalent forged wheel). Gonna try to stuff the 18x10.5 +30 NT03s in there when I have a chance.
As for the center caps, from what I understand, the TC105N center caps are inserted from the back of the wheel when unmounted. And they take up the space that would otherwise be taken up by the centering ring around the hub bore.
You could measure the hole in the front and try to find something that would friction/tab fit in there, but other than that I really have no experience otherwise since I don't actually run hub caps on any of my wheels...
Car looks great by the way, has a very sporty look with the wheels and black grille.
#12
Registered Member
Thanks
Post pictures when you get them on the car! the TC105s were on my short list of performance wheels to get, and I love how they look. They're also super light.
Post pictures when you get them on the car! the TC105s were on my short list of performance wheels to get, and I love how they look. They're also super light.
