>>>Official Fast Intentions Twin Turbo Thread<<<
#2
OFFICIAL ORDER LIST
FI TT KIT #'d
#029 George(sewlman) - INSTALLED@FI - Stage 1
#042 Blaine(NeverBoneStock) - SHIPPED
#043 Eric(waste86) - Stage 1 - BUILD THREAD HERE (CLICKY)
Pending (Birdman)
FI TT KIT #'d
#029 George(sewlman) - INSTALLED@FI - Stage 1
#042 Blaine(NeverBoneStock) - SHIPPED
#043 Eric(waste86) - Stage 1 - BUILD THREAD HERE (CLICKY)
Pending (Birdman)
- STAGE 1: Garrett GT2860RS Dual ball bearing oil & water cooled Turbochargers. (700+ RWH Capable)
- STAGE 2: Xonarotor 49.48 (HTZ-2868 Billet Wheel) dual ball bearing, oil & water cooled turbochargers. (800+ RWH Capable)
- STAGE 3: Xonarotor 78.64 (HTZ-3579 Billet Wheel) dual ball bearing, oil & water cooler turbochargers. (1,000+ RWH Capable)
- Xonarotor turbochargers are optimized for surge line performance and high pressure ratio efficiency. All Xonarotor turbochargers come standard with the TiAL ALPHA Compressor Cover. Showcasing high flow volute geometry, with integrated back plate. Covers are custom CNC machined and contoured
Last edited by 1cleanG; 03-09-2016 at 03:21 PM.
#4

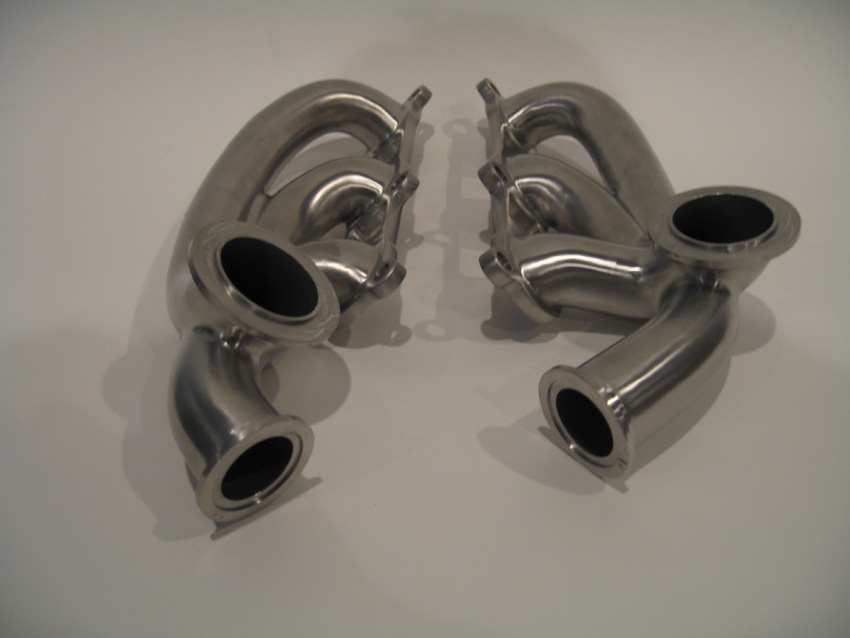

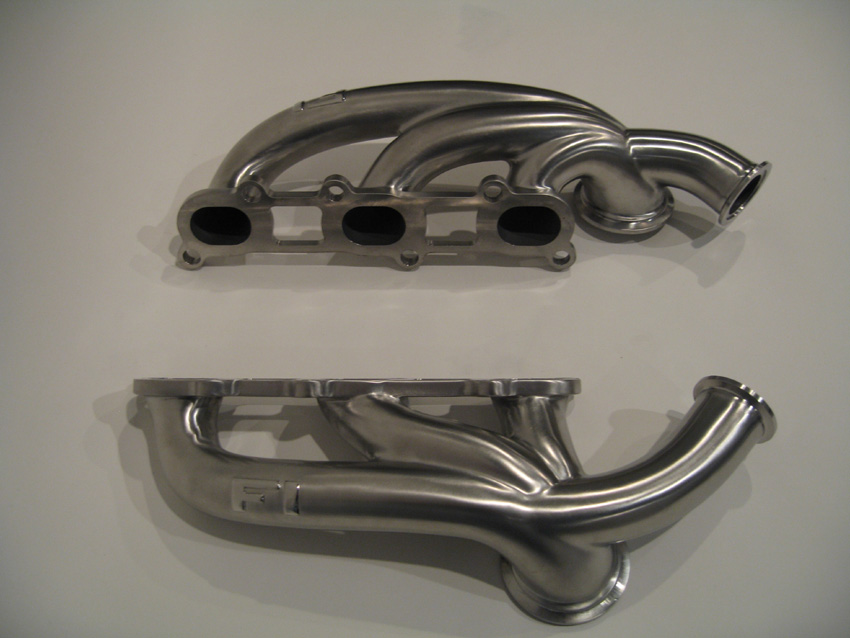

Question: Are those exhaust manifolds welded or cast?
Answer: The exhaust manifolds are investment cast stainless steel.
_______________________________________________

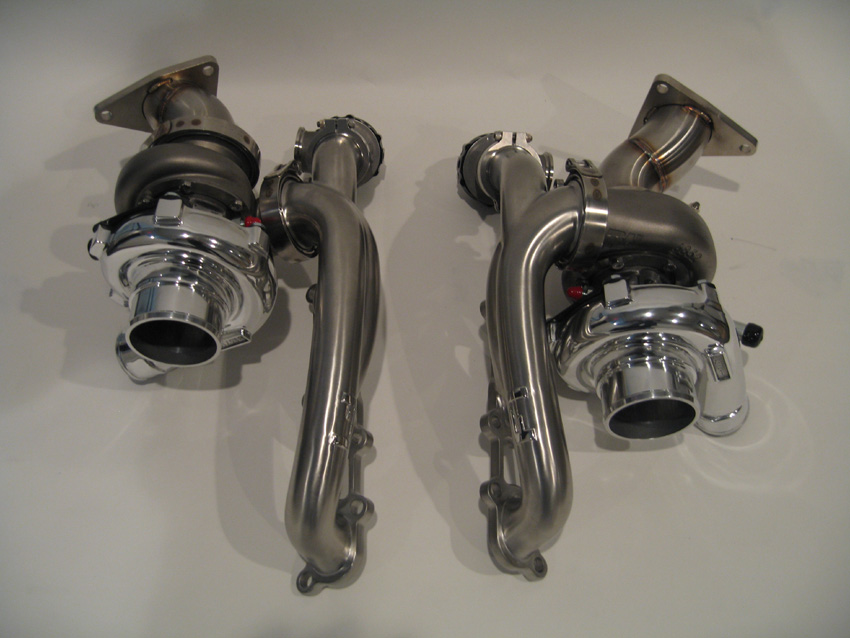

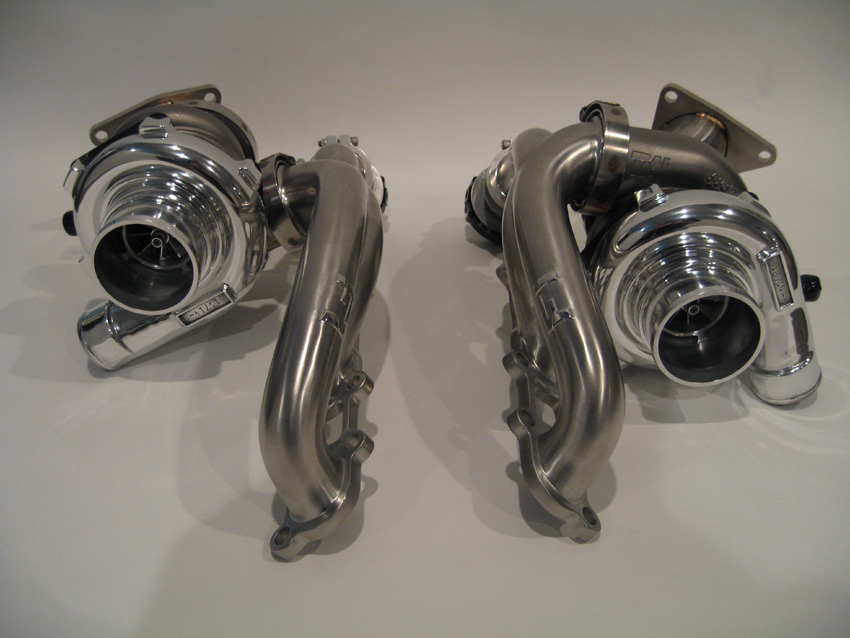

Question: What turbo's are those?
Answer: The turbo's are Garrett GTX2860RS, also available Xonarotor 49.48 (HTZ-2868 Billet Wheel) and Xonarotor 78.64 (HTZ-3579 Billet Wheel).
_______________________________________________

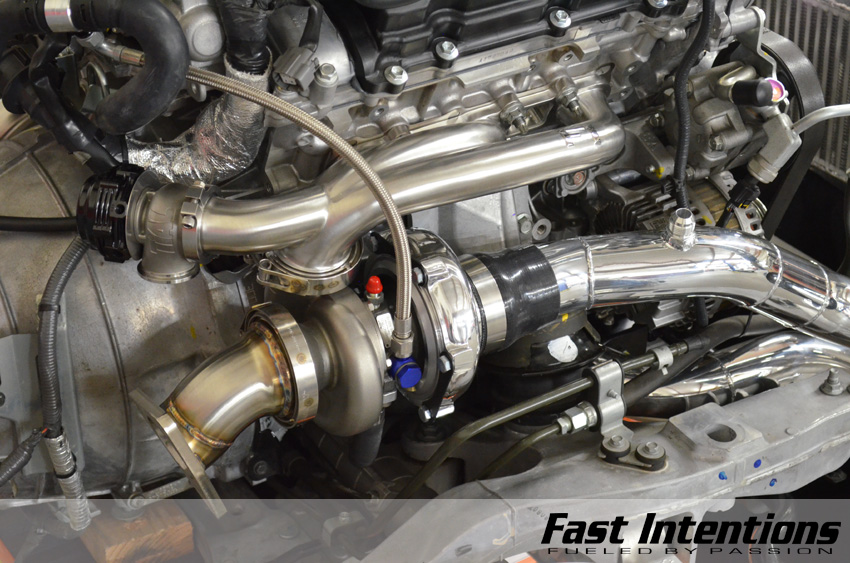

Question: What type of exhaust housing is that on those turbo's and why not the "traditional" T-3 style?
Answer: These exhaust housings are Tial. All flanges are gone and everything is a v-band connection. These housings are designed for max efficiency through the entire RPM curve and reduce the overall amount of space being taken up. This gave us more clearance in all directions in the design process. It allowed us to design the exhaust manifolds without having to "drill and tap" the passenger aluminum head of the engine in order to make the exhaust manifold fit the car! In addition, we will not offer an internal wastegate option and this housing eliminates having to weld internal wastegate flapper doors shut of external wastegate applications. On the driver side the compact nature of this housing allows us to retain the "stock" steering knuckle.
_______________________________________________

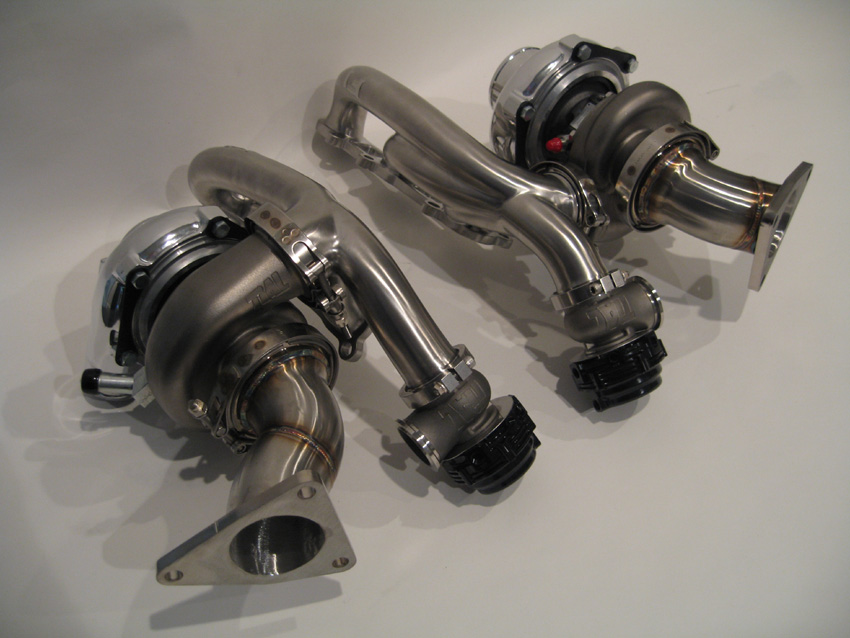

Question: What are those exhaust elbows bolted to the turbo's.
Answer: The exhaust elbow bolted to the turbo's start at 3 inches with a smooth taper down to 2 1/2" and end in the stock location of the starting point of the catalytic converters. Yes, this means you can run any existing cat or test pipe in stock location. In production these elbows will be cast.
_______________________________________________
Question: How will you recirculate the wastegate back in to the exhaust system?
Answer: We will recirculate the wastegate directly into the exhaust elbow coming off of the turbo's. This will eliminate the "plumbing fitment nightmare".
_______________________________________________
Question: Will this kit fit both the 6MT and 7AT (Transmissions)?
Answer: Yes, it will be designed for both.
_______________________________________________
Question: Will this kit fit the RHD (right hand drive) model?
Answer: I am not certain but I would venture to say no it will not fit. Until I have a RHD car in our shop to do a test fit I will not know. Anyone who wants to send one our way, just shoot me an email.
_______________________________________________
Question: What will you use for tuning?
Answer: UpRev or EcuTek
_______________________________________________

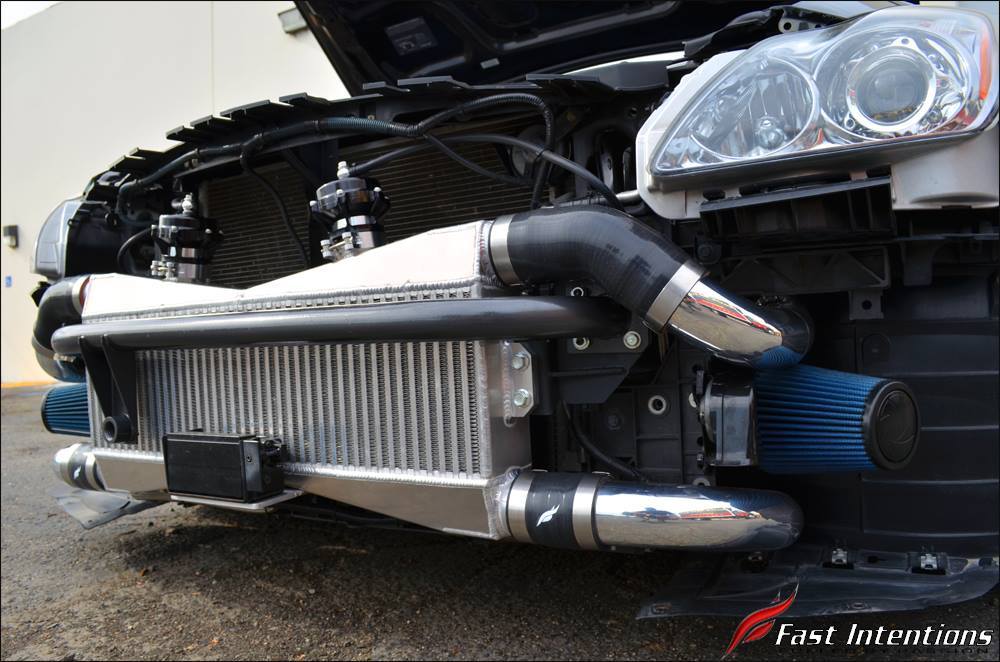

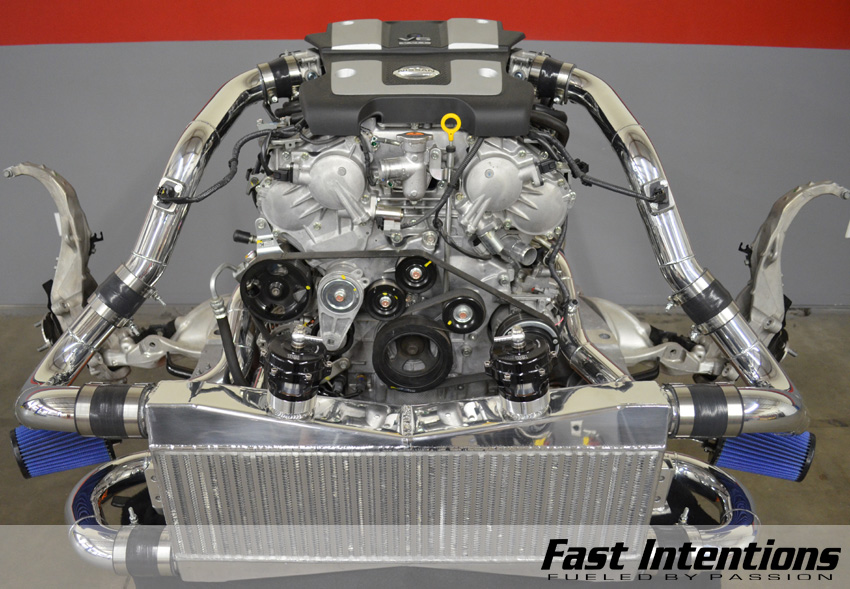

Question: Why are the BOV's (Blow Off Valves) welded in the innercooler?
Answer: In order to (properly) relieve pressure off of the system the BOV's should be post innercooler. In this case they are. You should put them as close to the throttle bodies as possible, however we did not want to put them too close to the MAF's. To close to the MAF's will can create turbulence in the intake tubes. This will cause the MAF's to work improperly. Now in our case we chose to weld them directly to the top of the innercooler for aesthetics, ease of installation and symmetry.
_______________________________________________
Question: What size is the innercooler tubing and why is it that size?
Answer: The innercooler tubing is 2.50" all the way though with the exception of directly out of the turbo's. The silicone transition out of them goes from 2.0" to 2.5" virtually immediately. After doing extensive research we are confident that this specific car does not need anything larger. The G37 lacks low end torque and we want the turbo's to spool as fast as possible. We are however prepared to test 2.75" if need be. As for 3" as the intake tubes, yes aesthetically they look aggressive but from a performance standpoint we feel that intake tubes that large will create turbo lag.
_______________________________________________

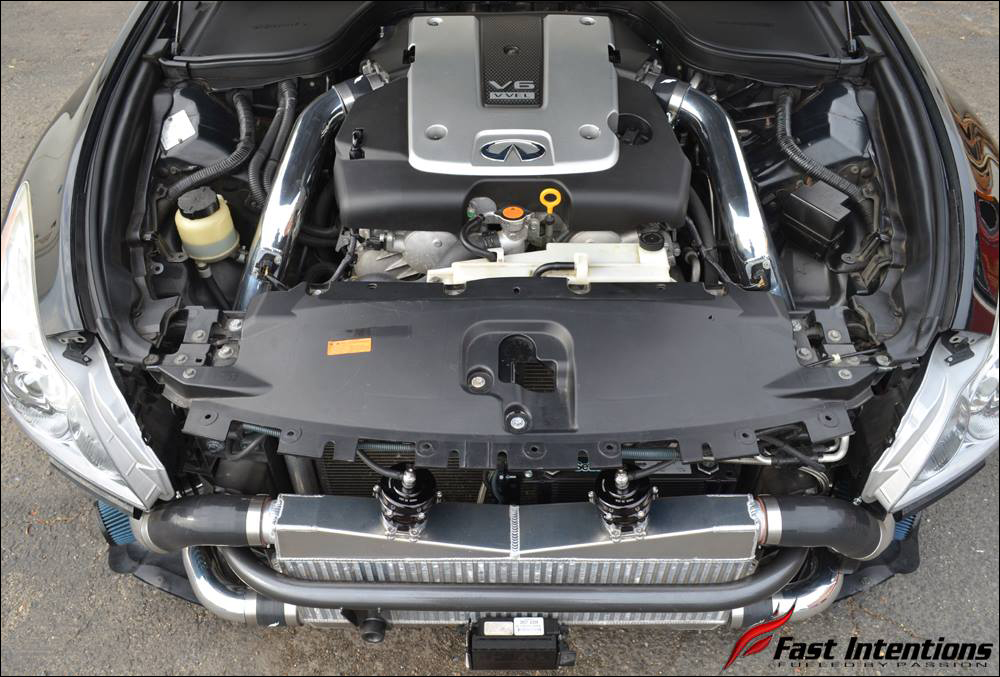

Question: Is the innercooler made up of one or two cores?
Answer: The innercooler is one core. It is however completely sealed directly in the middle. Each side is fully independent to the other. We have a left to right passage and with one core you are able to achieve more cooling rows. This will allow for better cooling and in the end a more efficient innercooler.
_______________________________________________
Question: Are we able to keep our crash bar with this innercooler?
Answer: Unfortunately no you cannot keep your (stock) crash bar. To do so would cause us to use a much smaller innercooler core. In addition the power steering cooler would have to be virtually up against the radiator and the innercooler as well. This would cut off a lot of air flow to your radiator and guaranteed to make your car run hotter. The coolant and oil temps are already hot. We did not want to add to the issue! *NOTE: We may develop and offer an aftermarket crash bar before the kit is in full production.*
_______________________________________________
Question: Why did you choose to put the air filters in their current location?
Answer: As you can see from the filter to the turbo inlet the bend is extremely minimal. The straighter shot, the faster the turbo's will spool. In addition this is a good location to keep the air filters from potentially hydro locking. For those of you who like to take your car underwater!
_______________________________________________
Question: Will the innercooler tubes always be welded together in multiple pieces like in these pictures?
Answer: Once in production, all but 1 maybe 2 out of the 8 innercooler tubes will be in one piece. There should only be 1-2 welds in all of the tubing.
_______________________________________________
Question: Will the wastegates recirculate back in to the exhaust?
Answer: Yes, pre stock catalytic converter location. For testing purposes at the dyno we will dump them into the atmosphere. We will most likely need to change wastegate spring pressure on the dyno and for ease of access having the recirculation tubes off and out of the way will speed things up.
Answer: The exhaust manifolds are investment cast stainless steel.
_______________________________________________
Question: What turbo's are those?
Answer: The turbo's are Garrett GTX2860RS, also available Xonarotor 49.48 (HTZ-2868 Billet Wheel) and Xonarotor 78.64 (HTZ-3579 Billet Wheel).
_______________________________________________
Question: What type of exhaust housing is that on those turbo's and why not the "traditional" T-3 style?
Answer: These exhaust housings are Tial. All flanges are gone and everything is a v-band connection. These housings are designed for max efficiency through the entire RPM curve and reduce the overall amount of space being taken up. This gave us more clearance in all directions in the design process. It allowed us to design the exhaust manifolds without having to "drill and tap" the passenger aluminum head of the engine in order to make the exhaust manifold fit the car! In addition, we will not offer an internal wastegate option and this housing eliminates having to weld internal wastegate flapper doors shut of external wastegate applications. On the driver side the compact nature of this housing allows us to retain the "stock" steering knuckle.
_______________________________________________
Question: What are those exhaust elbows bolted to the turbo's.
Answer: The exhaust elbow bolted to the turbo's start at 3 inches with a smooth taper down to 2 1/2" and end in the stock location of the starting point of the catalytic converters. Yes, this means you can run any existing cat or test pipe in stock location. In production these elbows will be cast.
_______________________________________________
Question: How will you recirculate the wastegate back in to the exhaust system?
Answer: We will recirculate the wastegate directly into the exhaust elbow coming off of the turbo's. This will eliminate the "plumbing fitment nightmare".
_______________________________________________
Question: Will this kit fit both the 6MT and 7AT (Transmissions)?
Answer: Yes, it will be designed for both.
_______________________________________________
Question: Will this kit fit the RHD (right hand drive) model?
Answer: I am not certain but I would venture to say no it will not fit. Until I have a RHD car in our shop to do a test fit I will not know. Anyone who wants to send one our way, just shoot me an email.
_______________________________________________
Question: What will you use for tuning?
Answer: UpRev or EcuTek
_______________________________________________
Question: Why are the BOV's (Blow Off Valves) welded in the innercooler?
Answer: In order to (properly) relieve pressure off of the system the BOV's should be post innercooler. In this case they are. You should put them as close to the throttle bodies as possible, however we did not want to put them too close to the MAF's. To close to the MAF's will can create turbulence in the intake tubes. This will cause the MAF's to work improperly. Now in our case we chose to weld them directly to the top of the innercooler for aesthetics, ease of installation and symmetry.
_______________________________________________
Question: What size is the innercooler tubing and why is it that size?
Answer: The innercooler tubing is 2.50" all the way though with the exception of directly out of the turbo's. The silicone transition out of them goes from 2.0" to 2.5" virtually immediately. After doing extensive research we are confident that this specific car does not need anything larger. The G37 lacks low end torque and we want the turbo's to spool as fast as possible. We are however prepared to test 2.75" if need be. As for 3" as the intake tubes, yes aesthetically they look aggressive but from a performance standpoint we feel that intake tubes that large will create turbo lag.
_______________________________________________
Question: Is the innercooler made up of one or two cores?
Answer: The innercooler is one core. It is however completely sealed directly in the middle. Each side is fully independent to the other. We have a left to right passage and with one core you are able to achieve more cooling rows. This will allow for better cooling and in the end a more efficient innercooler.
_______________________________________________
Question: Are we able to keep our crash bar with this innercooler?
Answer: Unfortunately no you cannot keep your (stock) crash bar. To do so would cause us to use a much smaller innercooler core. In addition the power steering cooler would have to be virtually up against the radiator and the innercooler as well. This would cut off a lot of air flow to your radiator and guaranteed to make your car run hotter. The coolant and oil temps are already hot. We did not want to add to the issue! *NOTE: We may develop and offer an aftermarket crash bar before the kit is in full production.*
_______________________________________________
Question: Why did you choose to put the air filters in their current location?
Answer: As you can see from the filter to the turbo inlet the bend is extremely minimal. The straighter shot, the faster the turbo's will spool. In addition this is a good location to keep the air filters from potentially hydro locking. For those of you who like to take your car underwater!
_______________________________________________
Question: Will the innercooler tubes always be welded together in multiple pieces like in these pictures?
Answer: Once in production, all but 1 maybe 2 out of the 8 innercooler tubes will be in one piece. There should only be 1-2 welds in all of the tubing.
_______________________________________________
Question: Will the wastegates recirculate back in to the exhaust?
Answer: Yes, pre stock catalytic converter location. For testing purposes at the dyno we will dump them into the atmosphere. We will most likely need to change wastegate spring pressure on the dyno and for ease of access having the recirculation tubes off and out of the way will speed things up.
_______________________________________________
Question: What will I need to upgrade to my 7AT?
Answer: The VI Billet Aluminum Flex Plate is build for the Infiniti G37/Nissan 370Z- 7 Speed Automatic Transmission.
The upgraded Flex Plate is CNC cut from billet aluminum for added strength. This process saves weight bringing the weight to just 8lbs. Then they finish them with an anodizing treatment to resist corrosion and wear. All of the Flex Plates are individually serialized and SFI approved.
This very same Flex Plate was used in the record setting 677 WHP Twin Turbocharged Nissan 370Z that ran a 10.91 second 1/4 mile time.
Last edited by 1cleanG; 03-09-2016 at 03:13 PM.
#6
OFFICIAL ORDER LIST
FI TT KIT #'d
#029 George - INSTALLED@FI - Stage 1
#042 Blaine(NeverBoneStock) - SHIPPED
Pending (Birdman)
FI TT KIT #'d
#029 George - INSTALLED@FI - Stage 1
#042 Blaine(NeverBoneStock) - SHIPPED
Pending (Birdman)
- STAGE 1: Garrett GT2860RS Dual ball bearing oil & water cooled Turbochargers. (700+ RWH Capable)
- STAGE 2: Xonarotor 49.48 (HTZ-2868 Billet Wheel) dual ball bearing, oil & water cooled turbochargers. (800+ RWH Capable)
- STAGE 3: Xonarotor 78.64 (HTZ-3579 Billet Wheel) dual ball bearing, oil & water cooler turbochargers. (1,000+ RWH Capable)
- Xonarotor turbochargers are optimized for surge line performance and high pressure ratio efficiency. All Xonarotor turbochargers come standard with the TiAL ALPHA Compressor Cover. Showcasing high flow volute geometry, with integrated back plate. Covers are custom CNC machined and contoured
The following users liked this post:
1cleanG (03-09-2016)
#9
Registered Member
#10
Registered Member
Thanks for the reply, Lance. Are you sure it will fit? If it does, I'll be calling with my CC info.
When I talked to FI a couple months ago, they said no way. The inboard CV joints/axles would not clear the turbos/hot pipe? Just wondering if there were any changes to make it fit now.
When I talked to FI a couple months ago, they said no way. The inboard CV joints/axles would not clear the turbos/hot pipe? Just wondering if there were any changes to make it fit now.
#11
Thanks for the reply, Lance. Are you sure it will fit? If it does, I'll be calling with my CC info.
When I talked to FI a couple months ago, they said no way. The inboard CV joints/axles would not clear the turbos/hot pipe? Just wondering if there were any changes to make it fit now.
When I talked to FI a couple months ago, they said no way. The inboard CV joints/axles would not clear the turbos/hot pipe? Just wondering if there were any changes to make it fit now.
#12
Registered Member
I was afraid it was too good to be true......FI was my first choice due to their manifold and overall system designs. Back to the drawing board.
Thank you for confirming....even if it did burst my bubble........
Thank you for confirming....even if it did burst my bubble........
