Brakes, Suspension, Wheels & Tires
Rollers and Rubbers (View All Posts)

Painting calipers??

Thread Tools

Search this Thread

Old Nov 9, 2012 | 06:30 PM
  #1
Italia311's Avatar
Italia311
Thread Starter
Registered User

Joined: Jul 2011
Posts: 392
Likes: 2
Question Painting calipers??

Hey guys, so before i get yee old "go search for it"..i already have! but have not come across a 100% answer because I've seen a diff method in each video/write up. Long story short, i am planning on painting my calipers, but i want to get the best prep work executed: after cleaning, some people go right in and start painting, meanwhile others scuff the caliper and then paint, and then other don't scuff but use a primer and then paint.... Anyone have any first hand experience and know what the best method is?? What if I were to (obviously clean thoroughly first) scuff with a wire brush, prime, and then paint, etc? Any info would be great, thanks!!
Reply
Old Nov 9, 2012 | 08:07 PM
  #2
Rad_Slinger's Avatar
Rad_Slinger
Registered User
iTrader: (12)

Joined: Dec 2011
Posts: 2,978
Likes: 83
From: New England
i cleaned with caliper cleaner with a small wire brush, then painted directly with like 3 or 4 coats of caliper high temp paint. followed by 4-5 coats of high temp engine clear after sticker application.

so far no issues. i have driven it pretty hard since and have had zero issues with how i did it.
Reply
Old Nov 10, 2012 | 02:10 PM
  #3
Italia311's Avatar
Italia311
Thread Starter
Registered User

Joined: Jul 2011
Posts: 392
Likes: 2
Originally Posted by Mattster
i cleaned with caliper cleaner with a small wire brush, then painted directly with like 3 or 4 coats of caliper high temp paint. followed by 4-5 coats of high temp engine clear after sticker application.

so far no issues. i have driven it pretty hard since and have had zero issues with how i did it.
great, thanks! did you take them off of the rotors or did you do the mask off and spray deal??
Reply
Old Nov 10, 2012 | 05:07 PM
  #4
ilovemyg37's Avatar
ilovemyg37
Registered User

Joined: Apr 2012
Posts: 73
Likes: 9

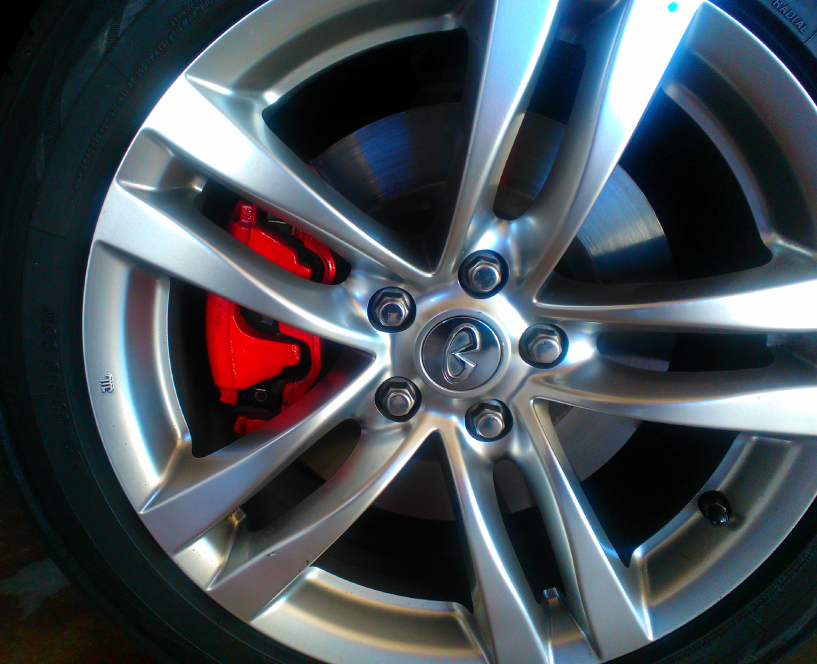

I used the G2 brake painting kit from amazon, and i think it turned out great. I just took the wheels off, masked off the rotors, and painted the calipers with the paint. The included brush is good for about 2 calipers, then you need a new one, so any of those little bristle brushes from michaels, home depot, lowes, would work fine. 1 can of paint in this kit let me put about 3 coats per caliper on and i still had 1/4 of paint left.

High Temperature High Gloss Self Leveling Brush On Red G2 Brake Caliper Paint System Kit : Amazon.com : Automotive High Temperature High Gloss Self Leveling Brush On Red G2 Brake Caliper Paint System Kit : Amazon.com : Automotive

Name:  caliper.png
Views: 1486
Size:  1.50 MB
Reply
Old Nov 12, 2012 | 08:33 AM
  #5
soundmike's Avatar
soundmike
Registered User
iTrader: (6)

Joined: Aug 2008
Posts: 1,193
Likes: 36
FWIW

Spray-painted Akebono's - G35Driver
Reply
Old Nov 12, 2012 | 06:39 PM
  #6
Rad_Slinger's Avatar
Rad_Slinger
Registered User
iTrader: (12)

Joined: Dec 2011
Posts: 2,978
Likes: 83
From: New England
great, thanks! did you take them off of the rotors or did you do the mask off and spray deal??
took em off
Reply
Old Nov 12, 2012 | 06:43 PM
  #7
da mayor's Avatar
da mayor
Registered User
iTrader: (2)

Joined: Sep 2005
Posts: 5,651
Likes: 36
From: Long Island, NY


kept them on the car

Reply
Old Nov 12, 2012 | 10:06 PM
  #8
venkatsharat's Avatar
venkatsharat
Registered User

Joined: May 2012
Posts: 106
Likes: 1
That car looks great!I did a double take
Reply
Old Jan 9, 2013 | 10:27 AM
  #9
Italia311's Avatar
Italia311
Thread Starter
Registered User

Joined: Jul 2011
Posts: 392
Likes: 2
hey guys, bringin my own thread back to life a little bit because i never followed through. Just to clarify, when people say "clean" with a wire brush/caliper cleaner, is it mearly cleaning, or somewhat scuffing as well for paint to stick? And is a primer necessary? Thanks!
Reply
Old Jan 10, 2013 | 08:28 AM
  #10
blnewt's Avatar
blnewt
Movin On!
iTrader: (13)

Joined: Nov 2009
Posts: 24,876
Likes: 4,949
If you've got the non-sport calipers the cast iron is a good base for the paint, just a good wire brush cleaning w/ a good grease remover is fine, then go over the just cleaned caliper w/ rubbing alcohol right before you paint. I kept my calipers on and masked the rotors, hoses, etc. I used VHT caliper paint and it's been a couple years and they still look good w/ a Infiniti logo sticker (no clear coat). The main reason I left the calipers on other than being lazy is you can drive the car immediately and heat up the brakes so you cure the paint. The VHT needs to be baked to fully cure so a good healthy drive after spraying really does the trick.
Reply
Old Jan 10, 2013 | 04:50 PM
  #11
Italia311's Avatar
Italia311
Thread Starter
Registered User

Joined: Jul 2011
Posts: 392
Likes: 2
Originally Posted by blnewt
If you've got the non-sport calipers the cast iron is a good base for the paint, just a good wire brush cleaning w/ a good grease remover is fine, then go over the just cleaned caliper w/ rubbing alcohol right before you paint. I kept my calipers on and masked the rotors, hoses, etc. I used VHT caliper paint and it's been a couple years and they still look good w/ a Infiniti logo sticker (no clear coat). The main reason I left the calipers on other than being lazy is you can drive the car immediately and heat up the brakes so you cure the paint. The VHT needs to be baked to fully cure so a good healthy drive after spraying really does the trick.

thanks for the tips! thing is..i have sport brakes lol think that trick should work just as well or should a primer be applied?
Reply
Old Jan 10, 2013 | 05:47 PM
  #12
soundmike's Avatar
soundmike
Registered User
iTrader: (6)

Joined: Aug 2008
Posts: 1,193
Likes: 36
I sanded mine down and applied paint directly without primer. A little over 3 years later it's held up fairly well even with occasional track duty. I do have a couple minor chips on the backside.

Spray-painted Akebono's - G35Driver
Reply
Old Jan 10, 2013 | 06:56 PM
  #13
blnewt's Avatar
blnewt
Movin On!
iTrader: (13)

Joined: Nov 2009
Posts: 24,876
Likes: 4,949
Originally Posted by Italia311
thanks for the tips! thing is..i have sport brakes lol think that trick should work just as well or should a primer be applied?
If I had the sport brakes I'd give them the premium treatment (taking off calipers & following Soundmikes' advice). Can't you tell I'm jealous of your BBK
Reply
Old Jan 10, 2013 | 06:58 PM
  #14
soundmike's Avatar
soundmike
Registered User
iTrader: (6)

Joined: Aug 2008
Posts: 1,193
Likes: 36
I'm jealous of your wheels and meaty tires. So, yeah, we're even.
