Help! Bbk upgrade from non sport

Old 10-06-2016, 05:32 PM
  #1
xmajd92
Registered User
Thread Starter
iTrader: (1)

Join Date: Feb 2015
Location: Houston, TX
Posts: 546
Thanked 28 Times in 26 Posts
Help! Bbk upgrade from non sport

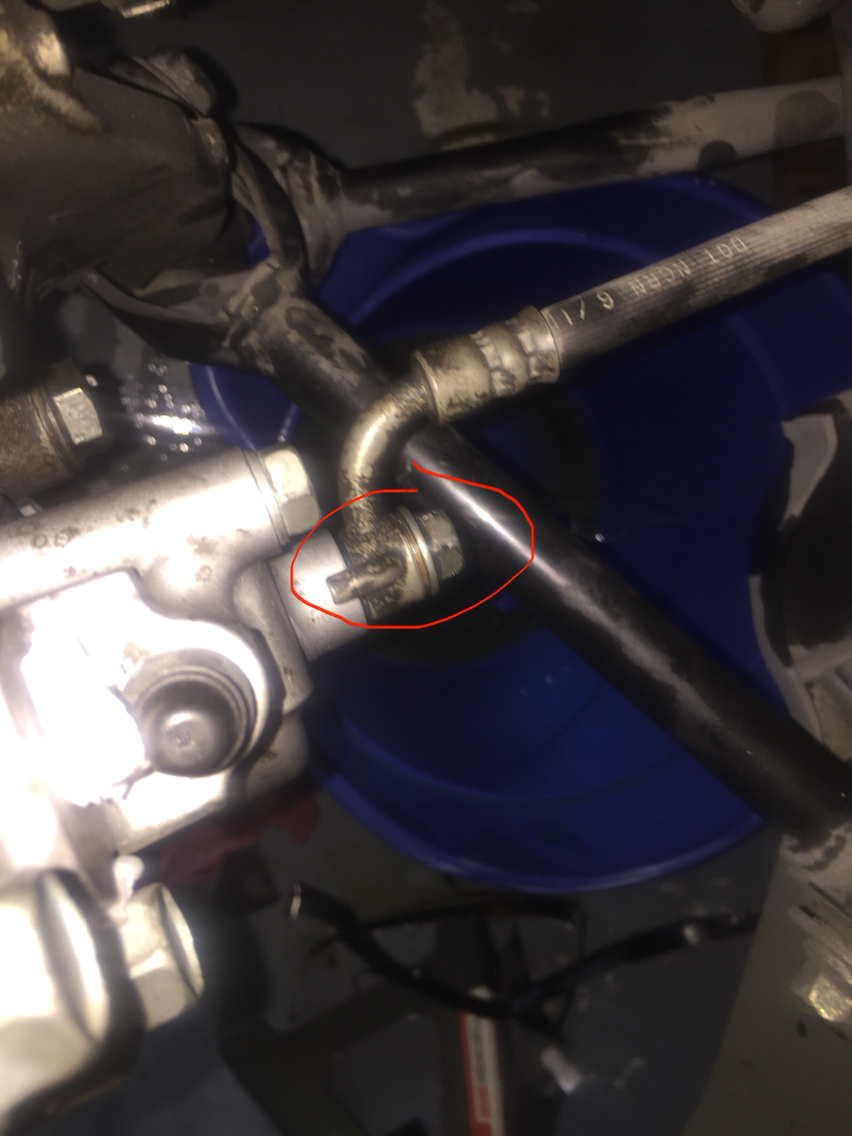

Installing the rear akebono caliper and I've come to a road block. The point where the line is screwed onto the caliper is what I'm talking about. The bolt doesn't seem to screw in all the way so the line has space to wiggle and potentially leak fluid. Should I just add washers to remedy this?

Help! Bbk upgrade from non sport-photo515.jpg
xmajd92 is offline
Old 10-06-2016, 05:42 PM
  #2
Kris9884
Registered User
iTrader: (3)

Kris9884's Avatar

Join Date: Feb 2016
Location: MO
Posts: 2,075
Thanked 192 Times in 179 Posts
Do you have both copper washers installed? There should be one on each side of the banjo bolt.
Kris9884 is offline
Old 10-06-2016, 06:43 PM
  #3
blnewt
Administr8r&DIY cheapsk8
iTrader: (12)

blnewt's Avatar

Join Date: Nov 2009
Location: New Mexico
Posts: 24,601
Thanked 4,737 Times in 4,035 Posts
You probably need the shortened banjo bolts if you're using your stock lines. https://www.z1motorsports.com/brakes...lt-p-8488.html
blnewt is offline
Old 10-07-2016, 09:23 AM
  #4
xmajd92
Registered User
Thread Starter
iTrader: (1)

Join Date: Feb 2015
Location: Houston, TX
Posts: 546
Thanked 28 Times in 26 Posts
I got it fixed guys. I had dropped one of the copper washers. I'm good now lol
xmajd92 is offline
Old 10-07-2016, 09:24 AM
  #5
ChinkyChoy
Premier Member
iTrader: (2)

ChinkyChoy's Avatar

Join Date: Feb 2011
Posts: 1,406
Thanked 214 Times in 171 Posts
if those are stock lines you need shorter banjo bolts
ChinkyChoy is offline
Old 10-07-2016, 09:27 AM
  #6
xmajd92
Registered User
Thread Starter
iTrader: (1)

Join Date: Feb 2015
Location: Houston, TX
Posts: 546
Thanked 28 Times in 26 Posts
Originally Posted by ChinkyChoy
if those are stock lines you need shorter banjo bolts
I replaced the stock line with Ss lines. No more stock lines like from the pic
xmajd92 is offline
Old 10-07-2016, 02:33 PM
  #7
xmajd92
Registered User
Thread Starter
iTrader: (1)

Join Date: Feb 2015
Location: Houston, TX
Posts: 546
Thanked 28 Times in 26 Posts
Finally finished!

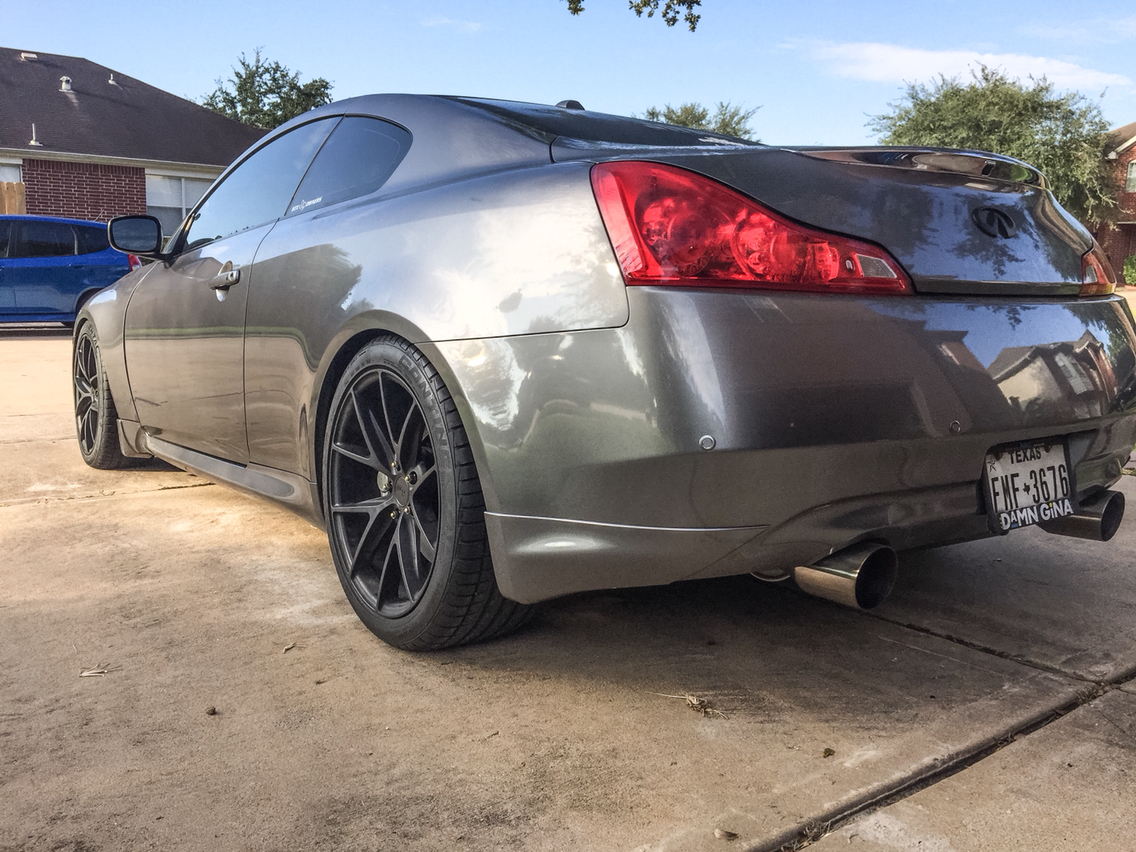

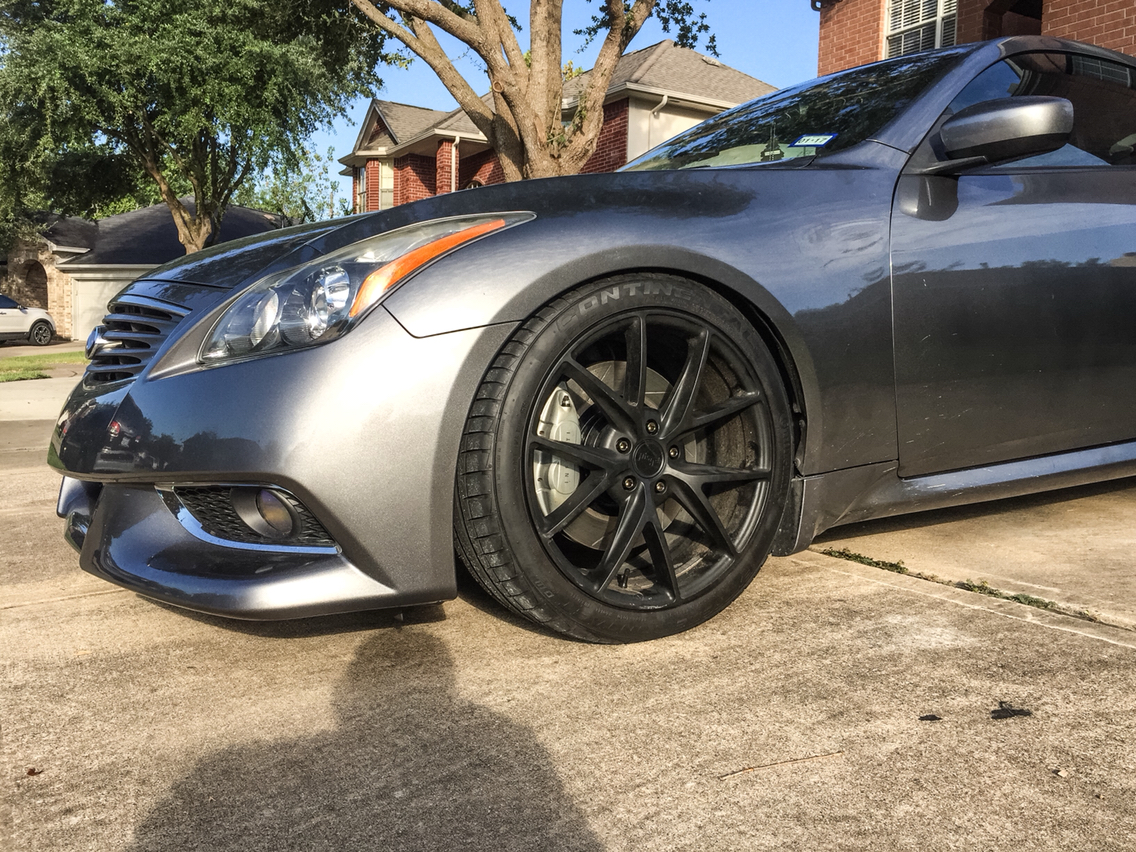

Akebono bbk with SS lines and Z1 slotted rotors. Also installed extended ARP studs and 15mm spacers in front for that flush look.

Almost ready for the track!

Help! Bbk upgrade from non sport-photo43.jpgHelp! Bbk upgrade from non sport-photo135.jpgHelp! Bbk upgrade from non sport-photo718.jpgHelp! Bbk upgrade from non sport-photo204.jpg
xmajd92 is offline
Old 10-07-2016, 03:00 PM
  #8
Vizard_87
Premier Member
iTrader: (13)

Vizard_87's Avatar

Join Date: Jan 2010
Location: Northern Virginia
Posts: 1,664
Thanked 235 Times in 192 Posts
Looking nice!
Vizard_87 is offline
Old 10-07-2016, 04:16 PM
  #9
blnewt
Administr8r&DIY cheapsk8
iTrader: (12)

blnewt's Avatar

Join Date: Nov 2009
Location: New Mexico
Posts: 24,601
Thanked 4,737 Times in 4,035 Posts
Nice job all around^^^^What wheel/tire specs are you running?
blnewt is offline
Old 10-07-2016, 08:55 PM
  #10
xmajd92
Registered User
Thread Starter
iTrader: (1)

Join Date: Feb 2015
Location: Houston, TX
Posts: 546
Thanked 28 Times in 26 Posts
Originally Posted by blnewt
Nice job all around^^^^What wheel/tire specs are you running?
Front 19x8.5+33 - 245/40/19 +15mm spacers
Rear 19x9.5+35 - 275/35/19
xmajd92 is offline
The Following User Says Thank You to xmajd92 For This Useful Post:
blnewt (10-07-2016)
