Easily add a fused circuit
#1
Easily add a fused circuit
I wanted to hard wire my Valentine 1 into my fuse box.
I previously ran a blend mount and the invisicord with my valentine.
I didn't want to spend $100 on a mount and a cord again.
Valentine includes a hard wiring kit, so I used it.
The fuses that are used in the interior fuse box are low profile fuse and aren't as easy to add a circuit like older (larger) fuses.
I found this on amazon
It made the install very smooth and very easy.
You essentially remove the existing fuse.
Then you insert the removed fuse into the fuse tap.
Insert the new fuse and you are ready to go.
I used the cigarette lighter fuse. I very rarely use the cigarette/accessory port so this won't cause any issues.
Here are some photos showing how easy the install was .

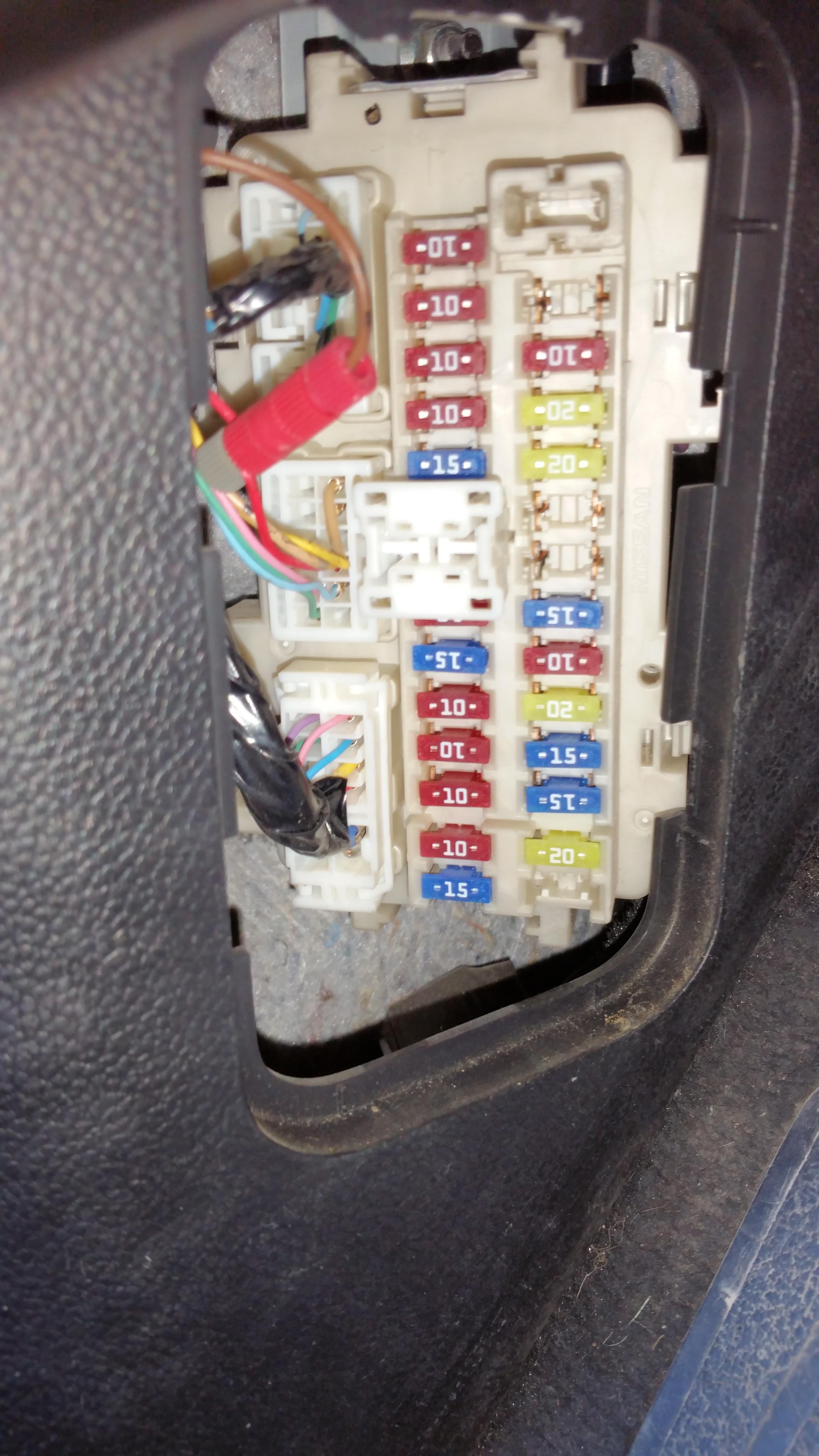

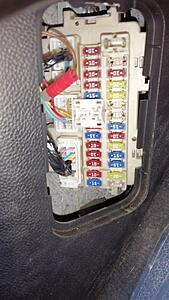

Original fuse box

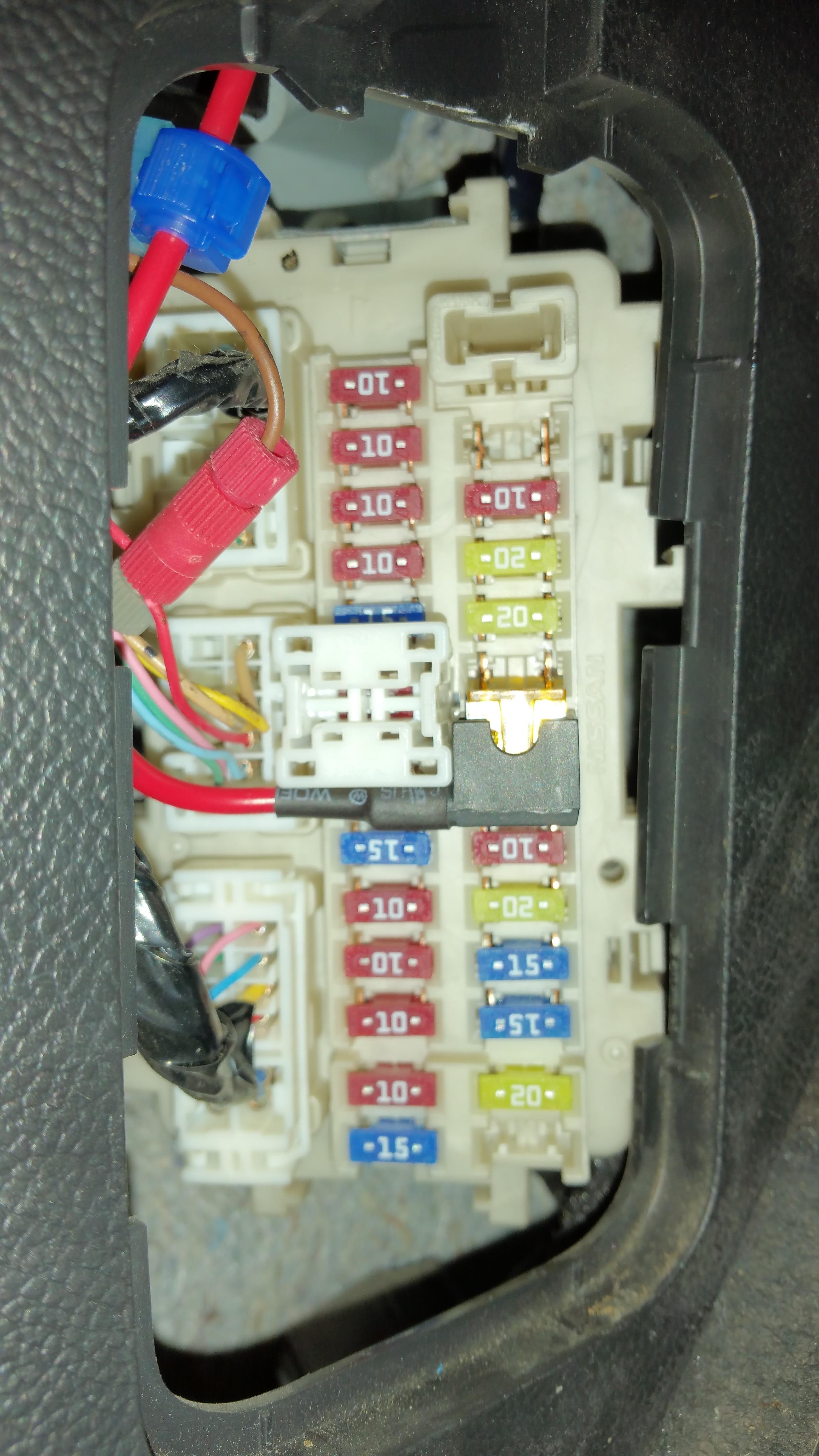

Fuse tap installed

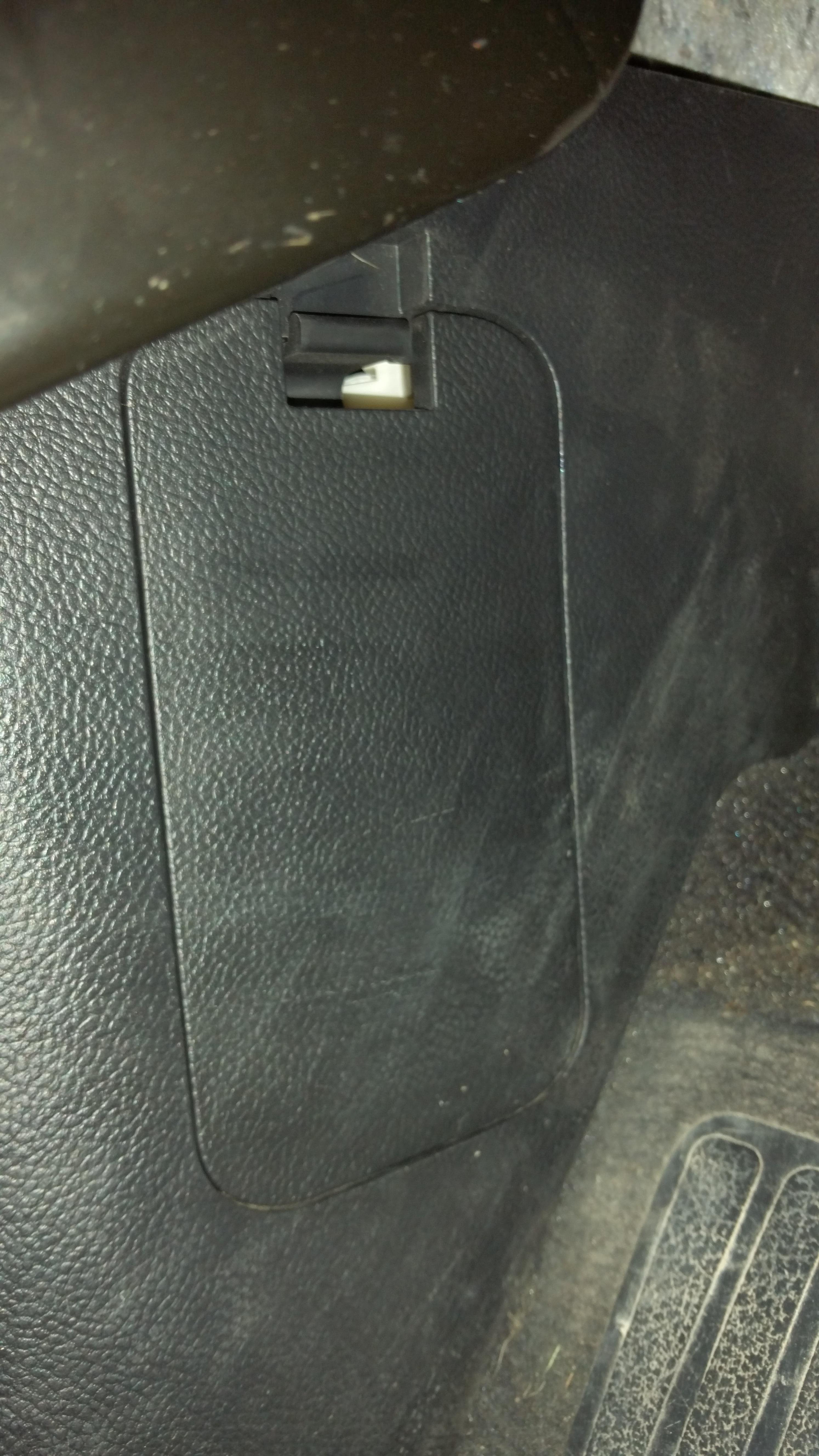

Fuse box closed... No buldges or awkward wiring sticking out
I previously ran a blend mount and the invisicord with my valentine.
I didn't want to spend $100 on a mount and a cord again.
Valentine includes a hard wiring kit, so I used it.
The fuses that are used in the interior fuse box are low profile fuse and aren't as easy to add a circuit like older (larger) fuses.
I found this on amazon
Amazon.com : FAST Shipping* ADD CIRCUIT BLADE STYLE APS ATT LOW PROFILE MINI FUSETAP FUSE TAP + FUSE SET 5, 7.5, 10, 15, 20 AMPS : Car Electronics
It made the install very smooth and very easy.
You essentially remove the existing fuse.
Then you insert the removed fuse into the fuse tap.
Insert the new fuse and you are ready to go.
I used the cigarette lighter fuse. I very rarely use the cigarette/accessory port so this won't cause any issues.
Here are some photos showing how easy the install was .
Original fuse box
Fuse tap installed
Fuse box closed... No buldges or awkward wiring sticking out
#3
I wanted to hard wire my Valentine 1 into my fuse box.
I previously ran a blend mount and the invisicord with my valentine.
I didn't want to spend $100 on a mount and a cord again.
Valentine includes a hard wiring kit, so I used it.
The fuses that are used in the interior fuse box are low profile fuse and aren't as easy to add a circuit like older (larger) fuses.
I found this on amazon
Amazon.com : FAST Shipping* ADD CIRCUIT BLADE STYLE APS ATT LOW PROFILE MINI FUSETAP FUSE TAP + FUSE SET 5, 7.5, 10, 15, 20 AMPS : Car Electronics
It made the install very smooth and very easy.
You essentially remove the existing fuse.
Then you insert the removed fuse into the fuse tap.
Insert the new fuse and you are ready to go.
I used the cigarette lighter fuse. I very rarely use the cigarette/accessory port so this won't cause any issues.
Here are some photos showing how easy the install was .
Original fuse box
Fuse tap installed
Fuse box closed... No buldges or awkward wiring sticking out
I previously ran a blend mount and the invisicord with my valentine.
I didn't want to spend $100 on a mount and a cord again.
Valentine includes a hard wiring kit, so I used it.
The fuses that are used in the interior fuse box are low profile fuse and aren't as easy to add a circuit like older (larger) fuses.
I found this on amazon
Amazon.com : FAST Shipping* ADD CIRCUIT BLADE STYLE APS ATT LOW PROFILE MINI FUSETAP FUSE TAP + FUSE SET 5, 7.5, 10, 15, 20 AMPS : Car Electronics
It made the install very smooth and very easy.
You essentially remove the existing fuse.
Then you insert the removed fuse into the fuse tap.
Insert the new fuse and you are ready to go.
I used the cigarette lighter fuse. I very rarely use the cigarette/accessory port so this won't cause any issues.
Here are some photos showing how easy the install was .
Original fuse box
Fuse tap installed
Fuse box closed... No buldges or awkward wiring sticking out
heres 10 for $30
http://www.ebay.com/itm/10-ATM-Mini-Fuse-Tap-Add-on-Dual-Circuit-Adapter-Auto-Car-Audio-Terminals-/191194993919?pt=LH_DefaultDomain_0&hash=item2c841c14ff
The following users liked this post:
FrogmanKouki (06-30-2020)
#6
Registered Member
Trending Topics
#8
Registered Member
#10
Registered Member
#11
they will work i have them and have always used them
get on ebay and amazon again ther are tons and are about $3-$5 each
