Coilover install today of Stance XR1's. A relatively quick install since there was no height adjustment option.

My 19x10 rears were just a tad wide at the outset, so the initial game plan was to simply drop the car an 1.25".

Wrong.

The rears were installed first - The highest setting of the coilover's created a near 2" drop. I don't know if this is "normal" for XR1's on an AWD G sedan. I'm guessing I'd still be dealing with the same "no adjustment" drop no matter how wide my current rears are?

Perhaps, if there was a plus side today, it's that the 19x10 rear's tucked. I'm not sold on these wheels or tires so if I'm forced to make a change to better accommodate the coilover's then I'll have to consider that. But I'm guessing no matter what I'm still going to end up with a rear tuck? Still, it was quite a surprise that the highest adjustment setting placed the rears in this position.

I'm brand new at this...still much to learn, obviously. I'll place a call to the rep tomorrow....more later.

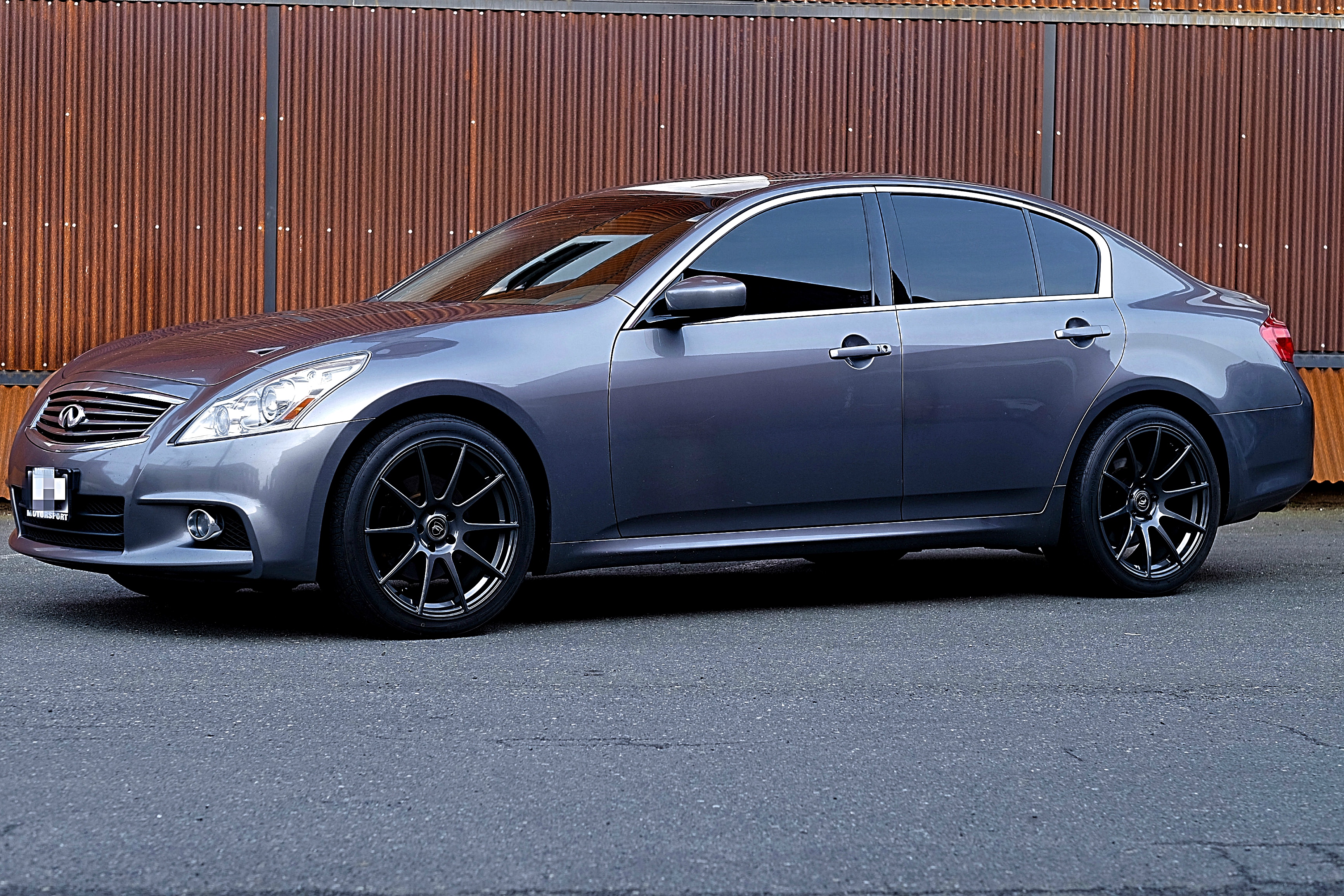

Here's before

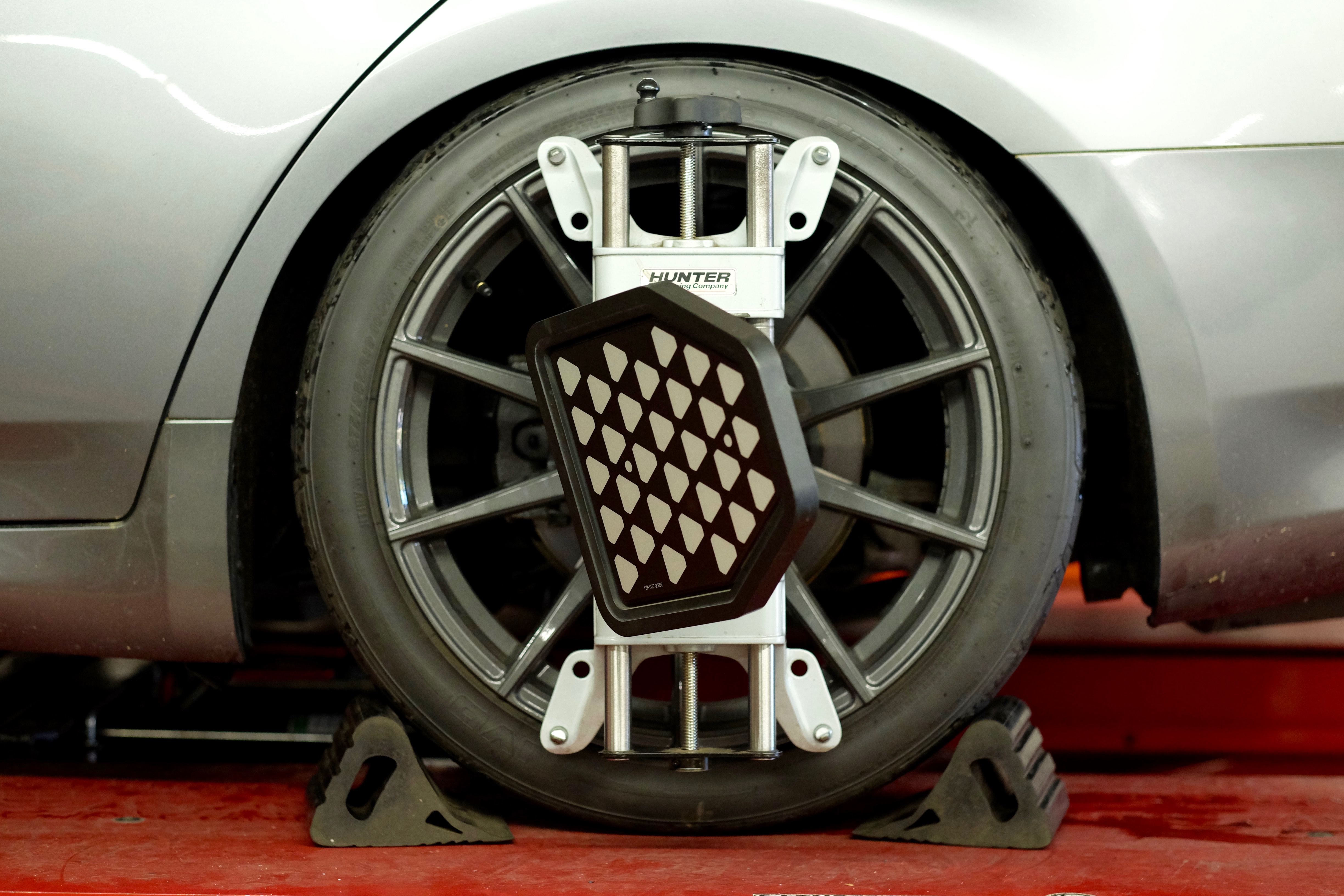

during

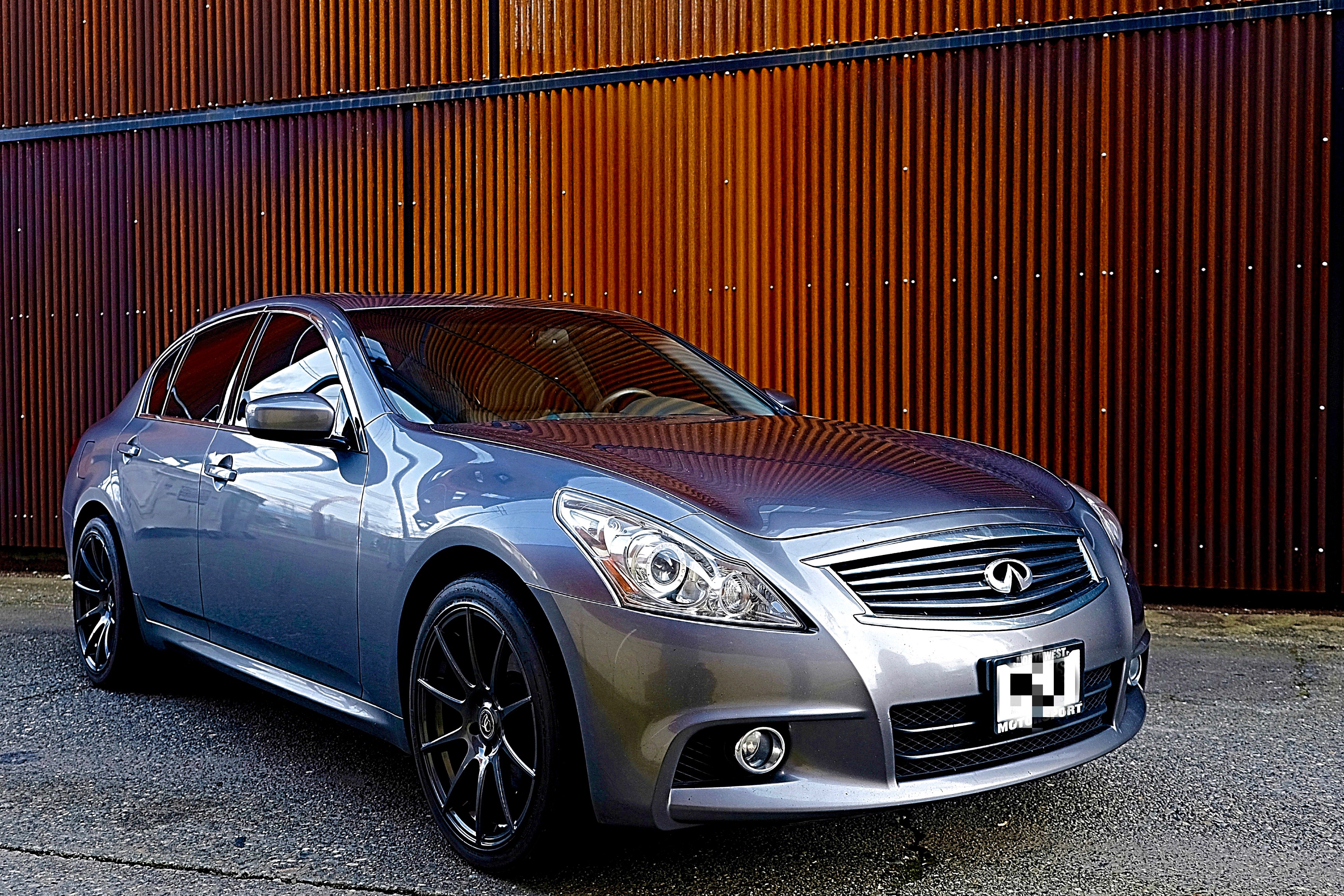

and after

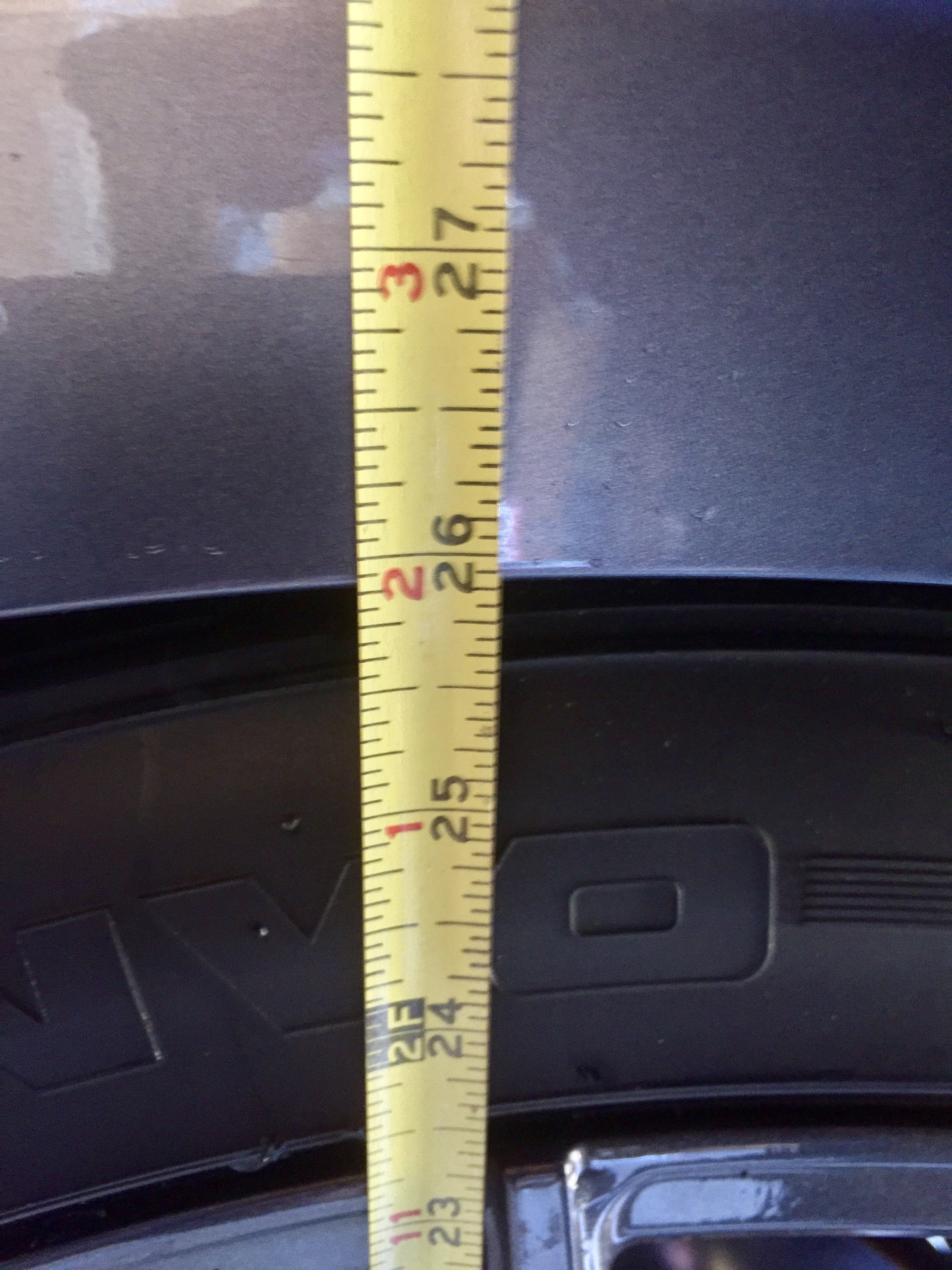

F/


R/



Looks pretty good, rears a bit lower than the front, not sure if you want to lower the front a bit more but would probably like the stance a bit better. Being AWD you have more to worry about underneath if you go any lower.

That is pretty common for the highest settings on sedan applications to still be a pretty low drop. There may be spring extenders for them (I know KW has them) that will get your rear higher up if you're not wanting it that low, wouldn't hurt to ask if you're calling them up.

What wheel & tire specs are you running (I'm sure it's somewhere on the site but I'm tired, lol).

Ideally I would shoot for about 1/3" lower in front and leave the back where it is, from the pics that would seem like a perfect balance.

Did you do any alignment work yet?



As always, appreciative of your input blnewt! Alignment work, yes.

F19x9 245/40/19
R19x10 275/35/19

You may recall I earlier questioned a members suggestion that a 285/35/19 could be considered for an AWD G. My concern was stuffing a wider tire beneath the rear fender.

Per the shop there could be no SPC rear camber install without going to a narrower rear tire. Reason given: Additional camber adjustment would only bring the rear tire outward and place it closer to the fender. As it is, the rear is completely tucked about 3/8's" inside the rear fender.

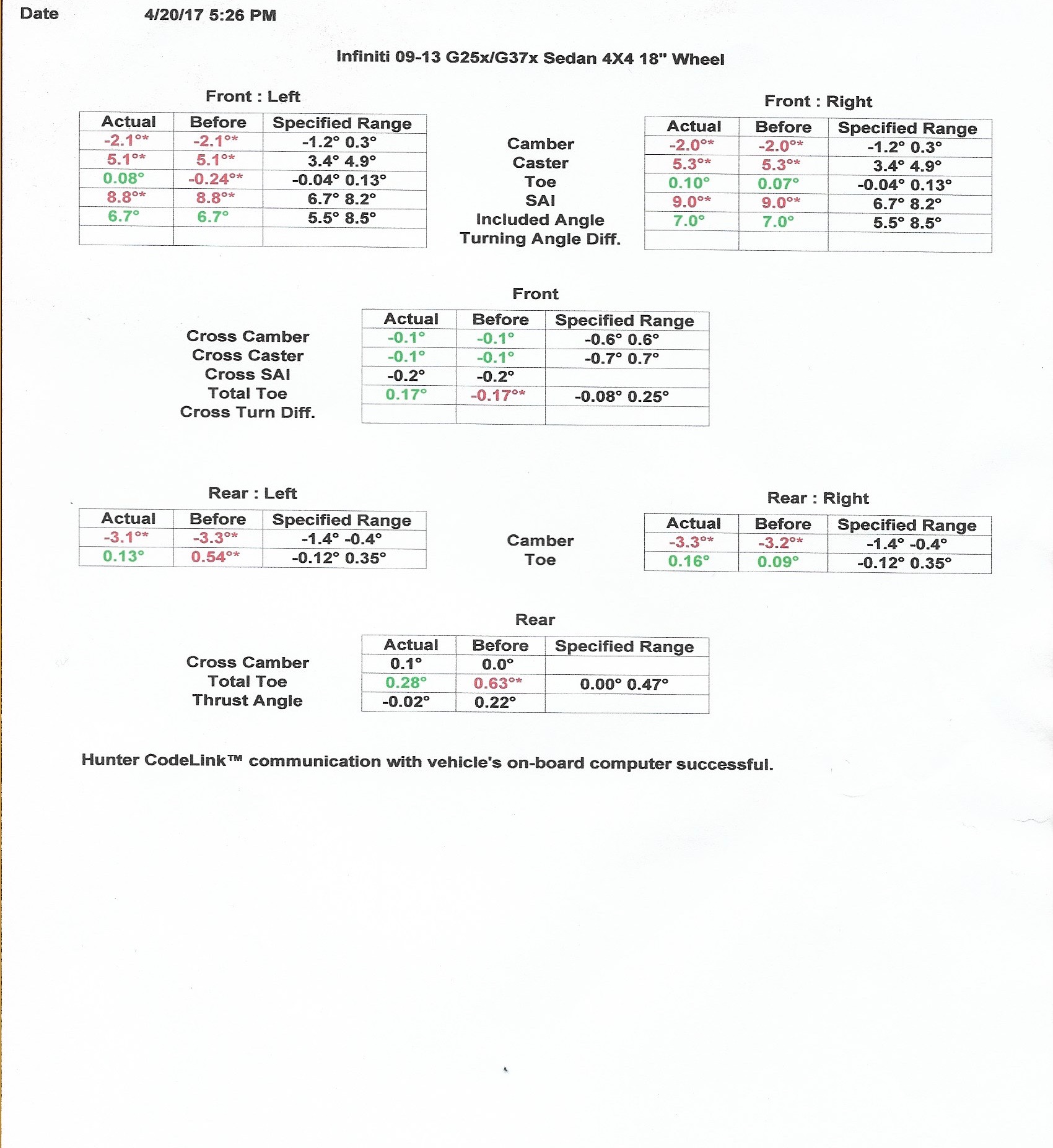

There seems to be an awful low of red on this readout - that can't be ideal?



F/


R/



Do you have the wheel offsets? That rear camber should be under -2 for reasonable tread wear, w/ that -3 you're going to wear the inner edges fairly quick, but your toe is good all around so your tires won't be fighting the road. I was running 295s on 10 +45 at camber of -1.0, hopefully your offset is in the +40 range, this would allow you to get that camber down and keep your fenders intact

Also are you absolutely sure there's no room to raise the back? If you can get that in the 26.25" range you should have an easier time w/ the camber spec.

Ok, found your specs, the 10 +41 running 275s will be fine w/ the SPC camber set added, you'll be able to get that camber down like me -1.0 if you want without trouble. My 10 +45 is 4mm in from your wheel on offset but out 10mm for the wider 295 for a net 6mm out from yours. Here's a pic of that setup~



Throwing this out there, and I will admit I haven't read everything written, but when I was coil-over shopping it was pointed out to me to get 1" taller springs for the rear on my X to avoid running out of range. You can always do that. And to echo blnewt: try to get your rear much closer to -1.6 camber or better if you want to prolong the life of your rear tires. I run 40th anni 370z rays rear wheels (19x10; +30 offset) on my rear with 275/35/19s and easily set by with -1.6 camber, so you should be able to as well.



The offsets are f/35mm r/41mm. What should my alignment readings be with a SPC camber kit install?

According to the supplier, who reportedly installs these XR1's on AWD G's weekly, the rear is fully adjustable as well. It seems that the issue is this shop has never installed these true type coilover's and the result is they didn't know how to properly adjust them. I'm returning to the shop next Tuesday and after the shop speaks to the supplier I'm hopeful of getting an adjusted install.

But my concern is the shop didn't read the manual, for having just read it myself the adjustment protocol is written in clear terms. The shop tech advised me "these coilovers are only adjustable at the top and can't be adjusted once they're installed. The coilover's are at max height, so no height adjustment is available."

I'm thinking it's quite possible the tech never bothered to read the install manual, for if he did why would the tech tell me the rears cannot be raised.

What's baffling to me is I chose this shop because they reportedly do coilover installs often and they are reported to have one of the best alignment machines in the state.

Well, we'll see what Day 2 brings.



G/L and like zer099 & I stated, you will be able to run those wheels specs w/ your current tire sizes w/ the SPC kit and get that camber in spec without fender issues.



Had the same issue with my stance true type. Way too low at highest setting. Had to get rid of them for oem type



Which Stance true type coilover's did you have? Per an installer who installs these XR1's on AWD G sedans weekly, not in my state, after setting the spring pre-load to zero the coilovers are fully adjustable.

I'll know more next week.



Apologies to all. I erroneously posted this to the "wheels and tires" section when I meant to post it to the "suspension and brake" section.



It's ok, didn't seem to hamper the replies



There's a recent G37X coupe - Stance XR1 install in the suspension section. I missed my chance to balance that with a sedan.

edit - btw, those rears on your G look MEAN! How'd you ever part with them?



I still have them but are on 285s now, they are in my attic, lol.
But I will be running 285s on my 18s in back when my current tires wear down, or maybe even sooner and save the current 245s for extra fronts



So I contacted Stance USA today and brought up this issue, it appears that you may have gotten a bad batch. I'd definitely give them a call and tell them you can't adjust the rears anymore, a friend of mine was able to get very close to stock height with the true-type rears. With a true-type setup, ride height is adjusted with the shock body, so a longer spring wouldn't change anything.

That only applies to the OEM type coilovers, where the height is adjusted with the spring perch.



Thanks Z. I'll give Stance a call.
