I'm one of the few without NAV, and without anything other than the RCA jacks. So my setup is pretty lethargic to say the least. I've been contemplating a way to relocate the factory info screen so that i can mount a Nexus 7 or another type of main unit in the empty spot between the vents. The first little speed bump was wether I could extend the wiring harness for the screen...

Alas, I have found someone who has a clean setup like I visioned. That is the factory screen in the cup holder area. I may put the screen somewhere else, but atleast I can see how this looks.
Name:  40776_zpscac5d097.jpg
Views: 1426
Size:  131.6 KB

Stay tuned..
Paratrooper is offline
Old 10-30-2013, 02:01 PM
  #2
Vizard_87
Premier Member
iTrader: (13)

Vizard_87's Avatar

Join Date: Jan 2010
Location: Northern Virginia
Posts: 1,662
Thanked 234 Times in 191 Posts
Two screens, that looks awesome! Good luck
Vizard_87 is offline
Old 10-30-2013, 02:34 PM
  #3
soolman32
Registered User
iTrader: (15)

Join Date: Mar 2008
Location: MN
Posts: 8,127
Thanked 125 Times in 106 Posts
Very interesting. Looking forward to the results.
soolman32 is offline
Old 10-30-2013, 03:21 PM
  #4
Paratrooper
Registered User
Thread Starter
iTrader: (3)

Paratrooper's Avatar

Join Date: Sep 2013
Location: Charlotte, NC
Posts: 621
Thanked 55 Times in 46 Posts
I need to get all the parts first, this may turn into a winter project, since i work to much. I can get a nexus7 for around $150, ive heard alot of good things about there offline navigation, music (i currently have itunes, but will convert if needed), bluetooth streaming, using your phone as a hotspot for the nexus to have internet..on the road...and a butt load of other cool things to do with a nexus.

Everything else is just wiring, butt connectors(i want to make it reversible), some other miscellaneous items for mounting and ease of operation.
Need to build an enclosure for the info screen as well.
Nothing a 12pk of Miller can't handle in a good weekend or two.
Paratrooper is offline
Old 10-30-2013, 03:28 PM
  #5
Paratrooper
Registered User
Thread Starter
iTrader: (3)

Paratrooper's Avatar

Join Date: Sep 2013
Location: Charlotte, NC
Posts: 621
Thanked 55 Times in 46 Posts
I should give credit to who did the work in the above photo, 201 Motoring, New Jersey/New York area. I should give them a call, maybe they can make that enclosure and send it too me...that would be sweet.
Paratrooper is offline
Old 12-26-2013, 12:43 PM
  #6
Paratrooper
Registered User
Thread Starter
iTrader: (3)

Paratrooper's Avatar

Join Date: Sep 2013
Location: Charlotte, NC
Posts: 621
Thanked 55 Times in 46 Posts
Update*******

Started working on my Nexus 7 install. Here are some pics of the layout.. yes it is off center, because it is not mounted yet..
Name:  IMAG0402_zps153916be.jpg
Views: 1118
Size:  38.5 KB
Name:  IMAG0403_zps350af3dd.jpg
Views: 1108
Size:  44.5 KB
Name:  IMAG0405_zps9549d3db.jpg
Views: 1052
Size:  47.4 KB
Name:  IMAG0404_zpsae977cb4.jpg
Views: 1047
Size:  27.3 KB
Name:  IMAG0407_zpsab6575a7.jpg
Views: 1176
Size:  47.0 KB
Here is the OTG cable for the Nexus 7, allows USB input
Name:  IMAG0410_zps3cbb85b5.jpg
Views: 1038
Size:  52.0 KB

Still to come....

-I have a 4 port USB hub for the blue tooth trackball mouse/2.1 amp car charger/external hard drive
-I need to fabricate some sort of restraint for the tablet, i have notched the inside of the passenger vent to accommodate the protruding OTG cable and 90degree headphone jack


As far as usefulness here's what I'm doing..

-Aux input for sound
-Tablet turns on with car, stays awake while charging(developer options)
-Goes to sleep mode 15sec after car is turned off
-Planning to use my phone as a tethered internet source for NAV/Browsing
-Blue tooth trackball mouse to be fixed just behind shifter
-I've realized that I do not need my stock screen, basically the only 6 radio stations I listen to are on preset, i control my HVAC still, i can see MPG's and miles to empty via cluster... so for now atleast its not a priority to relocate at this time.


More to come...
Paratrooper is offline
Old 12-26-2013, 03:06 PM
  #7
Paratrooper
Registered User
Thread Starter
iTrader: (3)

Paratrooper's Avatar

Join Date: Sep 2013
Location: Charlotte, NC
Posts: 621
Thanked 55 Times in 46 Posts
***EDITED

I forgot to add my total cost for this build at this point..

-Nexus 7 1st gen 32GB $158 (Ebay black friday sale)
-2.1 Amp charger $16
-3.5 jack to RCA's $5
-90 degree 3.5 jack $3
-Pack of rubber bands Free (will post pics on this)
-N7 music player full app $3
-OTG cable $5
-USB male to male 3' cable $3
-USB male to female 3' cable $3


**Still need: Bluetooth trackball mouse.

Last edited by Paratrooper; 12-27-2013 at 02:48 PM.
Paratrooper is offline
Old 12-26-2013, 03:22 PM
  #8
Paratrooper
Registered User
Thread Starter
iTrader: (3)

Paratrooper's Avatar

Join Date: Sep 2013
Location: Charlotte, NC
Posts: 621
Thanked 55 Times in 46 Posts
install pics..

Vent notched to accommodate OTG cable:
Name:  IMAG0411_zpsc92bedf6.jpg
Views: 1043
Size:  46.6 KB

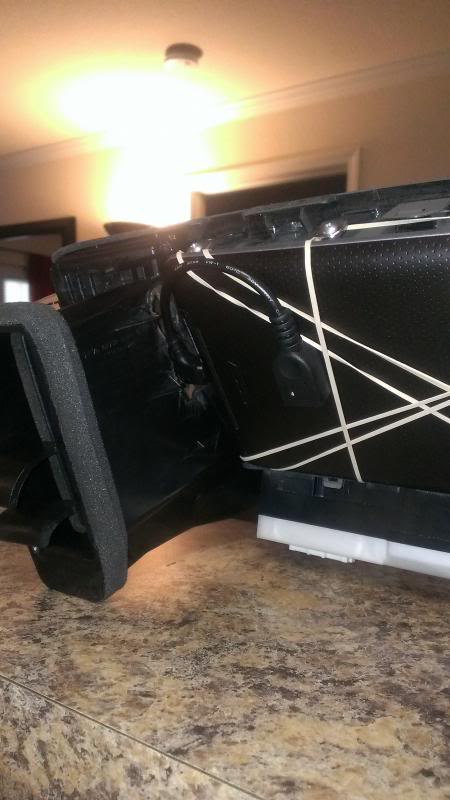

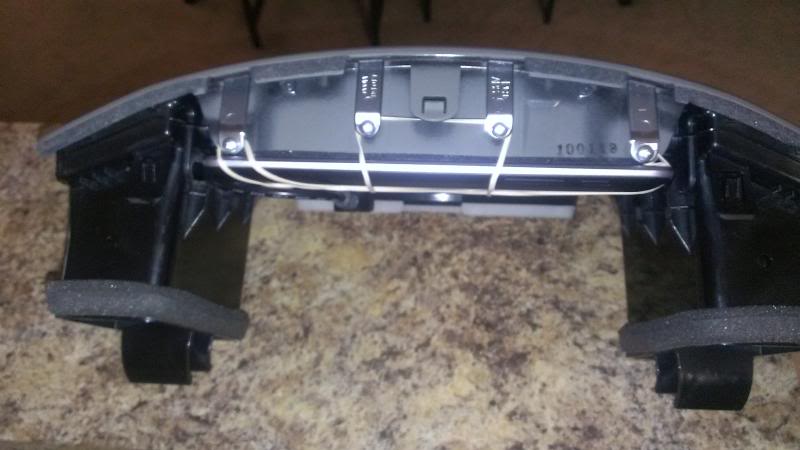

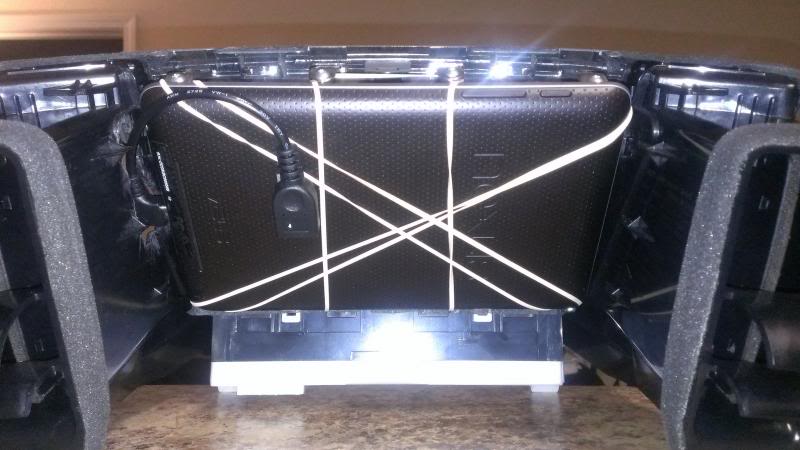

You'd be surprised as to how tight the tablet is being held by these rubberbands (temporary):
Name:  IMAG0413_zpsddbec6f1.jpg
Views: 1044
Size:  52.6 KB
Name:  IMAG0414_zps92e0b27b.jpg
Views: 1056
Size:  40.8 KB

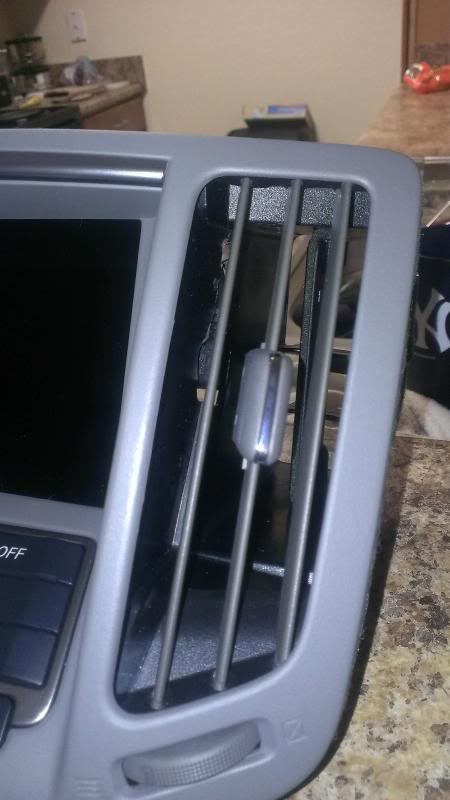

Unless your shining a light down my vent, you will not notice this and the air flows well, will most likely use thermal tape on inside to seal:
