D.I.Y. Installations/Modifications Do It Yourself guides and information for the G37. Stickies approved by Administrators and Moderators.

DIY: How to Replace Cabin Filter and Glove Box Bulb

Thread Tools

Search this Thread

Old May 13, 2013 | 10:41 PM
  #106
ed14's Avatar
ed14
Registered User

Joined: May 2013
Posts: 1
Likes: 0
Originally Posted by Redline37
PM sent!
im looking to change mine out soon. Would u mind sending me a pm of where i can get a hold of one of those carbon filters
Reply
Old Nov 21, 2013 | 08:56 AM
  #107
mtbmtb's Avatar
mtbmtb
Registered User

Joined: Oct 2013
Posts: 5
Likes: 0
saw some others
https://www.myg37.com/forums/d-i-y-i...ent-video.html
Infiniti G37 microfilter panel replacement

where they do not remove the glove box liner and just pull the backplate and the glove box all out at one time. this seems easier, anybody do it this way?
also is there a best filter out there.
I ordered the fram baking soda/charcoal fresh breeze from rockauto for $19.61 w $3 rebate. anyone tried these?
Reply
Old Nov 21, 2013 | 09:10 AM
  #108
GoFightNguyen's Avatar
GoFightNguyen
Because Racecar
iTrader: (14)

Joined: May 2013
Posts: 2,543
Likes: 759
From: Houston
This is how I replaced my cabin filter a month ago. I took it apart the usual way (removing the door from the compartment, then removing the shell in order to replace the bulb. I then did this again to replace the cabin filter, and the way in the video is definitely faster. You'll need a long screwdriver like they mention, though. It is very useful for it to have a magnetic tip.
Reply
Old Nov 21, 2013 | 06:03 PM
  #109
DanG37's Avatar
DanG37
Registered Member

Joined: Feb 2013
Posts: 100
Likes: 8
I pull the whole shebang out myself. I've never done it any other way. If you are not used to working a screwdriver, an extended magnetic tipped screwdriver would likely be partiucarlly helpful, but my plan jane screwdriver, iirc #2 4", did the trick for me.

The latest filter I got was a cheap charcoal filter from RockAuto. It was my first time working with RockAuto, and they are a new favorite vendor for me, but next time I'll spend the extra for Nissan's grapeseed filter.

Edit: Last time I also spent a bit of time seeing if I could pull out the whole cabin filter enclosure area or at least a half of it so I could remove the cigarette smoke residue from the previous owner. After an hour or two I eventually gave up and just simply pulled out the blower motor, but that limited how well I could clean everything. So if anyone has any insight, I'd love some input. I basically don't use the heater, just used heated seats, due to the cigarette smoke.
Reply
Old Nov 22, 2013 | 12:56 PM
  #110
riba89's Avatar
riba89
Registered User

Joined: Nov 2013
Posts: 95
Likes: 2
From: Chicago
I buy my filters here: RockAuto Parts Catalog There is a $2 rebate if you buy a FRAM air filter.
Reply
Old Dec 17, 2013 | 11:16 AM
  #111
Muujig612's Avatar
Muujig612
Registered User

Joined: Jul 2013
Posts: 62
Likes: 2
Thank you very MUCH!!!
Reply
Old Jan 1, 2014 | 11:52 AM
  #112
brizey's Avatar
brizey
Registered User

Joined: Jan 2013
Posts: 202
Likes: 17
From: DFW
So I finally did this. I did it the two step way. Maybe I just have the right kind of fingers, but I did not have that much trouble with the damper. I basically got at it from above the box with my right index and middle finger and extended it down to my left index and middle finger to the left of the box and popped it on. Whole process was maybe 10-15 minutes.

Airflow is down. The motor is below the filter case. Its pretty obvious when you look at it.

Previous owner obviously had changed it before. Two of the seven screws are missing, and the damper was not connected. Or maybe just a crappy dealer mechanic.

New filter and LED light installed.

Protip: install the LED, then flip the lights on to make sure you have it inserted the right way before you reassemble.

Last edited by brizey; Jan 1, 2014 at 11:58 AM.
Reply
Old Feb 9, 2014 | 02:53 PM
  #113
Brian6t5's Avatar
Brian6t5
Registered Member

Joined: Feb 2013
Posts: 67
Likes: 4
From: New Jersey
Piece of Cake

Thanks for the DIY!<!-- google_ad_section_end --> Had some free time today and brought the laptop out with this thread opened and had the filter replaced in about a half hour. If you separate the glove box, it is easier to get to the screws and is lighter and not as awkward to install.
Reply
Old Feb 22, 2014 | 10:47 AM
  #114
rburt's Avatar
rburt
Registered Member

Joined: Mar 2010
Posts: 20
Likes: 0
Does anyone know the part number for the little white clips that are on the trim piece above the glove box? There are 2 on that piece and I think 1 on the side trip piece. I lost one, can't find a part number and it's rattling a little now. Dealer says they only come with the trim piece which is like $200.
Reply
Old Feb 23, 2014 | 07:11 PM
  #115
itzricky's Avatar
itzricky
Registered User

Joined: Nov 2013
Posts: 163
Likes: 3
I took over 2 hours to replace the cabin filter...Never again

I didn't realize that the damper pin comes off. I unplugged the string from the pin and took well over 40+ mins to put it back on...It took over 20 mins to take it off. And The panels were so tight that it took a while to pop out.

WHy can't they be like a honda accord?
Reply
Old Feb 23, 2014 | 07:32 PM
  #116
YellowJacket's Avatar
YellowJacket
Registered User

Joined: Feb 2013
Posts: 204
Likes: 21
From: Knoxville, TN
Originally Posted by itzricky
I took over 2 hours to replace the cabin filter...Never again

I didn't realize that the damper pin comes off. I unplugged the string from the pin and took well over 40+ mins to put it back on...It took over 20 mins to take it off. And The panels were so tight that it took a while to pop out.

WHy can't they be like a honda accord?
LOL, I'm the opposite..... was so much easier on my G37 Coupe than it was on my Accord.

David
Reply
Old May 3, 2014 | 03:04 PM
  #117
telcoman's Avatar
telcoman
Registered Member

Joined: Sep 2012
Posts: 1,638
Likes: 161
From: NJ
It has been a year since I last changed mine.

Nice 75* day in New Jersey today

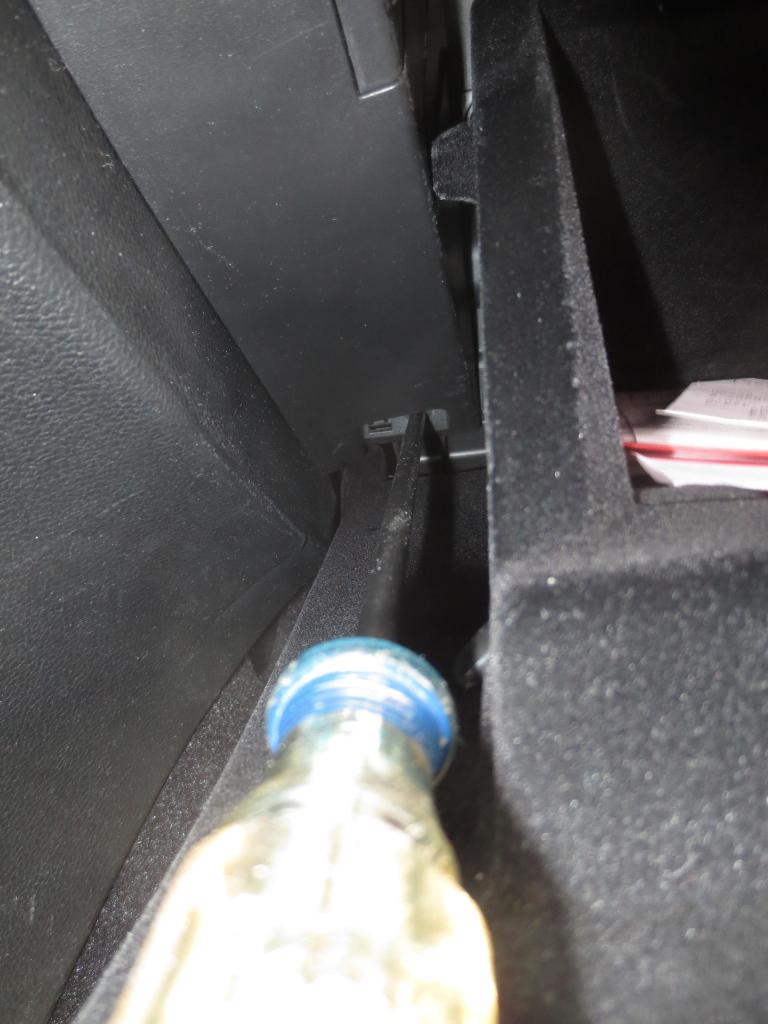

Having a #2 phillips with a long shank helps

Name:  2014-503--26MyPictures050314001_zps017d5ae3.jpg
Views: 598
Size:  72.6 KB

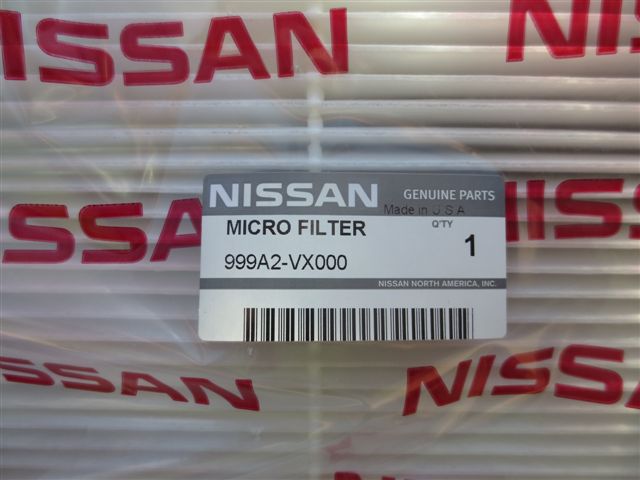

Name:  CabinFiler028_zps1bfb666e.jpg
Views: 649
Size:  47.7 KB

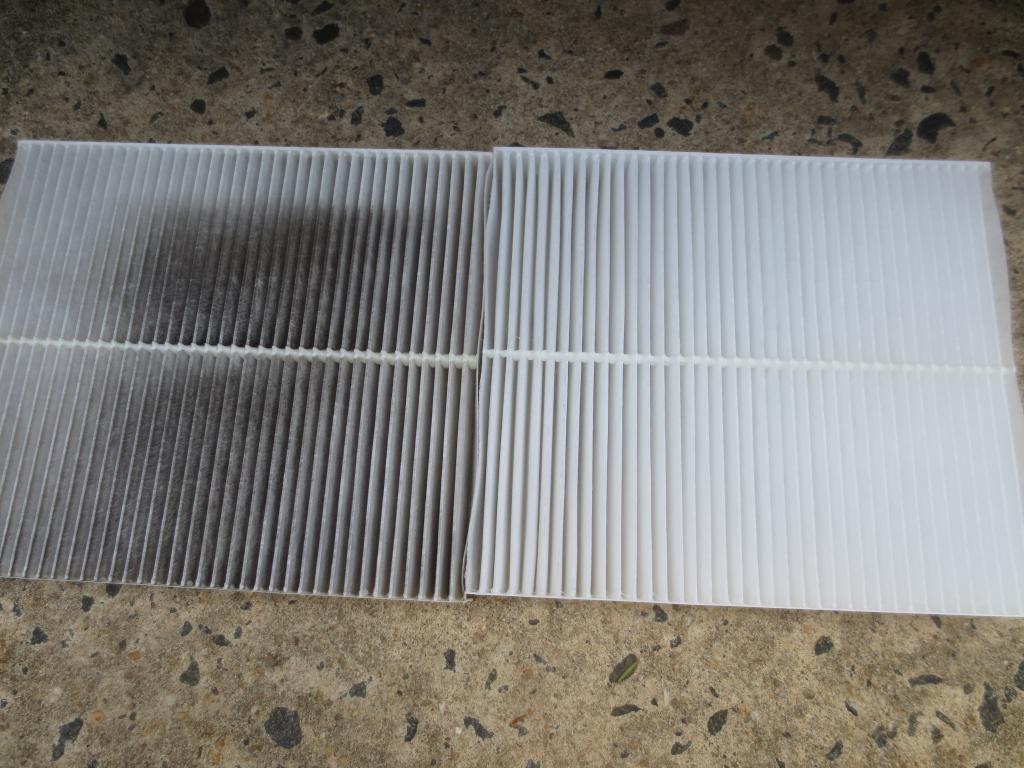

Name:  2014-503--26MyPictures050314029_zpsa5471fa9.jpg
Views: 615
Size:  115.6 KB

Telcoman

Last edited by telcoman; May 4, 2014 at 05:10 AM.
Reply
Old Jul 14, 2014 | 06:04 PM
  #118
G10's Avatar
G10
Registered Member
10 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2013
Posts: 185
Likes: 33
From: Central NJ
Hi All.
Can someone please help me understand what the air filter got to do with the technology package, meaning whats the difference.
Reply
Old Jul 14, 2014 | 07:40 PM
  #119
telcoman's Avatar
telcoman
Registered Member

Joined: Sep 2012
Posts: 1,638
Likes: 161
From: NJ
Originally Posted by G10
Hi All.
Can someone please help me understand what the air filter got to do with the technology package, meaning whats the difference.
This thread is about changing the cabin filter.

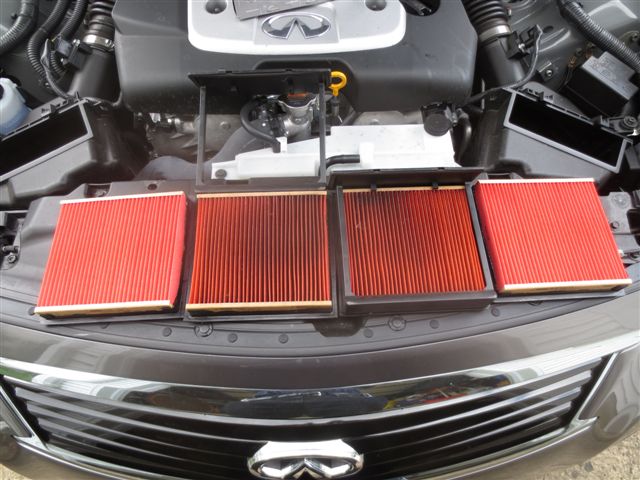

Air filters are a different filter

Name:  2012G37SAirFilters034_zpsd4774e84.jpg
Views: 740
Size:  71.6 KB

Telcoman
Reply
Old Jul 16, 2014 | 12:09 AM
  #120
flipmode007's Avatar
flipmode007
Premier Member
10 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2012
Posts: 773
Likes: 50
From: Ontario canada
Here's what mine look like, changed them last week, all I can say was sorry I have neglected you now she breath properly and she's loving it
Attached Thumbnails How to Replace Cabin Filter and Glove Box Bulb-img_2092.jpg   How to Replace Cabin Filter and Glove Box Bulb-img_2093.jpg

Last edited by flipmode007; Jul 16, 2014 at 12:11 AM. Reason: add pic
Reply
