Throttle Body Cleaning Torque Specs etc.

I posted it in the DIY also but just wanted to make this thread so that people searching could find the torque specs and the other tips from the service manual in case they needed it.


Electric throttle control actuator AKA Throttle body.

In studying the service manual (2013) very closely I discovered some things that are not mentioned in the DIY on this forum. That may or may not make a difference in the cleaning of the throttle body and then the associated problems with idle etc.

Note: Normal Idle is 650+-50 so approximately 600 to 700 RPM.

1. Do not disconnect the battery. It does not state to disconnect the battery in the Service Tech Manual. Why I dont know. I speculate that although the power is off the the "electric" throttle control acutuator may still be monitoring/recording the position of the butterfly valves. If it is disconnected it will not monitor it and when you start the car the ECU will not like what it sees. Again this is speculation but the manual does not say to disconnect the battery.

2. When removing the Electric Throttle Control Actuator, DO NOT REMOVE anything connected to it. This includes the two water hoses and the harness connector. Service manual states if you remove the harness you will need to do multiple relearns for the ECU.

3. There is a specific order to loosen and tighten mounting bolts.
Per manual:
-loosen bolts in reverse order as shown in the figure:
-Tighten in numerical order as shown in the figure.
So I suppose that its 4321 and then tightening it back up 1234.





4. Torque of these bolts is 8.43 FT-LB if you over-tighten or under-tighten could cause an air leak and ECU again will not like what it sees. (make sure your throttle body and rubber O ring is seated properly you know why....)

5. Do yourself a favor and buy a torque wrench and a Hex Bit Socket Set. Or the socket Hex bit metric 5 if you can buy independent. The whole set only costs around 15 bucks and believe me you will use it again.

6. Service manual states you MUST do the following after you clean the electric throttle control actuator inside:

THROTTLE VALVE CLOSED POSITION LEARNING : Description INFOID:0000000008161734
Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be performed each time harness connector of electric throttle control actuator or ECM is disconnected or electric throttle control actuator inside is cleaned.

THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement
INFOID:0000000008161735

WITHOUT CONSULT
1. Start the engine.
NOTE:
Engine coolant temperature is 25C (77F) or less before engine starts.
2. Warm up the engine.
NOTE:
Raise engine coolant temperature until it reaches 65C (149F) or more.
3. Turn ignition switch OFF and wait at least 10 seconds.
Check that throttle valve moves during the above 10 seconds by confirming the operating sound.
>> END


So the main speculation is should you move the butterfly valve I do not know. It appears that if you follow the DIY video and make sure you do exactly what the service manual states ..above... you should be able to move the butterfly valve and have no problems.

I hope this information helps!
G37sGraphite is offline
Reply With Quote
The Following 2 Users Say Thank You to G37sGraphite For This Useful Post:
Glenn2008 (03-11-2016), kennyz424 (03-11-2016)
Old 03-11-2016, 07:15 PM
  #2
WhiteWater
Registered User

Join Date: Feb 2016
Posts: 20
Thanks: 0
Thanked 1 Time in 1 Post
I just did mine earlier today after I saw a few threads talking about it. My car has 67K on it and they were DIRTY or what I consider dirty I guess.

I will say that I DID move the butterfly open several times while cleaning. I tried to be careful with it as much as I could but there was a lot of gunk around the edges of it. So I went to town with some rags/toothbrush. End result was a high idle for 5-10 seconds and then a rock stable 650rpm. I only drove the car around the block so I'm not sure how much it helped but response seemed better.

On the passenger side you could see where there was so much buildup that when the butterfly opened it scraped the gunk backwards.

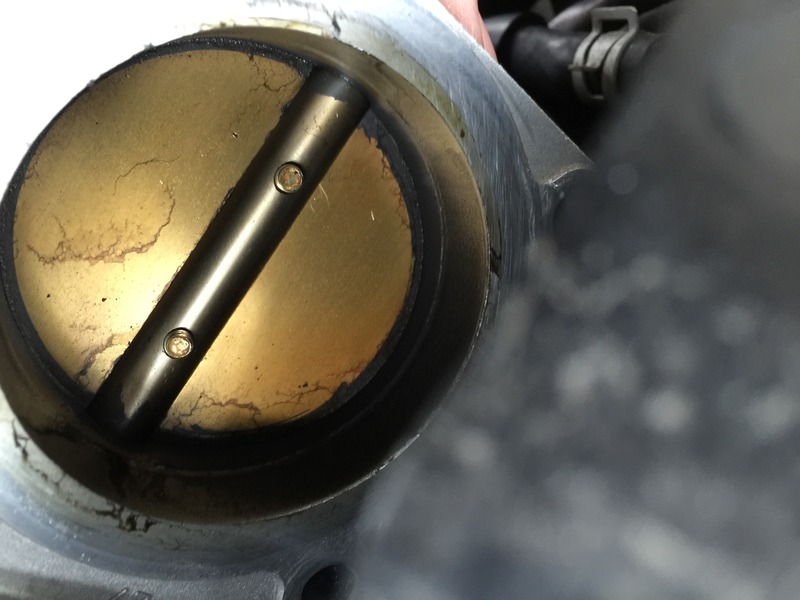

Before:
Name:  BFCC1EDC-3921-4FC9-8FC2-E2DE19BD6464.jpg
Views: 567
Size:  100.1 KB

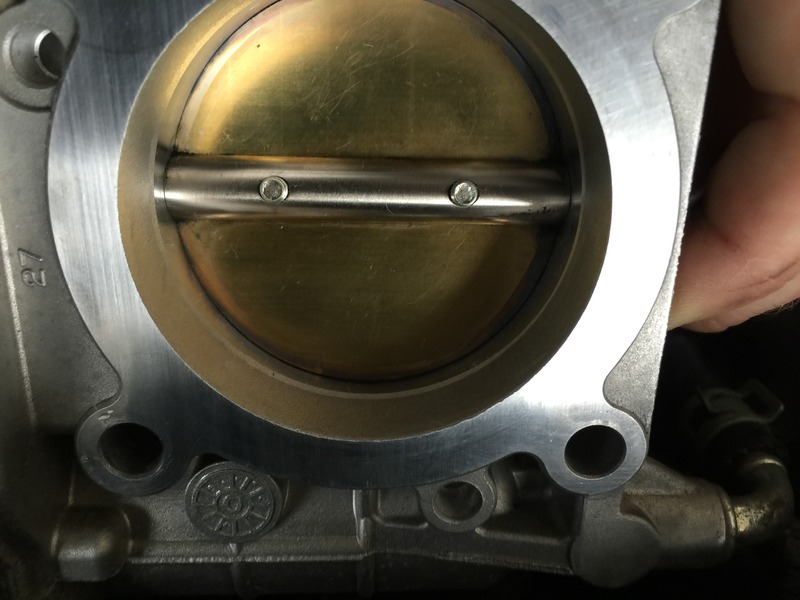

After.Name:  501B01BE-AD92-45C9-AC7F-2E92722CB442.jpg
Views: 514
Size:  105.2 KB
WhiteWater is offline
Reply With Quote
Old 12-02-2018, 06:45 PM
  #3
mjnoles1
Registered User

Join Date: Nov 2012
Posts: 287
Thanked 4 Times in 4 Posts
Does anyone at all know where I can find a cheap torque wrench that goes down to 8.43 ft/lb? I cannot for the life of me locate a torque wrench that goes that low.

I want to do this badly, but I want to torque it back to proper specs (not too much or too little).
mjnoles1 is online now
Reply With Quote
Old 12-02-2018, 09:16 PM
  #4
antirice
Registered User
iTrader: (2)

Join Date: Feb 2005
Location: SoCal
Posts: 448
Thanked 21 Times in 14 Posts
Originally Posted by mjnoles1 View Post
Does anyone at all know where I can find a cheap torque wrench that goes down to 8.43 ft/lb? I cannot for the life of me locate a torque wrench that goes that low.

I want to do this badly, but I want to torque it back to proper specs (not too much or too little).
Get an inch-lb torque wrench. It's useful for torquing stuff like spark plugs, thermostat,etc.
antirice is offline
Reply With Quote
Old 12-02-2018, 10:25 PM
  #5
PNW_IPL
Registered User
iTrader: (4)

PNW_IPL's Avatar

Join Date: Mar 2016
Posts: 1,930
Thanked 240 Times in 211 Posts
Nice and snug. Have done this on 4 vq. Not a single issue.
PNW_IPL is offline
Reply With Quote
Old 12-03-2018, 12:12 AM
  #6
Selym
Registered User

Join Date: Nov 2014
Location: Massachusetts, USA
Posts: 367
Thanked 37 Times in 32 Posts
It isn't necessary to remove the throttle bodies to clean them. Also, it's ok to move the throttle plates when you're cleaning. It's also ok to disconnect the negative battery terminal. In fact, it's probably a good idea to do so.

Afterwards, perform the accelerator pedal released position learning, throttle valve closed position learning, and the idle air volume learning. Follow the instructions in the FSM to the letter.
Selym is offline
Reply With Quote
Old 12-03-2018, 12:16 AM
  #7
PNW_IPL
Registered User
iTrader: (4)

PNW_IPL's Avatar

Join Date: Mar 2016
Posts: 1,930
Thanked 240 Times in 211 Posts
Originally Posted by Selym View Post
It isn't necessary to remove the throttle bodies to clean them. Also, it's ok to move the throttle plates when you're cleaning. It's also ok to disconnect the negative battery terminal. In fact, it's probably a good idea to do so.

Afterwards, perform the accelerator pedal released position learning, throttle valve closed position learning, and the idle air volume learning. Follow the instructions in the FSM to the letter.
backside gets real dirty too. I would move the butterfly as little as possible.
most definitely disconnect batt.
lastly ive never had to do the peddle dance after a cleaning doing it my way.
PNW_IPL is offline
Reply With Quote
Old 12-03-2018, 09:54 AM
  #8
Hashim
Super Moderator
iTrader: (2)

Hashim's Avatar

Join Date: Oct 2014
Location: Toronto
Posts: 1,105
Thanked 170 Times in 150 Posts
Originally Posted by mjnoles1 View Post
Does anyone at all know where I can find a cheap torque wrench that goes down to 8.43 ft/lb? I cannot for the life of me locate a torque wrench that goes that low.

I want to do this badly, but I want to torque it back to proper specs (not too much or too little).

I use this one...https://www.harborfreight.com/14-in-...nch-61277.html

get it for even less with a 20% off coupon...has worked great for me

(FYI 8.43 ft lbs is approximately 100in lbs)
Hashim is offline
Reply With Quote
Old 12-03-2018, 01:06 PM
  #9
Jsolo
Insane & Delirious
iTrader: (14)

Jsolo's Avatar

Join Date: Oct 2011
Location: Chicago, 2012 G37S Sedan 6MT
Posts: 4,831
Thanked 347 Times in 292 Posts
The bolts holding down the TB are what, 6 mm, so not too heavy duty. Not sure I'd be using a torque wrench on this. Snug is good IMO. Just make sure to do them in a criss cross pattern.
Jsolo is offline
Reply With Quote
Old 12-03-2018, 08:31 PM
  #10
saywat?
Registered User
iTrader: (2)

Join Date: Jan 2016
Posts: 2,922
Thanked 218 Times in 194 Posts
some people get too technical. just tighten it. its not a big bolt jeez
saywat? is online now
Reply With Quote
Old 12-05-2018, 02:54 PM
  #11
mjnoles1
Registered User

Join Date: Nov 2012
Posts: 287
Thanked 4 Times in 4 Posts
Originally Posted by Hashim View Post
I use this one...https://www.harborfreight.com/14-in-...nch-61277.html

get it for even less with a 20% off coupon...has worked great for me

(FYI 8.43 ft lbs is approximately 100in lbs)
Thank you. For this work. I believe them I will order:

https://www.harborfreight.com/14-in-...nch-61277.html

https://www.amazon.com/Neiko-10074A-Socket-13-Piece-Metric/dp/B000GYLGU8/ref=sr_1_4?s=hi&ie=UTF8&qid=1544034521&sr=1-4&keywords=1%2F4-Inch+Drive+Metric+Hex+Bit+Socket https://www.amazon.com/Neiko-10074A-Socket-13-Piece-Metric/dp/B000GYLGU8/ref=sr_1_4?s=hi&ie=UTF8&qid=1544034521&sr=1-4&keywords=1%2F4-Inch+Drive+Metric+Hex+Bit+Socket

Seems to get to 8.43 ft-lb, I need to get to 101.16 in-lb. The above torque will get me to 101 in-lb, so around .16 ln-lb off but close enough I assume.
mjnoles1 is online now
Reply With Quote
Old 12-06-2018, 12:13 PM
  #12
Hashim
Super Moderator
iTrader: (2)

Hashim's Avatar

Join Date: Oct 2014
Location: Toronto
Posts: 1,105
Thanked 170 Times in 150 Posts
Originally Posted by mjnoles1 View Post
Seems to get to 8.43 ft-lb, I need to get to 101.16 in-lb. The above torque will get me to 101 in-lb, so around .16 ln-lb off but close enough I assume.
yeah, thats more than close enough, the reason people try to be precise with this is that they are trying to avoid airflow/vacuum leaks that can cause issues with idle/AF. Its not the precise torque that matters, its just making sure you don't crush the o ring too much (in this case the o ring sits in a recessed groove so its hard to do anyways) the most important thing is really the even installation as Jsolo mentioned, make sure you install them in a criss cross pattern to make sure they install flush/evenly to minimize the potential causing a leak...

usually for small bolts like this I wont bother with a torque wrench unless, like in this case its fit to a gasket but then then its more about being close and even installation with other bolts rather than precise torque

anyways good luck!
Hashim is offline
Reply With Quote
Old 12-08-2018, 12:08 PM
  #13
mjnoles1
Registered User

Join Date: Nov 2012
Posts: 287
Thanked 4 Times in 4 Posts
You are all going to kill me as I know everyone does not think this is necessary.

HOWEVER, where in the service manual is the removal process located? I located the instructions on how to do the throttle valve closed position learning after cleaning. But, I cannot locate the actual instructions to unbolt, and free up the throttle body to then clean them.
mjnoles1 is online now
Reply With Quote
Old 12-08-2018, 06:31 PM
  #14
mjnoles1
Registered User

Join Date: Nov 2012
Posts: 287
Thanked 4 Times in 4 Posts
Originally Posted by mjnoles1 View Post
You are all going to kill me as I know everyone does not think this is necessary.

HOWEVER, where in the service manual is the removal process located? I located the instructions on how to do the throttle valve closed position learning after cleaning. But, I cannot locate the actual instructions to unbolt, and free up the throttle body to then clean them.
Disregard, I watched the videos and I did the passenger side. Heading out than doing the driver side next.

Fyi, I have 30k miles and my passenger side was surprisenly flight.

I moved the butterflies ever so slightly to get them cleaned.
Knowing me, I am going to be one of the people with the issues after performing this.

mjnoles1 is online now
