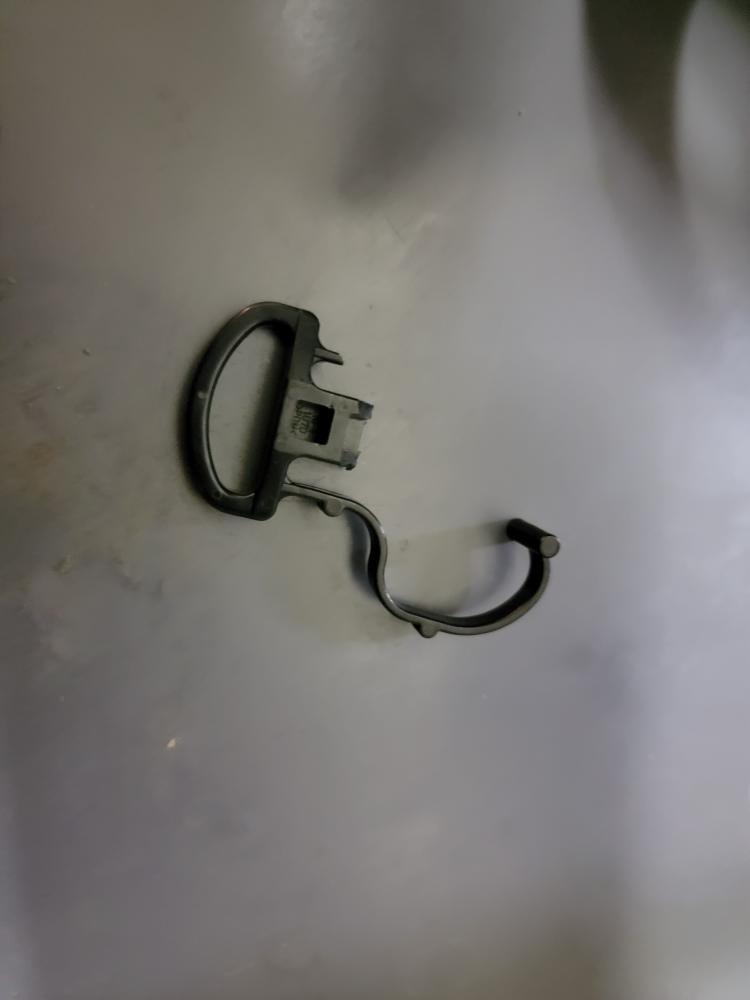

When trying to put back in the seat cushions in the back seat (the part you sit on) I had trouble getting both sides clipped in because after clipping in one side, once I went to the other side and put it in, the first side I clipped in would pop out. I eventually broke the clip on the driver side. See image of the piece I broke below:
The part above goes around the little white thing where the clip is on the driver and passenger side of the seat cushions in the back seat. It's the little hook you need to pull to remove the seats.
I found the part number "88304-0M000", which discountinfinitiparts claims doesn't fit my car and that it's for cupholders. I know it's possible it's used for the seat and cupholders, but I just want to verify which part I need.
Also, are there any guides for repairing these? I haven't been able to find much information at all on this situation or this part.
When trying to put back in the seat cushions in the back seat (the part you sit on) I had trouble getting both sides clipped in because after clipping in one side, once I went to the other side and put it in, the first side I clipped in would pop out. I eventually broke the clip on the driver side. See image of the piece I broke below:
The part above goes around the little white thing where the clip is on the driver and passenger side of the seat cushions in the back seat. It's the little hook you need to pull to remove the seats.
I found the part number "88304-0M000", which discountinfinitiparts claims doesn't fit my car and that it's for cupholders. I know it's possible it's used for the seat and cupholders, but I just want to verify which part I need.
Also, are there any guides for repairing these? I haven't been able to find much information at all on this situation or this part.
Head to your local dealer with you vin, they will bring up a photo of the parts in that area and you should be able to pick the part from the photo.
I pulled the parts diagram from parts.infinitiusa.com for 2013 Sedan...

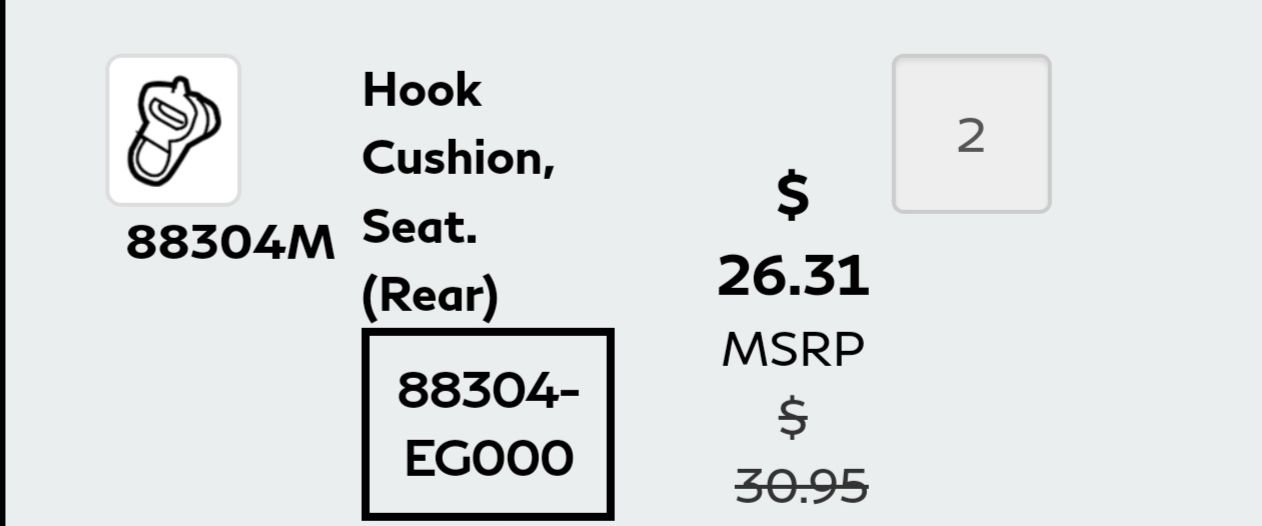

Indicated above is the anchor point that gets installed in the floor pan p/n 88304-EG000 (parts.infinitusa.com). Therefore,
Apparently, these anchors are Coupe and sedan specific. The Coupe's do not use a "pull tab" as, obviously, the sedans do.
This is likely where some confusion comes into play.
Hope this helps...
Last edited by ILM-NC G37S; Apr 17, 2022 at 10:42 AM.
I pulled the parts diagram from parts.infinitiusa.com for 2013 Sedan...
Indicated above is the anchor point that gets installed in the floor pan p/n 88304-EG000 (parts.infinitusa.com). Therefore,
Apparently, these anchors are Coupe and sedan specific. The Coupe's do not use a "pull tab" as, obviously, the sedans do.
This is likely where some confusion comes into play.
Hope this helps...
Yeah I used a similar diagram to find out the part number. The bottom most part of the image has the part that I need, where the finger is pointing. That's where the little black clip is that broke, the one that you pull when you take out the seat cushion.
The directions I was referring to are for replacing the clip, not removing the seats.
