ZSpeed or TBW Aluminum under tray on your sedan?
#1
ZSpeed or TBW Aluminum under tray on your sedan?
I had a ZSpeed under tray on my '13 Sedan for the last 3 years and it has finally bit the dust. It looks like TBW is the only other brand out there and it seems to have more venting, but I'm not sure about the 2pc. design or if there is as much clearance as the ZSpeed for the zerk fittings on my Hotchkiss sway bars.
The only other reason I would consider the TBW is that the 2 back bolts on the ZSpeed have the aluminum folded over them so if you do hit something it bends back over the bolts and makes it damn tough to bend back and remove when you are sweating your azz off on your back on hot asphalt at a track day covered in coolant (or so I have heard ).
TBW
ZSpeed
The only other reason I would consider the TBW is that the 2 back bolts on the ZSpeed have the aluminum folded over them so if you do hit something it bends back over the bolts and makes it damn tough to bend back and remove when you are sweating your azz off on your back on hot asphalt at a track day covered in coolant (or so I have heard ).
TBW
ZSpeed
#2
Administrator
iTrader: (9)
That TBW tray has been on my radar for a while, and while I'm pretty solid about getting it, I'm eager to read about your particular experience.
So... subbed.
So... subbed.
#3
After looking closely at these pictures (especially the angle of the rear mounts) it seems like the ZSpeed has a lot more clearance which is what I will need as my old ZSpeed just barely cleared the zerk fittings. Unless someone can tell me otherwise about the TBW
#5
Registered Member
iTrader: (2)
I had a ZSpeed under tray on my '13 Sedan for the last 3 years and it has finally bit the dust. It looks like TBW is the only other brand out there and it seems to have more venting, but I'm not sure about the 2pc. design or if there is as much clearance as the ZSpeed for the zerk fittings on my Hotchkiss sway bars.
The only other reason I would consider the TBW is that the 2 back bolts on the ZSpeed have the aluminum folded over them so if you do hit something it bends back over the bolts and makes it damn tough to bend back and remove when you are sweating your azz off on your back on hot asphalt at a track day covered in coolant (or so I have heard ).
TBW
ZSpeed
The only other reason I would consider the TBW is that the 2 back bolts on the ZSpeed have the aluminum folded over them so if you do hit something it bends back over the bolts and makes it damn tough to bend back and remove when you are sweating your azz off on your back on hot asphalt at a track day covered in coolant (or so I have heard ).
TBW
ZSpeed
Hey there so you're looking into Toll Booth *****? Great! As a long time user of this tray and many mishaps with the New York City roads I can offer a bit of insight if you care to sit down and listen a while.
The story starts for our hero about a year ago, after going staggered and slammed on my 2012 sedan, I realized that the standard Nissan(not infiniti) plastic shroud protecting my OEM sways and Nissan(not infiniti) oil filter did not do a good job at all, it actually fell apart from scraping 1 whole month in after being slammed and staggered. So a buddy of mine said to try tbw. I took a shot and it was very easy to install, and very straight forward to the packaging. A word of advice, make sure you order the right one, whether awd or rwd. Also, order the bolt replacements as well, do not reuse the ones you have.
On the way to journey out into the world of modified cars and cars that are too low, I personally only ran into two problems due to my own fault. Problem number one the TBW tray has a groove or curve in the front. This is to clear hotch, stillen, or any other sways while still protecting the oil filter, but, being so low I ended up damaging it and bending it out place where it pops out of hatch placement. Meaning, I hit a dip and the angled front hit the road and popped out of place.
Second problem that occured, after being so low, I also managed to scrape or even sheer a majority of the bolts holding it together. It has never fallen off on its own accord, but, it will be a major !@#!@# to get it off the car. Again both problems are my own fault and in no way a design flaw.
Due to personal experience I have not used the Z1 only Tbw, mine actually finally gave up 3 days ago, and I'm ordering yet another one. It has saved me countless times on dips, bumps, roads being rebuilt, raised manholes, and and those stupidly high speed bumps. My hotchs do not have a single scrap or bend or chip on them, my filters have never suffered. Overall giving a biased opinion I give it a 4/5 stars IMO. Why 4? because its almost 200$ now, before I snagged it on sale for 130$ I believe.
Hope this somehow helps. Enjoy your journey friend!
The following 4 users liked this post by c1utchh:
#6
Registered Member
iTrader: (2)
Subscribed.....
........ (if the OP doesn't mind me asking) ...... if someone could also elaborate on the opening (for oil & filter changes) on these ...... are they bigger that the one on the plastic factory shield? If so, can you post the size of the opening and if you feel that you have enough room to do the service?
Just asking for more details so to speak. Hope the OP doesn't mine.
........ (if the OP doesn't mind me asking) ...... if someone could also elaborate on the opening (for oil & filter changes) on these ...... are they bigger that the one on the plastic factory shield? If so, can you post the size of the opening and if you feel that you have enough room to do the service?
Just asking for more details so to speak. Hope the OP doesn't mine.
Trending Topics
#8
Administrator
iTrader: (9)
The following users liked this post:
The Pope (06-01-2018)
#9
Due to personal experience I have not used the Z1 only Tbw, mine actually finally gave up 3 days ago, and I'm ordering yet another one. It has saved me countless times on dips, bumps, roads being rebuilt, raised manholes, and and those stupidly high speed bumps. My hotchs do not have a single scrap or bend or chip on them, my filters have never suffered. Overall giving a biased opinion I give it a 4/5 stars IMO. Why 4? because its almost 200$ now, before I snagged it on sale for 130$ I believe.
Hope this somehow helps. Enjoy your journey friend!
Hope this somehow helps. Enjoy your journey friend!
Subscribed.....
........ (if the OP doesn't mind me asking) ...... if someone could also elaborate on the opening (for oil & filter changes) on these ...... are they bigger that the one on the plastic factory shield? If so, can you post the size of the opening and if you feel that you have enough room to do the service?
Just asking for more details so to speak. Hope the OP doesn't mine.
........ (if the OP doesn't mind me asking) ...... if someone could also elaborate on the opening (for oil & filter changes) on these ...... are they bigger that the one on the plastic factory shield? If so, can you post the size of the opening and if you feel that you have enough room to do the service?
Just asking for more details so to speak. Hope the OP doesn't mine.
The following users liked this post:
The Pope (06-01-2018)
#10
Registered Member
iTrader: (2)

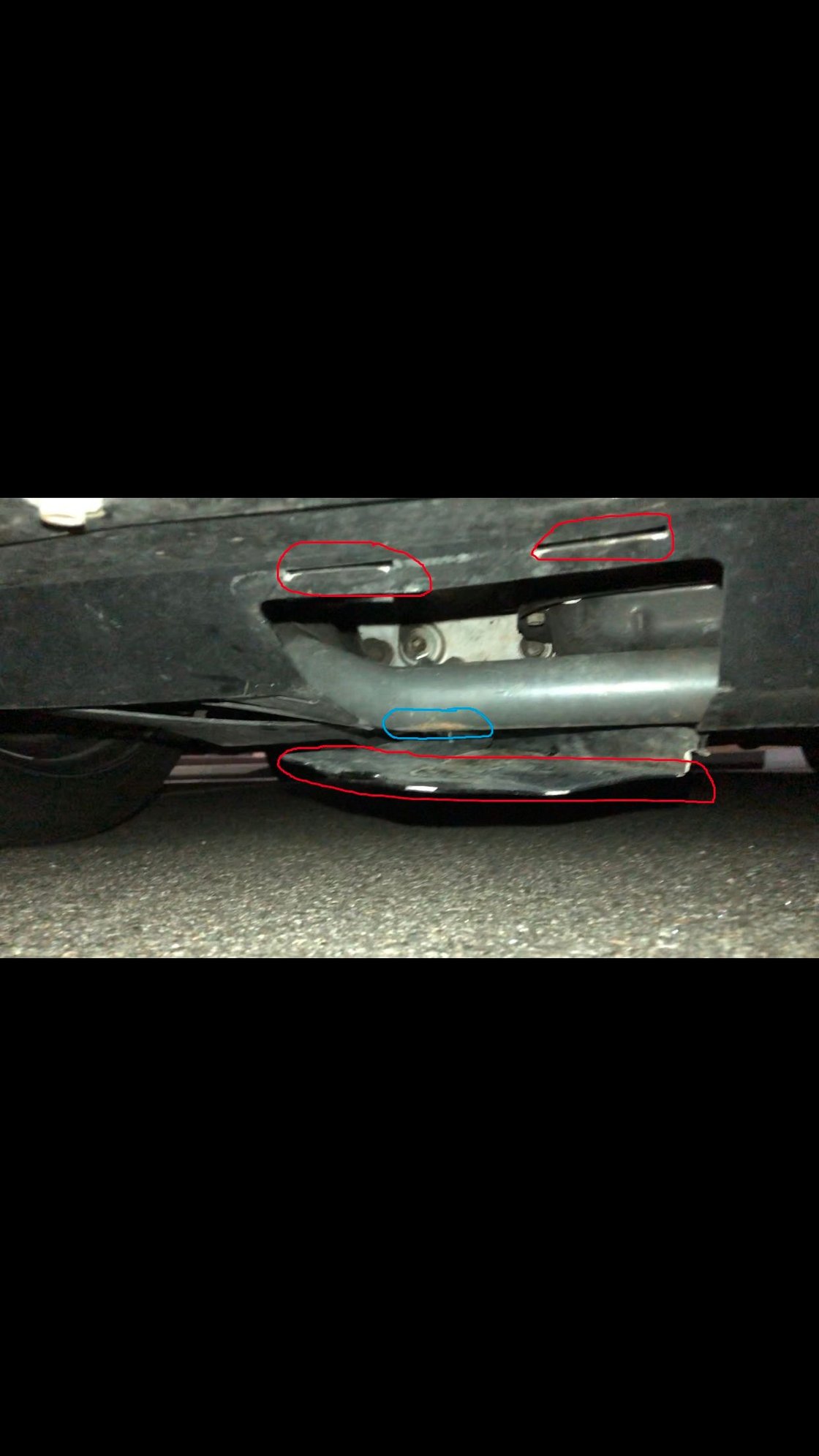

Back with visuals. The First picture and the red highlights indicate where the tray hatch holds itself and where the tray itself rests. The Blue circle indicates my first hit or scrape to my Hotchkis (1 week old, plus 2 weeks worth of rain).
The second picture highlighted in yellow is all of the bent and deformed aluminium on the tray itself after a year+, if you guys notice there is a heavy inward bend on the left side making it seem that the hotchs don't clear, then on the bottom the tray door is severely bent out of place where it will not be aligned properly to protect the hotchs. Hope this clears things up for you guys, anymore questions or concerns, let me know.
The second picture highlighted in yellow is all of the bent and deformed aluminium on the tray itself after a year+, if you guys notice there is a heavy inward bend on the left side making it seem that the hotchs don't clear, then on the bottom the tray door is severely bent out of place where it will not be aligned properly to protect the hotchs. Hope this clears things up for you guys, anymore questions or concerns, let me know.
#12
Got rid of my TBW shield because it did not have enough clearance for my hotchkis sway bar bracket. Went with ZSpeed for that reason. I've bent back that same lip for the back 2 bolts countless times. I just use a pry bar to get the socket aligned and sort things out later.
#13
Got rid of my TBW shield because it did not have enough clearance for my hotchkis sway bar bracket. Went with ZSpeed for that reason. I've bent back that same lip for the back 2 bolts countless times. I just use a pry bar to get the socket aligned and sort things out later.
#14
Administrator
iTrader: (9)
Got rid of my TBW shield because it did not have enough clearance for my hotchkis sway bar bracket. Went with ZSpeed for that reason. I've bent back that same lip for the back 2 bolts countless times. I just use a pry bar to get the socket aligned and sort things out later.
