GTM Performance Engineering: MHI Twin Turbo Kit Official Release
We are proud to introduce our new line of Twin Turbo Kits for the 370Z based on the venerable Mitsubishi Heavy Industry turbocharger line up. These turbos are water cooled and oil lubricated journal bearing turbos with a great track record of reliability, performance and value. Available with our kits are three different turbo options: 16g (600hp), 18g (700hp), and 20g (900hp). All three turbo options cost the same. Since the VQ37VHR is such a great engine, the 16g and 18g options are great for stock motor builds while the 20g is the way to go for built engine, high horsepower setups.
Since this kit was designed to be as unobtrusive as possible, it is the only turbo kit that retains the factory crash bar. Also, there are no permanent modifications that have to be done to the car to install and run this kit successfully with outstanding performance. In addition, the engine can remain in the vehicle for installation.
As usual, we offer our kits in two basic forms: Turn-Key and Tuner. Our Turn-Key kits come with our GTM Spec ECU flash and upgraded fuel system components. These kits are designed to deliver a complete package that can be installed on a car and perform flawlessly out of the box. Our Tuner Kit, on the other hand is a complete kit that gives the end user the freedom to choose whatever engine management and fuel system components they prefer.
Below are the components included in our Turn-Key Kit.
Below are the components included with our Tuner Kit with Internal Wastegates:
Below are the components included with our Tuner Kit with External Wastegates:
Here are the results from our Dynojet testing of the 16g's on the G37.

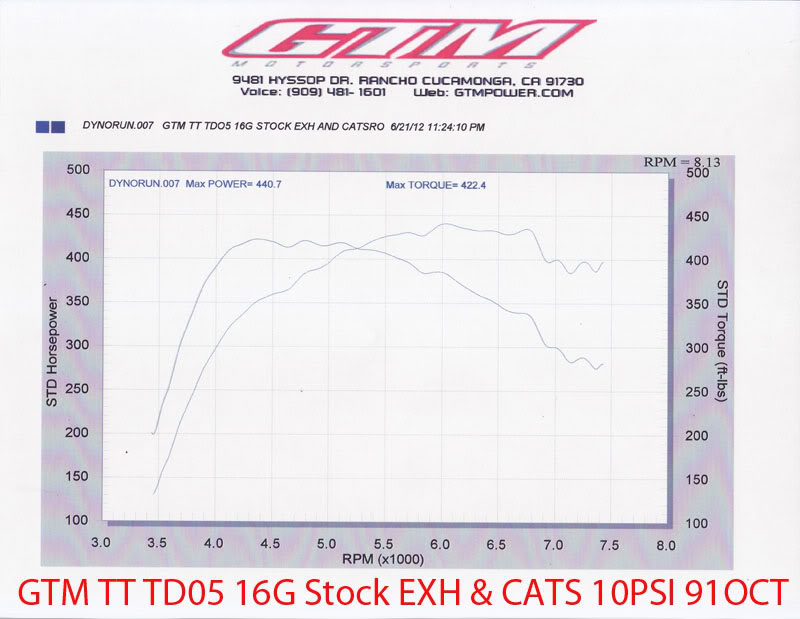

For the emissions conscious enthusiast, we tested our new TD05 Twin Turbo Kit with the stock cats and cat-back exhaust. Despite the restriction, the kit still delivers 440whp and 422wtq on 91 octane pump gas at 10psi of boost with an automatic as seen in the dyno graph below. As you can see, the restrictive stock exhaust causes torque to plummet at high rpm. Despite this being an IPL with the higher flowing exhaust, it is still far too restrictive for a forced induction car.

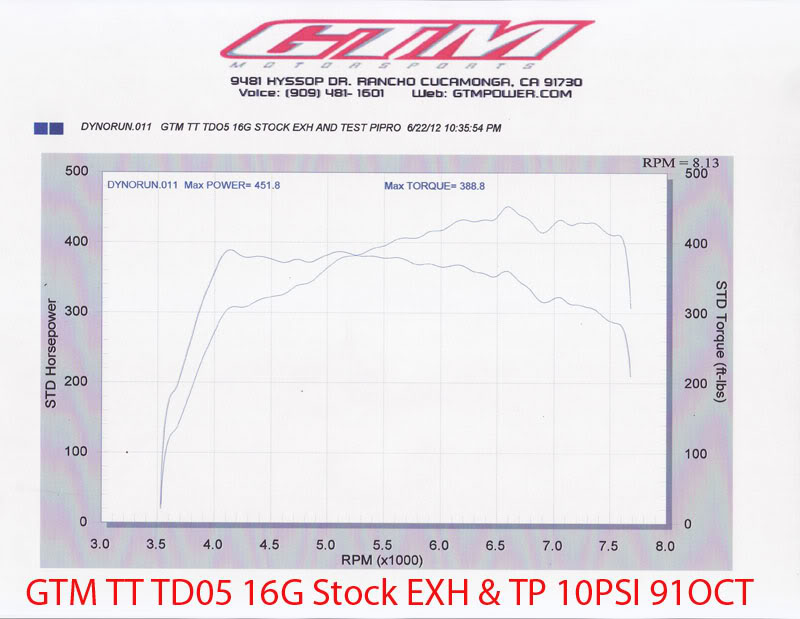

Opening up the exhaust with a set of test pipes still keeps an understated exhaust note while delivering more power and torque at higher rpm as you can see in the dyno graph below. As you can see, torque doesn't fall off quite as hard at high rpm with test pipes. That said, there's still room for improvement in the exhaust department.

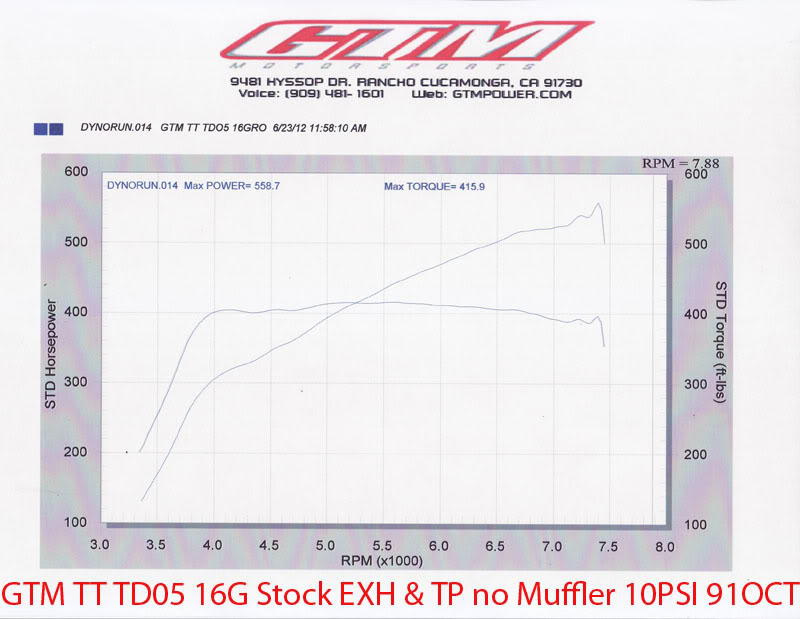

For best results, a less restrictive exhaust is a better way to go. Shown below are the results of our test pipes and no mufflers; still at 10psi on 91 octane with an automatic transmission. As you can see, torque stays flat all the way to redline once the exhaust is opened up.
Pricing
Retail price for the Turn-Key Kit is $6,795
Retail price for the Tuner Kit with our 3" Downpipes and External Wastegates is $5,995
Retail price for the Tuner Kit with Internal Wastegates is $5,695
We are offering a Group Buy on these kits here: https://www.myg37.com/forums/group-b...ml#post3610829 with a tiered pricing structure broken down as follows:
Tier One (1 - 25 people)
Tier Two (26 - 50 people)
Tier Three (51+ people)
Tier One
Turn-Key Kit: $5,995
Tuner (w/EWG): $5,395
Tuner (w/IWG): $4,995
Tier Two
Turn-Key Kit: $5,795
Tuner (w/EWG): $5,195
Tuner (w/IWG): $4,795
Tier Three
Turn-Key Kit: $5,595
Tuner (w/EWG): $4,995
Tuner (w/IWG): $4,595
This pricing will no longer be available once these kits are on the shelf and ready to ship. This is on a first come, first serve basis and the closing date of this offer will be determined in the next couple weeks.
Financing Options:
We were able to come up with a couple programs to make some of your dreams come true.
Option 1: 90 days same as cash and 6 months same as cash financing available. Credit check required and approval amount is based on credit score.
Option 2: This option requires 25% down and is limited to only $3,400 of credit. This is for 12 monthly payments. There is no credit check required, very high approval rate and all you need to have is a checking account and a job.
Since this kit was designed to be as unobtrusive as possible, it is the only turbo kit that retains the factory crash bar. Also, there are no permanent modifications that have to be done to the car to install and run this kit successfully with outstanding performance. In addition, the engine can remain in the vehicle for installation.
As usual, we offer our kits in two basic forms: Turn-Key and Tuner. Our Turn-Key kits come with our GTM Spec ECU flash and upgraded fuel system components. These kits are designed to deliver a complete package that can be installed on a car and perform flawlessly out of the box. Our Tuner Kit, on the other hand is a complete kit that gives the end user the freedom to choose whatever engine management and fuel system components they prefer.
Below are the components included in our Turn-Key Kit.
- Cast Ductile Iron Exhaust Manifolds
- Pre-Bent Stainless Steel Heat Shields
- Exhaust Manifold Install Hardware Kit
- 4-Ply High Resistance Nomex Silicon couplers
- Stainless Steel T-Bolt clamps
- Twin 3" x 12 x 12 Bar and Plate Core Intercooler Rated at 900hp (combined)
- Polished Aluminum Piping
- Pre-made steel braided oil and coolant Supply & Return lines
- Mitsubishi water & oil cooled turbocharger
- Cold Air Intake System (using k&n filters)
- TiAL Q or Turbosmart Raceport Blow-off Valves
- GTM Internal Wastegate Actuators
- GTM Turbine Outlet to Front Pipe Adapters
- GTM High Capacity, Baffled, Oil Pan
- All Necessary Hardware and Installation Instructions
- GTM Spec ECU Flash using UpRev Osiris
- GTM Basic Fuel System with Walbro 255lph Fuel Pump and Bosch EV14
Below are the components included with our Tuner Kit with Internal Wastegates:
- Cast Ductile Iron Exhaust Manifolds
- Pre-Bent Stainless Steel Heat Shields
- Exhaust Manifold Install Hardware Kit
- 4-Ply High Resistance Nomex Silicon couplers
- Stainless Steel T-Bolt clamps
- Twin 3" x 12 x 12 Bar and Plate Core Intercooler Rated at 900hp (combined)
- Polished Aluminum Piping
- Pre-made steel braided oil and coolant Supply & Return lines
- Mitsubishi water & oil cooled turbocharger
- Cold Air Intake System (using k&n filters)
- TiAL Q or Turbosmart Raceport Blow-off Valves
- GTM Internal Wastegate Actuators
- GTM Turbine Outlet to Front Pipe Adapters
- GTM High Capacity, Baffled, Oil Pan
- All Necessary Hardware and Installation Instructions
Below are the components included with our Tuner Kit with External Wastegates:
- Cast Ductile Iron Exhaust Manifolds
- Pre-Bent Stainless Steel Heat Shields
- Exhaust Manifold Install Hardware Kit
- 4-Ply High Resistance Nomex Silicon couplers
- Stainless Steel T-Bolt clamps
- Twin 3" x 12 x 12 Bar and Plate Core Intercooler Rated at 900hp (combined)
- Polished Aluminum Piping
- Pre-made steel braided oil and coolant Supply & Return lines
- Mitsubishi water & oil cooled turbocharger
- Cold Air Intake System (using k&n filters)
- TiAL Q or Turbosmart Raceport Blow-off Valves
- GTM High Capacity, Baffled, Oil Pan
- All Necessary Hardware and Installation Instructions
- GTM 3" Downpipes with TiAl or Turbosmart 38mm External Wastegates
Here are the results from our Dynojet testing of the 16g's on the G37.
For the emissions conscious enthusiast, we tested our new TD05 Twin Turbo Kit with the stock cats and cat-back exhaust. Despite the restriction, the kit still delivers 440whp and 422wtq on 91 octane pump gas at 10psi of boost with an automatic as seen in the dyno graph below. As you can see, the restrictive stock exhaust causes torque to plummet at high rpm. Despite this being an IPL with the higher flowing exhaust, it is still far too restrictive for a forced induction car.
Opening up the exhaust with a set of test pipes still keeps an understated exhaust note while delivering more power and torque at higher rpm as you can see in the dyno graph below. As you can see, torque doesn't fall off quite as hard at high rpm with test pipes. That said, there's still room for improvement in the exhaust department.
For best results, a less restrictive exhaust is a better way to go. Shown below are the results of our test pipes and no mufflers; still at 10psi on 91 octane with an automatic transmission. As you can see, torque stays flat all the way to redline once the exhaust is opened up.
Pricing
Retail price for the Turn-Key Kit is $6,795
Retail price for the Tuner Kit with our 3" Downpipes and External Wastegates is $5,995
Retail price for the Tuner Kit with Internal Wastegates is $5,695
We are offering a Group Buy on these kits here: https://www.myg37.com/forums/group-b...ml#post3610829 with a tiered pricing structure broken down as follows:
Tier One (1 - 25 people)
Tier Two (26 - 50 people)
Tier Three (51+ people)
Tier One
Turn-Key Kit: $5,995
Tuner (w/EWG): $5,395
Tuner (w/IWG): $4,995
Tier Two
Turn-Key Kit: $5,795
Tuner (w/EWG): $5,195
Tuner (w/IWG): $4,795
Tier Three
Turn-Key Kit: $5,595
Tuner (w/EWG): $4,995
Tuner (w/IWG): $4,595
This pricing will no longer be available once these kits are on the shelf and ready to ship. This is on a first come, first serve basis and the closing date of this offer will be determined in the next couple weeks.
Financing Options:
We were able to come up with a couple programs to make some of your dreams come true.
Option 1: 90 days same as cash and 6 months same as cash financing available. Credit check required and approval amount is based on credit score.
Option 2: This option requires 25% down and is limited to only $3,400 of credit. This is for 12 monthly payments. There is no credit check required, very high approval rate and all you need to have is a checking account and a job.

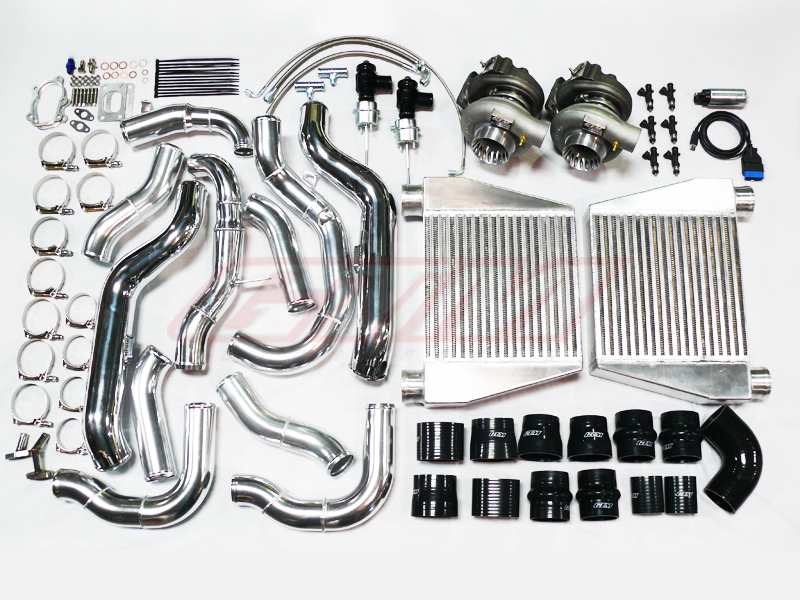

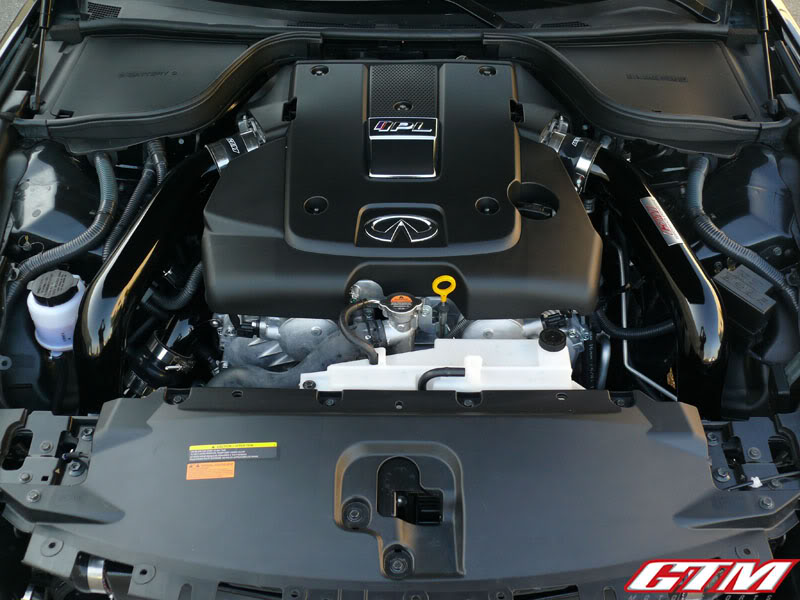

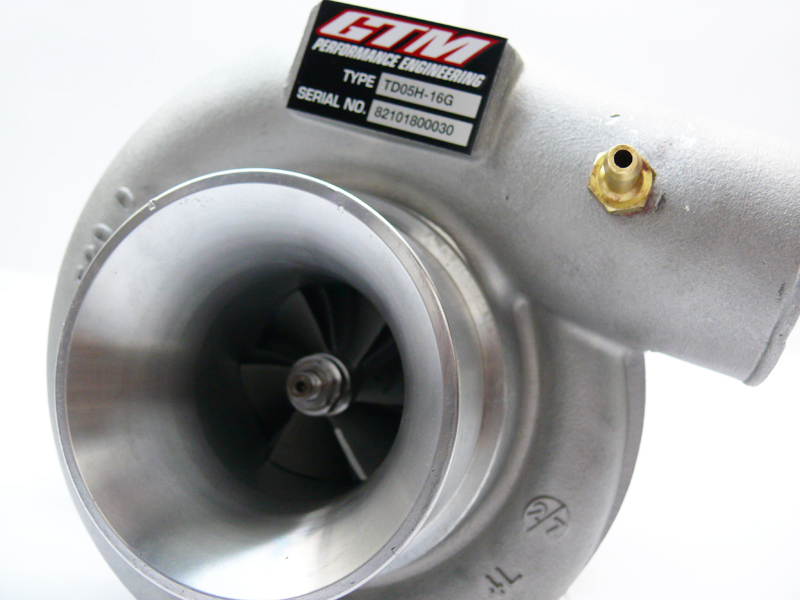

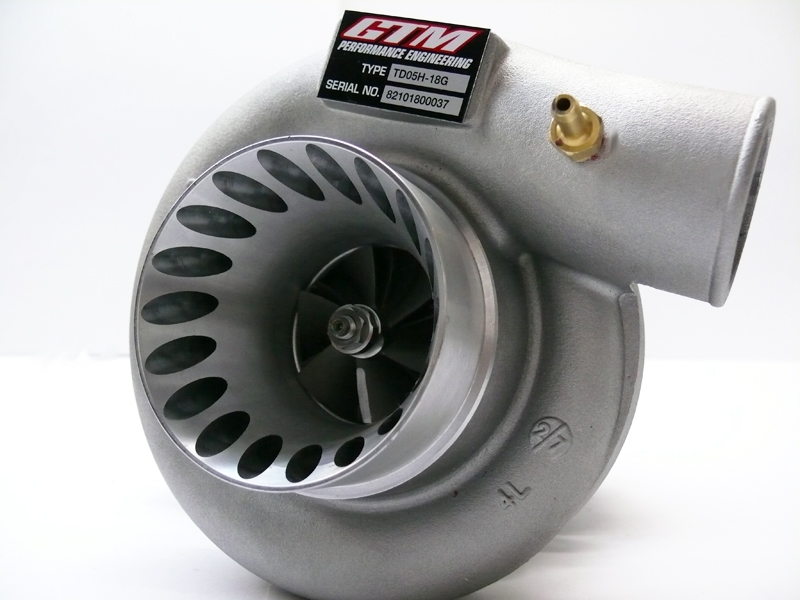

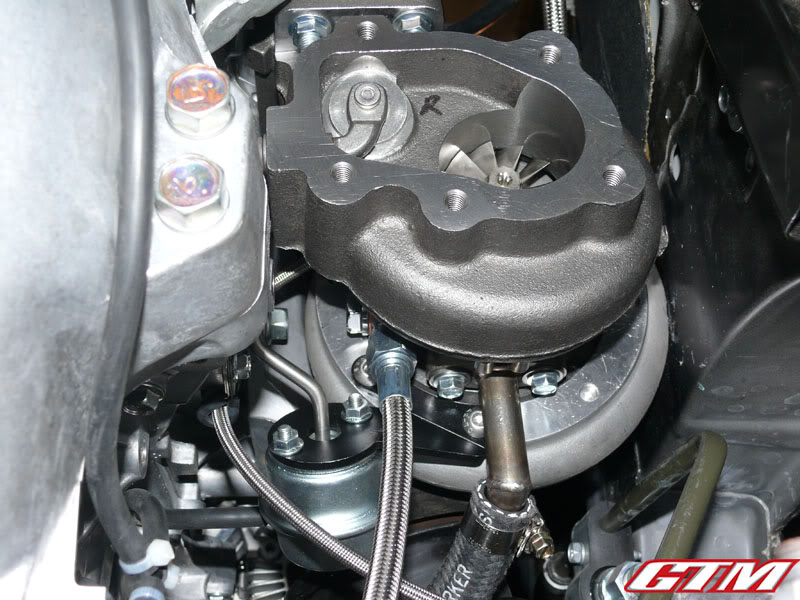

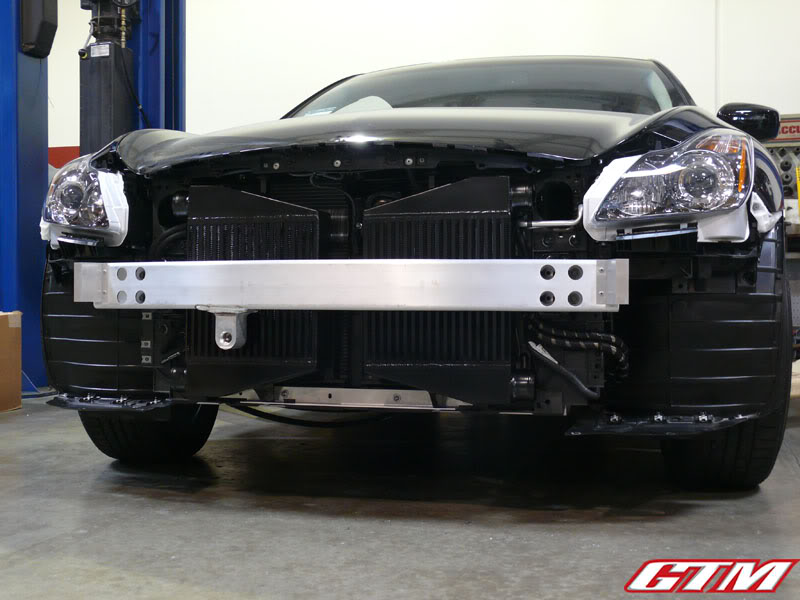

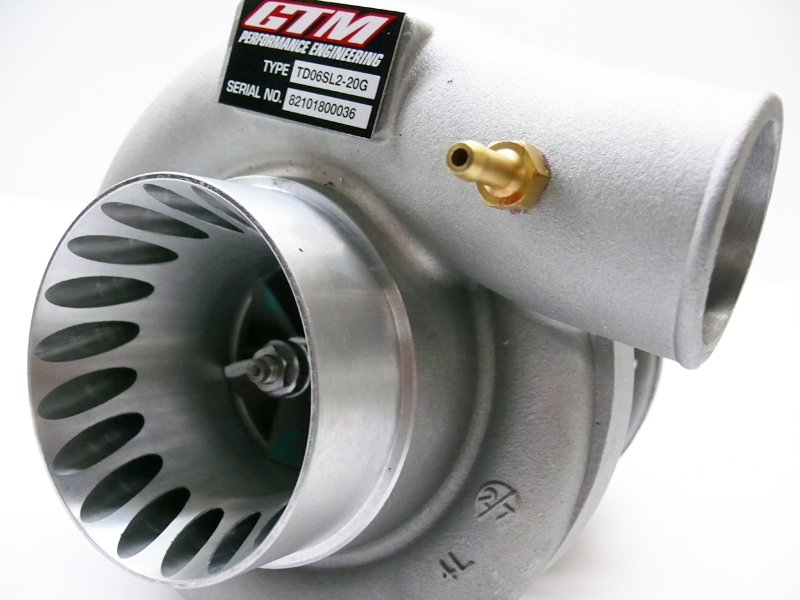

Here are a couple pictures of the kit:
Last edited by Sam@GTM; 04-05-2013 at 03:05 PM.
The following users liked this post:
duck31905 (05-15-2013)
your pricing on this kit is amazing!
03-20-2013, 05:54 PM
#5
How about an option 3 wire transfer and price please? How reliable are the Mitsubishi turbo's? The numbers look impressive at 10psi on the IPL. I cross referenced this thread with the other on the370z.com. Looks like this has already gained interest with the Z crowd. Hopefully this lands in the tier 3.
Last edited by IPL 370GT; 03-20-2013 at 06:29 PM.
03-21-2013, 09:12 AM
#9
Registered User
18g kit
Have you done any testing with the 18g kit. I would love to see a dyno with that and just an exhaust. Plus 2200 rpm seeing 4psi is amazing but i cant help but imagine that killing your gas mileage. (hoping the 18g is 2500 to 2800 rpm before it sees that boost.) Big props on the kit though.. most guys design a kit and sit back... you always push the envelop and thats why i check your site every week. Maybe nissan will contact you about designing the next turbo for a factory fi g like they did with jim wolf. (didnt pull the trigger for some reason but the g35 guys got a factory style kit from it).
03-22-2013, 09:32 AM
#12
GTM did an 18g kit install on a 370z and posted dyno graphs over on the370z.com:
GTM Performance Engineering: MHI Twin Turbo Official Release - Nissan 370Z Forum
Granted, it's a different vehicle (with the same engine), but hopefully it gives you an idea of the 18g kit's potential.
GTM Performance Engineering: MHI Twin Turbo Official Release - Nissan 370Z Forum
Granted, it's a different vehicle (with the same engine), but hopefully it gives you an idea of the 18g kit's potential.
03-22-2013, 10:08 AM
#14
Sam,
I took the liberty of merging your two identical threads on this and placing therm here in the vendor forum. For the sake of simplicity since 1) they were exactly the same information and 2) people were asking questions and commenting in two different places instead of one which is confusing for members. So if you have additional information or answers to give us they can all be found here in one place.
Thanks for bringing another FI product to the G37 community and doing group buy pricing, I hope it's a huge success.
I took the liberty of merging your two identical threads on this and placing therm here in the vendor forum. For the sake of simplicity since 1) they were exactly the same information and 2) people were asking questions and commenting in two different places instead of one which is confusing for members. So if you have additional information or answers to give us they can all be found here in one place.
Thanks for bringing another FI product to the G37 community and doing group buy pricing, I hope it's a huge success.
03-22-2013, 12:05 PM
#15
Registered User
370z and g37
2 diffrent vehicles but very very similar. For a dyno comparison i am more interested in the shape of the curve more than peak hp. Also need to know torque figures so i can get my clutch accordingly.
