xmajd92

iTrader: (1)

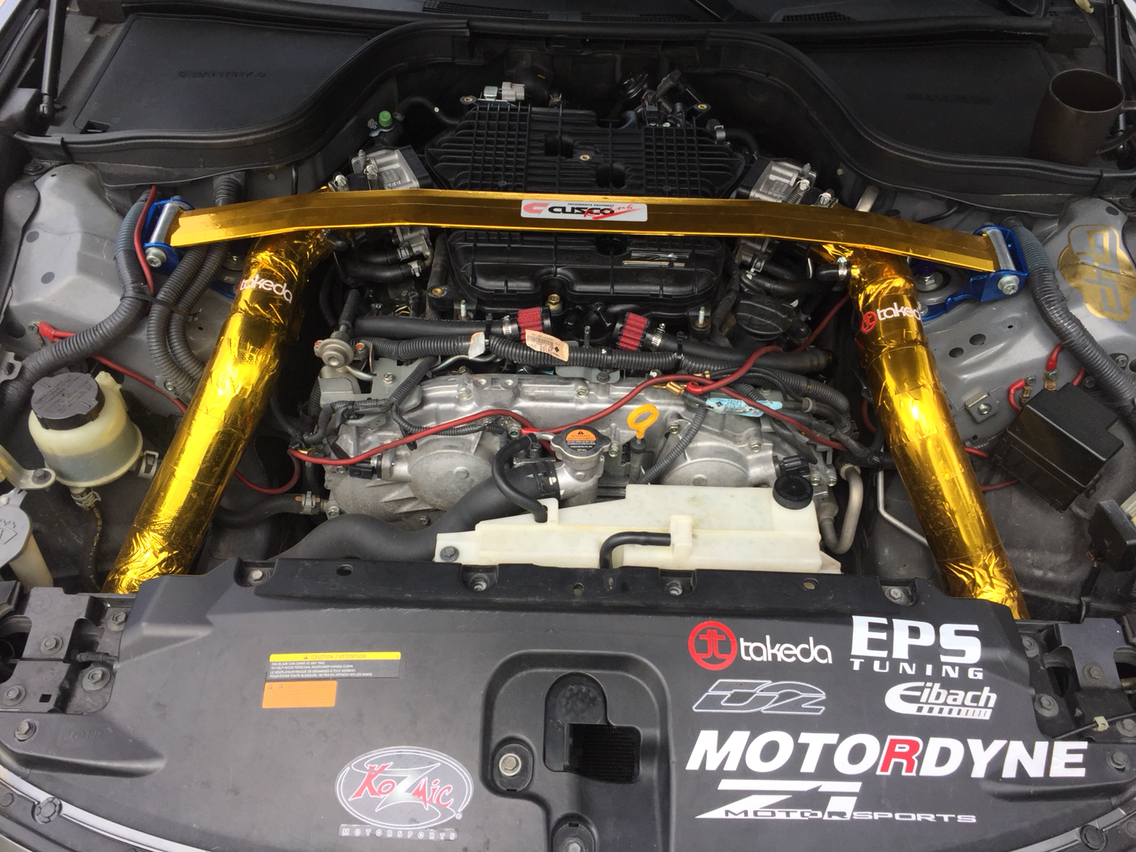

I wanted a dual catch can set and I've been researching for a bit. I know it's not necessary for these motors but after factoring in a tune and my plans for roadcourse tracking the car I thought that it wouldn't hurt. Regardless, the car will still have blow by so thought it'd be beneficial to me. While searching for vids on how and where to place the catch cans I came across a tutorial for EPS Tuning's PCV Delete Kit for a 370Z. Watched and thought I should check them out because it would eliminate the need for catch cans altogether and save me some money. I read somewhere on here that there was a concern about misting in the engine bay. I asked them about it and said there were no issues with that so I'll hold them to their word. I went ahead and bought a set of their G37 kit. Here's some pics. I haven't put serious miles on it yet so let's see how it goes.

Kris9884

iTrader: (3)

I doubt there's been much review here, go checkout the Z boards. Many of the NA guys say they work great and clean up the engine bay clutter pretty nicely.

PNW_IPL

iTrader: (5)

Please go drive hard af. Report back stat on misting or dumping!!
Looks like a cool mod!

xmajd92

iTrader: (1)

Will do sir

xmajd92

iTrader: (1)

I'll check it out

All_the_Poniez

Looks great, that's for sure

Surfnazi

I've done this on past cars both na and supercharged. After 3k miles it collected maybe 3 oz

xmajd92

iTrader: (1)

So it's misted the engine bay?

Surfnazi

No it stayed in the air/oil separator. I made my own using separator for air tools

Jonesmeister11

iTrader: (1)

Nice keep us posted. I have catch cans, they def catch some oil.

4doorfury

iTrader: (1)

These are pretty useless for an NA stock motor car. If blow by is that bad it's time for a rebuild anyway. Typically catch can setups are more for boosted applications. Even on my 400whp big turbo Mazdaspeed I barely caught anything and that was a negative pressure system designed to actually catch more blow by.

And to add to this, our motor is port injected which allows the injectors to clean the intake track anyway. DI motors benefit much more from a catch can setup.

PNW_IPL

iTrader: (5)

So if one wanted to just clean up the bay deleting pcv system wouldnt mist at all NA?

4doorfury

iTrader: (1)

You guys are going to damage the motor by deleting the pcv. It is designed to release crank case pressure so the underside of the piston has less pressure build up. It keeps your rings healthy. Please do not delete it. If you do anything you will want to put a seal in line catch can. eBay addw1 catch can and look at the one without the vent. You would technically need 2. Otherwise, please do not delete the system without realizing first what it is intended to do.

xmajd92

iTrader: (1)

A quote from EPS Tuning after asking if there were mechanical issues occurring because of the PCV Delete:

"No. None at all whatsoever. The pcv system doesnt play a large roll in the function of the rest of the engine. If uve had someone tell u that the pcv system helps the rings seal, then they just read that somewhere on the internet and are incorrect. The pcv system does not help the rings seal by providing vacuum to the crankcase. You have to draw a vacuum on the crankcase, with a massive racing vacuum pump, in order to do that. There is a lot of misinformation with regards to the function of pcv systems in the vq community. If you need me to clear any of it up for you, then i will. What the pcv delete CAN do is reveal other mechanical issues relative to ring seal. On a really healthy engine, the pcv delete will not mist unless at wot. This is how our red car behaves. U only see it on the dyno. If the pcv delete mists constantly when installed, and even more so at wot, then the engines rings/walls are worn excessively... That pre-existing damage will increase oil consumption through the rings and the pcv system alike, as well as make the engine more likely to have leaky seals."

After copying what you have posted on this thread and sent to them, this is their reply:

"This is exactly what we're talking about. This person obviously does not truly understand the dynamics and how the PCV system actually works and is regurgitating things they have read online or heard someone say.
The open PCV delete lets the crankcase breath and does not allow it to build up pressure. This person may be referring to someone capping off or sealing the crankcase which is not what our kit does."

4doorfury

iTrader: (1)

I am glad you reached out to them for their input. Now, if could be so kind, please reach back out to them and ask them who their engineer is as well as license number and state licensed. If this is a product you can trust, it will have a licensed engineer standing behind it.

I gathered my information out of a Haynes manual many years back regarding 2 separate cars as well as a few engineers who designed oil catch systems for race cars and factory cars such as the Mazdaspeed platform.
