Hello Gentlemen

For those of you who didn't check my previous thread/posts. I have GTM TT stage one with a lot of upgrades will be installed this Sunday.. Trust me I wanted to install everything now but the garage is busy till Sunday

Bellow is the list of my build with some pictures I was able to take, enjoy.

Transmission/Drivetrain
• GTM Stage 4 Transmission
---EXEDY/GTM Friction Plates
---Increase Amount Of Plates From 32 To 44
---GTM Low Brake Power Pack Assembly
---GTM Apply Pistons
---GTM Piston
---GTM Lube Modification
---GTM Torque Converter Upgrade
---GTM Torque Converter Friction Discs
---GTM Brake Clutch Power Pack Assembly
---GTM Direct Clutch Power Pack Assembly
---GTM Front Brake Clutch Power Pack Assembly
---GTM Hi-Lo-Reverse Clutch Power Pack Assembly
---GTM Input Clutch Power Pack Assembly
---GTM Reverse Brake Clutch Power Pack Assembly
---GTM Valve Body Upgrade
---GTM Separator Plates
---GTM Clutch Module Assemblies
---GTM Stepped Pressure Plate
---All Separator And Pressure Plates Are Surface Treated To Increase Durability And Reduce Frictions
---GTM Shift Point And Speed Modification
• GTM HD Flex Plate
• Z1 Motorsports Urethane Motor Mounts
• Z1 Motorsports Urethane Transmission Mount
• ATI Super Damper 10% Underdrive Crank Pulley
• NST 10% Overdrive Alternator Pulley
• Gates Corporation Micro-V Belt

Wheel/Brake
• Volk G10 Wheels
• EVS Tuning Titanium Lug Nuts
• H&R 10MM Spacers For Front Wheels
• Bridgestone RE-11 Tires
• Akebono Big Brake Kit
• EBC USR Ultimax Rotors
• EBC Red Stuff Brake Pads
• Agency Power Stainless Steel Brake Lines
• Motul RBF 600 Fluid

Suspension/Chassis
• Tanabe Sustec Pro S-O Coilovers
• GT-Spec Strut Bar
• SPC Front Camber Arms
• SPC Rear Cambers
• SPC Toe Bolts
• Custom Rear Adjustable End Links
• Hotchkis Sway Bars

Exterior/Interior
• Autokit-X Front Lip
• Autokit-X Side Skirts
• Painted Headlights
• Painted Front Grill
• Custom Hood
• Solar Gard Tint
• Zspeed Performance V2 Aluminum Engine Splash Shield
• GT-R Ignition button

Engine
• IPP Short Block
---Wiseco Stock Bore Size Pistons W/ Ceramic/Moly/Oil-Shedding Coating On Tops, Skirts And Underneath
---K1 Technologies Connecting Rods With Oil-Shedding Coat
---ARP Rod bolts
---Moly Coated Race Spec Rod Bearings
---Moly Coated Race Spec Main Bearings
---Oil-Shedder Coated Crankshaft
---Rotating Assembly Balanced
• ARP L19 Head Studs
• OEM Engine Gasket kit

Performance
• GTM Twin Turbo Kit
---Garrett's Twin Ball Bearing Water & Oil Cooled Turbocharger GT280RS
---GTM Cast Ductile Turbine Housing T25 0.64 A/R
---GTM Cast Ductile Iron Exhaust Manifolds
---GTM Pre-Bent Stainless Steel Heat Shields
---Dual TiAL 50mm Blow-Off Valve
---GTM Intercooler Rated At 1000hp
• Password:JDM Dry Carbon Fiber Velocity Stack 3 Inch
• Password:JDM Air Intake Filter
• GTM 3" Downpipes
• GTM 3” True Dual Cat-back

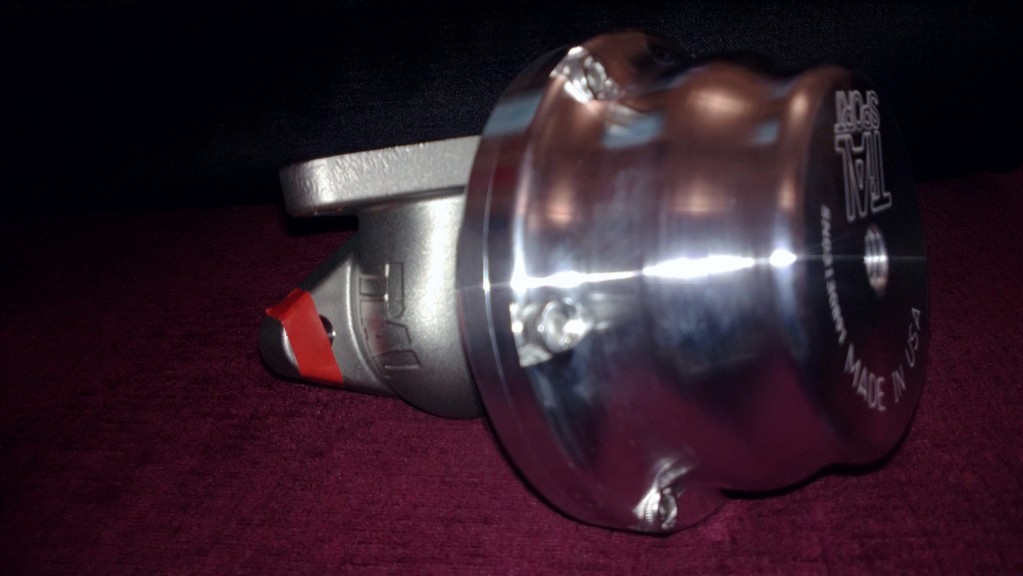

• Dual TiAL 38mm waste gates

Fuel/ Ignition
• HKS Spark Plugs
• Aeromotive 340LPH Fuel Pump
• Injector Dynamics ID1000
• Aquamist HFS-3 V2 Injection System
• Direct injected methanol
• Howerton Engineering 2 Gallon Twin Tank Enclosure With Water Pump Cooler
• GTM High Volume Billet Aluminum Fuel Rails
• Turbosmart Fuel Pressure Regulator 1200
• Turbosmart Fuel Pressure Gauge
• GTM Fuel Bypass Kit

Cooling
• GTM Dual Engine Oil Cooler
• GTM Transmission Oil Cooler
• GReddy High Pressure Radiator Cap
• AAM Competition Oil Pan Spacer
• GTM Radiator Fan Shroud
• Dual 14” SPAL Fans
• CSF High Performance Radiator
• HPS High Temperature Reinforced Silicone Radiator Hose Kit
• PTP Lava Turbo Blankets
• PTP Lava Heat Wrap Downpipes

Electronics
• Aquamist Injection System Gauge
• AEM Digital Wideband Air/Fuel Gauge
• AEM Transmission Temperature Gauge
• Osiris Uprev Custom Road Tune
• HKS EVC 6 Boost Controller
• GTM Fuel Pump Voltage Stabilizer

Miscellaneous
• FilterMAG Transmission Magnet
• GReddy Magnetic Oil Drain Plug
• FilterMAG Oil Filter Magnet

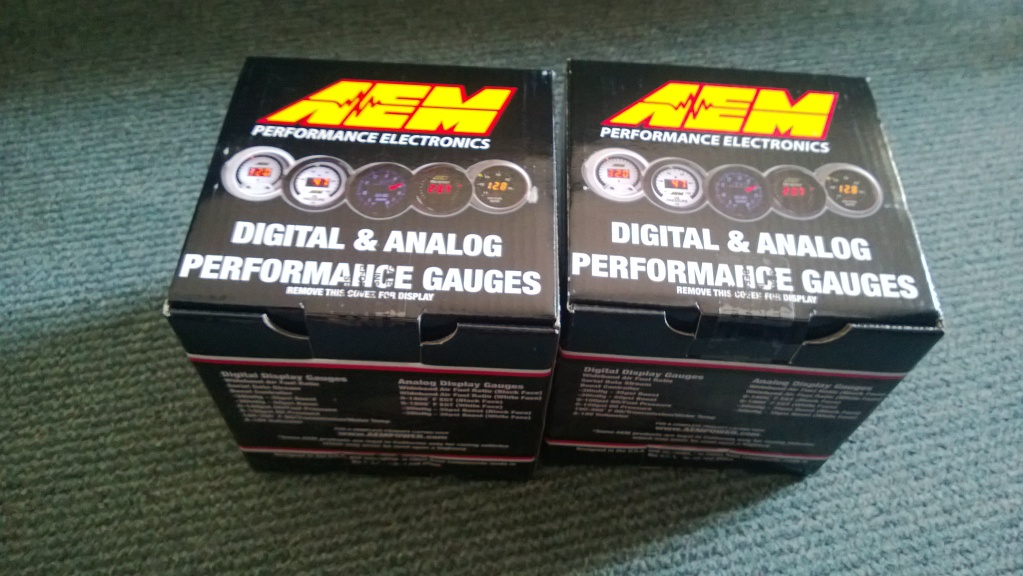

AEM Transmission Temp Gauge. AEM AFR Gauges

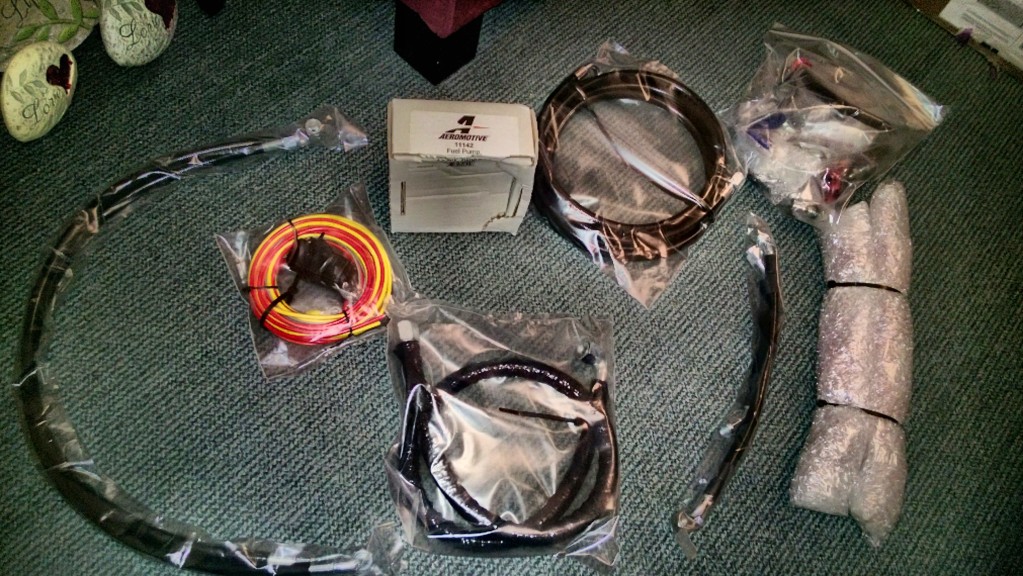

GTM Return Style Fuel System


GTM 3" Downpipe External Wastegate

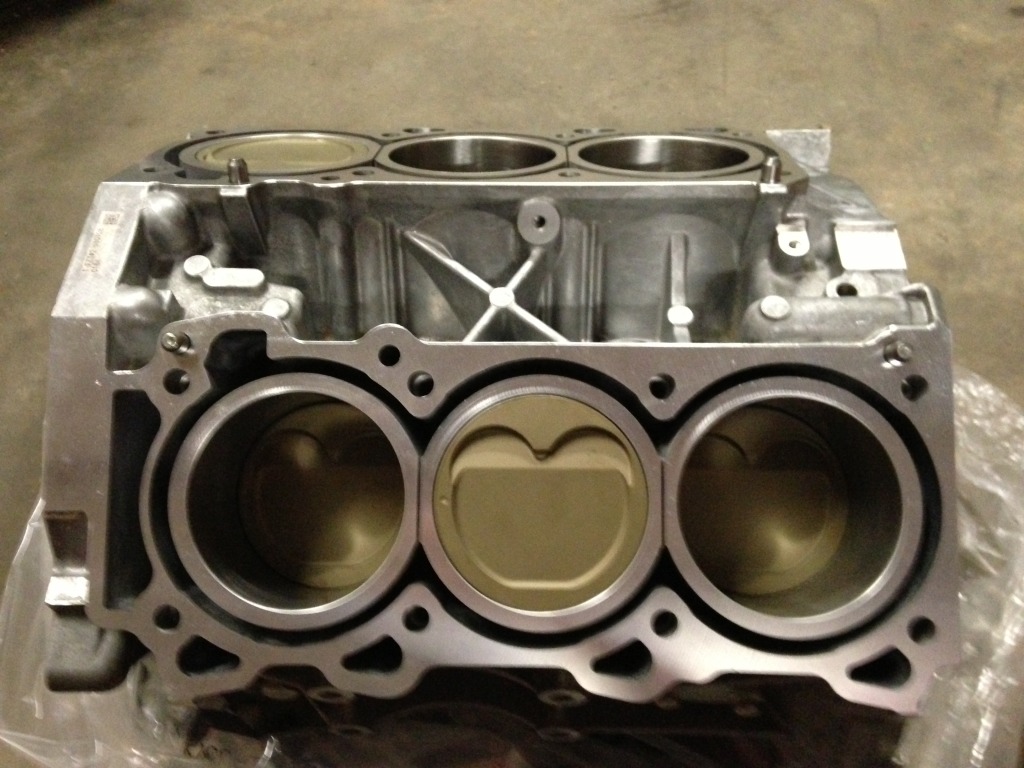

Wisco pistons + K1 rods machined and honed by IPP


You can see the the oil shredding coat on crank, its silver color




CSF Radiator

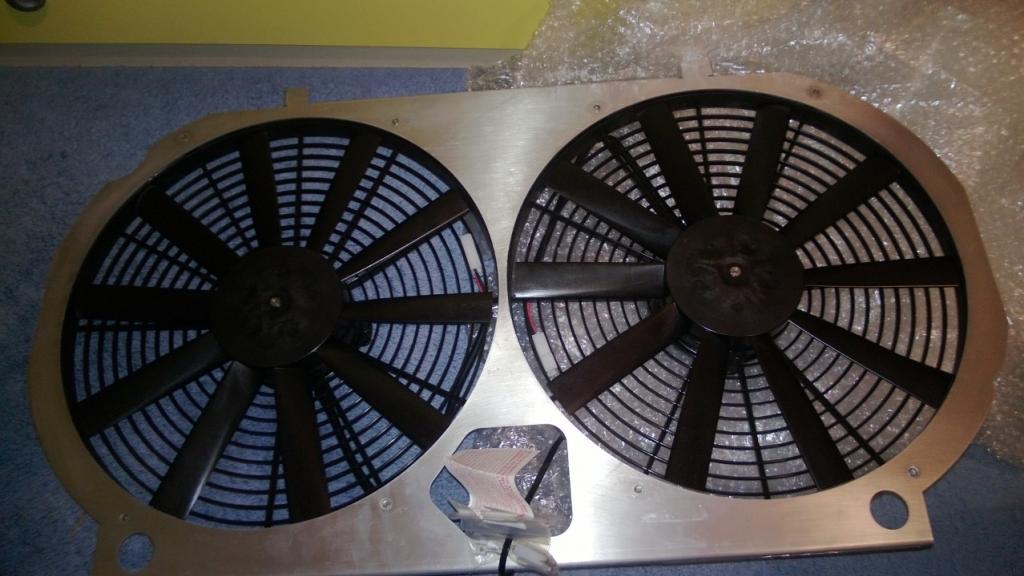

GTM shroud + dual 14" SPAL Fans


HPS Radiator hose kit

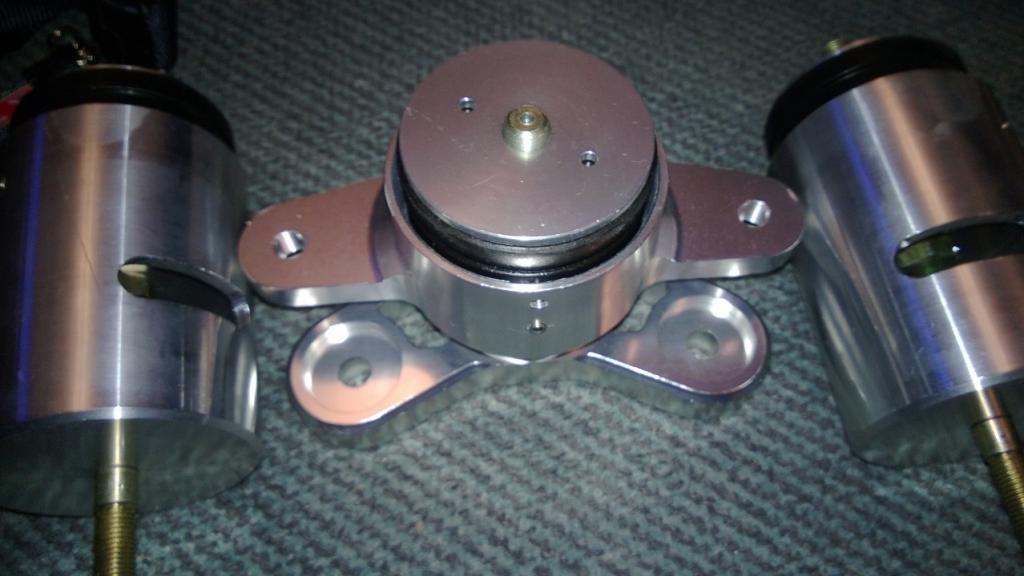

Z1 Motorsport drivetrain mounts


ARP L19 Headstudds


GTM 3" Exhaust System

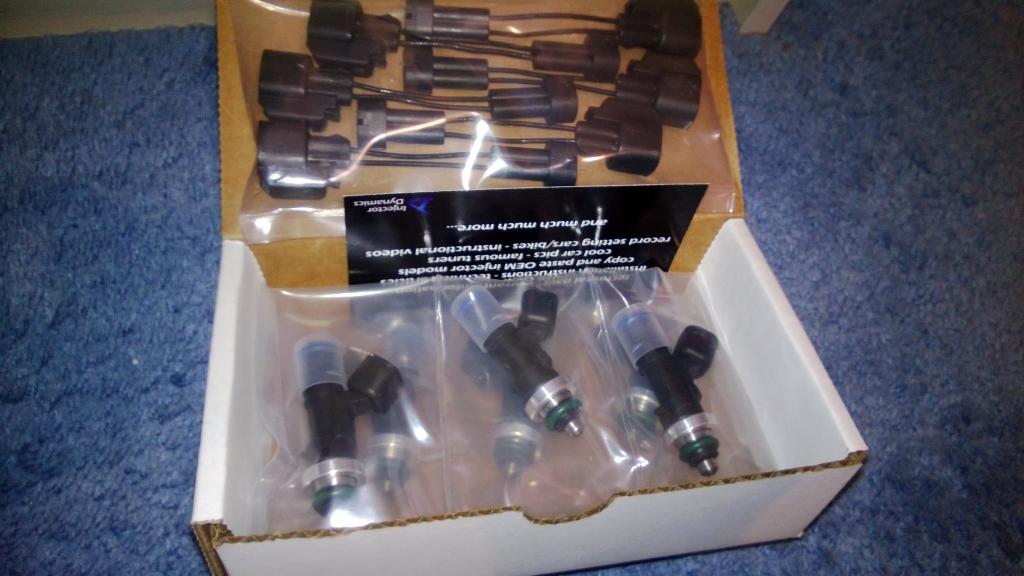

1015CC Injectors

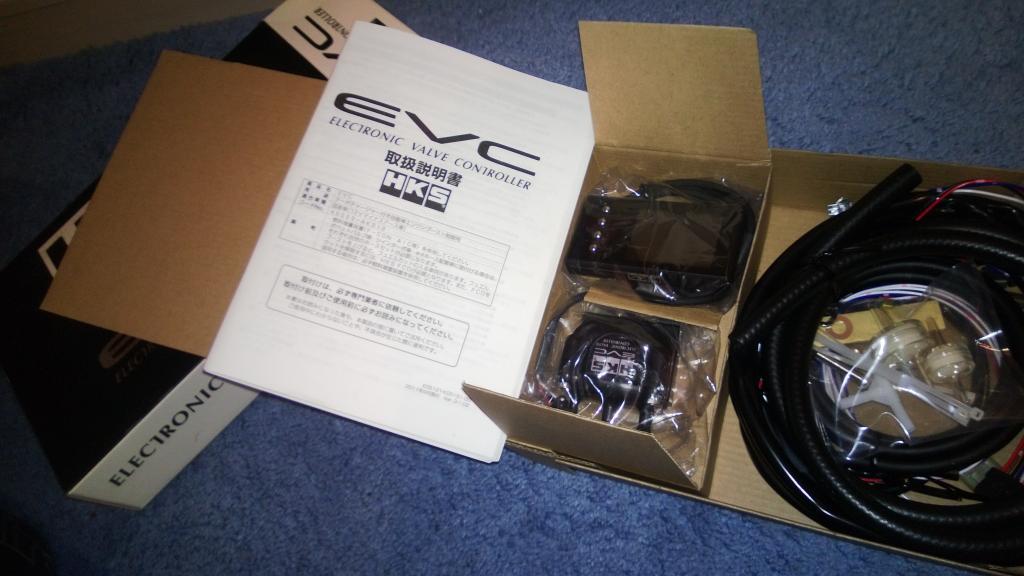

HKS EVC 6

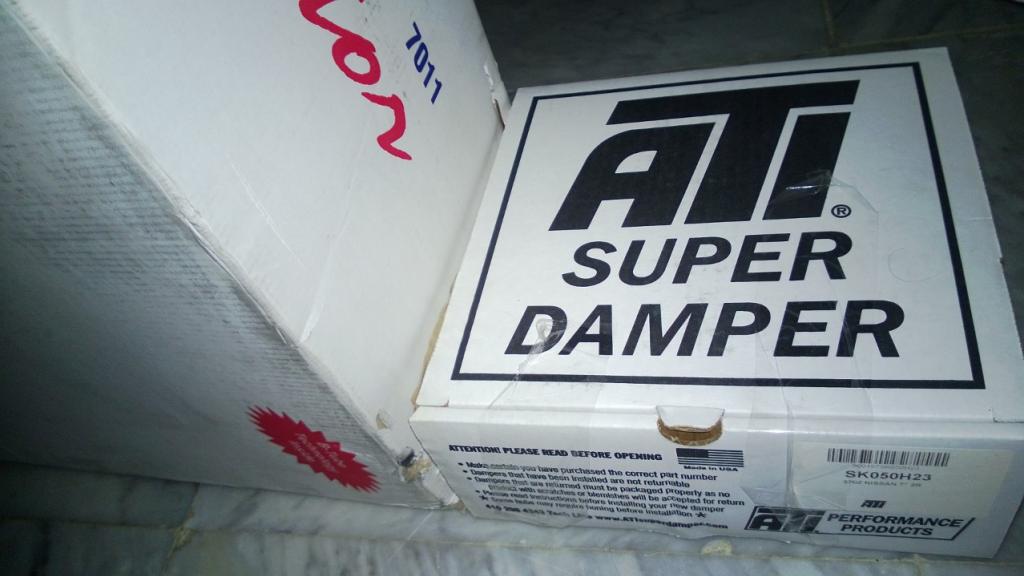

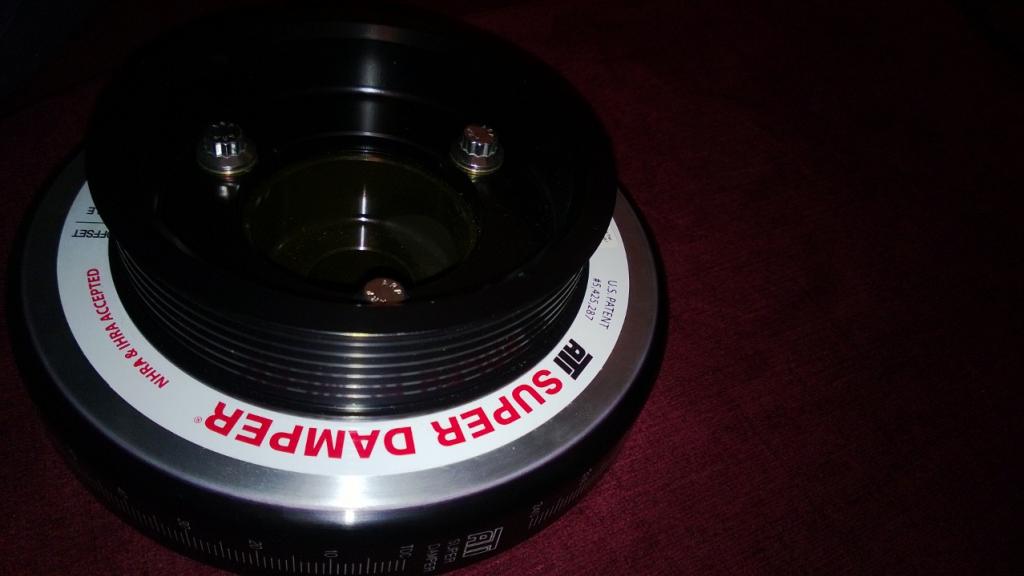

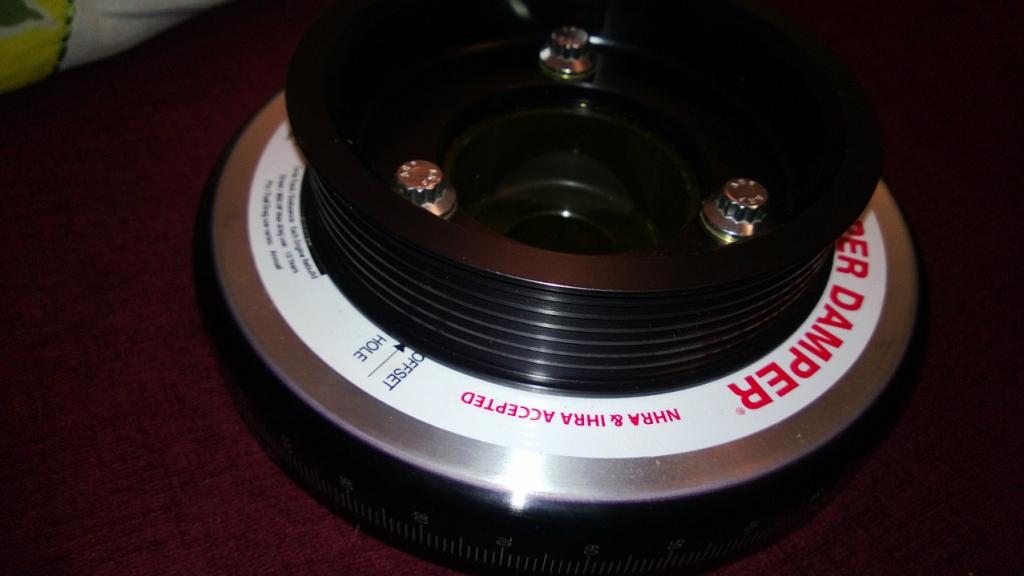

Custom ATI Super Damper for VQ37VHR application

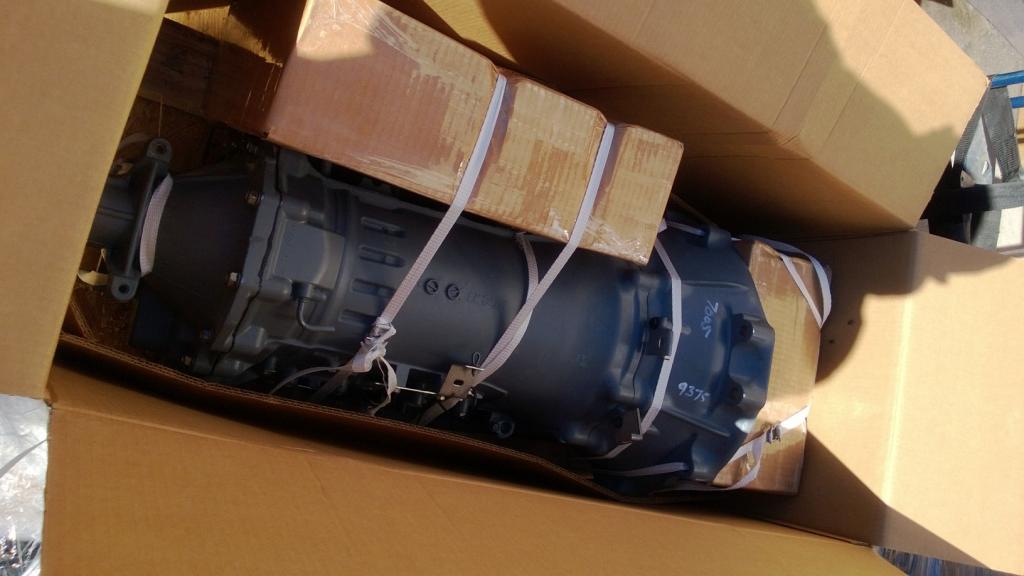

GTM Stage 4 Tranmission + GTM HD Flex Plate

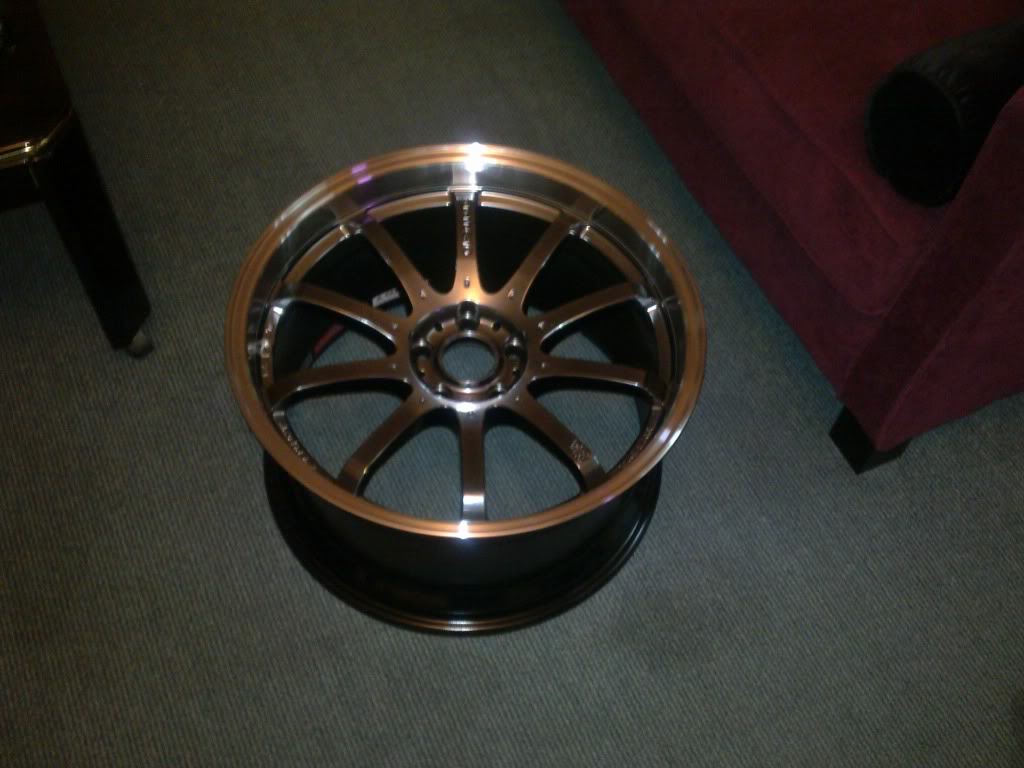

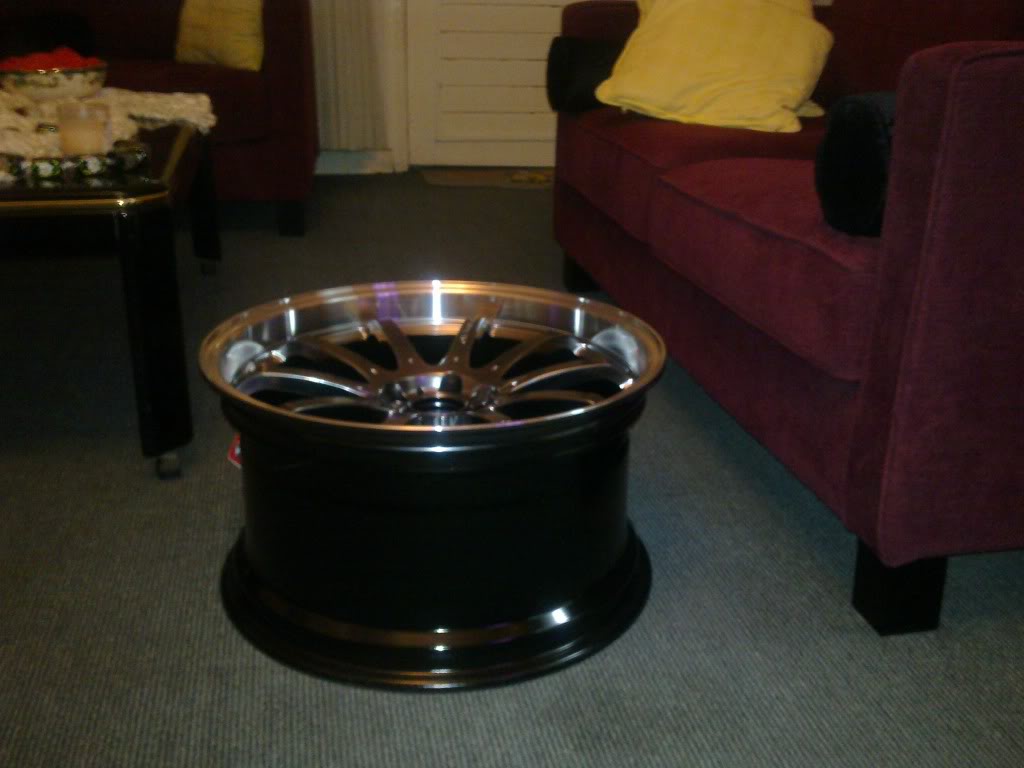

Volk Forged Wheels G10






Random Pictures Of My Car





Comments are welcome and suggestion will be written on my todo list



Thats a mighty impressive list! Are you planning some serious track time?



Thank you sir!

Will do some tracking after everything is done



FilterMAG, thought me something new. Have to get it.



You must!

This video was the reason that made me pull the trigger on them



You sir are going to have a very sick set up.



Looking nice!

That's going to b one nice ride!



Thank you for your beautiful words, You dont know how much they mean to me



Interested to see how this turns out.



WHOLY crap man NICE!!!!!! In for what this thing lays out. Very very nice.



Thank you sir

Trust me im more excited. 4 days left!



Nice list, can't wait to see install and results!



Thanks



Wow nice list of parts waiting to go in. Sub'd for results!



Wow amazing list of parts there can't wait to see this thing once its done. Why only a stage one if your building your motor and trans? Not that you won't be more the happy with it just curious...
