How to Change 6MT Shift Boot

I bought a new boot from RedlineGoods and I couldn't find a good DIY anywhere so I figured I'd share my experience with you guys. They have one on their website but I find it to be a little lacking, although I don't blame them because they have hundreds of installations instructions so they can't get super detailed each time.

Let's get started:

1) Remove the boot and shifter trim from the car (other DIYs have covered this)

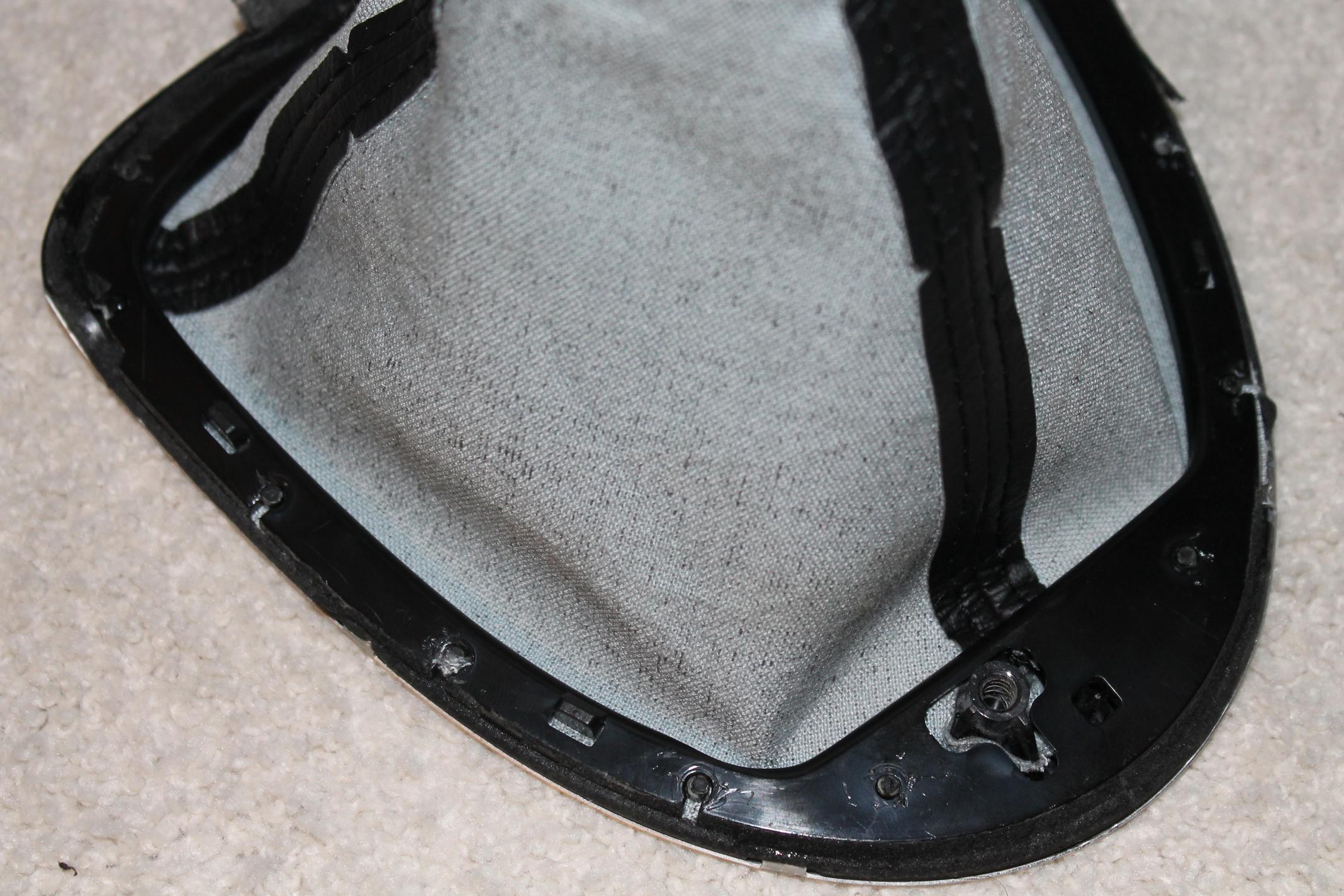

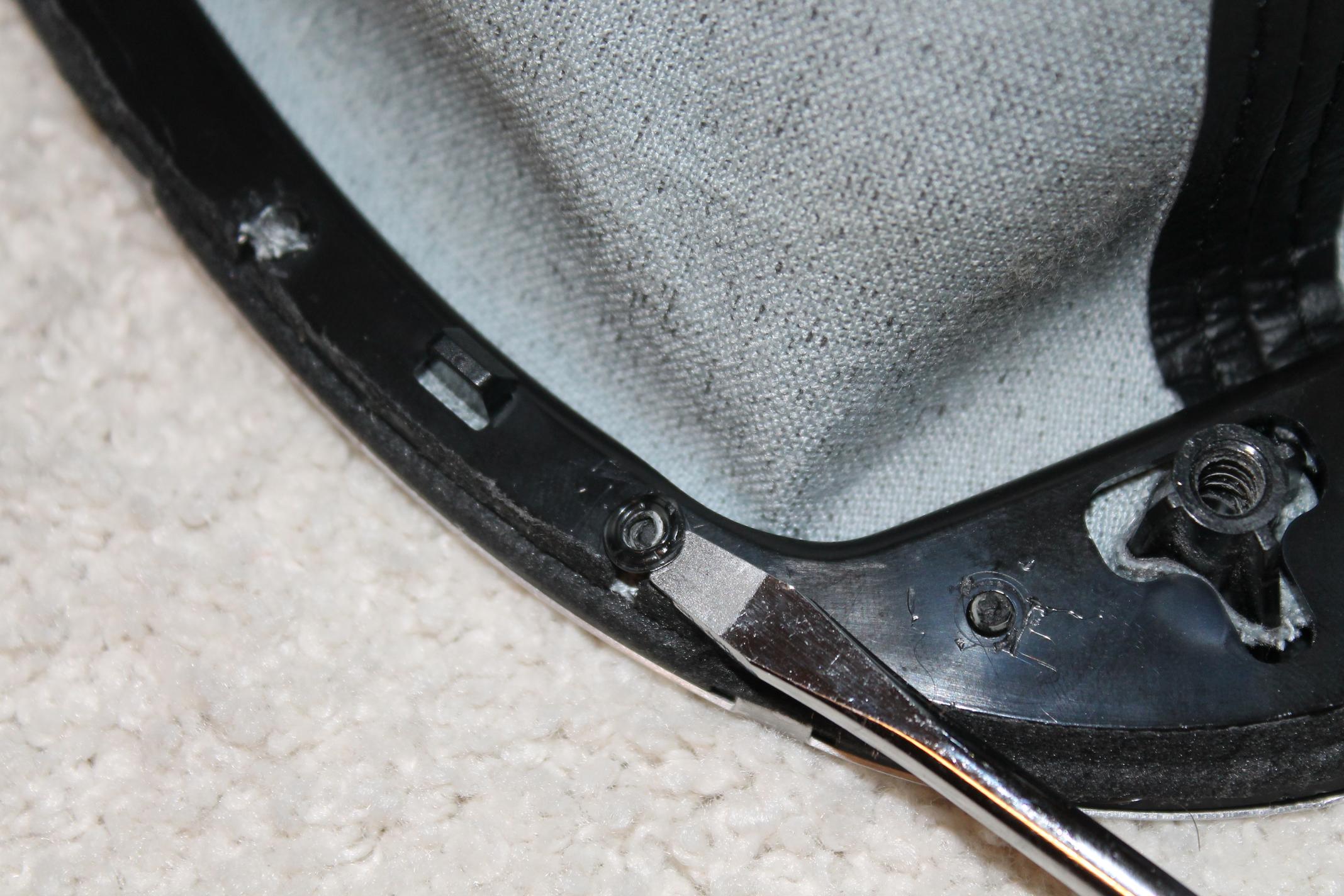

2) Flip it over and pry off the little black circles with a screwdriver. There's a bunch of them.

How to Change 6MT Shift Boot-yk0bihp.jpg

How to Change 6MT Shift Boot-q21cmbf.jpg

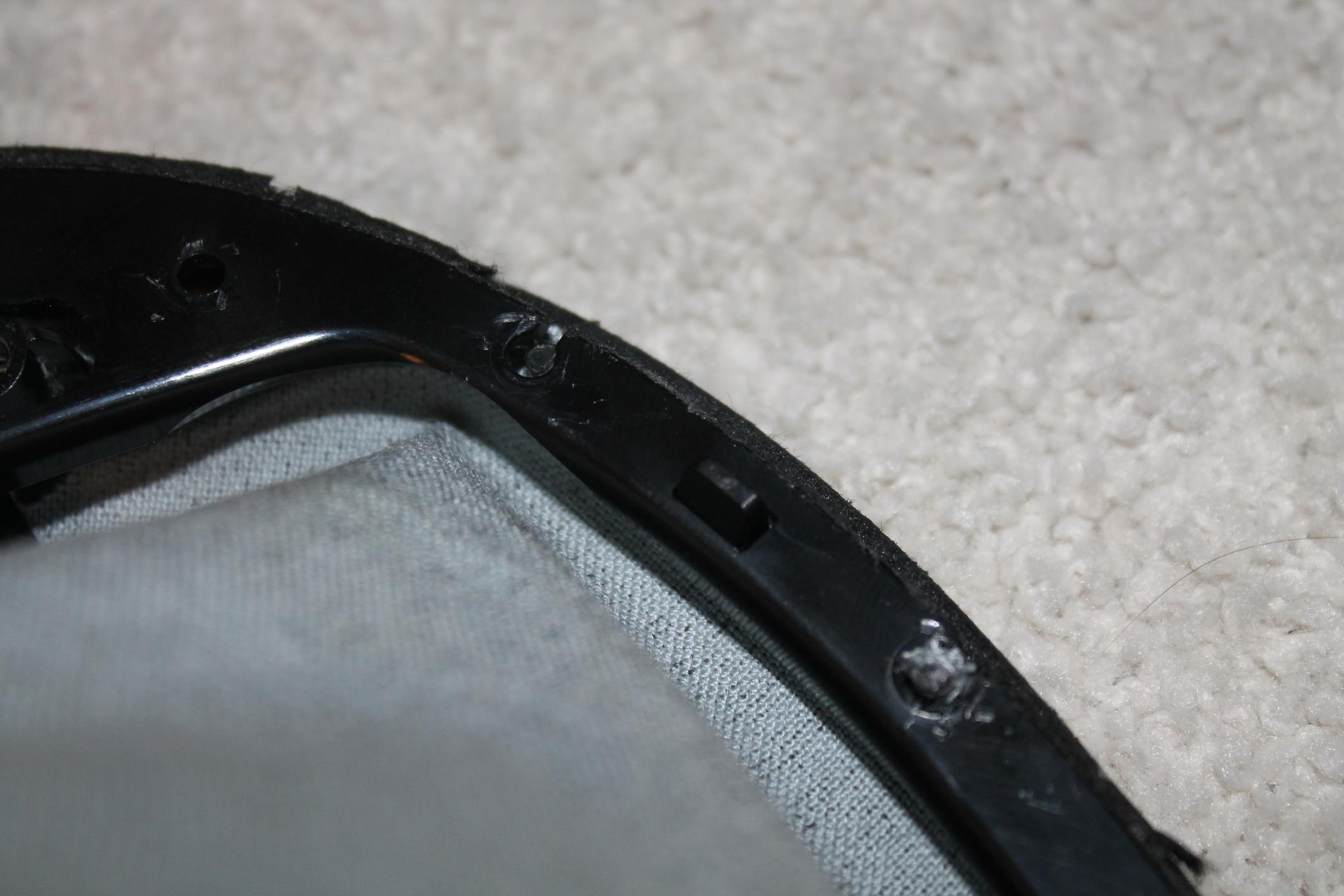

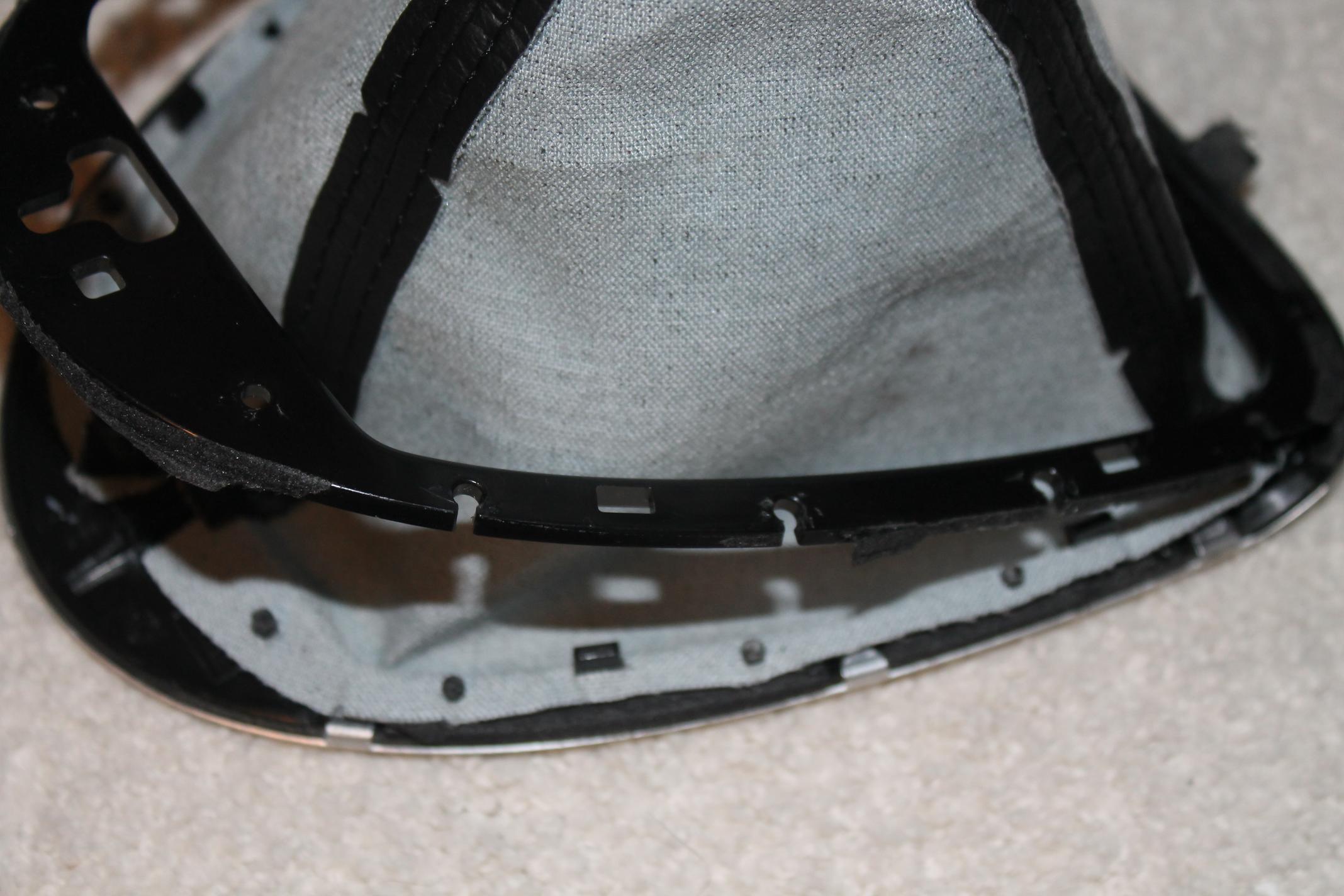

3) Push in the four clips and separate the plastic trim pieces.

How to Change 6MT Shift Boot-kn9xcwm.jpg

How to Change 6MT Shift Boot-zvpp0ub.jpg

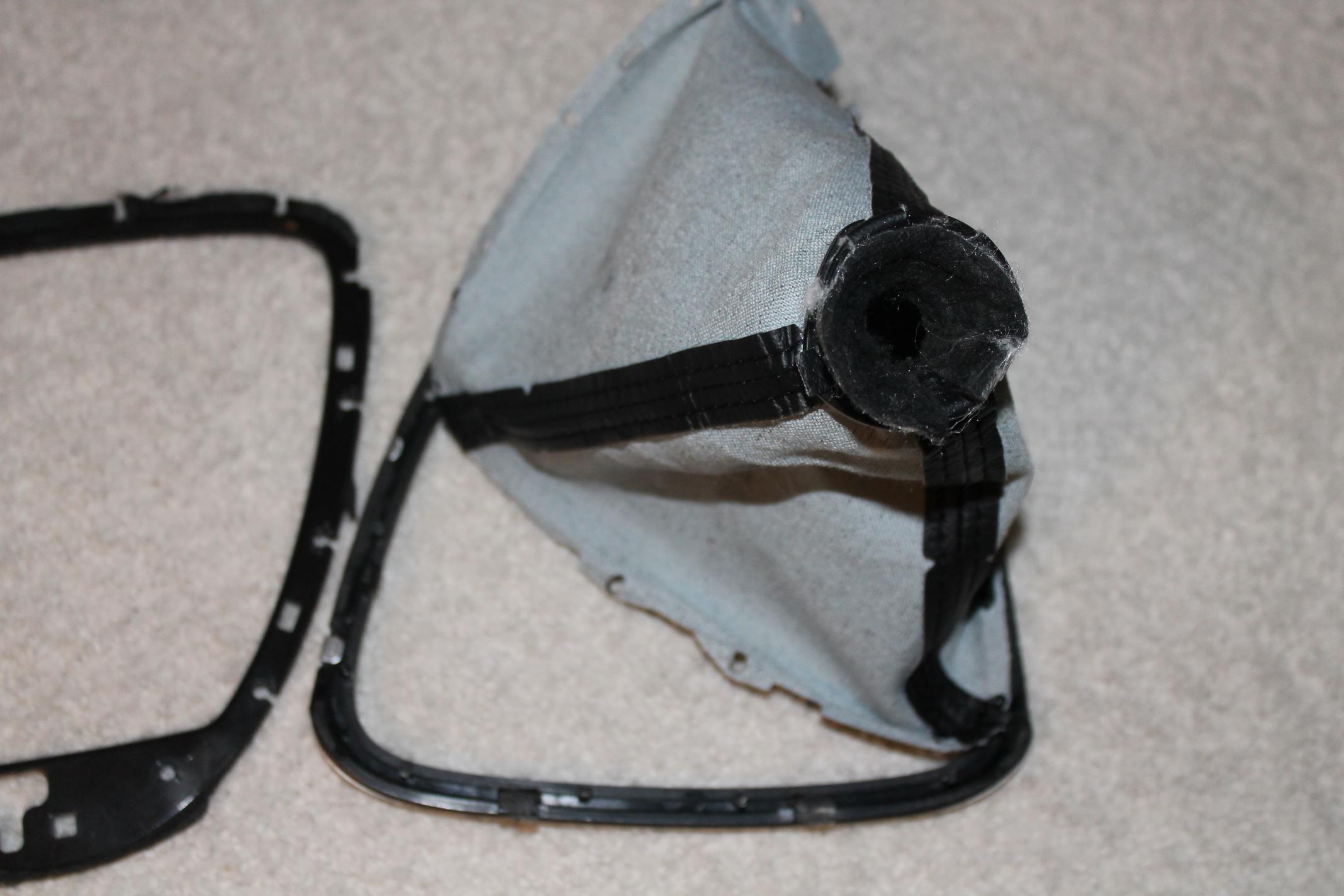

4) Once separated, remove the old boot.

How to Change 6MT Shift Boot-2cgwui0.jpg

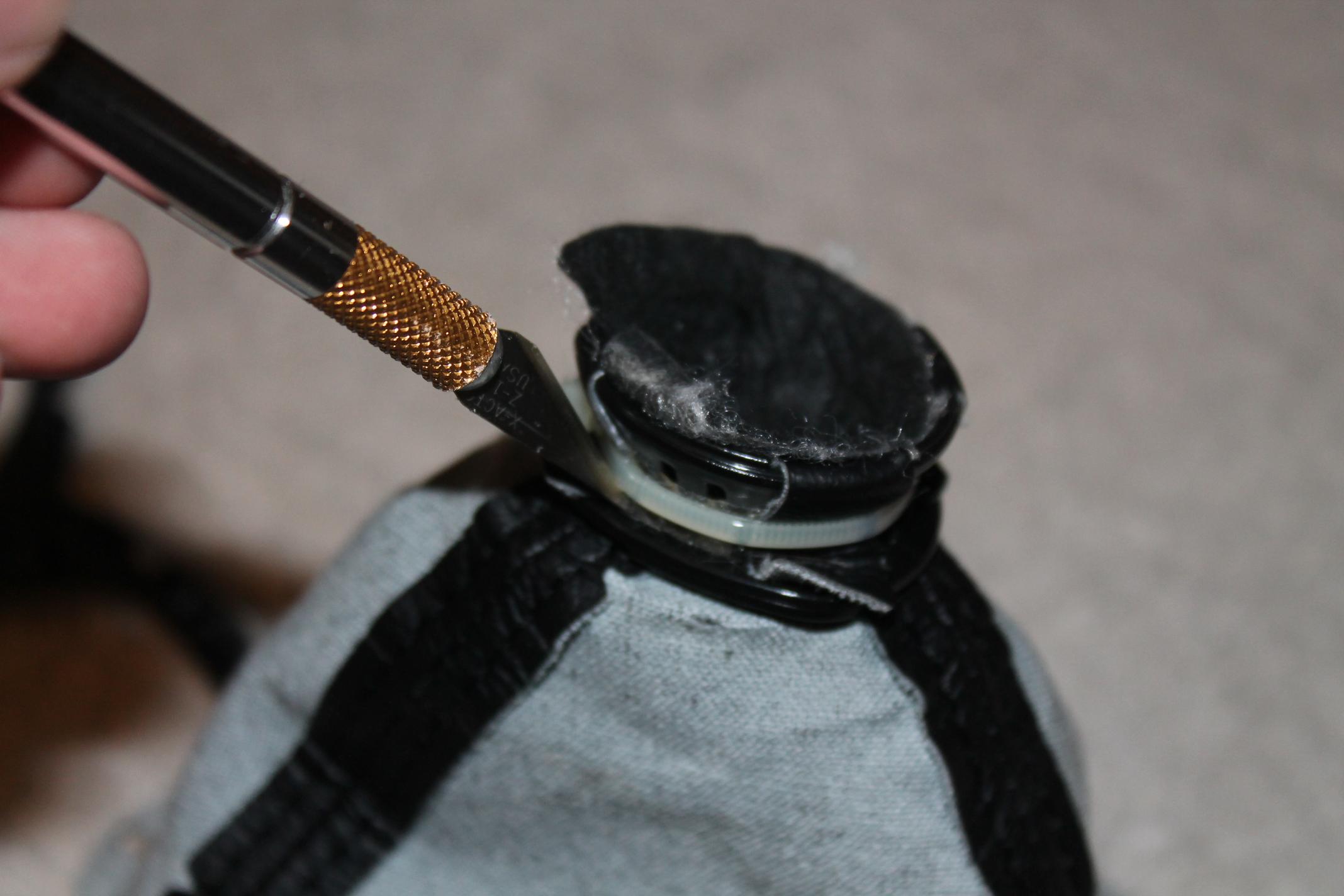

5) With the boot inside out, cut the zip tie that hold the boot retainer to the boot.

How to Change 6MT Shift Boot-cx35ne7.jpg

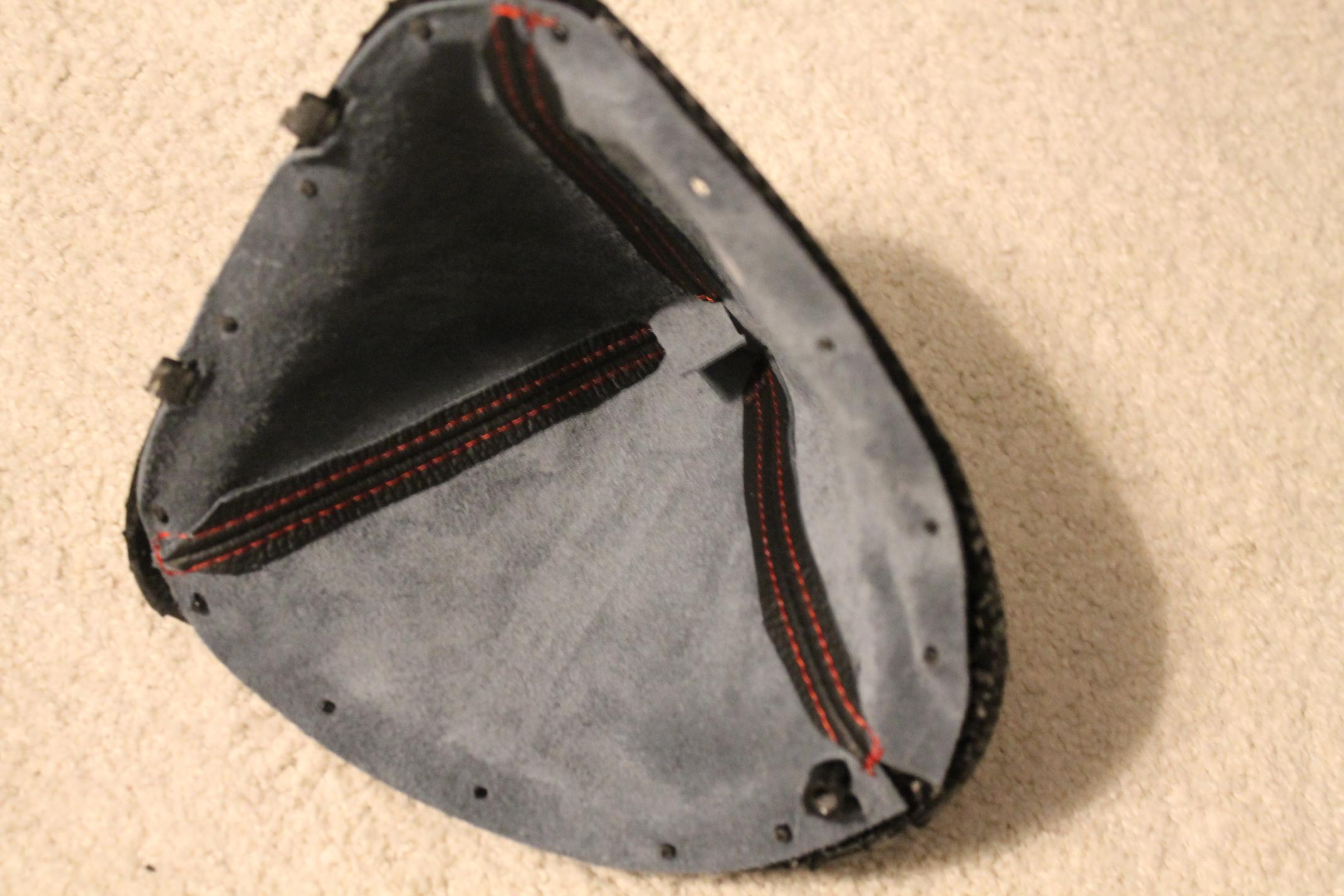

6) If the new boot has the holes pre-cut, align the new boot with the trim holes and guide it on.

How to Change 6MT Shift Boot-rcaqcaj.jpg

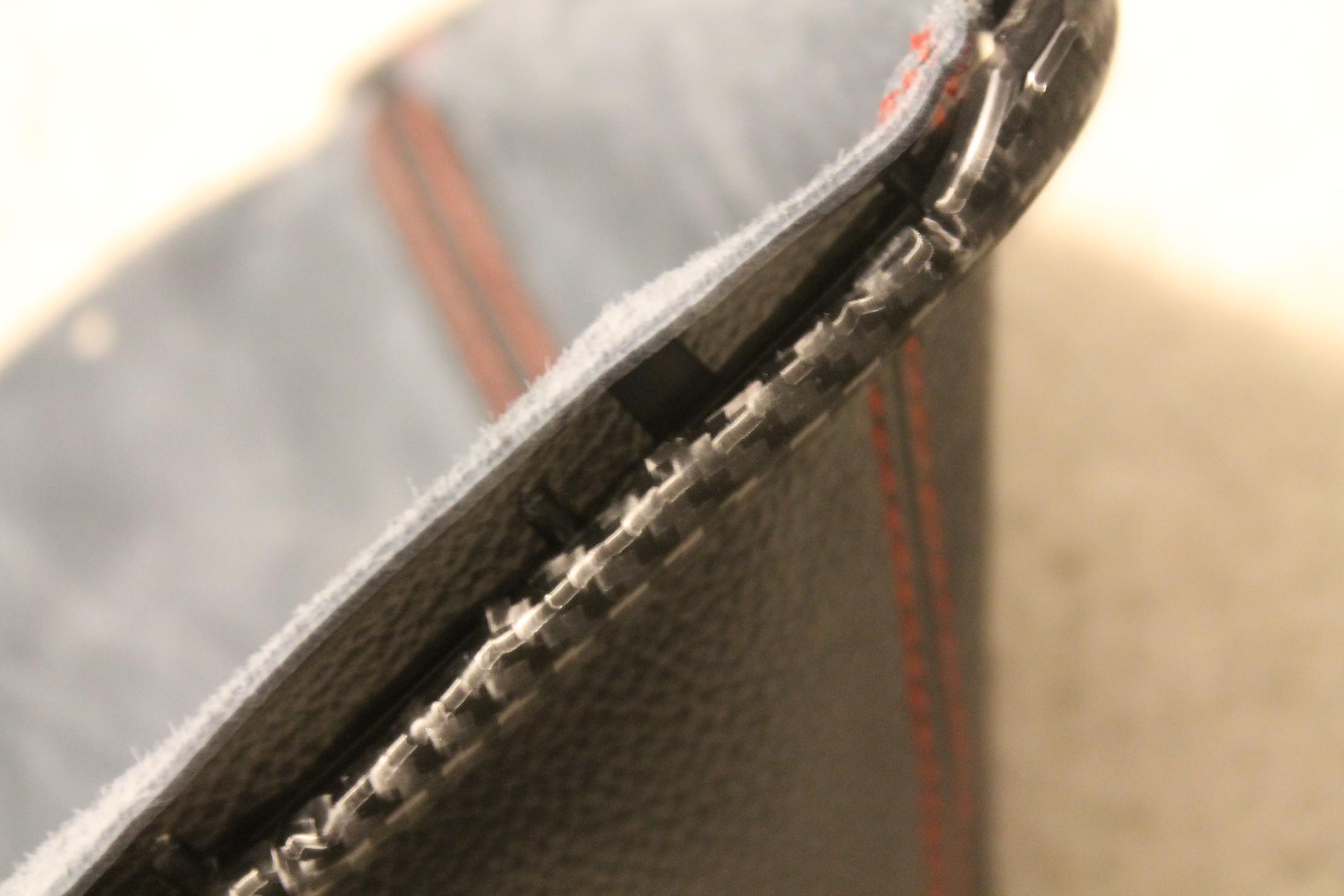

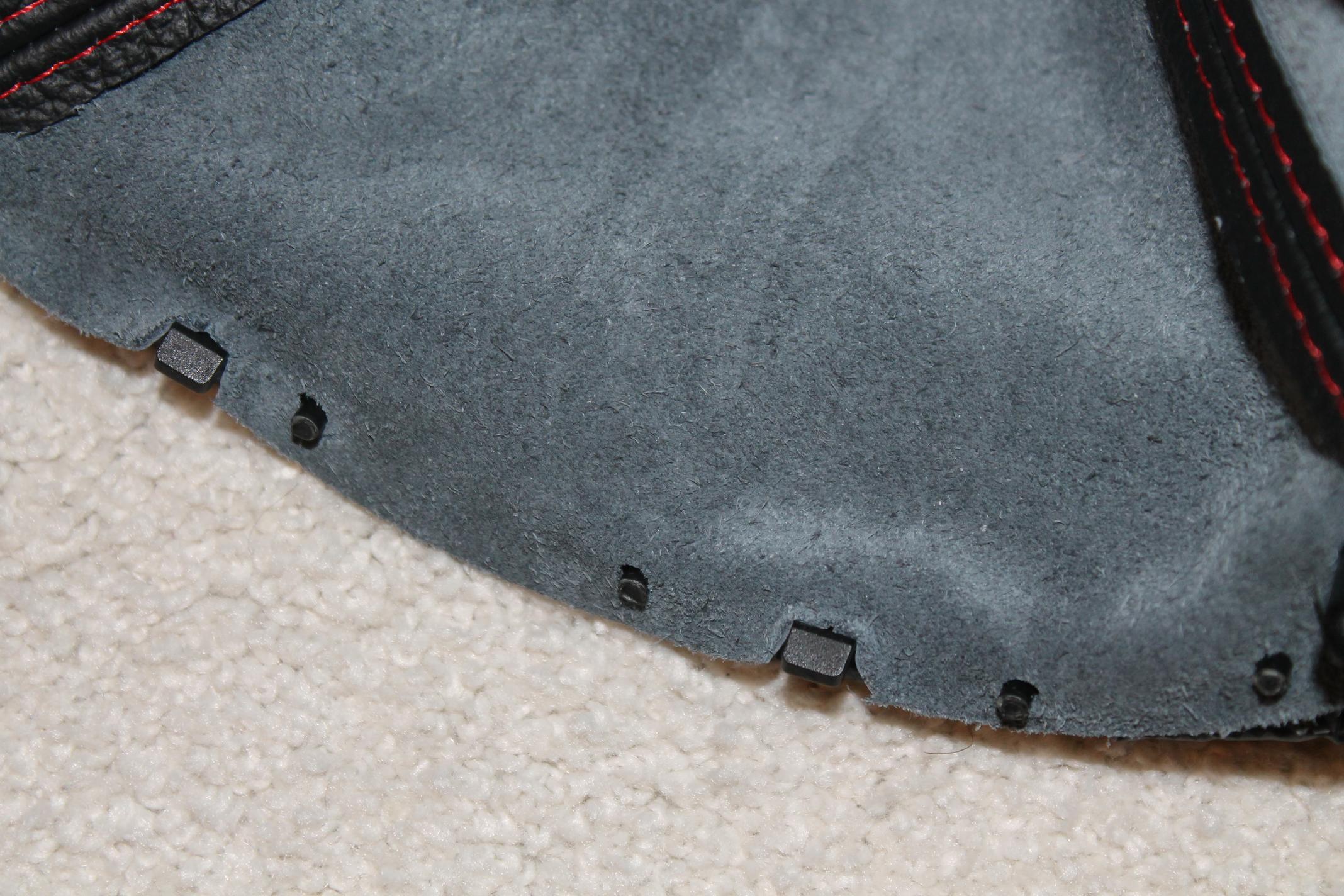

I had to cut holes for the clips

How to Change 6MT Shift Boot-u6pofn5.jpg

How to Change 6MT Shift Boot-iemznra.jpg

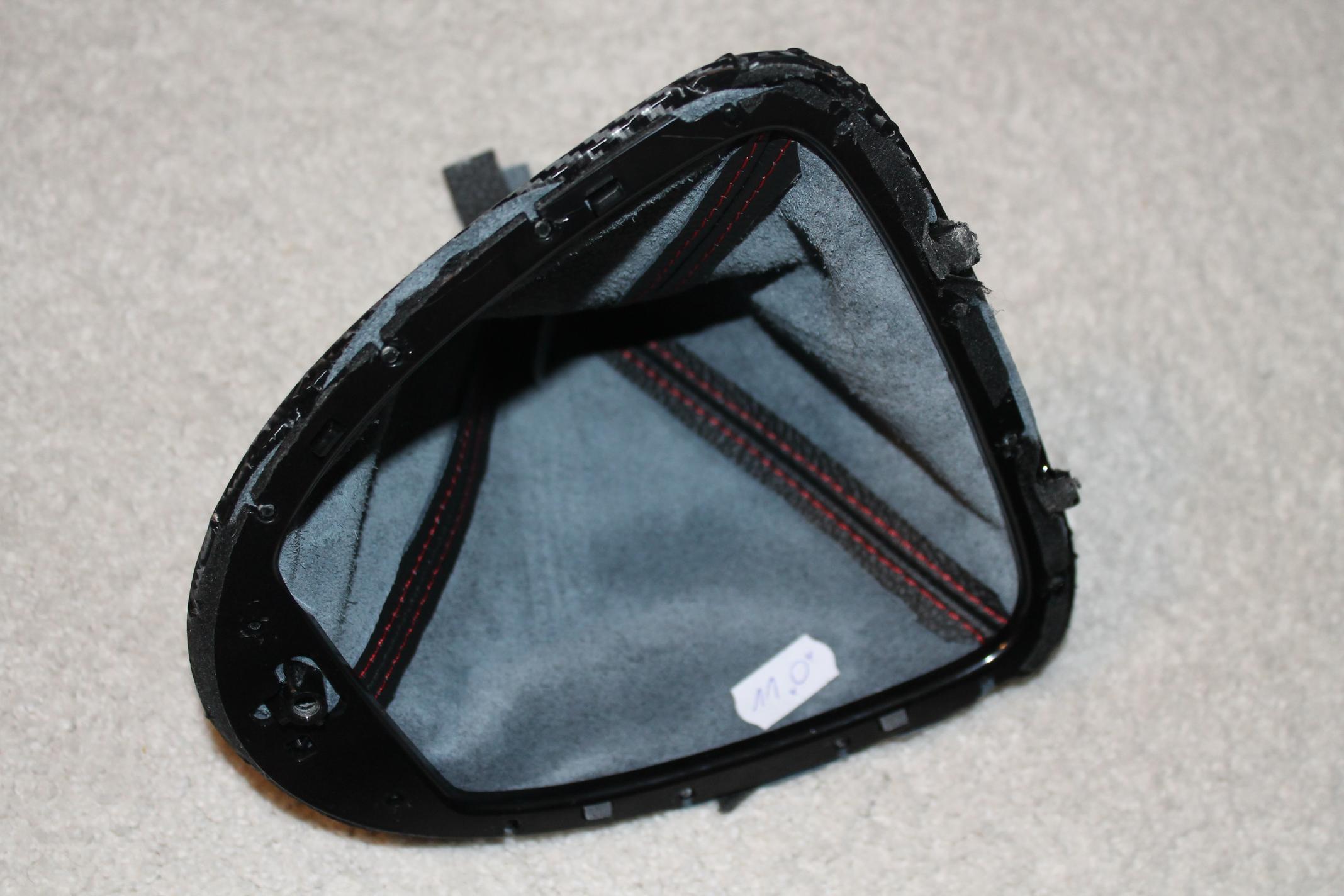

7) Snap the black trim piece over the boot back onto the upper trim piece. Throw out the little circles because they can't be re-used.

How to Change 6MT Shift Boot-trs14rk.jpg

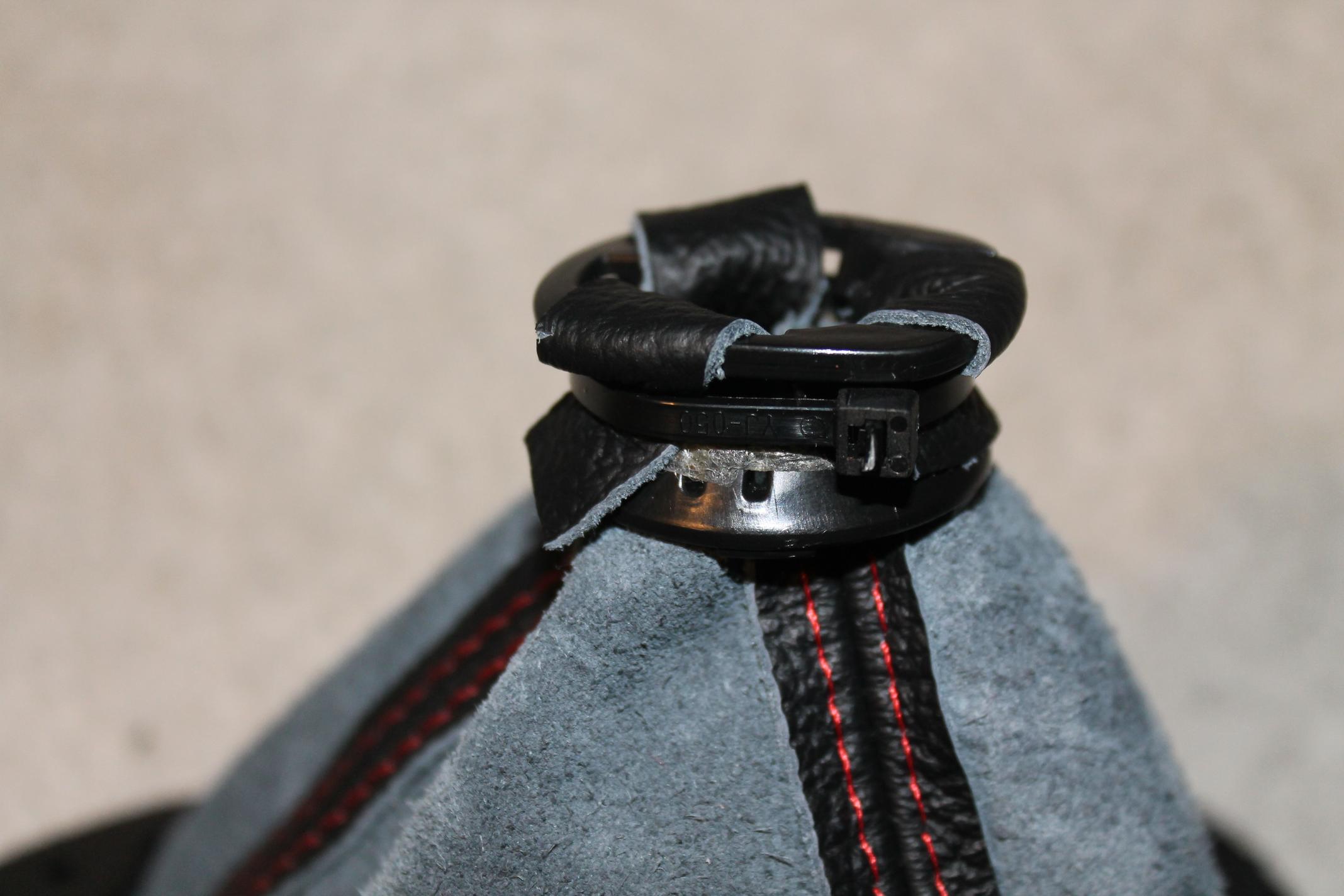

8) With the boot inside out again, fold the excess material back over the boot retainer and zip tie it to hold it in place.

How to Change 6MT Shift Boot-pykoj3r.jpg

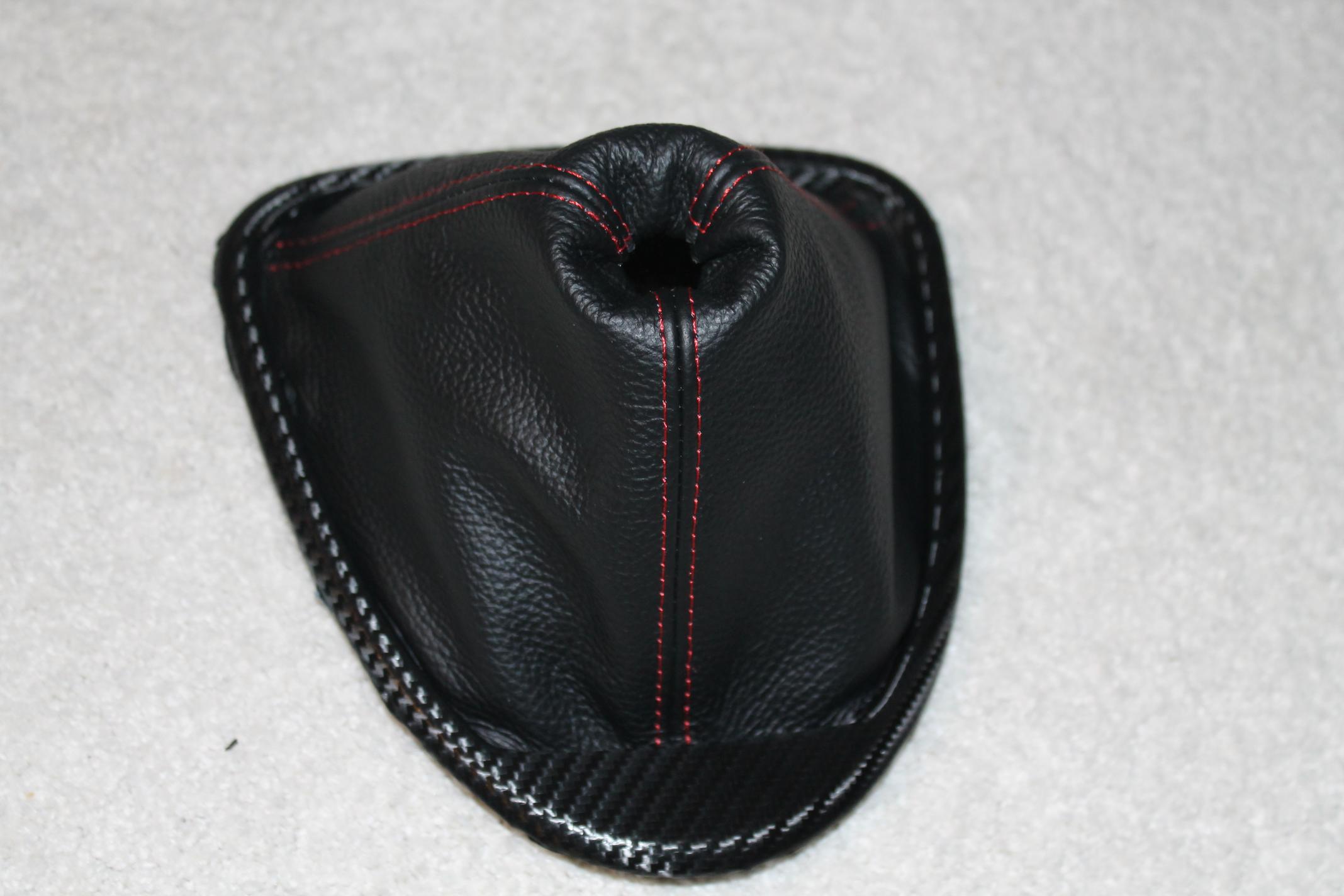

9) Fold it back and re-install.

How to Change 6MT Shift Boot-ywprd5s.jpg
