Old 10-20-2017, 04:59 PM   #166
Scarab Armor
Registered User

Join Date: Jul 2017
Location: Stankonia
Posts: 55
Thanked 9 Times in 9 Posts
Quote:
Originally Posted by defektion View Post
The repair is difficult but not impossible for a DIY'er. Just be prepared and have tools handy for different situations and what helped me through the process was before the job, I ensured I was able to loosen my exhaust bolts. If they're in 'ok' condition but their seized up, have an impact handy to break them loose.

I listed a number of thoughts on the repair on the post above yours. Ask me questions and I'll try to answer them to the best of my ability.
I appreciate the offer, but looks like I got a stay of execution. Yesterday I found out that this repair is covered under my extended warranty, so I will let the stealership take care of it. Unfortunately the stealership won't install non-OEM bushings, so I will have to tackle this job eventually. I need to make a PDF of these directions so I will have them at the ready when that time eventually comes.
Scarab Armor is offline   Reply With Quote
Old 10-20-2017, 05:58 PM   #167
Rochester
Lifetime Premier Member
iTrader: (8)

Rochester's Avatar

Join Date: Nov 2010
Location: Rochester, NY
Posts: 13,068
Thanked 2,537 Times in 1,972 Posts
Quote:
Originally Posted by Scarab Armor View Post
I appreciate the offer, but looks like I got a stay of execution. Yesterday I found out that this repair is covered under my extended warranty, so I will let the stealership take care of it. Unfortunately the stealership won't install non-OEM bushings, so I will have to tackle this job eventually. I need to make a PDF of these directions so I will have them at the ready when that time eventually comes.
Definitely take them up on that. Probably last you the remainder of time you have with the car.

I had mine done at 35K miles, and there wasn't even a problem (yet). But it seemed like a good thing to do while the diff was down.
Rochester is online now   Reply With Quote
Old 10-31-2017, 02:50 PM   #168
Scarab Armor
Registered User

Join Date: Jul 2017
Location: Stankonia
Posts: 55
Thanked 9 Times in 9 Posts
Sooo...my extended warranty denied my claim. My warranty covers bushings, but it does not cover suspension components. Being that the differential bushing is in the subframe (and Infiniti replaces the entire subframe rather than just the bushing) it is considered to be a suspension component. Looks like I will be taking on this challenge after all.
Scarab Armor is offline   Reply With Quote
Old 10-31-2017, 09:01 PM   #169
MotorvateDIY
Registered User

Join Date: Nov 2016
Posts: 73
Thanks: 0
Thanked 80 Times in 27 Posts
Quote:
Originally Posted by Scarab Armor View Post
Sooo...my extended warranty denied my claim. My warranty covers bushings, but it does not cover suspension components. Being that the differential bushing is in the subframe (and Infiniti replaces the entire subframe rather than just the bushing) it is considered to be a suspension component. Looks like I will be taking on this challenge after all.
Can you wait about 2 weeks before spending any money on this?
We have a video in post production that shows how to fix the diff bushing for $20 in 20 minutes. Testing over the last month has been positive.
MotorvateDIY is offline   Reply With Quote
Old 11-01-2017, 01:21 PM   #170
defektion
Registered User

Join Date: Jun 2013
Location: Edmonton, Alberta, Canada
Posts: 248
Thanked 27 Times in 21 Posts
Quote:
Originally Posted by MotorvateDIY View Post
Can you wait about 2 weeks before spending any money on this?
We have a video in post production that shows how to fix the diff bushing for $20 in 20 minutes. Testing over the last month has been positive.
Where were you a few weeks ago lol. I'm waiting to see your solution!

Update: I quickly Google'd differential bushing fixes for $20 bucks and I turned up someone's solution to inject "Windo-Weld" into the bushing. Is this your solution?
defektion is offline   Reply With Quote
Old 11-02-2017, 10:29 AM   #171
Scarab Armor
Registered User

Join Date: Jul 2017
Location: Stankonia
Posts: 55
Thanked 9 Times in 9 Posts
Quote:
Originally Posted by MotorvateDIY View Post
Can you wait about 2 weeks before spending any money on this?
We have a video in post production that shows how to fix the diff bushing for $20 in 20 minutes. Testing over the last month has been positive.
Most definitely! Please let us know when the video is available.
Scarab Armor is offline   Reply With Quote
Old 11-13-2017, 12:00 PM   #172
ezbme
Registered User

Join Date: Nov 2016
Location: Capistrano Beach
Posts: 404
Thanked 18 Times in 16 Posts
So I have called a few places. One being Z1. They recommend their bushing as opposed to whiteline (not too much of a surprise). Supposedly handles the heat better.

I called this transmission place that claimed that Poly would melt in that application and they have seen a lot of poly melt. I don't even know if there is another option between solid and Poly bushings.

I have been asking for a recommendation for a so-cal shop to replace the bushings. I have seen a lot of people on here have had it done. A lot of other cars seem to have two rear bushings, I don't know why ours only got one.
ezbme is offline   Reply With Quote
Old 11-13-2017, 12:49 PM   #173
Rochester
Lifetime Premier Member
iTrader: (8)

Rochester's Avatar

Join Date: Nov 2010
Location: Rochester, NY
Posts: 13,068
Thanked 2,537 Times in 1,972 Posts
Don't know why the poly would melt in this application. But if that's a concern and you buy into Z1's argument, then get Z1's bushing kit. I don't think there's any wrong choice here.

It's possible the one shop you called isn't familiar with swapping these in the Z/G, or they know the swap is a PITA and would rather not do it. But that's just one place... keep searching. Where you live, you've got all of LA there to choose from.
Rochester is online now   Reply With Quote
Old 11-13-2017, 12:53 PM   #174
ezbme
Registered User

Join Date: Nov 2016
Location: Capistrano Beach
Posts: 404
Thanked 18 Times in 16 Posts
I am 70 miles from LA. I just have to keep looking. The one place said that they are close to the exhaust and that is why they would melt. I don't know why Rubber wouldn't melt, but Poly would. From what I have seen, a lot of people have done this change and not complained about melting.

A mechanic that I trust told me 380 for the job, will have him do the diff fluid at the same time. Might even have him flush the brake fluid with the stuff I have.

Last edited by ezbme; 11-13-2017 at 03:03 PM.
ezbme is offline   Reply With Quote
Old 12-10-2017, 02:21 PM   #175
qmantran
Registered User

qmantran's Avatar

Join Date: Apr 2015
Location: Dallas
Posts: 817
Thanked 101 Times in 82 Posts

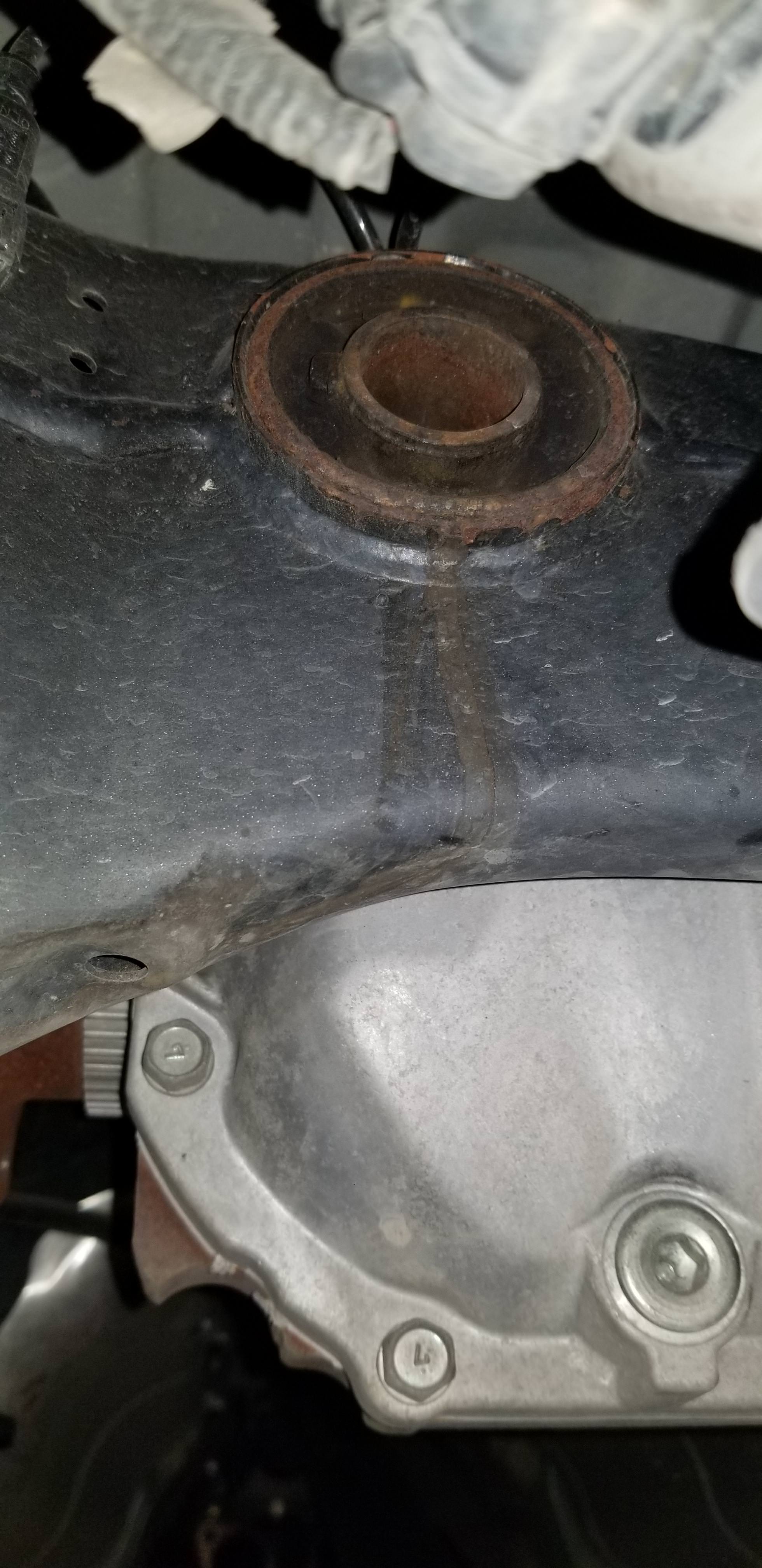

I just installed a 3.692 diff in my 2011 G37S and installed these KDT911 Whiteline bushings while at it.

The 2 "ear" bushings on the differential itself came out easily using a 34MM axle nut socket and a 2.5lb hammer.

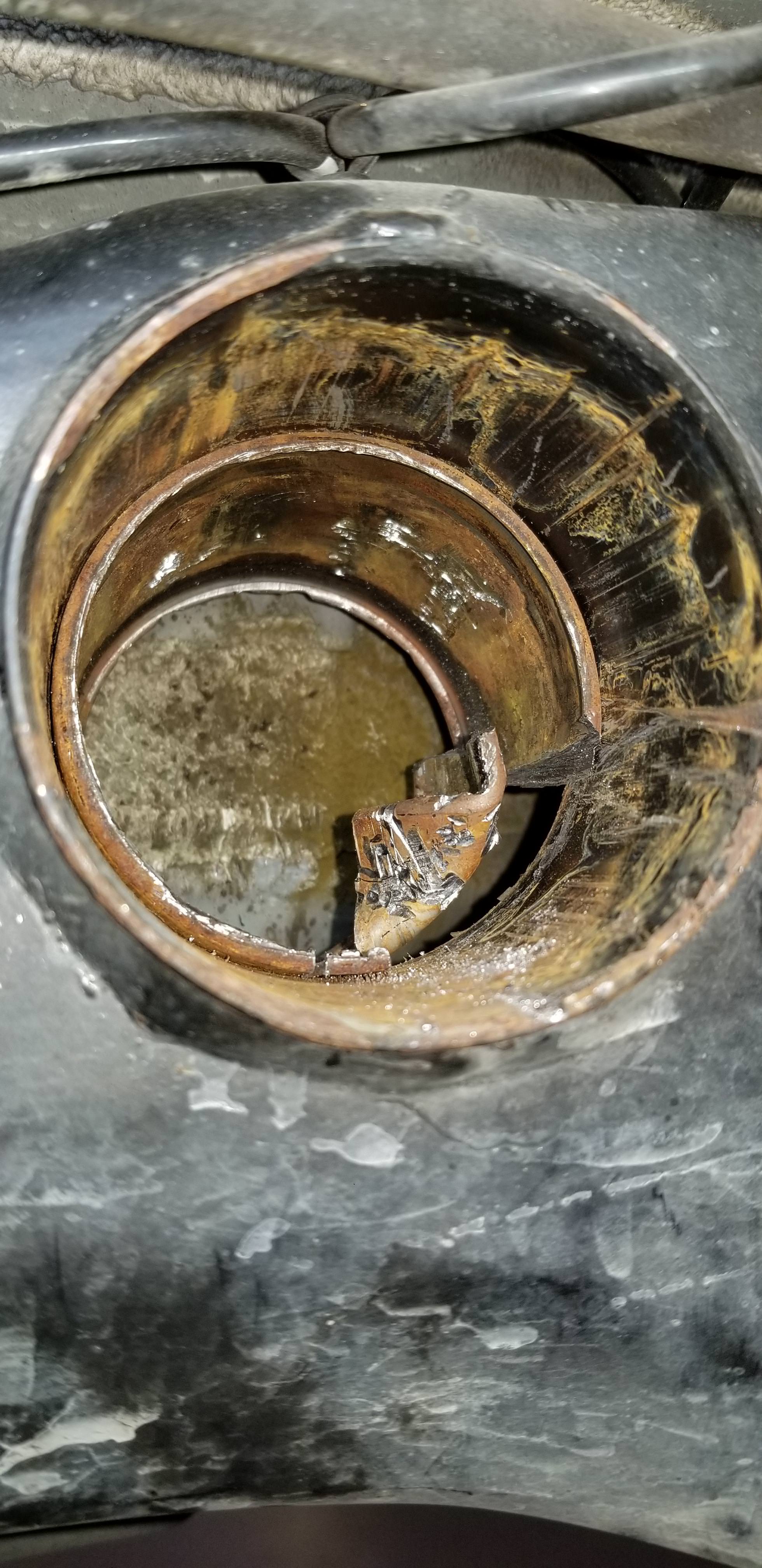

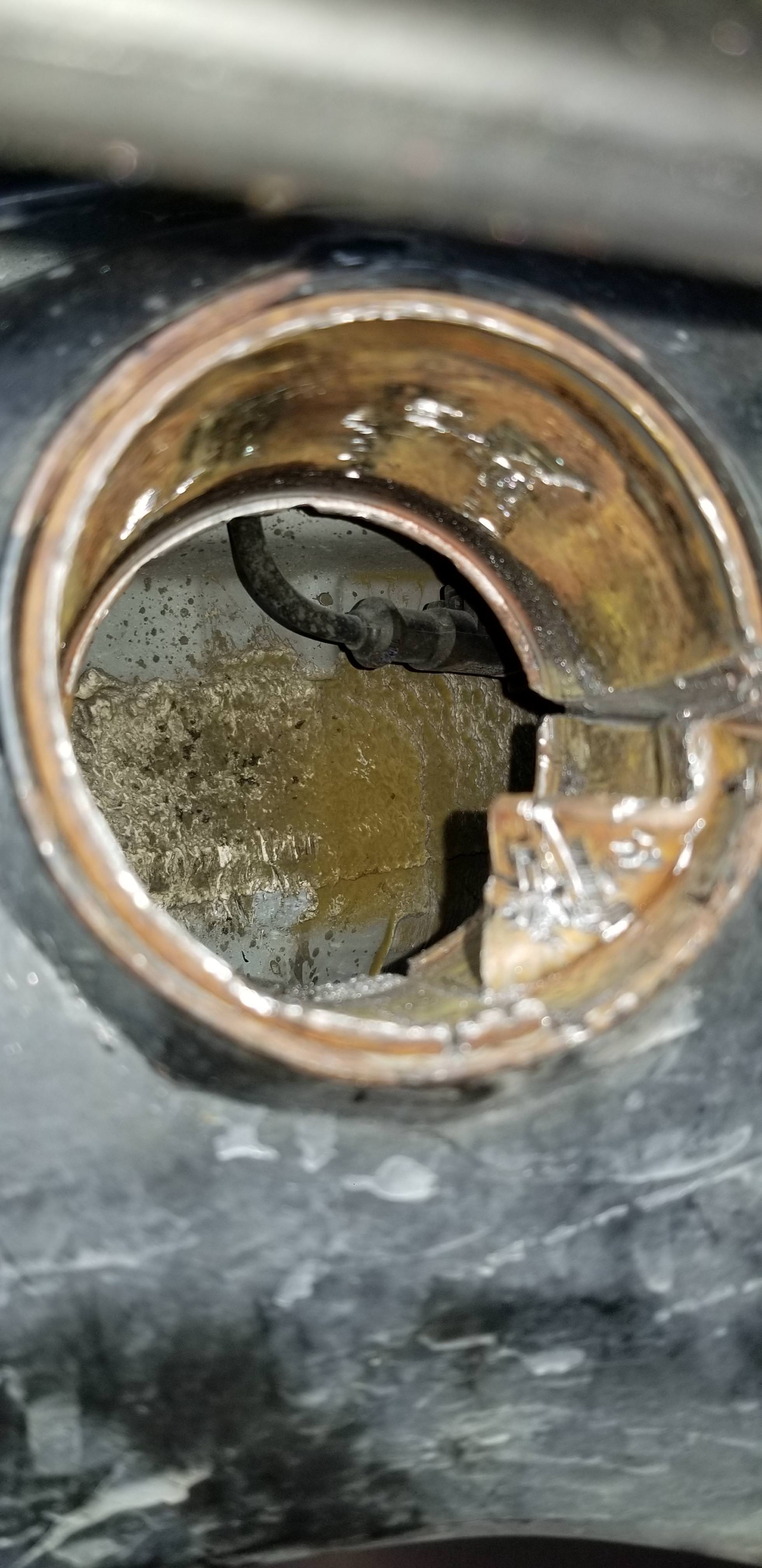

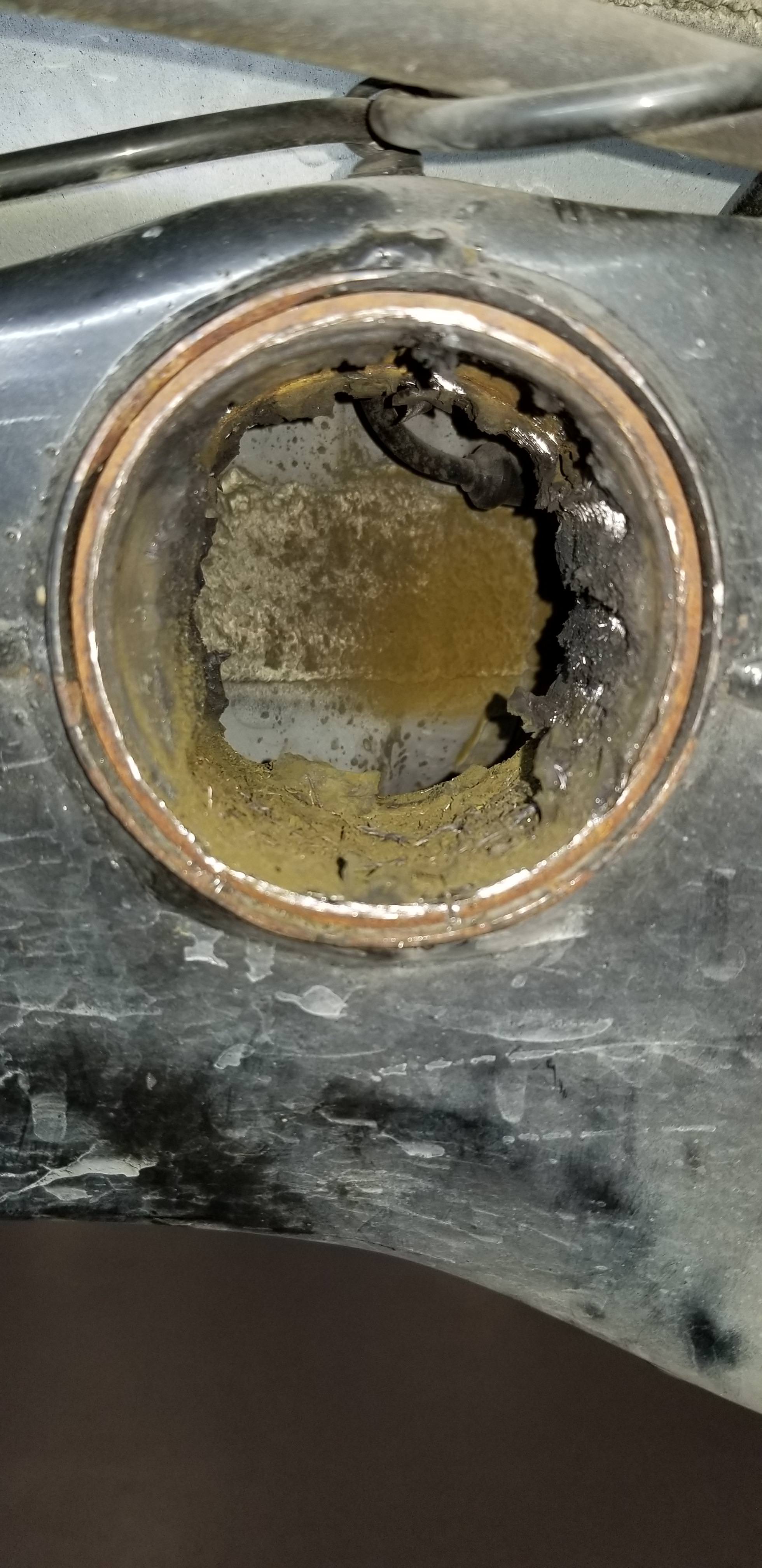

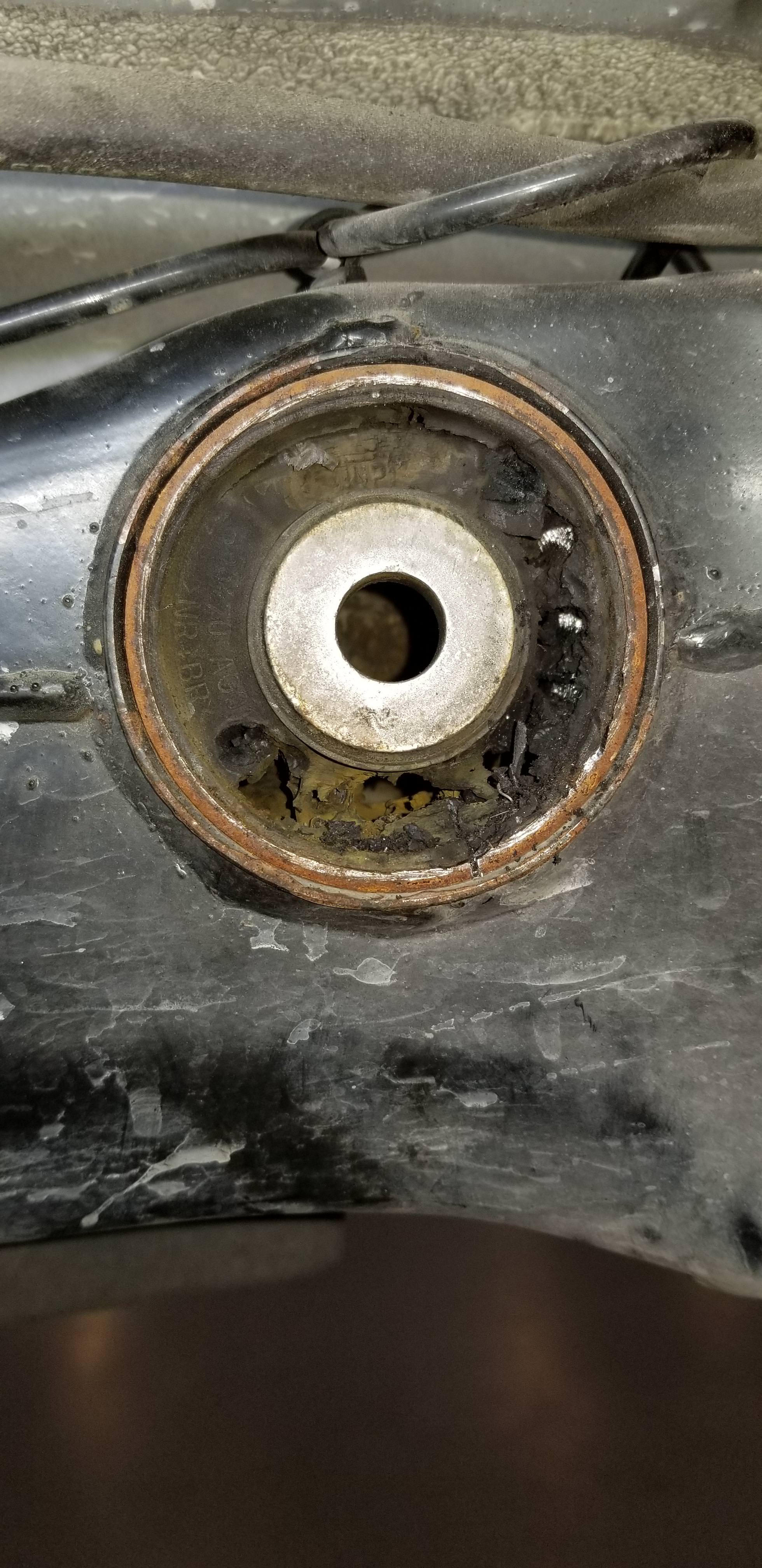

OP said he got the rear subframe bushing out in 2 minutes?! This was the most pain in the *** part for me. Between drilling the entire core out and using a sawzall with a old 24T blade it took me maybe 45 minutes. I even had the car up on the lift lol. I blame the blade. It was a old worn out diablo 24T and wouldn't cut for ****.

Whiteline bushing install was easy. I put the Whiteline subframe bushing in a plastic sandwich bag and put it on ice over night. When it was time to install it I lubed it and used my puller and it went in fast and easy.

Prior to installing this I watched plenty of videos and read threads on people giving the advice of going to a hardware store and simply buying parts to make your own puller.

Not a single thread made a list of what size washers they used so I'll do someone else a favor and post what I bought.

Home Depot

$3.27 - Frame Anchor - 2in x 4in angle framing anchor (1)
$0.20 - 1/2" Hex nut (1)
$1.21 - 1/2" x 5" Hex bolt (1)
$0.80 - 3/4" washers (2)
$1.00 - 1/2" washers (5)

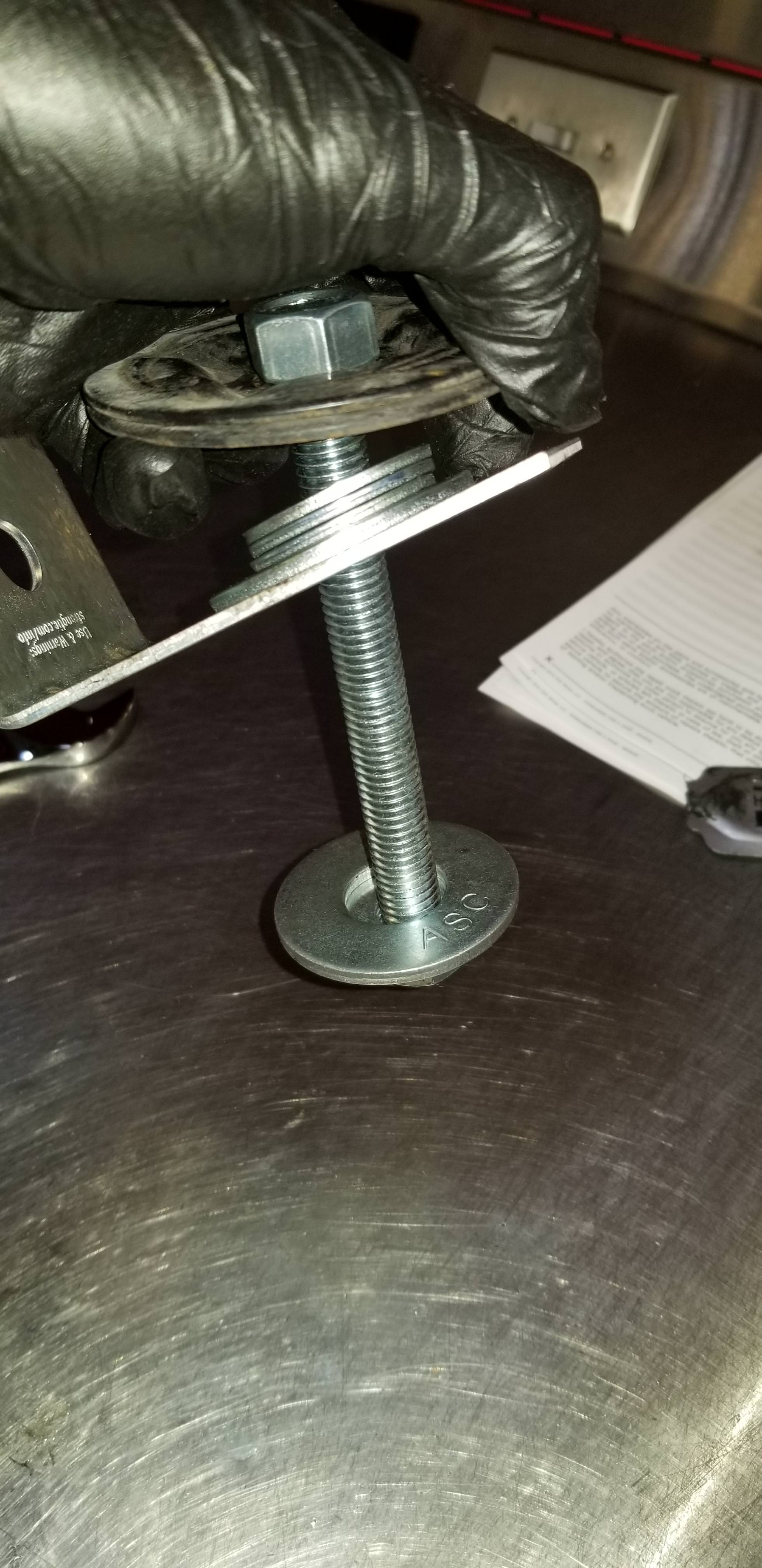

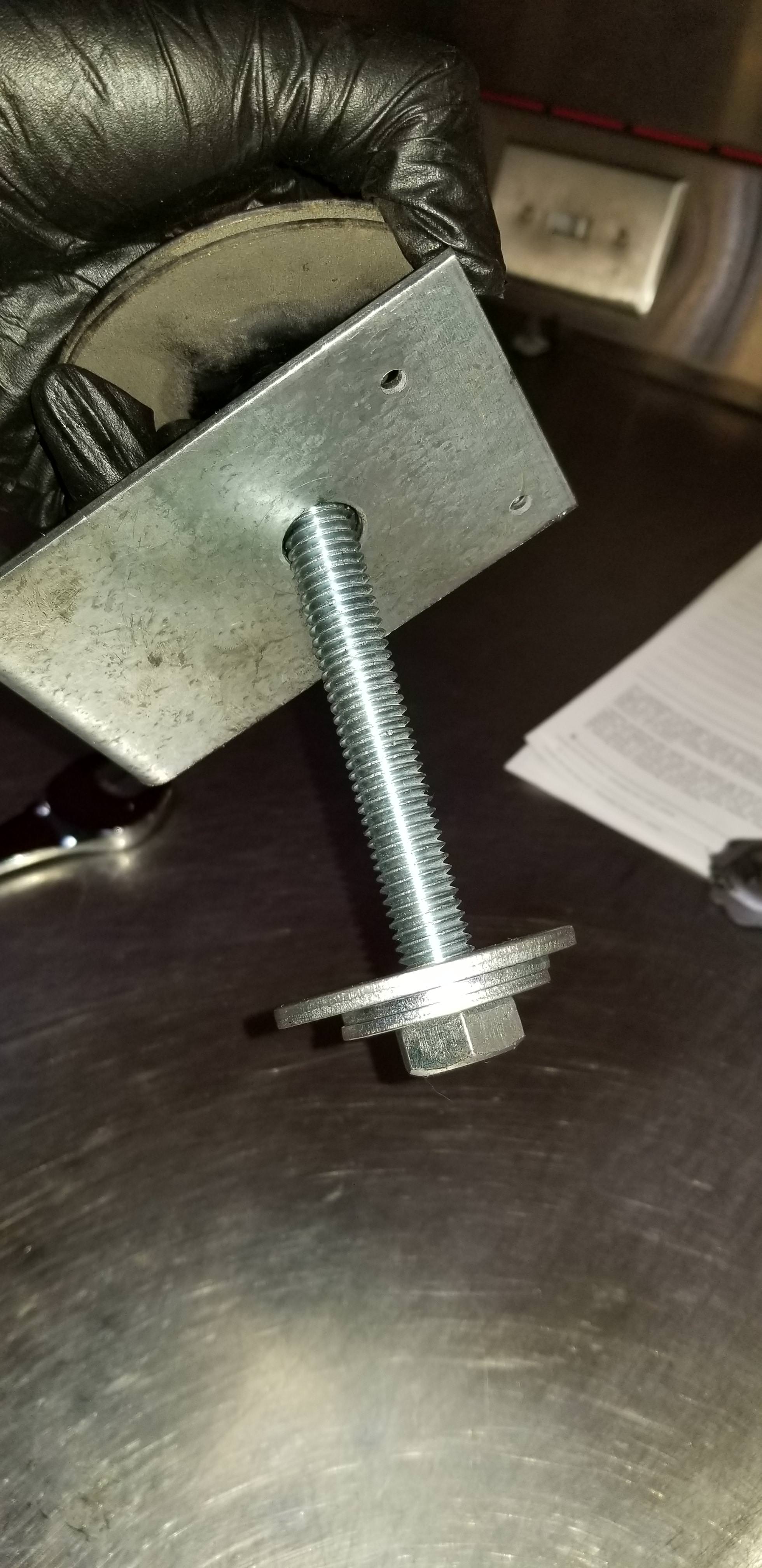

All these parts ~$6.50 total. Use a 3/4" or 19mm wrench to hold the bolt and the same size socket or ratchet wrench to turn the nut which will pull the bushing into the subframe.

I'll post pictures later on the puller setup and a picture of the receipt.

I bought 5", 6" and 7" hex bolts because I was unsure the length that would be required, but than I ended up just using the 5".

They were about $1.xx each so I figured I would be safe buying numerous lengths.

Last edited by qmantran; 12-17-2017 at 02:23 AM.
qmantran is offline   Reply With Quote
The Following User Says Thank You to qmantran For This Useful Post:
Gio37 (12-10-2017)
Old 12-10-2017, 04:30 PM   #176
qmantran
Registered User

qmantran's Avatar

Join Date: Apr 2015
Location: Dallas
Posts: 817
Thanked 101 Times in 82 Posts




Ignore the 2 black differential top-hat washers at the very top... I was putting things away and just decided to temporarily install those 2 black washers so I wouldn't misplace it.






qmantran is offline   Reply With Quote
The Following User Says Thank You to qmantran For This Useful Post:
krazzyborri (01-27-2018)
Old 12-11-2017, 04:15 PM   #177
qmantran
Registered User

qmantran's Avatar

Join Date: Apr 2015
Location: Dallas
Posts: 817
Thanked 101 Times in 82 Posts

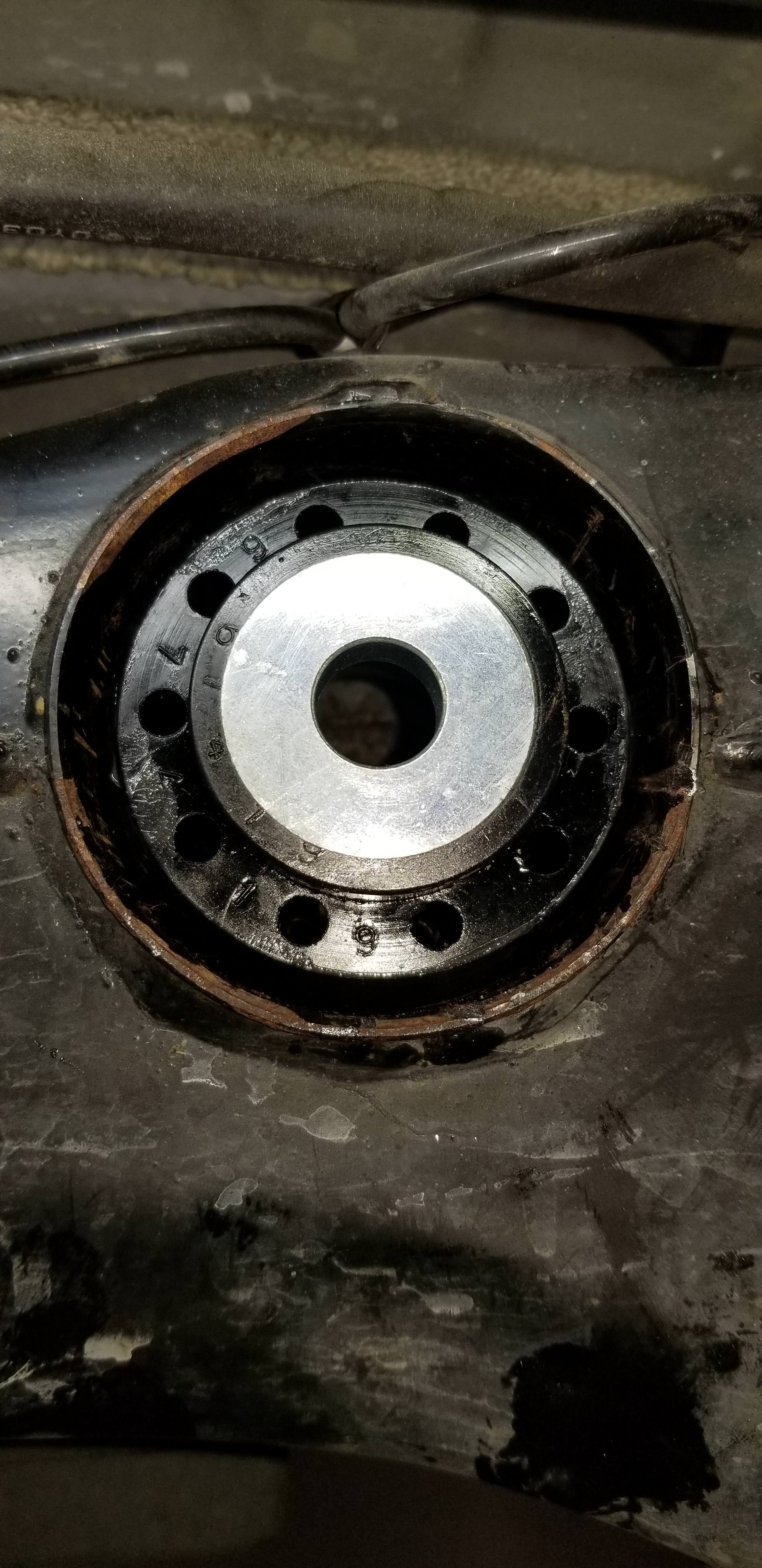

I forgot to mention I installed the thick bushing up top and did not use the black washers. Thinner bushings on bottom.

No driveline vibration noticed yet. Will report back if things change. Did this @ 75k miles.

Last edited by qmantran; 12-17-2017 at 02:26 AM.
qmantran is offline   Reply With Quote
Old 12-18-2017, 06:21 PM   #178
defektion
Registered User

Join Date: Jun 2013
Location: Edmonton, Alberta, Canada
Posts: 248
Thanked 27 Times in 21 Posts
Great pics dudes. It's great to see the different types of makeshift bushing presses. I used an iron floor flange as my press and it fit perfectly over the bushing hole.
defektion is offline   Reply With Quote
Old 12-29-2017, 09:25 PM   #179
MotorvateDIY
Registered User

Join Date: Nov 2016
Posts: 73
Thanks: 0
Thanked 80 Times in 27 Posts
$20 / 20 minute bushing fix video is now done:
MotorvateDIY is offline   Reply With Quote
Old 12-29-2017, 09:29 PM   #180
MotorvateDIY
Registered User

Join Date: Nov 2016
Posts: 73
Thanks: 0
Thanked 80 Times in 27 Posts
Quote:
Originally Posted by defektion View Post
Where were you a few weeks ago lol. I'm waiting to see your solution!

Update: I quickly Google'd differential bushing fixes for $20 bucks and I turned up someone's solution to inject "Windo-Weld" into the bushing. Is this your solution?
Nope... That stuff takes a few DAYS to cure, so I ruled it out.
But 5 minute epoxy is cheap and easy to get.
See the post above, motorvate.ca or motorvate DIY on YouTube.
