Quick question about illuminated door sill fuses and wiring
My 2012 g sedan came with the illuminated door sills/kick plates from the factory. Since I've purchased it only the passenger side works. I found one glass tube 5a250 fuse on the passenger side where both sides meet. This fuse is intact and when removed, the passenger side goes out.
Am I correct in assuming this is the only fuse for both? And since the passenger side works and the driver side doesn't, there is either a break in the drivers side wiring or the plate just doesn't work anymore?
And ideas on where to find a single driver side kick plate? U pull it time?

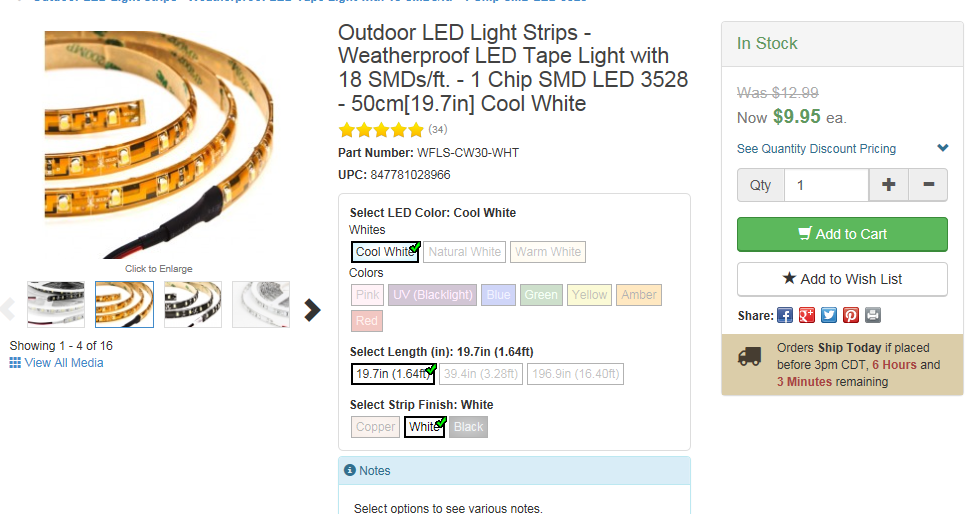

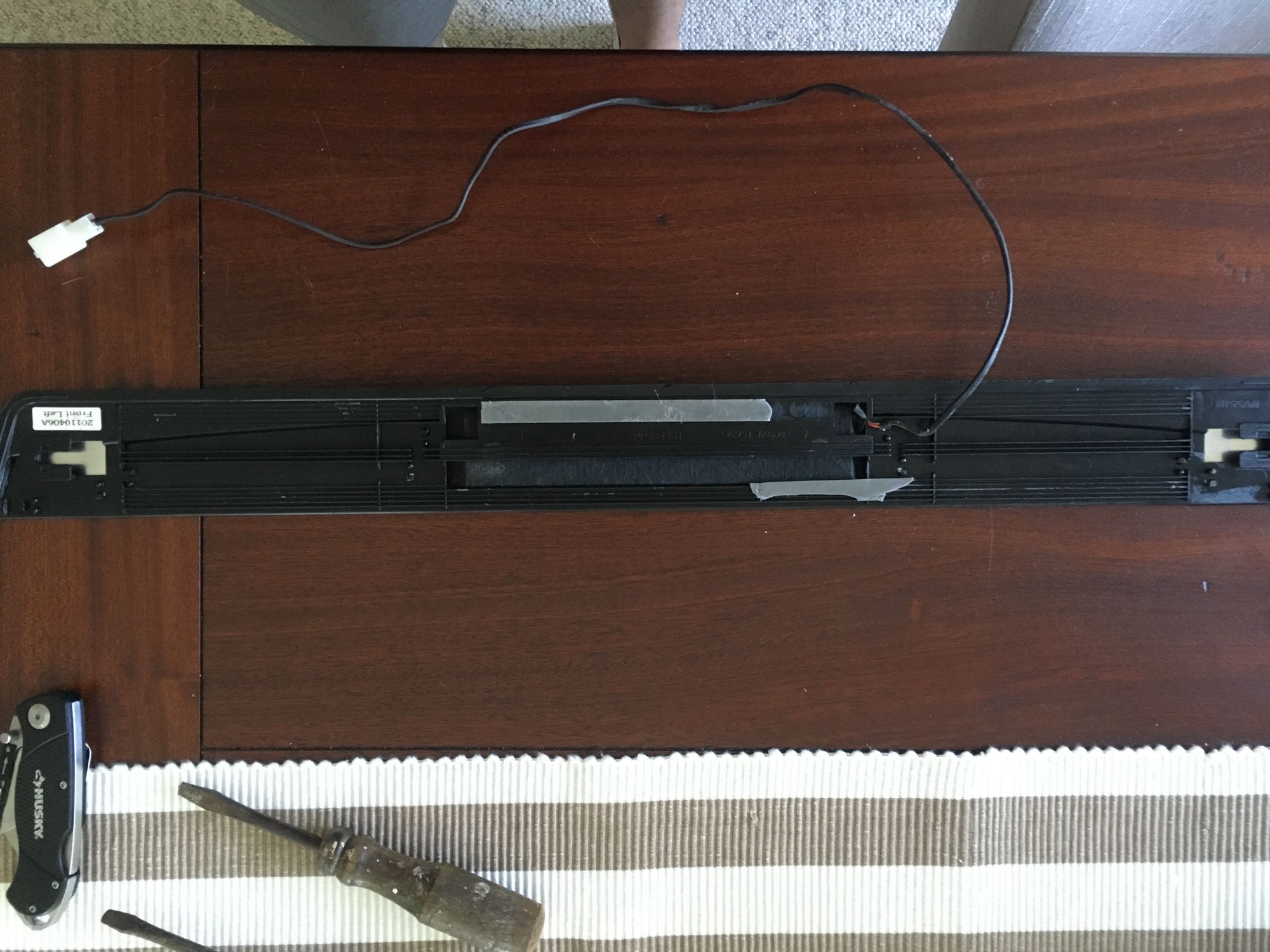

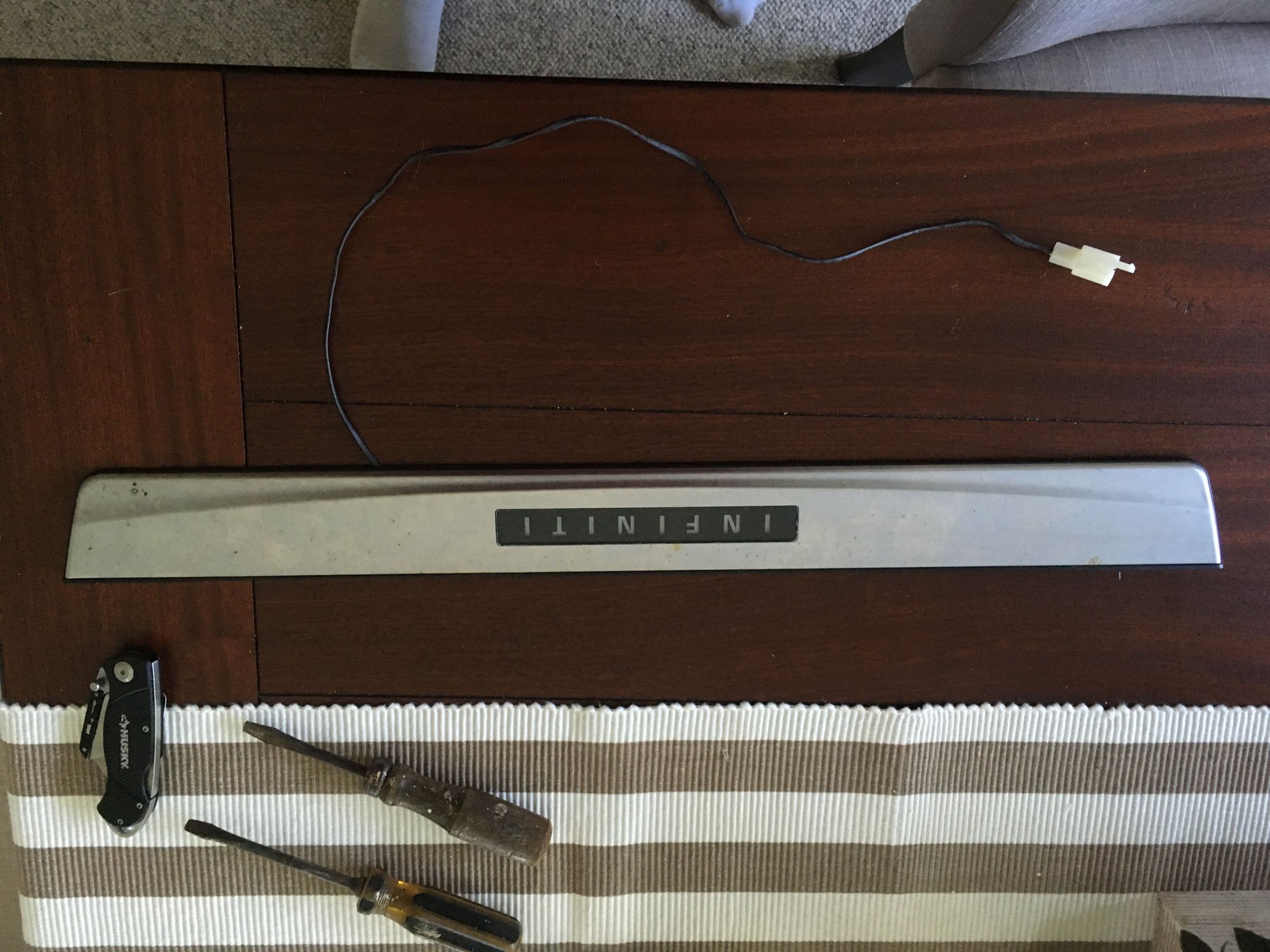

I am attempting to take the door sill apart and replace the LED with the items below. Im not sure how common this issue is but would anyone be interested in a write up?

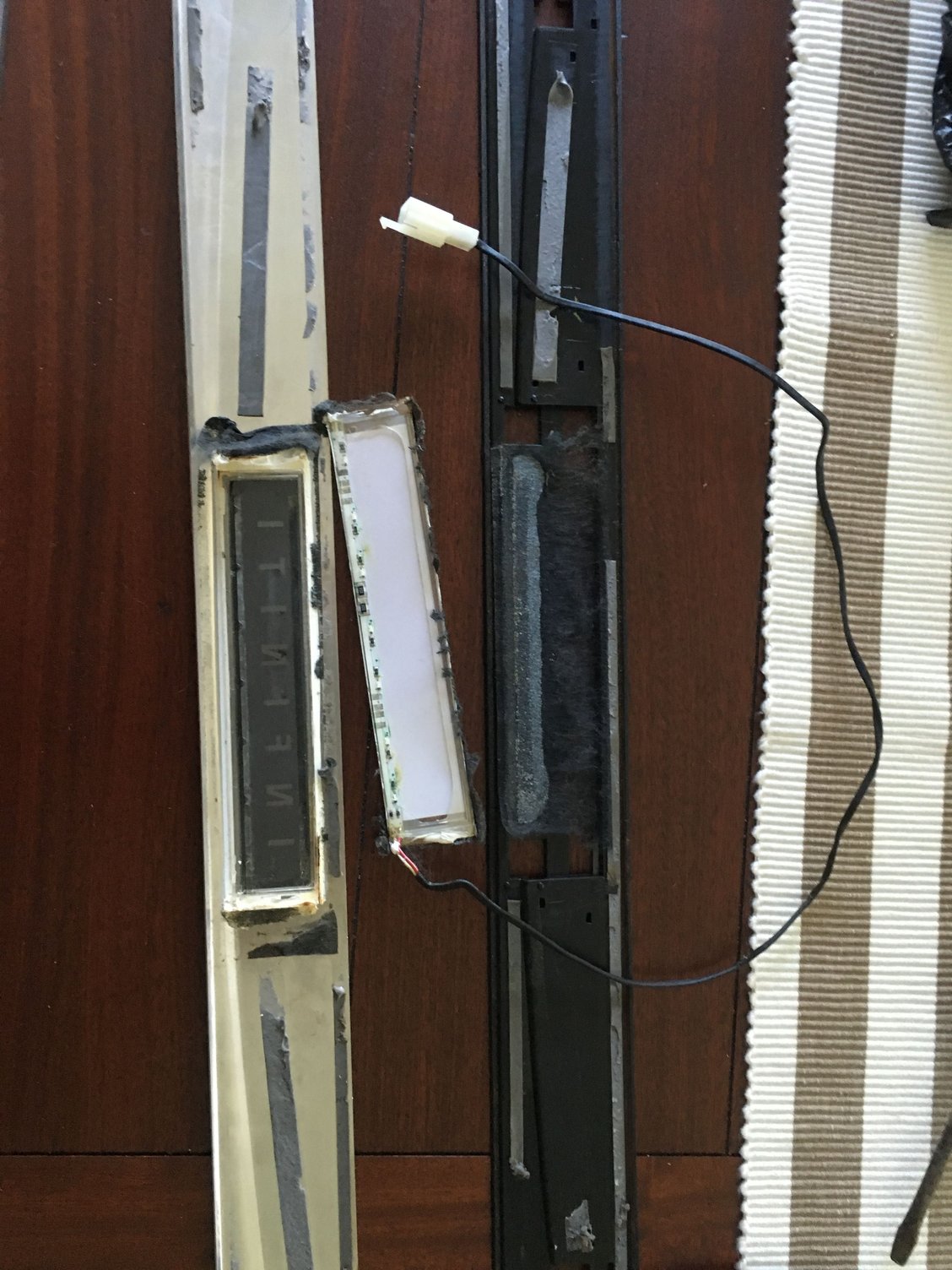

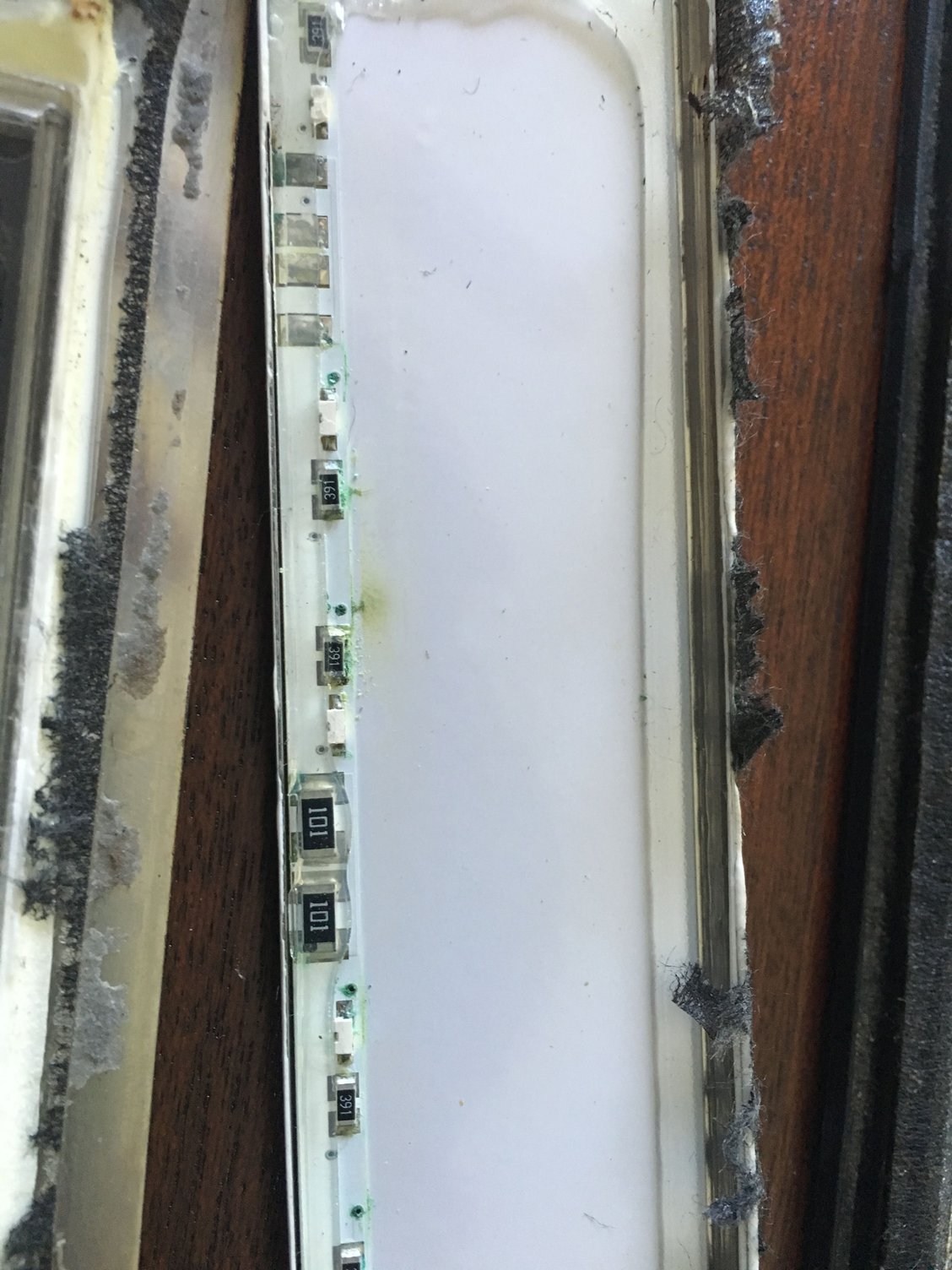

Looks like the LEDs i ordered should work perfectly. If they look too different or better/worse than the passenger side, I have enough extra material to change that too. And here is the guts....
From: Chicago home of the 2016 world-champion Cubs!
Where is the fuse for the lighted sills?
Originally Posted by SepaG
My 2012 g sedan came with the illuminated door sills/kick plates from the factory. Since I've purchased it only the passenger side works. I found one glass tube 5a250 fuse on the passenger side where both sides meet. This fuse is intact and when removed, the passenger side goes out.
Am I correct in assuming this is the only fuse for both? And since the passenger side works and the driver side doesn't, there is either a break in the drivers side wiring or the plate just doesn't work anymore?
And ideas on where to find a single driver side kick plate? U pull it time?
Where is the fuse for the lighted sills? How do I get access?
Where is the fuse for the lighted sills? How do I get access?
If they are factory (OEM) plates, the fuse will be on the passenger-side tucked somewhere behind the BCM & door sill trim panels. The fuse holder might be wrapped up in a foam tape but you can't miss it (see here).
