Based on my notes I added these two wires:

2013, Pin 67: pink, COMPOSITE IMG SIG GND, goes to DISPLAY Pin 19;
2013, Pin 68: Blue, COMPOSITE IMG SIG, goes to DISPLAY Pin 18
Be sure to verify this with your diagrams!

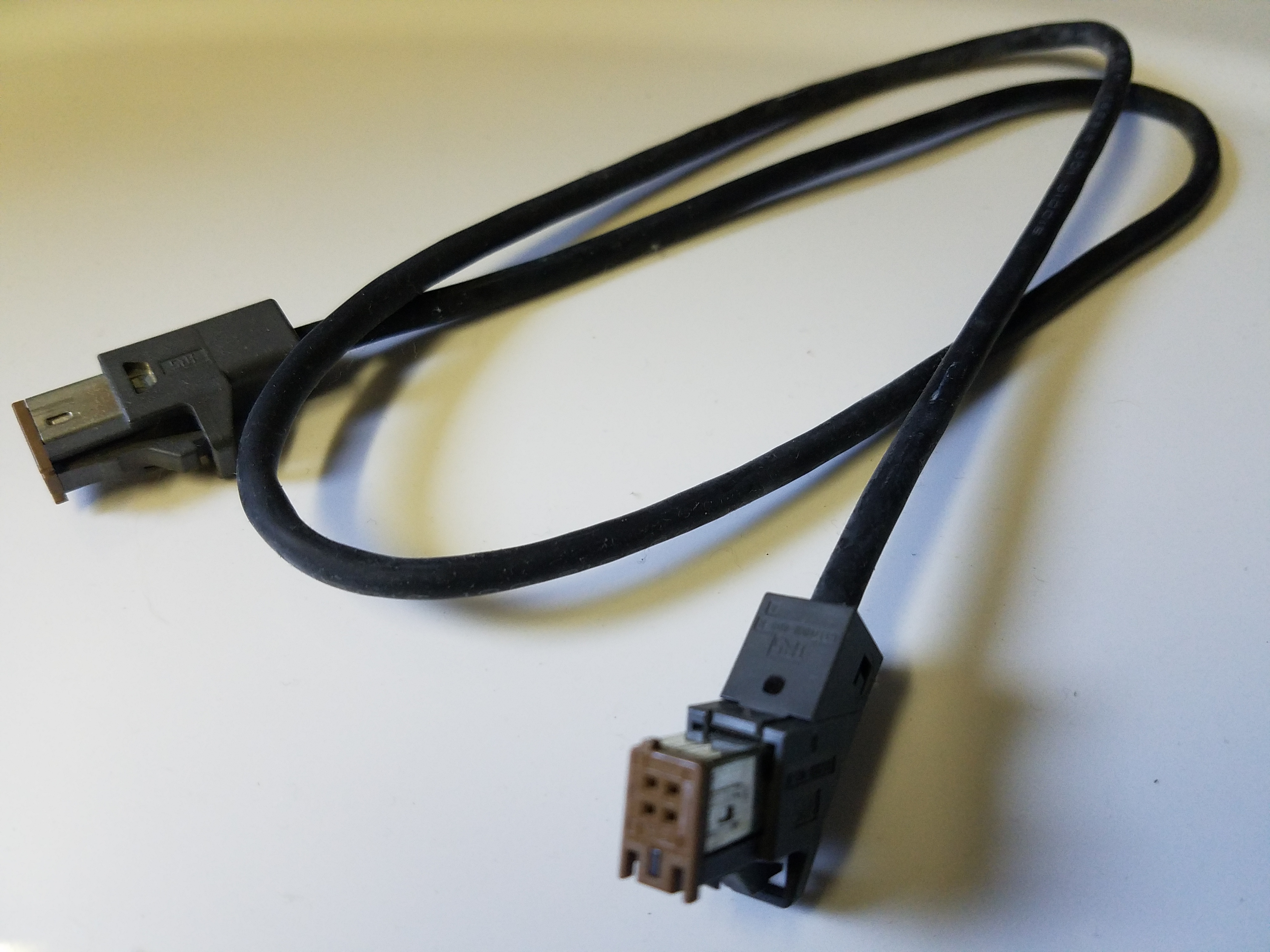

As for Pins 157 and 158 for the RGB signals, this references the GVIF cable that I mentioned earlier:



This cable connects directly from the head unit to the display. I ended up buying the cable (p/n: 28098-JJ90B) for about $20 from discountinfinitiparts.com If you already have the connectors you may be able to make your own cable.



Well Thanks again. much appreciated. This should do it. Just have to wait for the cables to arrive.



I checked out pins # 18 and 19 I'm assuming they are on the touch screen connector ? the 18 and 19 on the HU are steering switch B and the other is power supply. Was trying to find the pin diagram just for the touch screen but nothing yet. They have an exploded view on the download but i saved them and since they are PDFs now they won't open.



I found the pin connector for the touch screen and I see both #18 and 19 that I have to connect to.. Thanks again.



Does anyone know where I can get the GVIF Cable? Just in case it doesn't come with the cables and connectors I ordered since it's a single wire. I've checked about 6 dealerships and they all said it's a discontinued part and none in the country from a dealer that searched for me. I asked him how can Infiniti discontinue a 2013 part? I did a nationwide search last evening to all the auto salvage yards, I'll see what comes back today.



Sorry for the late reply... did you find the cable? I just checked discountinfinitiparts.com and they have the GVIF cable, p/n: 28098-JJ90B for $23.87 not including shipping.



I don't know yet, what a nightmare. I've been dealing with this idiot at a used auto parts in Oklahoma ( i think) I went to my bank and cancelled the charge don't ever use usedparts.us Thanks for that, I'll go and grab that but I went there and I think going thru the check out it said out of stock but I'll try



I just ordered it but if I remember, I did this before and after the transaction the following day I got an email saying it was no longer available....we'll see.



I doubt seriously that this is a discontinued part. If you ordered from discountinfinitiparts.com they are a real Infiniti dealership located in Roswell, GA (Atlanta metro) and the parts manager there, Sid, is the absolute best parts guy I have ever dealt with. I am confident they have it for you.


If not, then we will go to plan B.....



Well, I got the same message out of stock. I remembered calling a few Infiniti Dealerships and one did a search of the entire country and he told me the part was discontinued . Starting to send requests to a bunch of used auto salvage yards



Well hell.....

If push comes to shove- and if you are daring- you could probably make your own. I believe there is a member here who made one. I attempted to make one but I do not have the patience AT ALL to deal with those tiny pins and failed miserably. Luckily, I found one online and that was that.

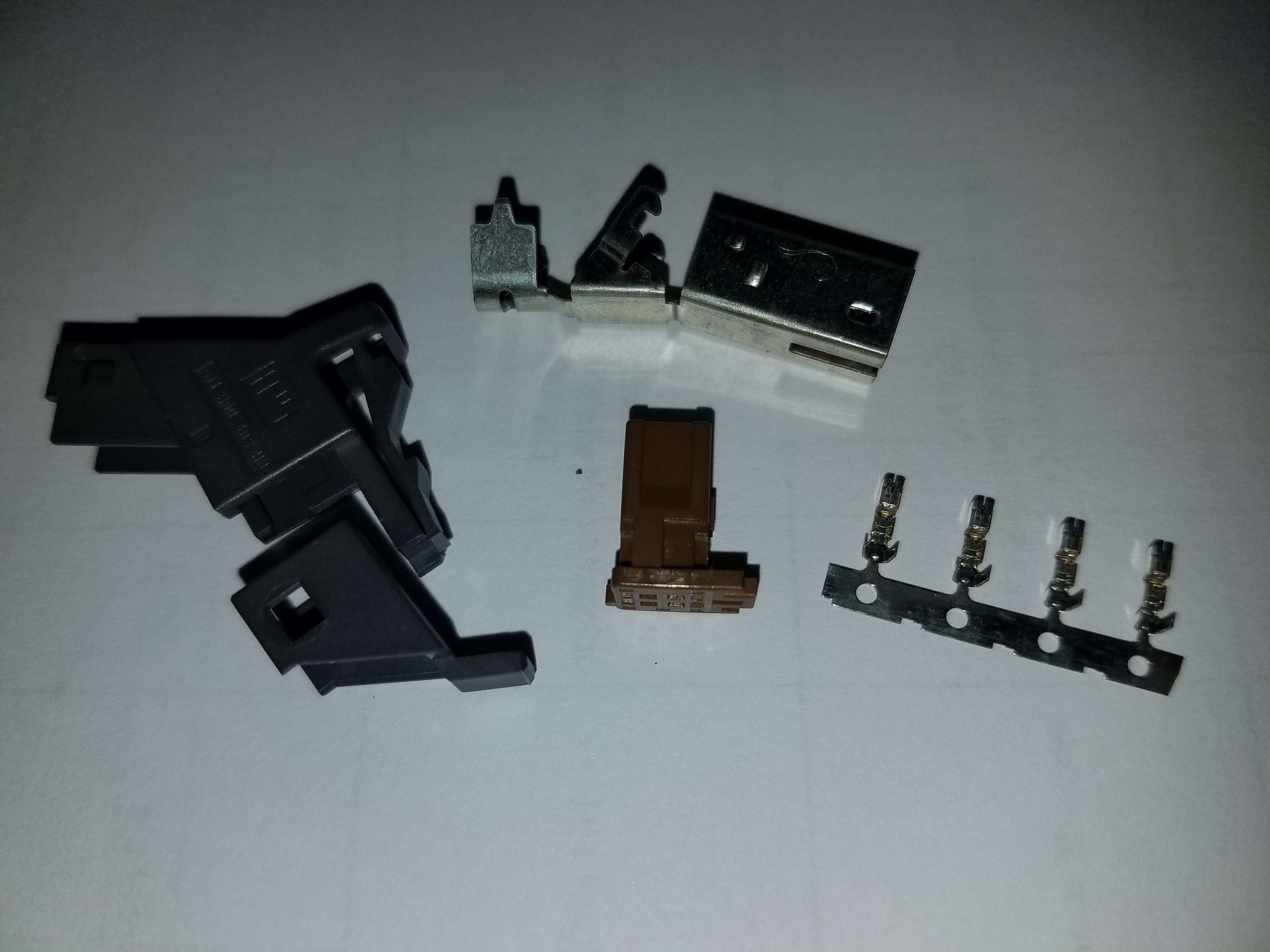

The connectors are hirose-type and are easily available from Mouser Electronics. In fact, I have the parts still for one end of a cable that I could send you. You would just have to get a second set and some USB-type cable.



Guess what came today? I thought I was just getting about 6-8" of wire with the connector plugs. Got the whole dash wiring harness. Yes the GVIF cable was included. Wish I hadn't got involved with that other idiot....lost a month.



You win some and you lose some. Luckily, you scored with this one and have everything you need to complete the project.

Hold on to the USB cable- should you ever want to add the USB functionality that cable is not available anywhere!

Now the fun begins...



Yes, fortunate. thanks for all your support. I won't be able to start this weekend have a family reunion in another sate. I'm anxious to get started. I'll have to look for the USB, didn't notice will look for it more when I have time. Thanks again



Wasn't able to do anything last weekend had to go away. I started matching up the plugs. I have 4 that I can seem to find the plug from the harness. I don't know what the redish brown round socket on bottom of my HU. is. Can't find a plug for # 8, 10 and 12.
#129 - 133 is the USB that's just below # 5 on the PFD image. #156 and 155 not used but 157 and 158 are RGB digital #159 and 160 are satellite any ideas trying to connect without a plug. Not sure why my HU doesn't match the one in the PDF?
