Mishimoto vs OEM tubes temperature test

Reply



Thread Tools Search this Thread
Old 05-19-2017, 07:55 PM   #1
latino914
Registered User
Thread Starter

Join Date: Feb 2013
Location: ct
Posts: 97
Thanks: 0
Thanked 4 Times in 4 Posts
Mishimoto vs OEM tubes temperature test

So I did this little experiment seeing the temperature difference with both tubes. This was just a simple test, did not factor in any other complicated variables. I installed one side with the mishimoto and left the other side oem. After driving 40 minutes I took temperatures of both tubes with an infared gun. The mishimoto silicone tube read 5-7 degrees lower than the oem. The results were already going to be obvious to some but I wanted to put it to the test and was curious. 136.6


Last edited by latino914; 05-19-2017 at 07:56 PM. Reason: More specific
latino914 is offline   Reply With Quote
Old 05-19-2017, 08:08 PM   #2
PNW_IPL
Registered User
iTrader: (4)

Join Date: Mar 2016
Posts: 1,245
Thanked 121 Times in 115 Posts
Awesome dude. Love the mishis when i had them. Good to see they helped.
PNW_IPL is offline   Reply With Quote
Old 05-19-2017, 08:27 PM   #3
main_shoby
Registered User
iTrader: (1)

Join Date: Feb 2014
Location: South Florida
Posts: 316
Thanked 16 Times in 13 Posts
I am a bit skeptical here. what difference would the temperature of those tubes make?
the air passing through these tubes is passing at a fast velocity. It should not effect passing air's temperature a whole lot, right?
main_shoby is offline   Reply With Quote
Old 05-19-2017, 08:30 PM   #4
Rochester
Lifetime Premier Member
iTrader: (8)

Rochester's Avatar

Join Date: Nov 2010
Location: Rochester, NY
Posts: 12,106
Thanked 2,374 Times in 1,840 Posts
I'm not sure this is proving anything, but then again... lower temps for a component of the air intake system seems more desirable than otherwise.

What if you shot the exact same spot on each side, but hit the MAF housings instead? Or the TB's?
Rochester is offline   Reply With Quote
Old 05-19-2017, 09:13 PM   #5
slartibartfast
Registered User
iTrader: (4)

Join Date: Oct 2014
Location: Houston, Tx
Posts: 1,840
Thanked 159 Times in 146 Posts
Don't forget that there's both conduction and radiation transferring thermal energy to air passing through the tube. Also, the greater the temperature difference, the faster heat transfer occurs. Any reduction in delta T is a good thing.
slartibartfast is offline   Reply With Quote
Old 05-19-2017, 09:33 PM   #6
latino914
Registered User
Thread Starter

Join Date: Feb 2013
Location: ct
Posts: 97
Thanks: 0
Thanked 4 Times in 4 Posts
Just so y'all know I did point the infared gun throughout the whole tube for both sides, top, middle and bottom. The mishimoto read lower in all areas than the oem.

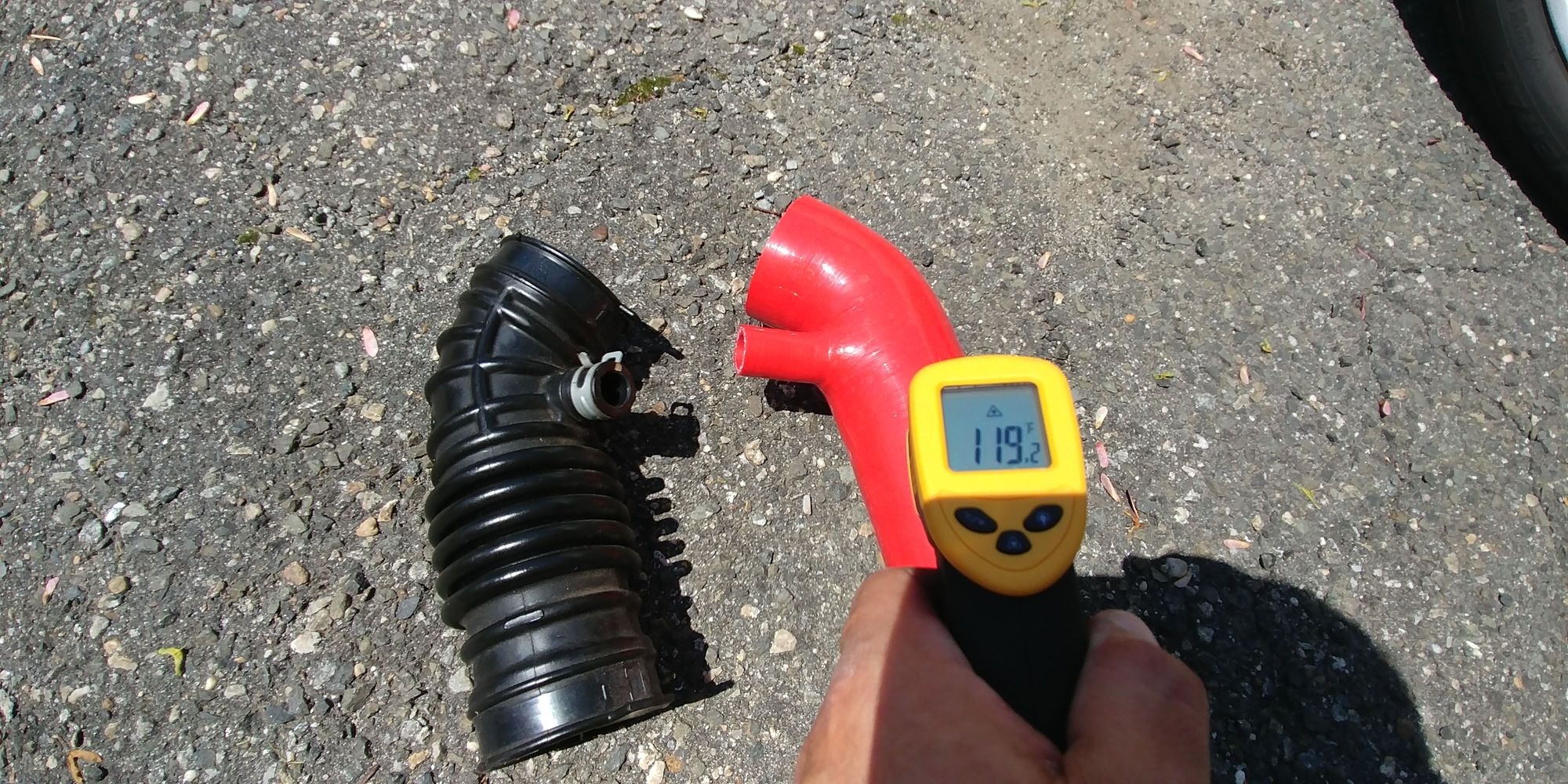

And just for kicks I put out both tubes side by side in the sun for 30 min. Obviously black attracts sunlight more than red but it was quite a difference.
latino914 is offline   Reply With Quote
Old 05-19-2017, 09:51 PM   #7
PNW_IPL
Registered User
iTrader: (4)

Join Date: Mar 2016
Posts: 1,245
Thanked 121 Times in 115 Posts
Quote:
Originally Posted by latino914 View Post
Just so y'all know I did point the infared gun throughout the whole tube for both sides, top, middle and bottom. The mishimoto read lower in all areas than the oem.

And just for kicks I put out both tubes side by side in the sun for 30 min. Obviously black attracts sunlight more than red but it was quite a difference.
Nice man. Don't let them discourage them lower intake temps are best
PNW_IPL is offline   Reply With Quote
Old 05-19-2017, 10:09 PM   #8
latino914
Registered User
Thread Starter

Join Date: Feb 2013
Location: ct
Posts: 97
Thanks: 0
Thanked 4 Times in 4 Posts
Quote:
Originally Posted by PNW_IPL View Post
Nice man. Don't let them discourage them lower intake temps are best
Lol right on. Also makes the engine bay look better.
latino914 is offline   Reply With Quote
Old 05-19-2017, 10:15 PM   #9
4doorfury
Registered User

Join Date: May 2016
Location: Tampa, FL
Posts: 509
Thanked 37 Times in 25 Posts
I actually did intake temp testing via the MAF sensor reading with the mishimoto tubes vs oem and they take wayyyy longer to heatsoak than OEM. With my OEM they gained about 15 degrees idling for 60 seconds once at operating temp and the mishimotos only gained about 6 degrees. The differences were even greater the longer I idled to an extent. They seemed to level off around 180 for both but again the mishimotos took forever to get there. For comparison, my r2c intakes heatsoaked quicker than OEM setup. I think post maf tubes with r2c drop ins is the best bang for the buck setup for our motors.
4doorfury is offline   Reply With Quote
Old 05-19-2017, 10:16 PM   #10
PNW_IPL
Registered User
iTrader: (4)

Join Date: Mar 2016
Posts: 1,245
Thanked 121 Times in 115 Posts
Quote:
Originally Posted by 4doorfury View Post
I actually did intake temp testing via the MAF sensor reading with the mishimoto tubes vs oem and they take wayyyy longer to heatsoak than OEM. With my OEM they gained about 15 degrees idling for 60 seconds once at operating temp and the mishimotos only gained about 6 degrees. The differences were even greater the longer I idled to an extent. They seemed to level off around 180 for both but again the mishimotos took forever to get there. For comparison, my r2c intakes heatsoaked quicker than OEM setup. I think post maf tubes with r2c drop ins is the best bang for the buck setup for our motors.
Great info! Im thinking of selling my takeda and doing mishis again
PNW_IPL is offline   Reply With Quote
Old 05-19-2017, 10:22 PM   #11
4doorfury
Registered User

Join Date: May 2016
Location: Tampa, FL
Posts: 509
Thanked 37 Times in 25 Posts
Another thing to note...

2 different dynos but I used the local weather station so I could use the correct correction factors. Both dynojets.

Baseline stock
283.05 whp
234.47 wtq

Mishimoto tubes, r2c drop ins, y pipe to x pipe conversion with stock exhaust everywhere else
296.81whp
240.39 wtq

I took the airbox out when installing the filters and applied black foam tape around the bumper vent to seal it off from the engine area. The foam in used was thick and was a very tight fit unlike the OEM stuff. I know I had an exhaust mod (somewhat) in the above dyno comparison but take it for what you will.
4doorfury is offline   Reply With Quote
Old 05-19-2017, 10:37 PM   #12
Rochester
Lifetime Premier Member
iTrader: (8)

Rochester's Avatar

Join Date: Nov 2010
Location: Rochester, NY
Posts: 12,106
Thanked 2,374 Times in 1,840 Posts
Quote:
Originally Posted by PNW_IPL View Post
Great info! Im thinking of selling my takeda and doing mishis again
Wow. That's quite a decision.
Rochester is offline   Reply With Quote
Old 05-20-2017, 08:37 AM   #13
Lego_Maniac
Registered User
iTrader: (2)

Join Date: Aug 2012
Location: Charlotte, NC
Posts: 2,398
Thanked 279 Times in 237 Posts
Quote:
Originally Posted by 4doorfury View Post
I think post maf tubes with r2c drop ins is the best bang for the buck setup for our motors.
Agreed. The real benefit of going long tube, for me, was the sound. I can't feel any difference from post maf tubes and aFe drop ins.

Quote:
Originally Posted by 4doorfury View Post
Another thing to note...

2 different dynos but I used the local weather station so I could use the correct correction factors. Both dynojets.

Baseline stock
283.05 whp
234.47 wtq

Mishimoto tubes, r2c drop ins, y pipe to x pipe conversion with stock exhaust everywhere else
296.81whp
240.39 wtq
Pretty solid gains for the investment
Lego_Maniac is offline   Reply With Quote
Old 05-20-2017, 11:05 PM   #14
CPJ LB
Registered User

CPJ LB's Avatar

Join Date: May 2015
Location: So.Cal 2 CT
Posts: 262
Thanked 53 Times in 43 Posts
+1 for post MAF tubes!

I'm happy with my HPS silicone intake tubes and aFe dry panel filters. Thinking of trying r2c black hex drop ins next.
CPJ LB is offline   Reply With Quote
Old 05-23-2017, 07:46 AM   #15
topher2012
Registered User

Join Date: Jul 2012
Location: Charlotte, NC
Posts: 21
Thanked 2 Times in 2 Posts
I have Mishimoto tubes and K&N drop ins. performance debate aside...
This weekend I had a couple of pool sessions with my kids. I ended up with more water in my ears than in the pool. Anyway, both ears are a little stuffed and I don't get a lot of high end/treble noise. I can hear my engine so much better :P what a great sound these cars make. The driving experience hearing the engine noise alone is worth any mod that makes it louder!
