Like the title says, I'm curious if the autokits-x v2 diffuser would cover up the canisters. If anyone can chime in or even better, with pics, it'll be great



no one ?



i have fast intentions exhaust with autokits v1 diffuser and it hides the tips but not completely

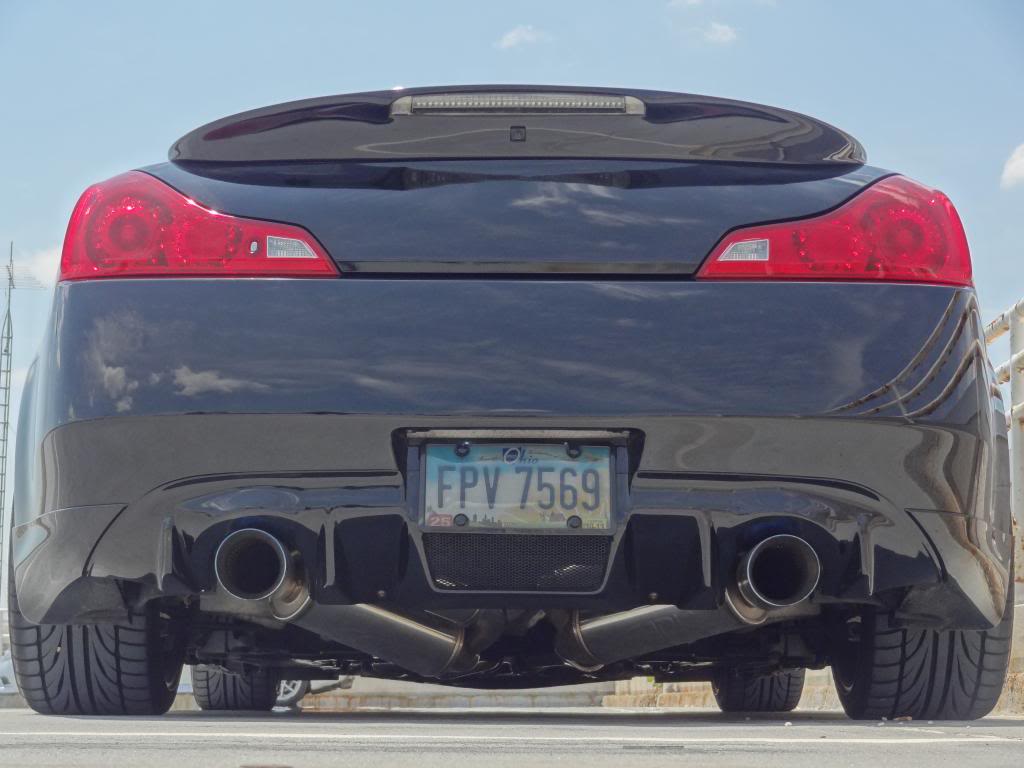

I had the Ark with the AK V2 Diffuser and it didn't cover up the canisters. Let me see if I can find a pic and post it up.



^That would be great ! (: Cause I noticed the V2 dragged atleast 2.5" lower than the stock bumper...

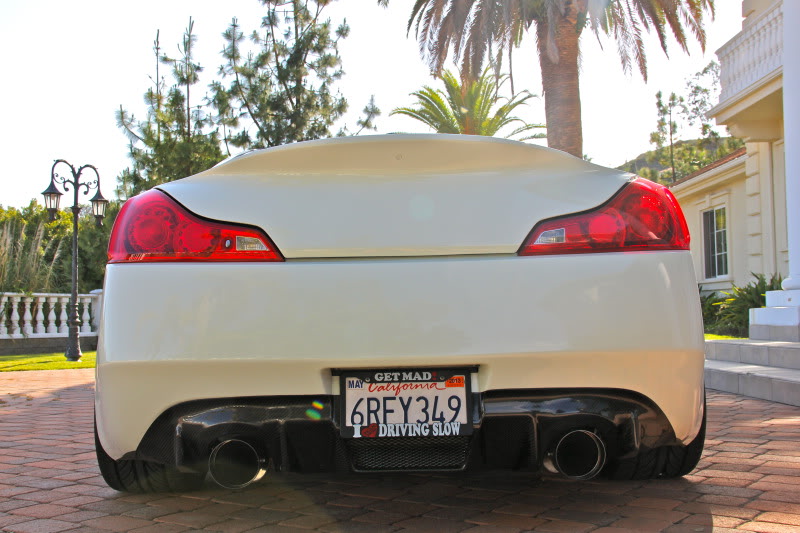

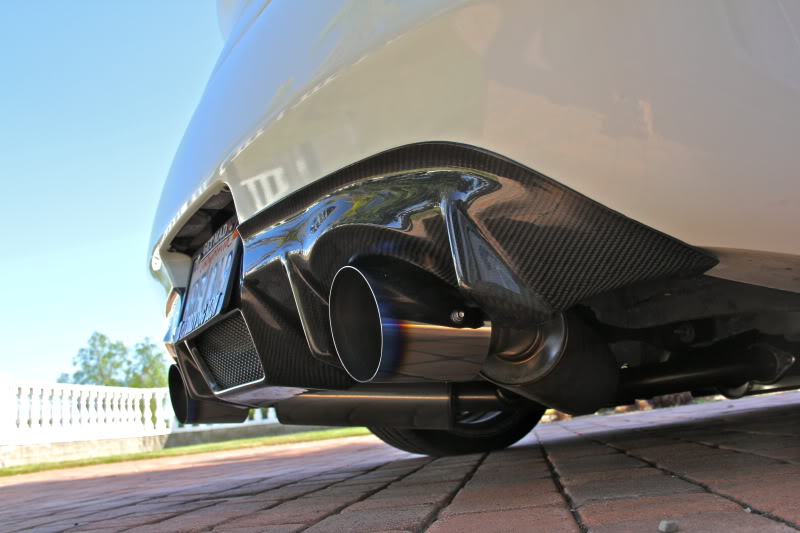

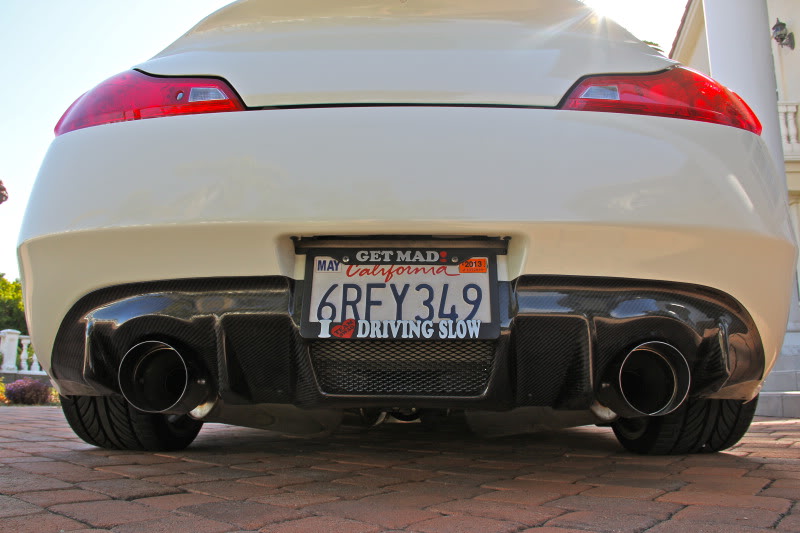

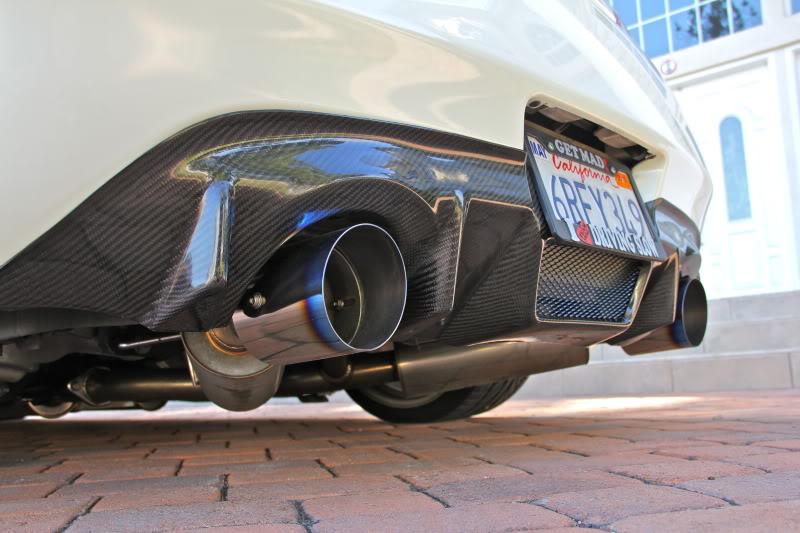

Here's my HKS with my V2..



^Thank you so much Darryl ! Did you have to adjust anything on your HKS? Like pull the tips out more or maybe the hangers ?



I was gonna say Darryl but he already came through



No adjusting of the exhaust necessary. The diffuser just slapped right on. When the HKS was on, it had already left a little space between it and the valence. The diffuser got rid of it.



That looks good ^^^



First off, sorry to revive a dead thread, but I have a quick question that I am hoping someone could help me with.

I too bought the Ark exhaust and the Autokits V2. I went to install it today and noticed my tips were touching the diffuser. Did anyone else have this same problem? And is there anything I can do to adjust this? Maybe heat up the hangers and bend them a little?

Thanks in advance for your help!



I flipped the hangars. Used left on right side and right side on left. Can only get two of the three bolts in though. But it def. helped.



You can also add 2-3 washers per bolt... I had to adjust my Tanabe that way... like putting Spacers in and done... costs about $1.50 at home depot... loosen all the bolts put the washers on the top part of the Bracket to give it space and tighten easy fix...



Oh ok, thanks for the advice. I will give that a shot. Nice looking car by the way!!

Thanks for the reply. When adding the washers, are you talking about adding them to where the hanger mounts to the car?



You add the washers to the bracket which the rubber piece hangs off of.
Take off the bracket, place in washers, put bracket back on.
Now the rubber piece and consequently your exhaust hanger hangs lower.
