P0345 and a Broken Camshaft
#1
P0345 and a Broken Camshaft
Yes. You read that right. Broken Camshaft - driver side intake camshaft to be specific. Thought I’d share this on the site.
Story:
I was driving to work on a normal day. The weather seemed favorable as I live in beautiful Southern California. I was driving at around 45 mph in a 50 mph zone when suddenly the engine goes into limp mode. Power is limited, so I pull over to the side of the road, clear from oncoming traffic. I turn off the car and pull out the OBD2 Scanner only to find trouble code P0345. So in my head, I’m already expecting that the timing chain jumped a tooth. I call AAA road side assistance and while I wait for them, I check the camshaft position sensors on the driver side and they seemed fine. The engine seemed clean, oil as well.
... Well once all that was situated and I have the car in my garage, I get to work. I start taking the front end off to get to the front timing cover and take off the spark plugs and valve covers as well to get a better look of the valve/timing components. I put the engine to TDC, notice that the timing chain jumped 1 tooth and the driver side intake sprocket is facing down at an angle. It’s strange to see that happen, which lead me to investigate more by taking off the plate that holds down the camshaft. Surprise! It’s a broken intake camshaft!
Over a year ago, I had trouble with code P0011, which ended up being an internally broken intake sprocket. Few months later, I spun a bearing ( cylinder #5) rod knock was audible. I rebuilt the bottom end with forged internals from Wiseco, Brian Crower (11:1), and King main/rod bearings and a new crankshaft that was balanced by the machine shop. Roughly 2,500 miles later on the rebuild, this happens. I was using Amsoil Signature Series 5W-30 (6.5qts w/ JWT oil pan spacer).
My next step is to check for bent valves and compression. Just curious on how the phenomenon happened and if anyone has VQ35HR Camshafts for sale.
TDC
I covered the truth.
Trash
Broken

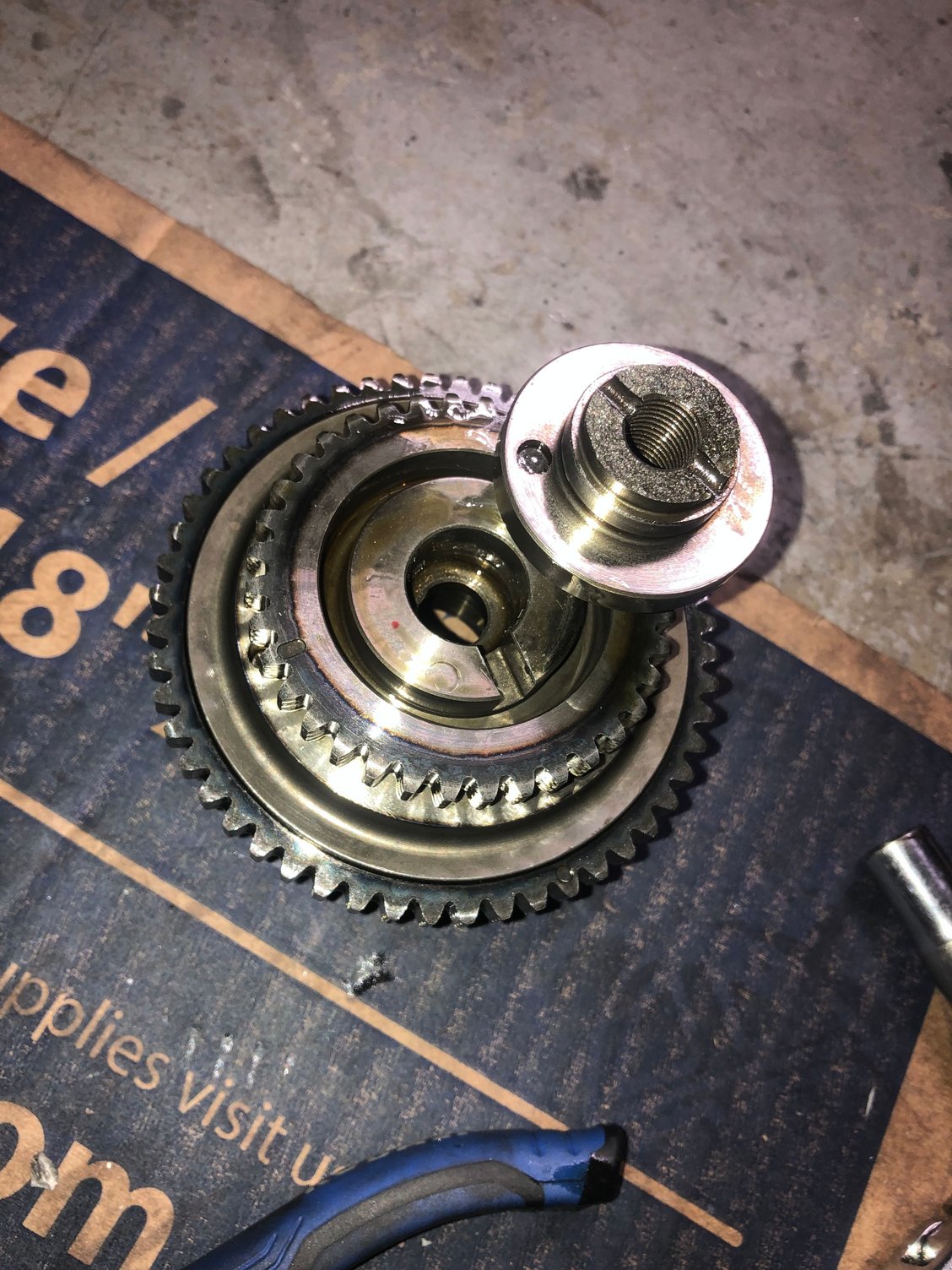

Last year’s P0011 code was a result of this.
Story:
I was driving to work on a normal day. The weather seemed favorable as I live in beautiful Southern California. I was driving at around 45 mph in a 50 mph zone when suddenly the engine goes into limp mode. Power is limited, so I pull over to the side of the road, clear from oncoming traffic. I turn off the car and pull out the OBD2 Scanner only to find trouble code P0345. So in my head, I’m already expecting that the timing chain jumped a tooth. I call AAA road side assistance and while I wait for them, I check the camshaft position sensors on the driver side and they seemed fine. The engine seemed clean, oil as well.
... Well once all that was situated and I have the car in my garage, I get to work. I start taking the front end off to get to the front timing cover and take off the spark plugs and valve covers as well to get a better look of the valve/timing components. I put the engine to TDC, notice that the timing chain jumped 1 tooth and the driver side intake sprocket is facing down at an angle. It’s strange to see that happen, which lead me to investigate more by taking off the plate that holds down the camshaft. Surprise! It’s a broken intake camshaft!
Over a year ago, I had trouble with code P0011, which ended up being an internally broken intake sprocket. Few months later, I spun a bearing ( cylinder #5) rod knock was audible. I rebuilt the bottom end with forged internals from Wiseco, Brian Crower (11:1), and King main/rod bearings and a new crankshaft that was balanced by the machine shop. Roughly 2,500 miles later on the rebuild, this happens. I was using Amsoil Signature Series 5W-30 (6.5qts w/ JWT oil pan spacer).
My next step is to check for bent valves and compression. Just curious on how the phenomenon happened and if anyone has VQ35HR Camshafts for sale.
TDC
I covered the truth.
Trash
Broken
Last year’s P0011 code was a result of this.
Last edited by Poncher; 07-14-2019 at 01:46 PM.
The following users liked this post:
Poncher (07-14-2019)
#4
The cylinders seem to hold adequate pressure when air is blown into the spark plug hole. That means that the valves are not bent.
