I recently did VLSD swap in my G37x sedan. However this write up can help non-x as well. I have received some question involving it thus it would be easier to make a post for future reference.
The G37 comes in 3 different diff flange type. The X has a 6 bolt flange type. The 7AT rwd has a 3 bolt flange type and the MT has a 4 bolt flange type. IDK anything about the 5AT models.
Due to this we have to make modifications in order to use diff with other flange types.
Here is the secret. All the flanges are interchangeable. There is a center nut on all the flanges. You'll have to measure the amount of torque it takes to loosen this nut and remove it (i think the range was 60ft-lb to 120+ft-lb). Once you have it removed you can use a puller to pull out the flange. The center shaft of the pinion is even center drilled for the use of a puller. Then simply swap the flanges torque the center nut back to your measured spec and install the diff.
The 6 bolt uses a ball and socket to center the drive shaft.
The 4 bolt uses the inter bore of the flange and a lip of the drive shaft.
The 3 bolt uses a extended shaft on the final drive pinion to center the drive shaft.
Due to this you can easily interchange between the 6 and 4 bolt flange types but not 3 bolt.
If you have a 6 or 4 bolt flange diff and want to switch to a diff with 3 bolt flange you'll have to cut off the excess shaft that was used for centering, or else the centering shaft will hit your drive shaft.

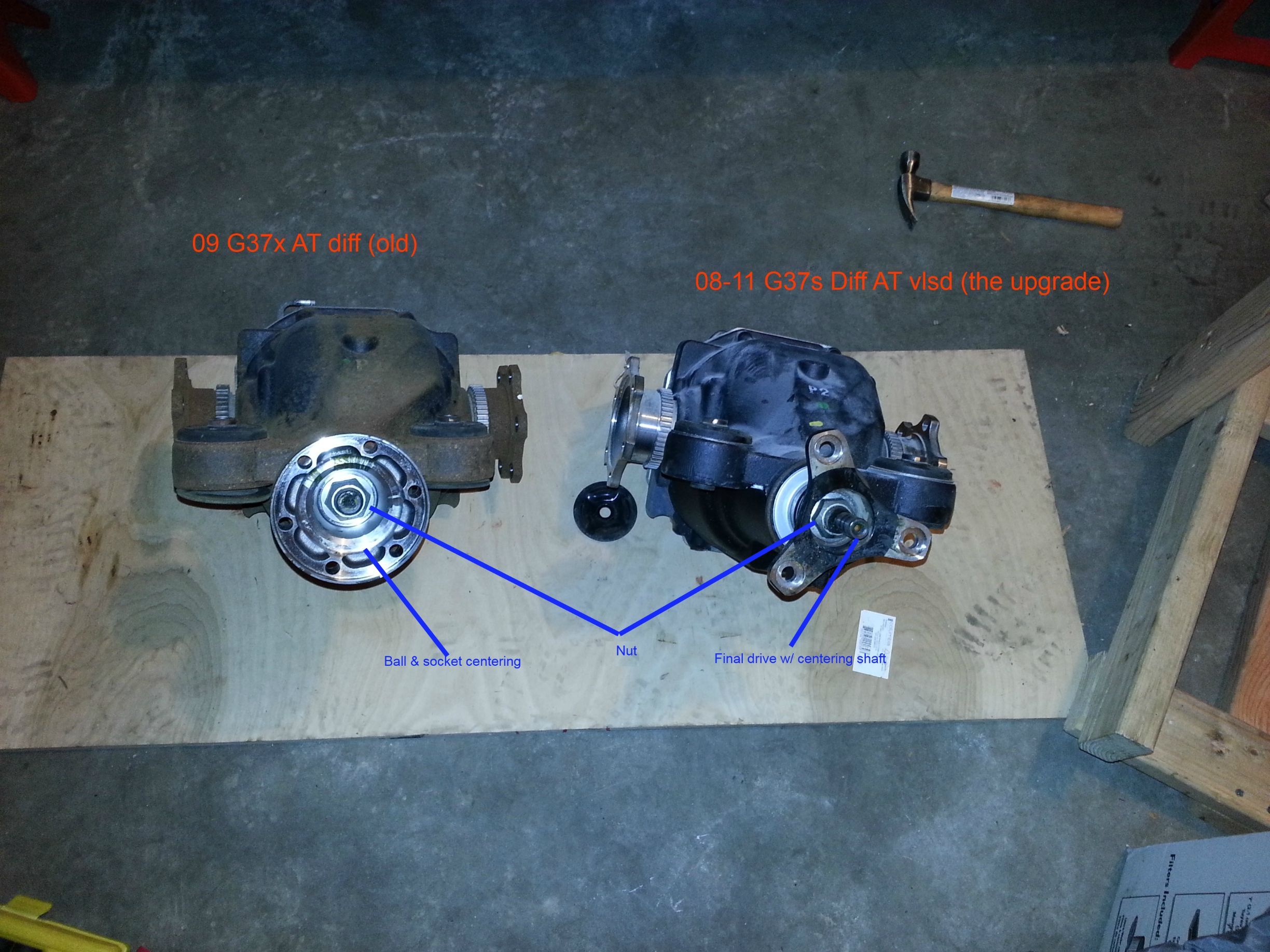

Picture below:
In my case I left about 1/8" of shaft above the top thread. Try to make a clean cut and use a center drill on the shaft for future removal
If you have a 3 bolt flange diff you can only use another 3 bolt flange diff without changing the drive shaft.
Something to note:
if you have a AWD don't change the final drive ratio of the of the rear diff. Your front and rear ratios have to be the same.
Review:
After I installed the VLSD on my X I noticed I can recover from much greater slip angle then it could before. This test was done in snow. Since the AWD already have so much grip in dry conditions I don't see this diff making too much of a differences unless you are going FI or want to be a snow drifter.
The G37 comes in 3 different diff flange type. The X has a 6 bolt flange type. The 7AT rwd has a 3 bolt flange type and the MT has a 4 bolt flange type. IDK anything about the 5AT models.
Due to this we have to make modifications in order to use diff with other flange types.
Here is the secret. All the flanges are interchangeable. There is a center nut on all the flanges. You'll have to measure the amount of torque it takes to loosen this nut and remove it (i think the range was 60ft-lb to 120+ft-lb). Once you have it removed you can use a puller to pull out the flange. The center shaft of the pinion is even center drilled for the use of a puller. Then simply swap the flanges torque the center nut back to your measured spec and install the diff.
The 6 bolt uses a ball and socket to center the drive shaft.
The 4 bolt uses the inter bore of the flange and a lip of the drive shaft.
The 3 bolt uses a extended shaft on the final drive pinion to center the drive shaft.
Due to this you can easily interchange between the 6 and 4 bolt flange types but not 3 bolt.
If you have a 6 or 4 bolt flange diff and want to switch to a diff with 3 bolt flange you'll have to cut off the excess shaft that was used for centering, or else the centering shaft will hit your drive shaft.
Picture below:
In my case I left about 1/8" of shaft above the top thread. Try to make a clean cut and use a center drill on the shaft for future removal
If you have a 3 bolt flange diff you can only use another 3 bolt flange diff without changing the drive shaft.
Something to note:
if you have a AWD don't change the final drive ratio of the of the rear diff. Your front and rear ratios have to be the same.
Review:
After I installed the VLSD on my X I noticed I can recover from much greater slip angle then it could before. This test was done in snow. Since the AWD already have so much grip in dry conditions I don't see this diff making too much of a differences unless you are going FI or want to be a snow drifter.
