*Build Thread* I present Jazzmin
#1
R.I.P *Build Thread* I present Jazzmin
R.I.P 12/12/16
This will be my build thread
2010 G37 No Bose
here she is in all her beauty

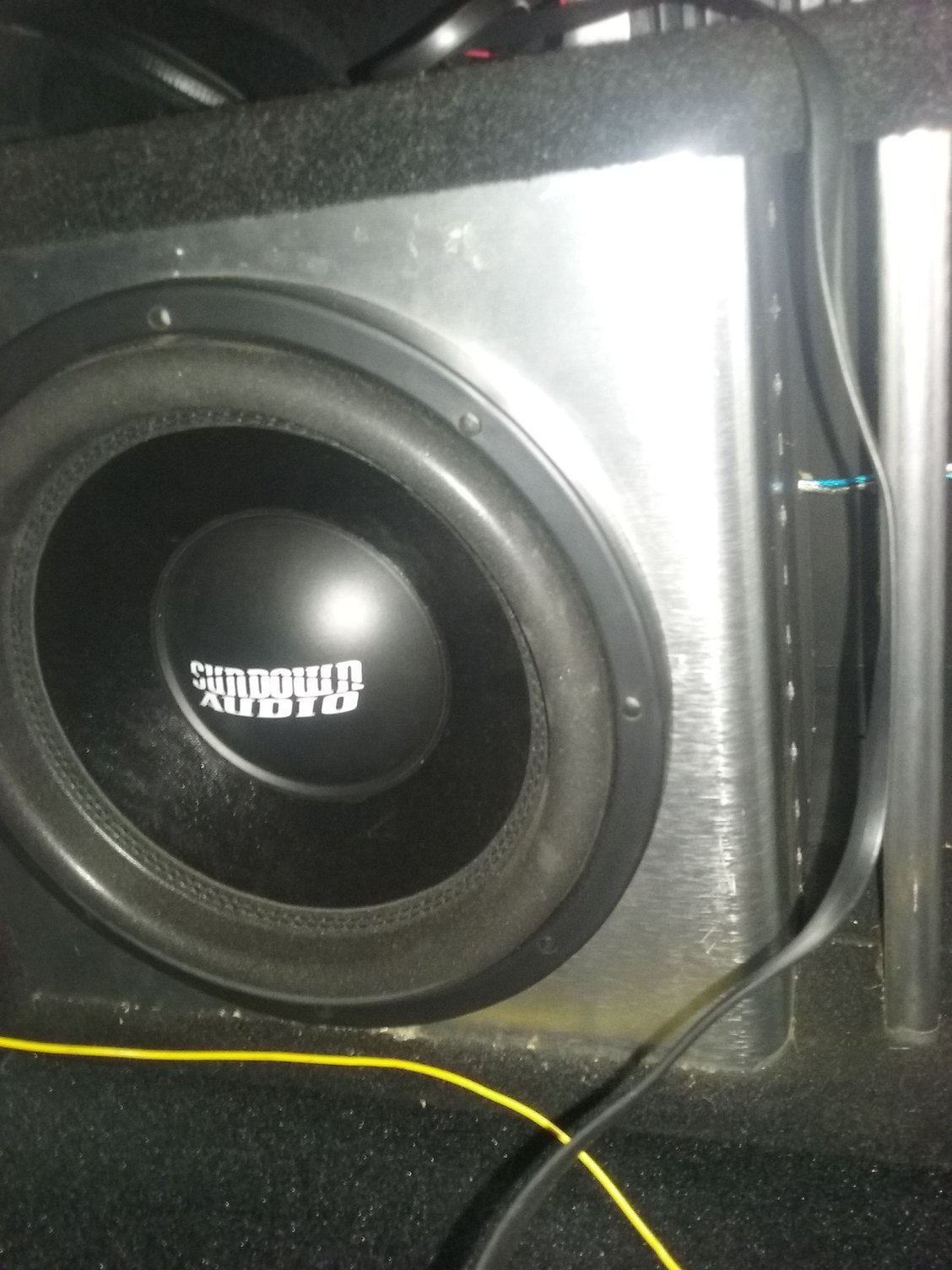

Subs going in
Two Sundown Audio 12,s
Hifonics Brutas 1700d
Subs under carpet facing foward ,no wires ran yet for power started to rain.... got the wire kit ready...prob a tuesday install.
This will be my build thread
2010 G37 No Bose
here she is in all her beauty
Subs going in
Two Sundown Audio 12,s
Hifonics Brutas 1700d
Subs under carpet facing foward ,no wires ran yet for power started to rain.... got the wire kit ready...prob a tuesday install.
Last edited by Jim Bob; 12-12-2016 at 11:14 PM.
#2
*Build Thread* I present Jazzmin
Mock Up In Photoshop Of what my goal is for This Lady
Quad ESSEN
Matte Graphite Silver
FRONT AND REAR
Size: 20x9
(+2 Diameter)
Offset: 40mm
Quad ESSEN
Matte Graphite Silver
FRONT AND REAR
Size: 20x9
(+2 Diameter)
Offset: 40mm
Last edited by Jim Bob; 08-29-2016 at 05:27 AM.
#6
The trunk is normal size as most g37s, i just have a hugeeeee box, it barely fit! As far as spare goes....its there just have to work to get it lol! Im not too worried about it. I barely have time to drive i work so much. But when i do get time to stunt around you know the biz lol! Slammmmmin!
#7
few wet shots before the audio hookup tuesday, picked up some tint aswell need to find some spare time to throw the tint on.
got a couple cans of Black Plastic Dip for the Emblems as well will get more shots soon.
sorry bout the ****ty photos im a cheap *** when it comes to cell phones lol
got a couple cans of Black Plastic Dip for the Emblems as well will get more shots soon.
sorry bout the ****ty photos im a cheap *** when it comes to cell phones lol
Trending Topics
#10
ok got the subs installed, did it myself and everything is working great, i need to get it tuned up and some thicker better wire( it was a quick install)
didnt run into issues except for that STICKY black tar **** behind the door panals my god lmao **** was all over........TIP Mineral Spirits.....came right off....
I will try to get a sound clip and a few snaps , i have the subs pointing towards the seat so have to crawl in there to get some snaps lol sound quality will prob be terrible..(phone) .
btw for future Lookers This was installed using a
2010 Infinti G37 BASE (just door Speakers NO Stock subs As basic as can get)
Hifonics Brutas 1700.1d
(2) 12" SundownAudio SA 12 d2 @ 600 Each
scosche loc2sl(walmart)
Tied Loc into the Door (I used the Right Door Rear) Pink/Blue Wires (used T Taps) right before the Plug on the Door Speakers.
Remote Was tied into the LOC and Ran to the Trunk (Blue Wire On scosche loc2sl) to the AMP
12v Wire on the scosche loc2sl (Yellow) this was ran to the back and Hooked the 12V With the 0 Guage Power) On the AMP
Ground Wire (Black on scosche loc2sl) to a ground Spot Behind the Pillar in the Inside of car
hooked up speakers wires
RCA's ran from the scosche loc2sl to the AMP Inputs.
No problems as of yet.
didnt run into issues except for that STICKY black tar **** behind the door panals my god lmao **** was all over........TIP Mineral Spirits.....came right off....
I will try to get a sound clip and a few snaps , i have the subs pointing towards the seat so have to crawl in there to get some snaps lol sound quality will prob be terrible..(phone) .
btw for future Lookers This was installed using a
2010 Infinti G37 BASE (just door Speakers NO Stock subs As basic as can get)
Hifonics Brutas 1700.1d
(2) 12" SundownAudio SA 12 d2 @ 600 Each
scosche loc2sl(walmart)
Tied Loc into the Door (I used the Right Door Rear) Pink/Blue Wires (used T Taps) right before the Plug on the Door Speakers.
Remote Was tied into the LOC and Ran to the Trunk (Blue Wire On scosche loc2sl) to the AMP
12v Wire on the scosche loc2sl (Yellow) this was ran to the back and Hooked the 12V With the 0 Guage Power) On the AMP
Ground Wire (Black on scosche loc2sl) to a ground Spot Behind the Pillar in the Inside of car
hooked up speakers wires
RCA's ran from the scosche loc2sl to the AMP Inputs.
No problems as of yet.
