Air suspension help
I have been lurking on the sight for a while getting information but this is my first time actually posting. I want to install an air suspension kit on my sedan and I was really looking into the new edno-cvt tank from Accuair. Mainly because of the lack of noise and saving trunk space. I really want to pair it with the airlift performance 3P system as I don't want to install height sensors if I don't have to, at least for now. If anyone has information on if that is possible please let me know. If not I was wondering if anyone had insight on what would be a good setup to save space and minimize noise in the cabin with a tank + compressor setup.
#2
Premier Member
iTrader: (13)
what size gallon tank are you getting? the compressors are what make the noise not the tank tho. I have Dual Viair 444C Compressors with compressor silencers and it's not bad on the noise. If you are listening to music you'll hardly hear it, it's like a quiet hum in the background.

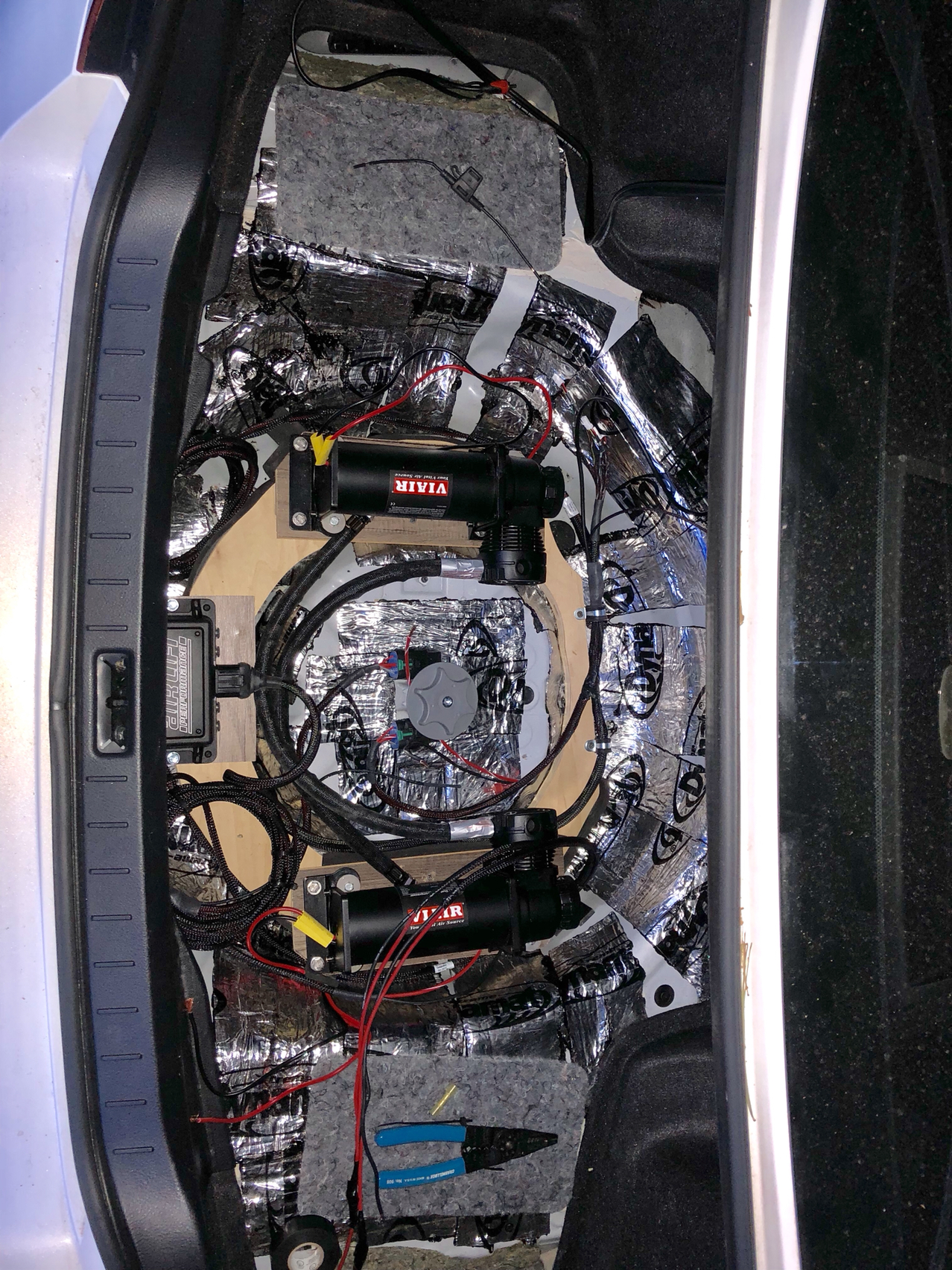

I have a simple setup. my tank is 4 gallons and I put a pic below, since you have a sedan you should have more space than me.
I have a simple setup. my tank is 4 gallons and I put a pic below, since you have a sedan you should have more space than me.
Last edited by Vizard_87; 07-03-2018 at 10:58 AM.
#3
Thank you for the reply. I was thinking of running with a 5 gallon tank to hopefully increase the time that the compressors off. I always have music on so if it is just a hum in the background it should work for me. I do like how minimal your setup is, I was thinking of running something similar with a dual compressor setup but hoping to mount the compressors over the tank.
#4
Registered User
Currently installing air ride right now (by myself) figured I'm too OCD to rely on a shop to get the job done to my standards.
Anyways, I went with the endo-t5 which is the 5 gallon tank only. I could always upgrade to the CTV if I wanted to but I just liked the look of the tank and the engineering.
Went with airlift 3P+H - height sensors aren't bad to install. I thought they would be but I think I got them in right.

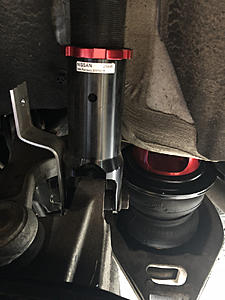

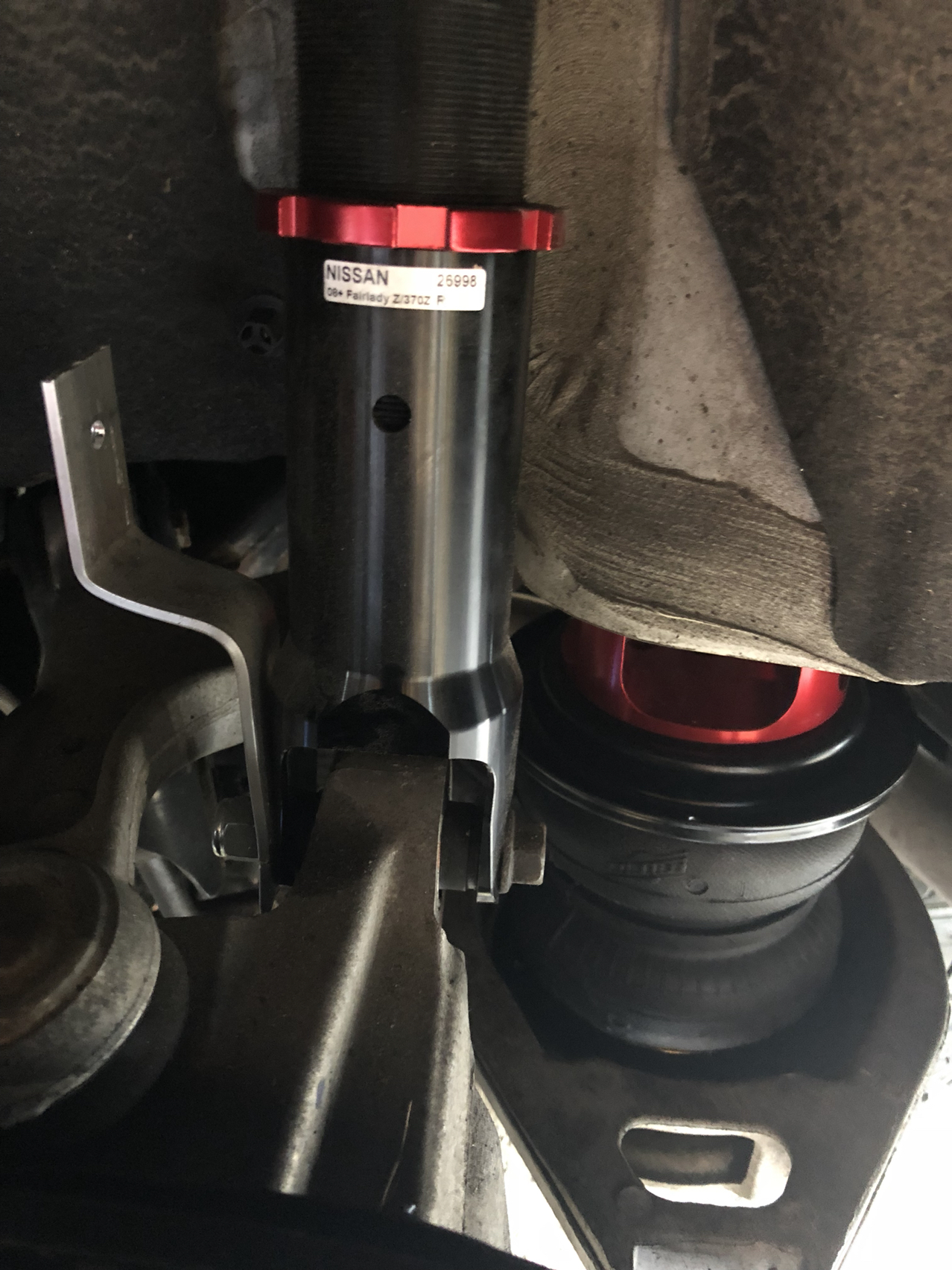

I made brackets for the height sensors so I didn't have to drill into the suspension in the back. Haven't done the fronts yet.
I removed my spare tire since it's useless to me anyways im on 19's so I made a bracket and mounted both viair 480c's to that on isolator mounts. I don't have any good pictures of the trunk setup but here is an old old picture during planning stages.

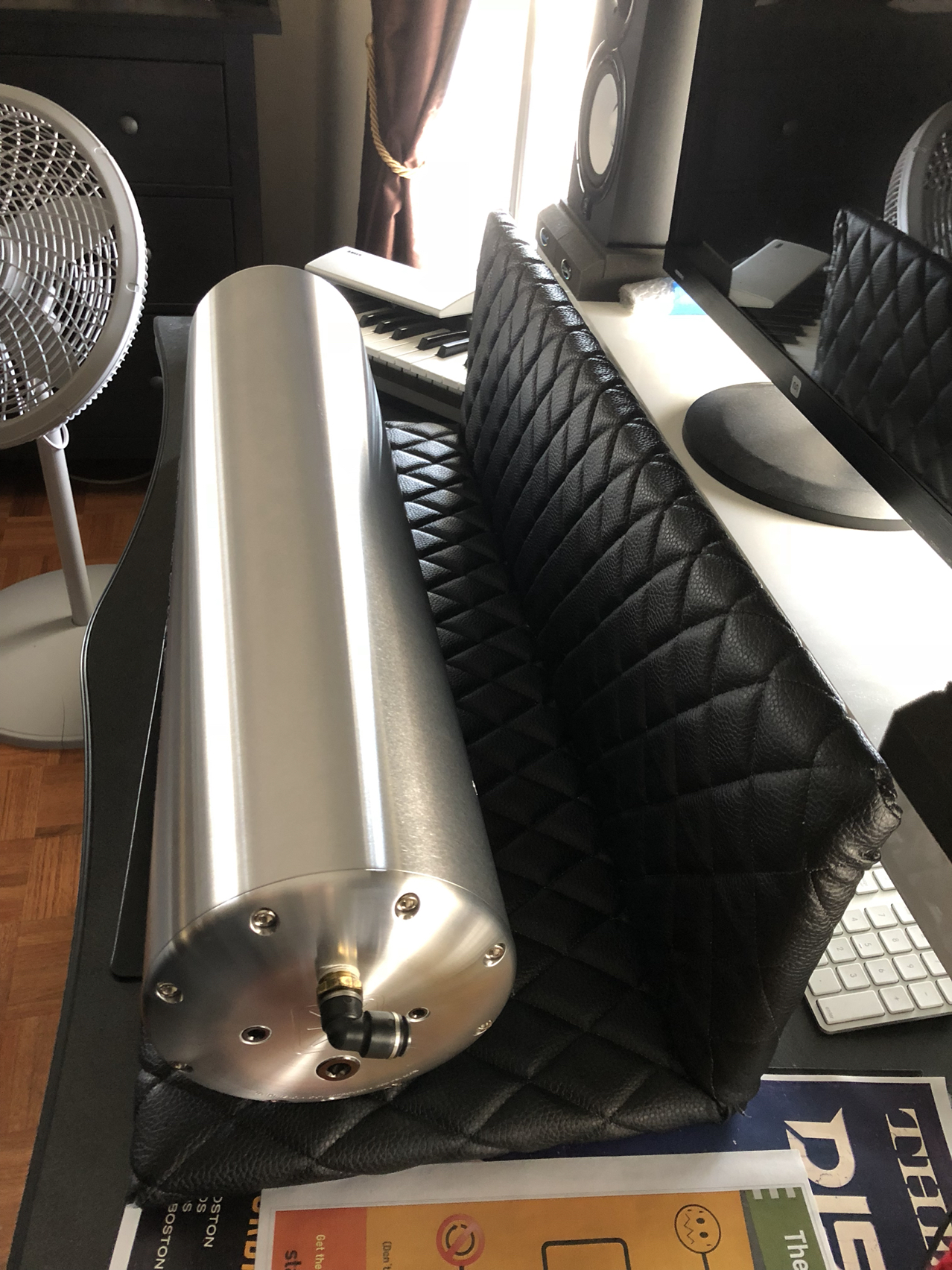

This is my tank setup, built this out of some wood and some diamond stitch leather.
Anyways, I went with the endo-t5 which is the 5 gallon tank only. I could always upgrade to the CTV if I wanted to but I just liked the look of the tank and the engineering.
Went with airlift 3P+H - height sensors aren't bad to install. I thought they would be but I think I got them in right.
I made brackets for the height sensors so I didn't have to drill into the suspension in the back. Haven't done the fronts yet.
I removed my spare tire since it's useless to me anyways im on 19's so I made a bracket and mounted both viair 480c's to that on isolator mounts. I don't have any good pictures of the trunk setup but here is an old old picture during planning stages.
This is my tank setup, built this out of some wood and some diamond stitch leather.
#5
what size gallon tank are you getting? the compressors are what make the noise not the tank tho. I have Dual Viair 444C Compressors with compressor silencers and it's not bad on the noise. If you are listening to music you'll hardly hear it, it's like a quiet hum in the background.
I have a simple setup. my tank is 4 gallons and I put a pic below, since you have a sedan you should have more space than me.
I have a simple setup. my tank is 4 gallons and I put a pic below, since you have a sedan you should have more space than me.
#6
Help Needed For my setup
Recently bought a 3p kit but im unsure if it was a steal or a was i finessed. it came with 2 compressors, a tank(unsure how many gallons), All of the wiring and controller with the manifold, 2 front struts, and 2 rear bags with plates, what im concerned about is how i didn’t get 2 rear struts. Can anyone inform me on complications regarding running stock rear struts with the rear bags.
