Voltmeter in Ash Tray Mod

Notices
Audio, Video & Electronics Reviews on G Audio, Video, and Electronics.

Voltmeter in Ash Tray Mod

Reply




Old 12-06-2015, 03:32 PM
  #1
runzgood
Registered User
Thread Starter

Join Date: Nov 2015
Location: SoCal
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
Voltmeter in Ash Tray Mod

After reading several discussions regarding battery charging problems and related issues, I thought I’d look into adding a voltmeter to my ’09 coupe. I found the kind you can plug into your cigarette lighter with a digital LED display (and sometimes a USB charging port), but also found small rectangular digital panel meters that just happen to fit exactly into the car’s removable ash tray. Because the tray is right next to the 12 volt socket for the lighter, I used a DIY male accessory plug to power the meter. This is, admittedly, not an essential upgrade modification, in that unless you suspect your alternator, voltage regulator system, and / or battery is becoming defective, monitoring the electrical system’s voltage on an ongoing basis won’t tell you much. But the meter / plug are instantly removable and the installation is very easy, requiring no modification of the ash tray. It’s almost “plug and play,” literally. You could also use it temporarily in other vehicles, golf carts, etc. The installation looks neat and clean, except you can see a small portion of the wires connecting the meter to the plug. If you can find a fused accessory plug short enough (i.e., no longer than the OEM cigarette lighter), you can even close the ash tray / lighter door with the meter inside.

If you’re interested in making this, use a Drok brand mini LED digital meter. There are similar meters available from different manufacturers, but they have slightly different physical dimensions, and may not fit exactly in the receptacle. I used a small piece of black electrical tape on the top and bottom of the meter to make it fit snugly. I tried blue digits at first but they were too bright at night. Red works fine, both day and night. The meters also come w/ green or yellow digits. The Droks are available from several sellers on eBay for about $11 and I got mine from a U.S. shipper (fanteller) to decrease shipping time. Also on-line there are a variety of male accessory plugs available, but the typical ones are fairly long. I found a very short one with a right-angle connector for the wires at a local electronics supply store (Philmore#48-785, LKG Industries, Rockford, IL, $3 in the store). I haven’t searched for it on-line; the shortest one is needed only if you want to be able to close the ash tray door). Usually the plugs have small screws inside for connecting wires, but the Philmore does not. You will need to solder the wires directly to the connectors. Conveniently, the wires from the meter easily reach the plug connectors. Remember to observe polarity: red wire to the end connector, black to the side connectors.
Attached Thumbnails Voltmeter in Ash Tray Mod-vm-pic-in-1.jpg   Voltmeter in Ash Tray Mod-vm-pic-in-2.jpg   Voltmeter in Ash Tray Mod-vm-pic-out-1.jpg   Voltmeter in Ash Tray Mod-vm-pic-out-2.jpg

Last edited by runzgood; 12-06-2015 at 11:12 PM. Reason: missing word
runzgood is offline
Reply With Quote
The Following User Says Thank You to runzgood For This Useful Post:
KAHBOOM (12-09-2015)
Old 12-06-2015, 04:04 PM
  #2
Landshark
Registered User

Landshark's Avatar

Join Date: Aug 2015
Posts: 1,333
Thanked 172 Times in 135 Posts
they make voltmeters that plug directly into the 12V socket. some even have USB outlets to charge your phone, etc.

the trick would be to find one low profile enough that allows the door to close.

Landshark is offline
Reply With Quote
Old 12-06-2015, 05:57 PM
  #3
xnick101
Registered User
iTrader: (3)

xnick101's Avatar

Join Date: Jul 2014
Location: Tampa, FL
Posts: 722
Thanked 66 Times in 57 Posts
Really cool! Wish I could have it display Oil Temp
xnick101 is offline
Reply With Quote
Old 12-06-2015, 11:19 PM
  #4
runzgood
Registered User
Thread Starter

Join Date: Nov 2015
Location: SoCal
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by Landshark View Post
they make voltmeters that plug directly into the 12V socket. some even have USB outlets to charge your phone, etc.

the trick would be to find one low profile enough that allows the door to close.

Right. There are some very compact and short USB port plugs. If I can find one I can get into without destroying it, the meter could be connected to the 12 volt input and then that could be used instead of the accessory plug. That would be neat, more functional, and the door could be closed also.
runzgood is offline
Reply With Quote
Old 12-09-2015, 12:05 PM
  #5
KAHBOOM
Super Moderator of Pwnage
iTrader: (4)

KAHBOOM's Avatar

Join Date: Jun 2003
Location: NC
Posts: 2,686
Thanked 187 Times in 134 Posts
Appreciate your contribution of this information to the forums. I am going to move the thread however to the tech area and include a redirect.
KAHBOOM is offline
Reply With Quote
Old 12-10-2015, 02:22 AM
  #6
runzgood
Registered User
Thread Starter

Join Date: Nov 2015
Location: SoCal
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by KAHBOOM View Post
Appreciate your contribution of this information to the forums. I am going to move the thread however to the tech area and include a redirect.
Thanks -- I wasn't sure where it would go best so glad to find out.
runzgood is offline
Reply With Quote
Old 06-23-2017, 03:35 PM
  #7
bmarshall8
Registered User

Join Date: Jun 2017
Posts: 18
Thanks: 0
Thanked 1 Time in 1 Post
I like this little mod. It's subtle, and looks like the lid will securely close and hide it if needed. Thanks for sharing.
bmarshall8 is offline
Reply With Quote
Old 06-22-2018, 11:46 AM
  #8
F13SC
Registered User

Join Date: Jan 2018
Posts: 305
Thanked 95 Times in 67 Posts
little different

F13SC is offline
Reply With Quote
Old 06-22-2018, 01:58 PM
  #9
Entcee
Premier Member
iTrader: (2)

Entcee's Avatar

Join Date: Oct 2016
Location: Mooresville, NC
Posts: 483
Thanked 88 Times in 63 Posts
Another one that's a little different. Sorry it's blurry.

Entcee is offline
Reply With Quote
The Following User Says Thank You to Entcee For This Useful Post:
F13SC (06-22-2018)
Old 06-22-2018, 03:59 PM
  #10
slartibartfast
Super Moderator
iTrader: (7)

Join Date: Oct 2014
Location: Houston, Tx
Posts: 4,483
Thanked 497 Times in 440 Posts
Too bad it'd be a PITA to do oil pressure like that. Otherwise...
slartibartfast is offline
Reply With Quote
Old 06-22-2018, 10:16 PM
  #11
rheng
Registered User

Join Date: Jun 2018
Posts: 14
Thanks: 0
Thanked 1 Time in 1 Post
Although it may have limited usefulness for some people, cool mod nonetheless! Love seeing clean DIY stuff!
rheng is offline
Reply With Quote
Old 07-05-2018, 08:26 AM
  #12
telcoman
Registered User

Join Date: Sep 2012
Location: NJ
Posts: 1,493
Thanked 124 Times in 106 Posts

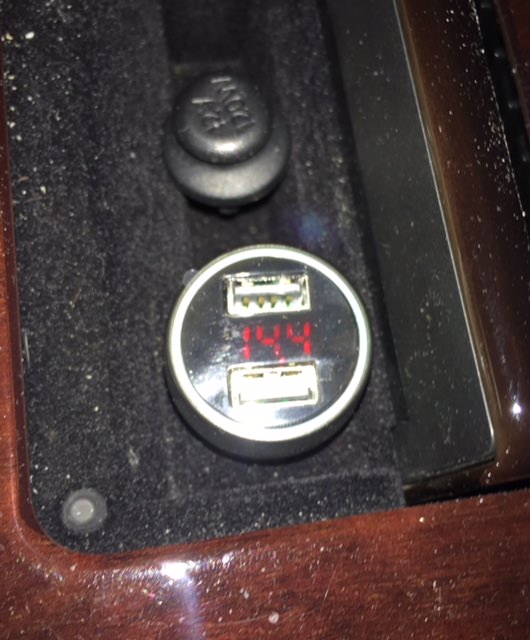

Ordered mine on Amazon for my Q70 includes two USB ports



Amazon Amazon




Charging voltage is 14.4v upon startup and drops to 12.9v shortly thereafter

Telcoman
telcoman is offline
Reply With Quote
Old 07-06-2018, 05:35 PM
  #13
F13SC
Registered User

Join Date: Jan 2018
Posts: 305
Thanked 95 Times in 67 Posts
Now with real carbon fiber clock too

Last edited by F13SC; 10-03-2018 at 01:09 AM.
F13SC is offline
Reply With Quote
Old 07-12-2018, 12:35 AM
  #14
Gio37
Registered User
iTrader: (1)

Join Date: Nov 2011
Location: Happiest Place on Earth
Posts: 1,338
Thanked 224 Times in 151 Posts
Found it

Gio37 is offline
Reply With Quote
Old 09-10-2018, 12:47 AM
  #15
F13SC
Registered User

Join Date: Jan 2018
Posts: 305
Thanked 95 Times in 67 Posts
updated the center again

F13SC is offline
Reply With Quote
