Well, here she is in all her glory. My friend's G37 is now done and made to compete in SQ (IASCA). It has done quite well! I did about 95% of the work with some help from my buddy.

The gear:
2 X Digital Designs 9112's (D4) Sound Quality subwoofers
1 X Digital Designs M3 amplifier. 2400 watts @ 1ohm
1 X Digital Designs S4 staggered amp 2 X 200 and 2 X 100 watts for the fronts (bi-amped at the crossover)
1 X set of Macrom Extreme 6.5's in custom door baffles
1/0 Streetwires power wire
MTX RE-Q for now for hi-low and eq stabilization
10 layers fibreglass top panel and 3/4" - 1" MDF for the lower box portion
Custom MicraLED 6 mm and 12 mm LED strips
Custom Lexan framing panel
Custom synthetic suede top panel
20 sheets of Hushmat for doors and trunk area
Alarm? A very good one!
Retarded amounts of hours involved!

Starting the bottom of the enclosure. I made it so the bottom was removable so I could glass the top part from the inside. Makes for easier smoothing out of the fleece top with a skim coat of body filler.

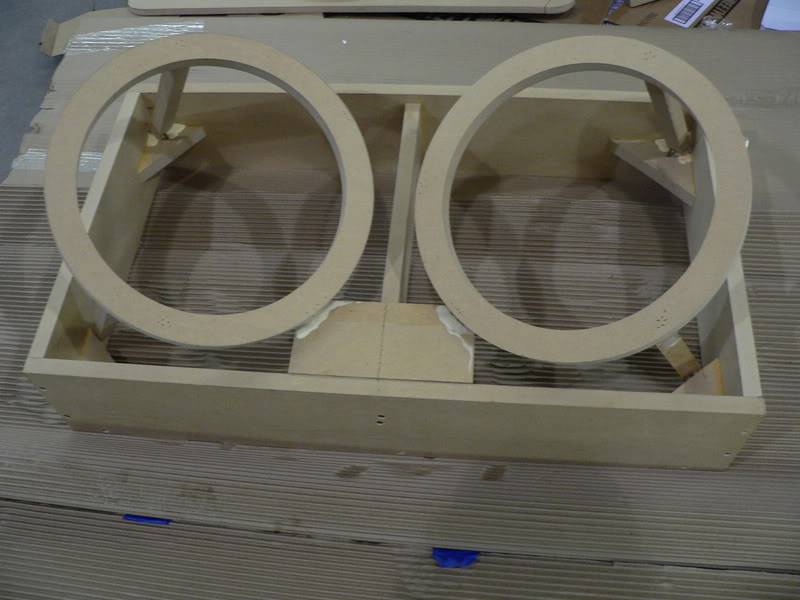

Placing the rings properly took a while


High quality fleece stretched and stapled

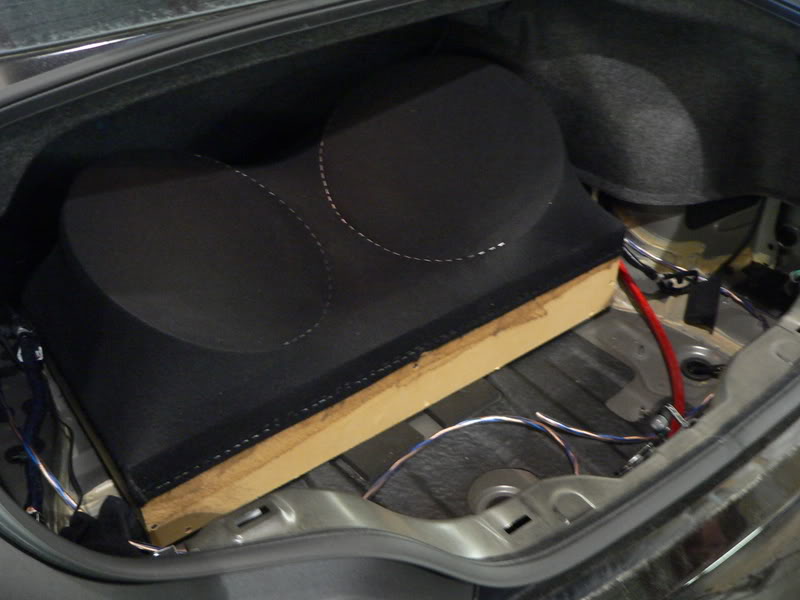

Checking the fitment


Skim coats of Icing and sand, sand, sand!


Massive baffle for the Macrom Extremes

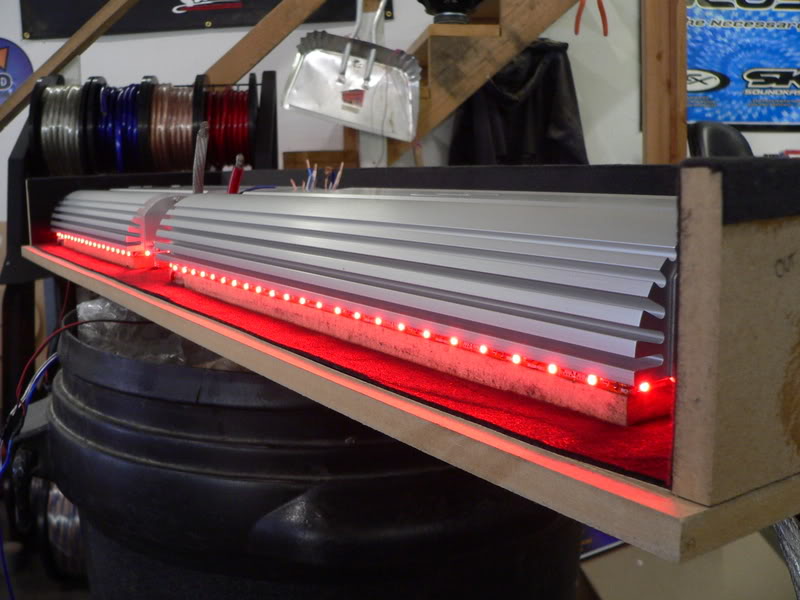

6 mm underlighting to 'float' the amps




Everything in its place - 'cept the top panel!


3 piece top panel fitting


12 mm lighting for the 1/2" Lexan


So bright!

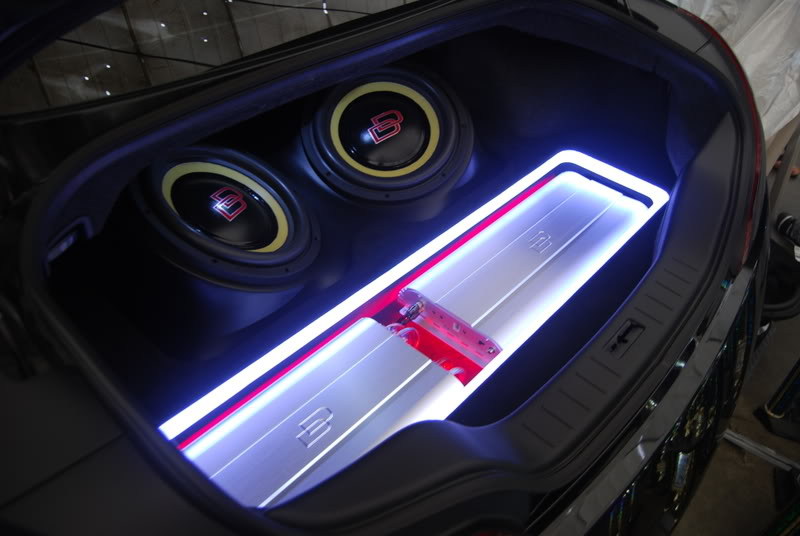

And a wide shot


3 first place trophies for IASCA competing
1 3rd place trophy for IDBL at 136.1 DB
Highest points on SQ and install in IASCA judging for all three competitions



LOOKS SWEET love the rims too i was going to get them.



wow that looks freaking amazing..awesome job man



Nice job, bro. Looks fantastic.



That's some serious craftsmanship right there-
Excellent work.

This LA judge awards you all 10's all day.

Bravo-Thank you and good night from LA.

-Mango-



nice work

hoping to do some fiberglass in my trunk later this year

any details on how it's wired up? i haven't looked into it yet



Very nice work!



looks great, is it connected to a aftermarket head unit or something?



Factory head unit and using the MTX RE-Q as the hi-low converter. Looking into the Rockford 360.2 to replace it though. Everything is tuned to the volume of the centre channel (BT unit) so there are some EQ limitations but otherwise it sounds brilliant. Incredible mid-bass response and because the tweets are soft dome, its very warm and realistic sounding.

Thanks for the compliments guys!



very nice



wow. looks really good.



Looks really good. Looks like you might have room back there for a golf bag as well.



looks sick.

great job



That is some truly beautiful craftsmanship! I'm still putting my gear together peice by piece so the wife has no idea of how much I'm spending on the audio build. I have no desire to compete, I just want pure sonic purity and as much stealth as possible. Where are you located? If you're anywhere close to Houston or travel here from time to time, I've got a job for you!

So far Ive acquired:
Rockford 360.2
(2) ID10v.3
DLS Ultimate Iridium 6.2


I just need sound dampening, wiring (I have some of it) and amplification (Alpine PDX-4.100 and PDX-1.600). Come do my stealth install!



Nice ... The First major G37 Audio build... Kudos...

How bout a Nice DIY on Fibgerglassing sub boxes for our members here on Myg37?
