DIY: Aftermarket Steering Wheel & Hub Install
#2
STEP 1 : OEM PREPARATION AND BATTERY
Ensure that you center your steering wheel before beginning installation and (most importantly) disconnect the battery. Allow some time to pass so the electric can drain out of the system. You can hold the brake down to assist this.
STEP 2 : REMOVE AIRBAG ASSEMBLY
Pop the plastic covers off the side of the OEM steering wheel with a flat surface. This exposes the T30 tamper proof screws for the airbag assembly. Use a T30 tamper proof bit to remove these (if you have works bell items they provide the T30 tool, so don't buy a set like I did)
Slowly side the airbag assembly out. This is why the electric was drained. You DO NOT want this blowing up in your face.
Disconnect the airbag assembly wiring harness clips.
Ensure that you center your steering wheel before beginning installation and (most importantly) disconnect the battery. Allow some time to pass so the electric can drain out of the system. You can hold the brake down to assist this.
STEP 2 : REMOVE AIRBAG ASSEMBLY
Pop the plastic covers off the side of the OEM steering wheel with a flat surface. This exposes the T30 tamper proof screws for the airbag assembly. Use a T30 tamper proof bit to remove these (if you have works bell items they provide the T30 tool, so don't buy a set like I did)
Slowly side the airbag assembly out. This is why the electric was drained. You DO NOT want this blowing up in your face.
Disconnect the airbag assembly wiring harness clips.
Last edited by Lt8Che; 07-31-2016 at 03:02 PM.
#3

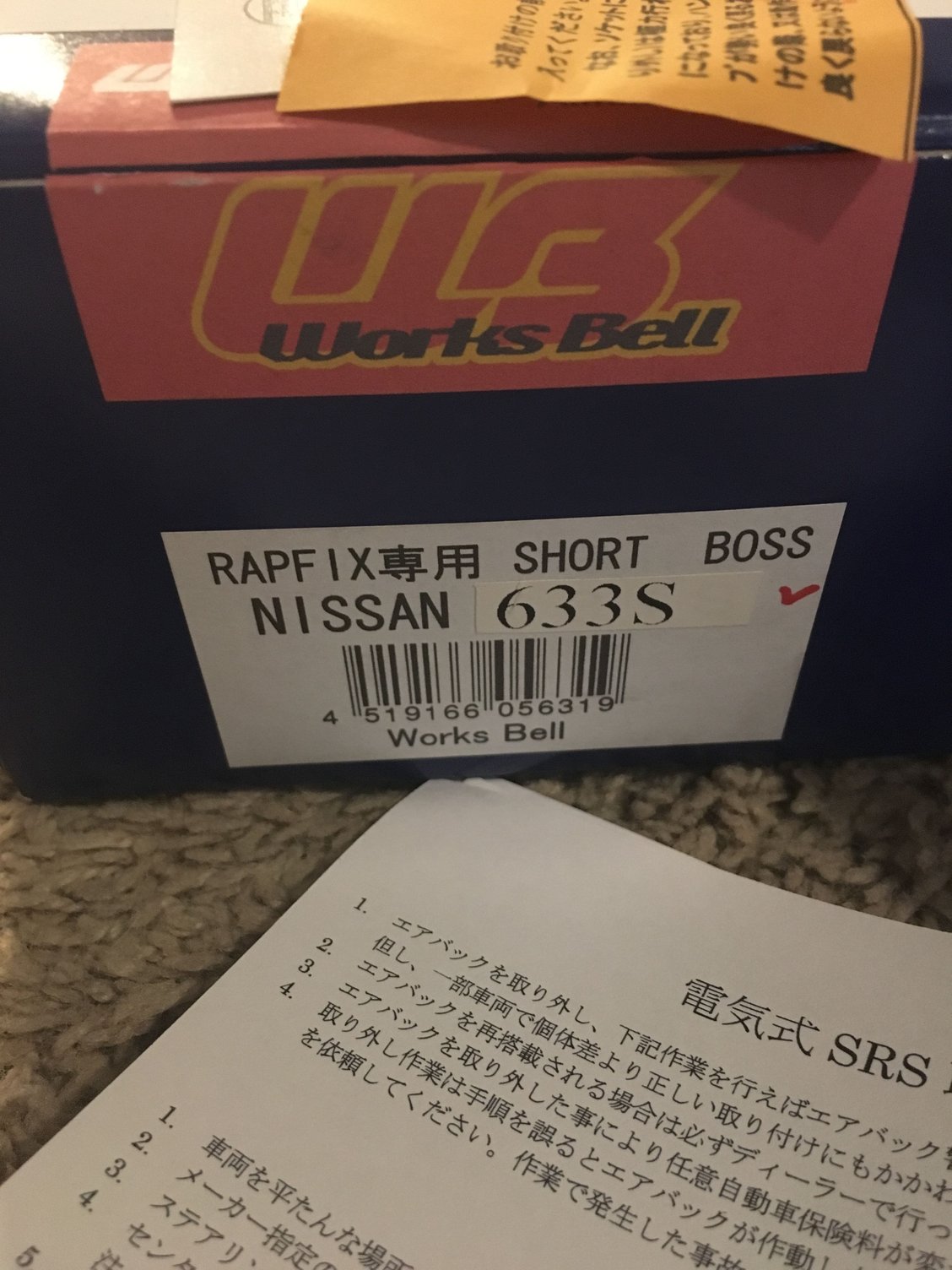

STEP 3 : INSTALL PROVIDED AIRBAG RELAYS / UNPLUG OEM HARNESS
Works Bell Provided Relays (Keeps Airbag Light Off)
Push the airbag relay in and close the clips.
OEM Harness Locations
Unclip these for use with the hub.
STEP 4 : REMOVE OEM STEERING WHEEL
Use 19mm Long Socket to Remove the Center Nut
Wiggle the Steering Wheel Off
Works Bell Provided Relays (Keeps Airbag Light Off)
Push the airbag relay in and close the clips.
OEM Harness Locations
Unclip these for use with the hub.
STEP 4 : REMOVE OEM STEERING WHEEL
Use 19mm Long Socket to Remove the Center Nut
Wiggle the Steering Wheel Off
Last edited by Lt8Che; 07-31-2016 at 03:16 PM.
#6
STEP 7 : INSTALL QUICK RELEASE AND STEERING WHEEL
Place the other half of the quick release on.
Place ground ring between quick release and steering wheel.

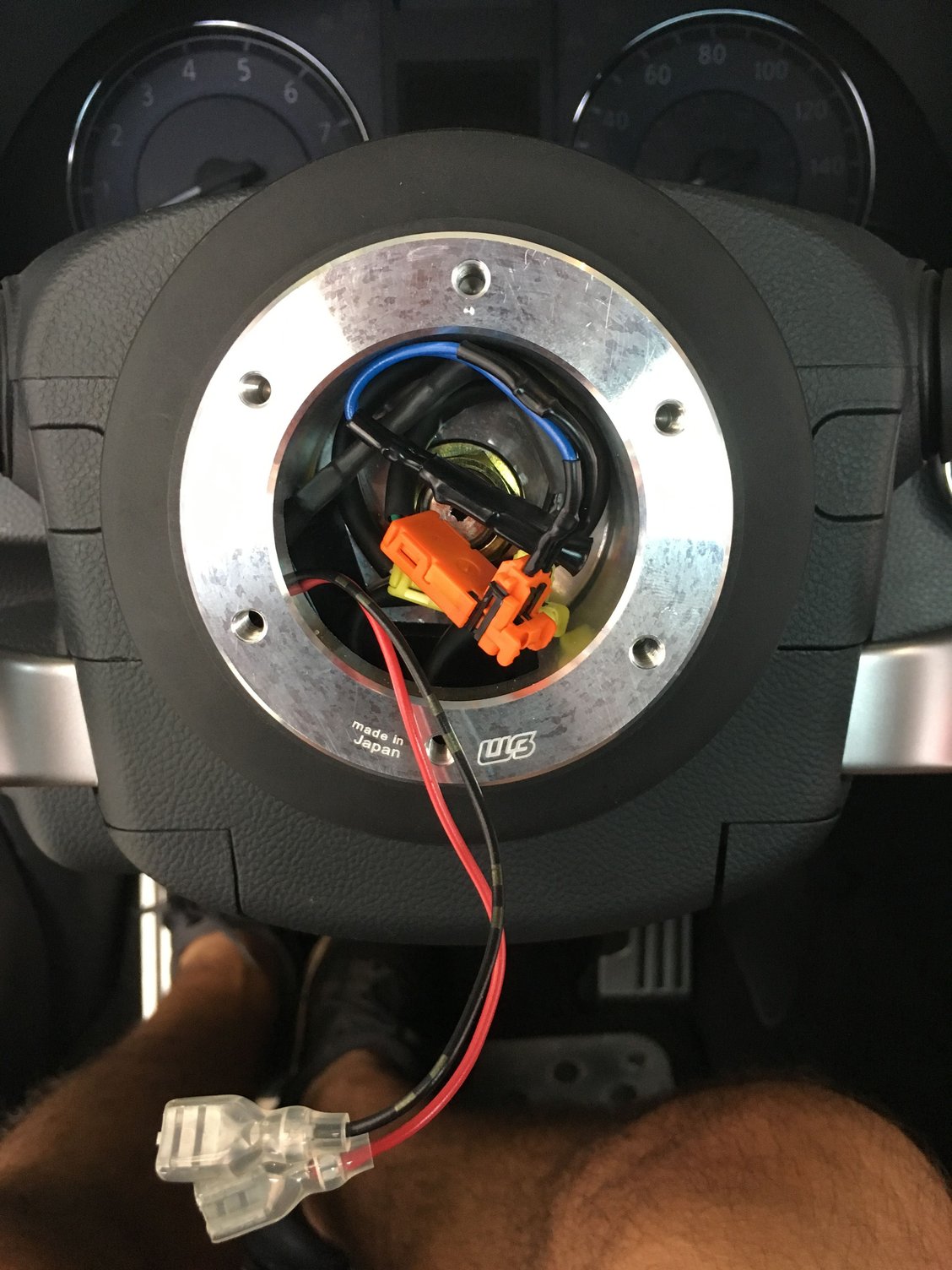

Use allen screws to secure steering wheel to quick release. Ground black wire and connect red wire to horn.
Place the other half of the quick release on.
Place ground ring between quick release and steering wheel.
Use allen screws to secure steering wheel to quick release. Ground black wire and connect red wire to horn.
