Old 06-11-2018, 08:21 PM
  #166
guy from norcal
Registered User
iTrader: (2)

guy from norcal's Avatar

Join Date: Jun 2012
Location: Sacramento,Ca
Posts: 1,819
Thanked 332 Times in 303 Posts
I assume i could get a g35 diff RWD and swap out mine? (non X)
guy from norcal is offline
Reply With Quote
Old 06-12-2018, 07:11 AM
  #167
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts
Originally Posted by guy from norcal View Post
I assume i could get a g35 diff RWD and swap out mine? (non X)
By having a none x (no awd) you sir lucked out. It’s alot harder to do the front diff and rear diff than rear. None the less both. I’would look at Z1 Motorsports website and just do their rear diff package and pick out what all options you want.

You have a bunch of options in gearing to go to being just rwd. I think you can choose all the way down to 3.1 final drive and all the way up to 4.08. If I was you, I would read some of the reviews for the 3:9/4.08 gears. Some people really love it. 3.69 is as high as it goes for the x, without being extremely expensive.
lorentzoe45 is offline
Reply With Quote
The Following User Says Thank You to lorentzoe45 For This Useful Post:
guy from norcal (06-13-2018)
Old 06-13-2018, 12:13 PM
  #168
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts
Fast intentions said “flex plate is roughly 2 pounds heavier than OEM due to it being sold aluminum with no window cuts.”

I’m sure it’s a typo and it ment to say “solid” instead of sold. Just a fun fact. I thought it would be lighter until I held them side by side. I know it’s only 2 lbs but weird enough you can actually tell a difference in weight. Lol I was told if I’m worried about the weight, loose it somewhere else hahahahaha



lorentzoe45 is offline
Reply With Quote
Old 06-13-2018, 11:09 PM
  #169
Invaderzim
Registered User

Join Date: Nov 2015
Posts: 139
Thanked 13 Times in 12 Posts
When is she supposed to be done?
Invaderzim is offline
Reply With Quote
Old 06-21-2018, 06:35 PM
  #170
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts
Originally Posted by Invaderzim View Post
When is she supposed to be done?
So the trans is done today!!!! It’s built and just needs to be filled up with 11qts oem matic s (level 10 calibrates transmission to run off of this fluid not anything else). $900 labor for install parts into trans.
Breakdown. Paid $500 for a 7at trans, bought exedy clutch kit $500, level 10 vb and tq converter was $1800, and the flex plate $800. I saved around $1000 out the door building the trans myself locally. Yes I saved money because I’m sure level 10 would of done more work to hold more power but I will never see more than 550 whp on this car so I saved that $1000 to buy another nitrous kit. Could of just done the level 10 bullet proof trans for 5k. Still would of had to buy fluid and the $800 flex plate but that’s it. Pat from level 10 laughed when I asked him if this setup will hold a 150 shot of nitrous and extreme daily abuse. Definitely no issue. Also didn’t opt for the custom shims from fast intentions since I’ll be no where near a place where I would need them.

Now we are working out the diff and other small tasks. Got a lsd rear diff going in, wondering how that’s going to feel compared to my open rear diff I have now.
What all is getting done.
Run a good ground for trans
Raise headlights up
Heat wrap headers/test pipes
Trans/power steering cooler install
Replace power steering pressure switch
Sub frame collars
Install z1 motor mounts ([email protected] promised me they would fit)
Custom mount a black mishimoto universal coolant reservoir
Fix the a/c (won’t charge Freon blows hot air but compressor works)
Install z1 master cylinder brace
Swap the correct rib count serp belt and inspect all the pulleys with belt off
Flex plate install
Swap diffs and bushings
Swap built trans back into car
Power steering boot leak. Fix both sides.
Also Uprev shows a code of p0550 (power steering pressure sensor) so replace that also.
Make car more aero/braces underneath

Going to ride out the stock driveshaft till the new one comes in. Haven’t ordered yet. Making sure measuremenrs don’t change since I changed the diffs. Also curious if I lost weight between the g35 diffs and my g37x diffs. The g35 ones are extremely light. Haven’t held the g37x ones yet they might be just as light.
lorentzoe45 is offline
Reply With Quote
Old 06-21-2018, 07:38 PM
  #171
GdaddyNY
Registered User

GdaddyNY's Avatar

Join Date: Nov 2017
Location: NY, New York
Posts: 161
Thanks: 0
Thanked 18 Times in 18 Posts
Eagerly awaiting review of the G35 diff/gearing change. I may possibly be more excited than you are. I have diffs available to me, just awaiting news on your build to drop the hammer on them.
GdaddyNY is offline
Reply With Quote
Old 06-21-2018, 08:12 PM
  #172
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts
Originally Posted by GdaddyNY View Post
Eagerly awaiting review of the G35 diff/gearing change. I may possibly be more excited than you are. I have diffs available to me, just awaiting news on your build to drop the hammer on them.
Zer099 has completed the swap already. He’s local to me also. He has a lot of knowledge on the swap. My mechanic says he has swapped front diff before and had no issues. Quoted around 600-700 labor to swap front and rear diffs and bushings. I was assured these diffs will work. But we’ll see, I’ll let you know. Should have it back in a week. Lol lots of hiccups so far but it happens when you go this far down the rabbit hole lol
lorentzoe45 is offline
Reply With Quote
Old 06-21-2018, 08:14 PM
  #173
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts
Only issue not resolved yet on this build is the one piece rear driveshaft.
lorentzoe45 is offline
Reply With Quote
Old 06-21-2018, 10:51 PM
  #174
GdaddyNY
Registered User

GdaddyNY's Avatar

Join Date: Nov 2017
Location: NY, New York
Posts: 161
Thanks: 0
Thanked 18 Times in 18 Posts
Originally Posted by lorentzoe45 View Post


Zer099 has completed the swap already. He’s local to me also. He has a lot of knowledge on the swap. My mechanic says he has swapped front diff before and had no issues. Quoted around 600-700 labor to swap front and rear diffs and bushings. I was assured these diffs will work. But we’ll see, I’ll let you know. Should have it back in a week. Lol lots of hiccups so far but it happens when you go this far down the rabbit hole lol
Yeah man. You’re going foot to the wood with the drivetrain. I am just so curious to see how the gear ratio change goes.
GdaddyNY is offline
Reply With Quote
Old 06-22-2018, 12:15 AM
  #175
Invaderzim
Registered User

Join Date: Nov 2015
Posts: 139
Thanked 13 Times in 12 Posts
Very exciting watching this build come together. So much usefull info. Thanks once again!
Invaderzim is offline
Reply With Quote
Old 06-28-2018, 01:31 PM
  #176
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts
Originally Posted by Invaderzim View Post
Very exciting watching this build come together. So much usefull info. Thanks once again!
No problem!
lorentzoe45 is offline
Reply With Quote
Old 06-28-2018, 01:39 PM
  #177
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts

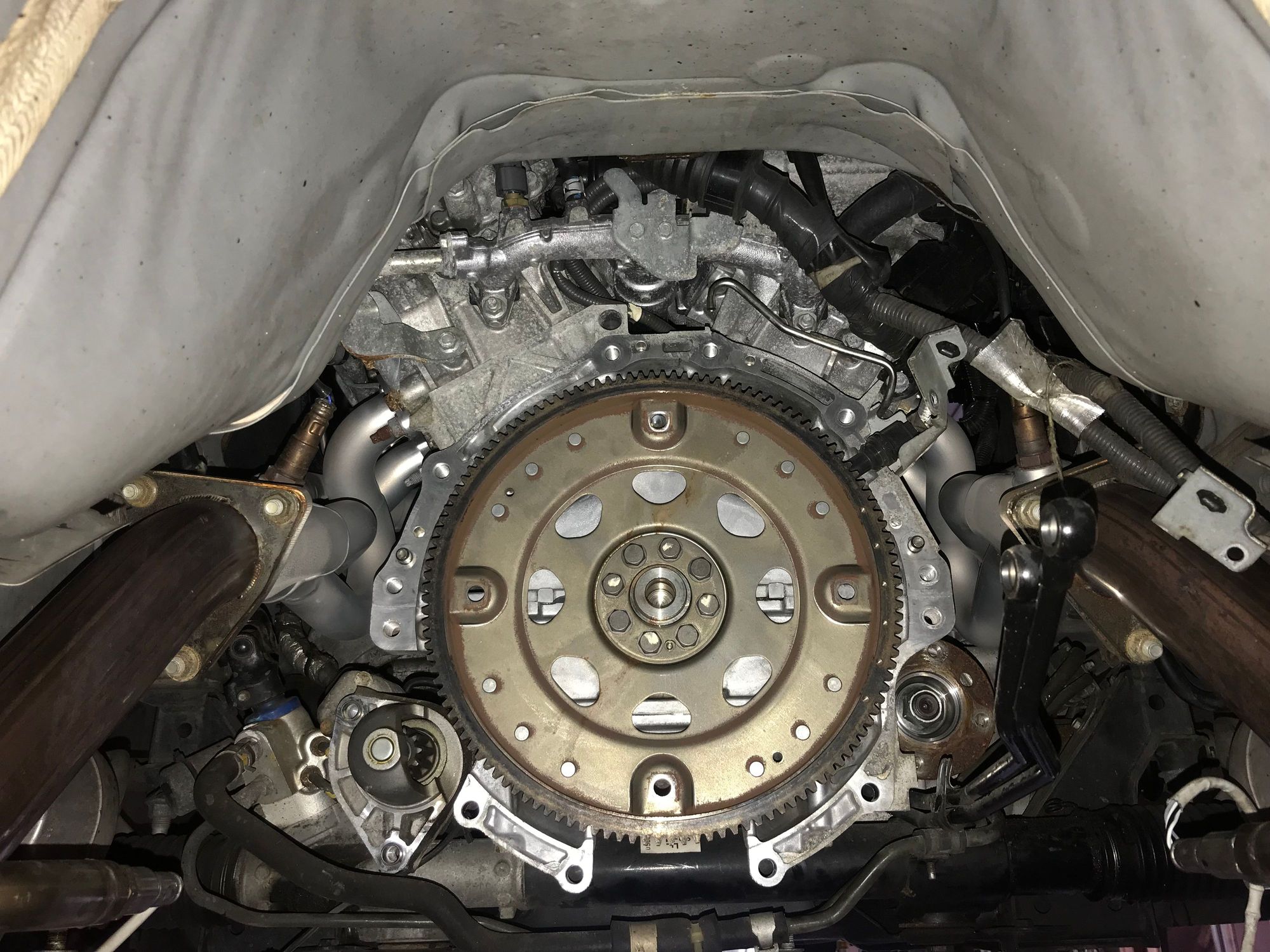

Oem flex plate. Going to replace with orange flex plate pictured below. Camera is where transmission sits

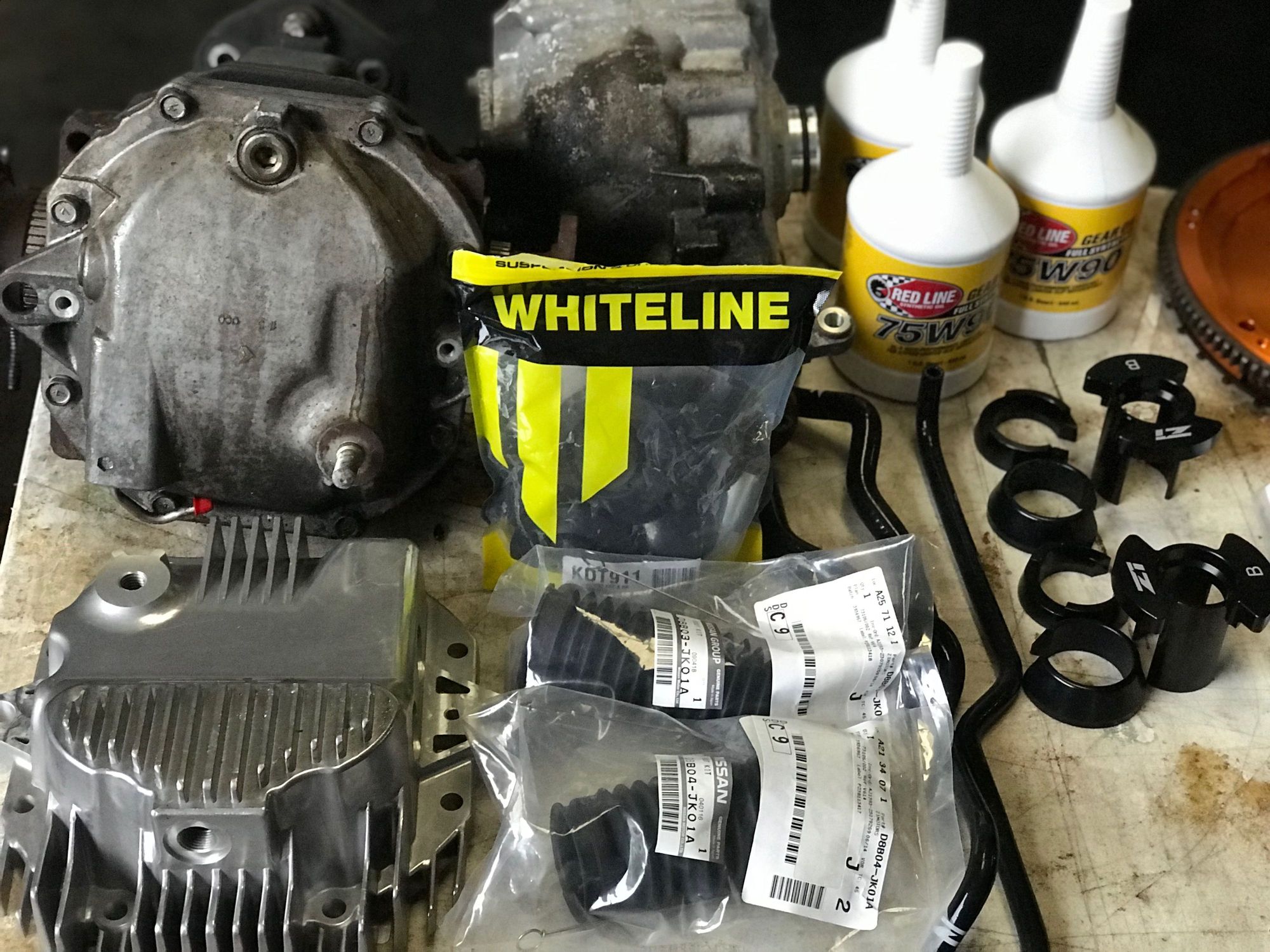

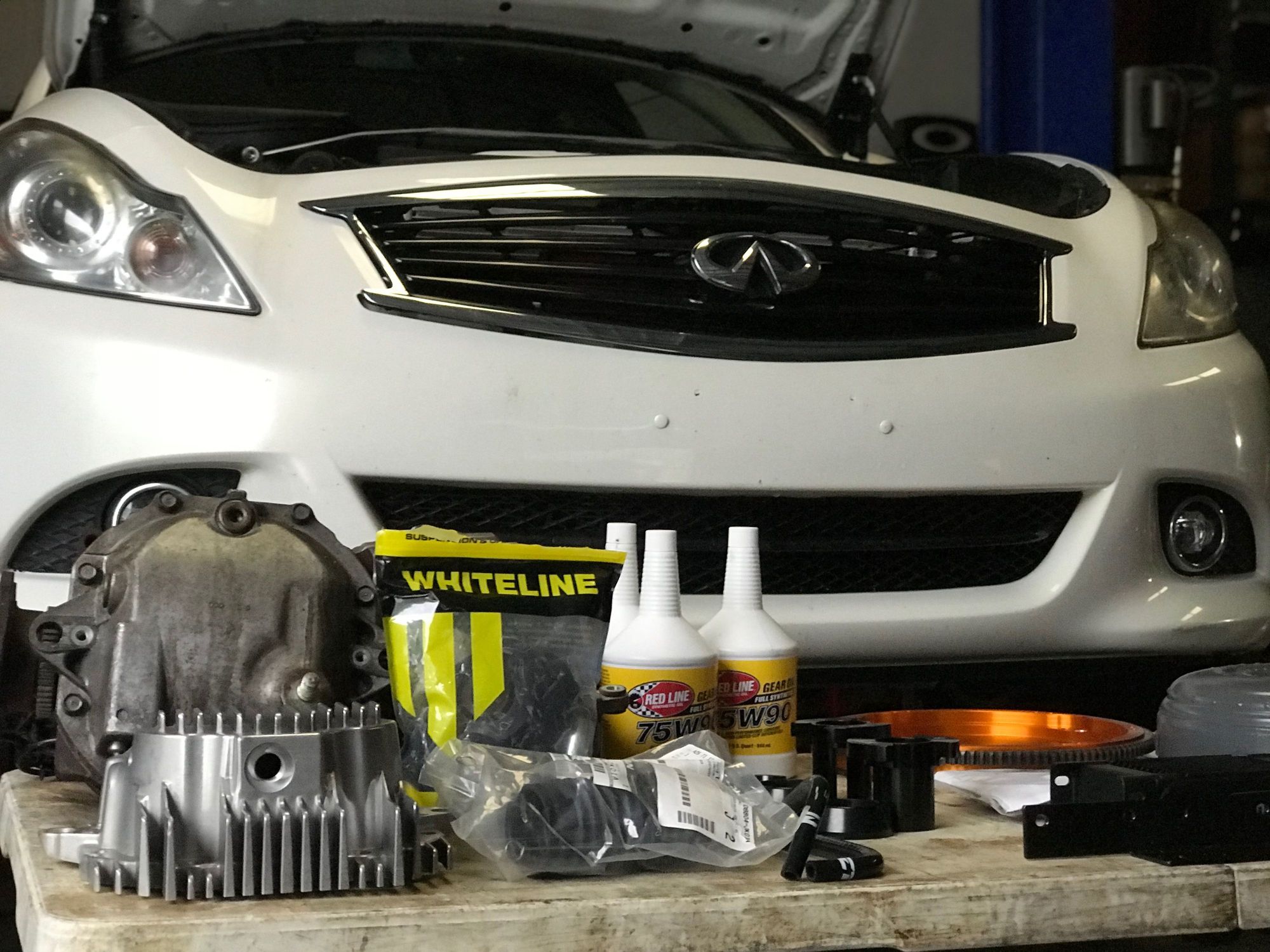

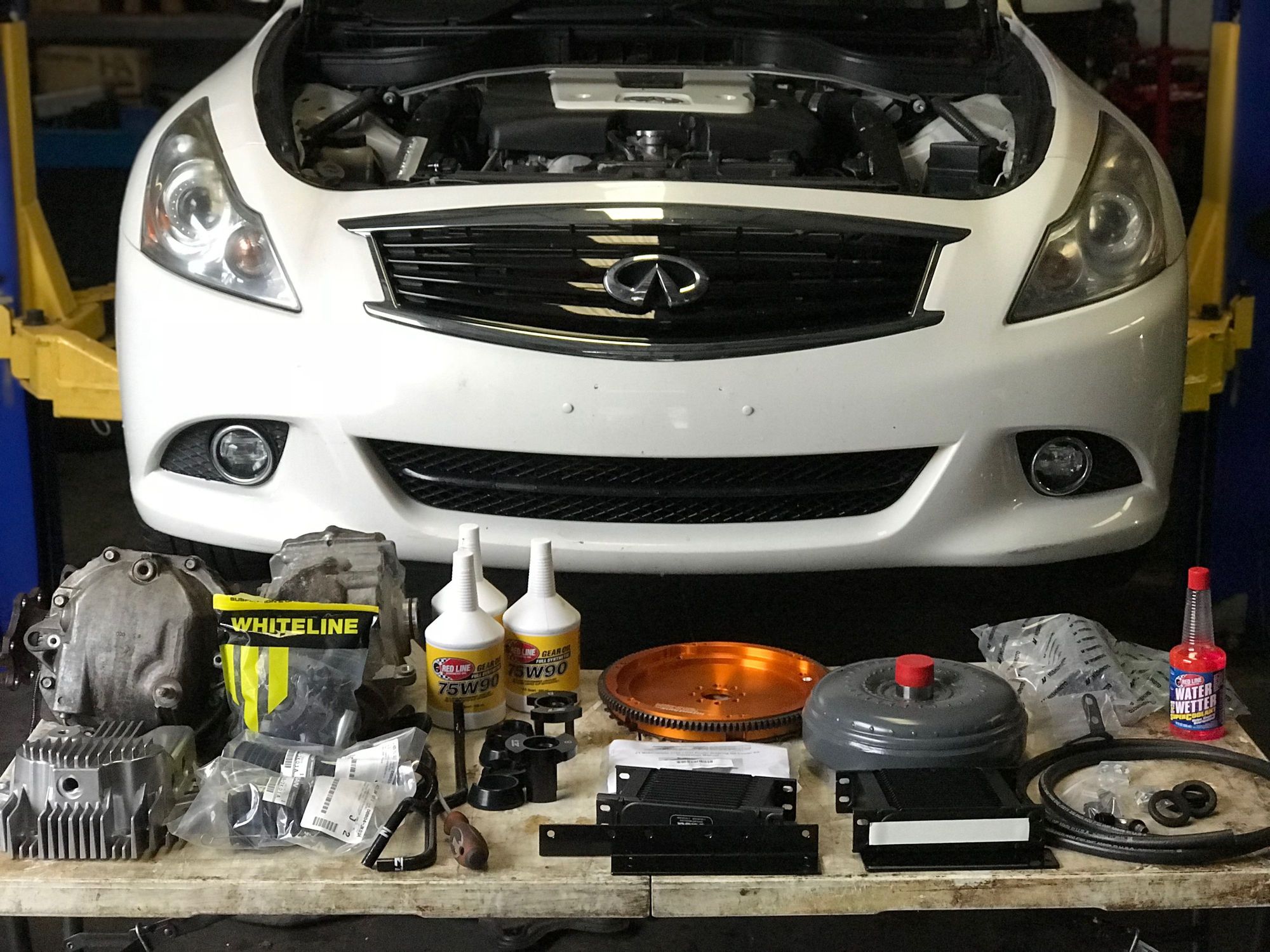

Top left is a g35 lsd diff, underneath is z1 rear diff cover
Second from the top on left is front diff from g35x.
Whiteline bushings and underneath that is new boots for the rack.
Sub frame collar bottom right of pic

Flex plate (orange in picture)
Stall converter (silver circle with red cap)
Power steering and trans cooler (black squares)


lorentzoe45 is offline
Reply With Quote
Old 06-30-2018, 02:47 AM
  #178
G37XS13
Registered User

Join Date: Jul 2014
Posts: 32
Thanked 3 Times in 3 Posts
Hey Lorentzoe, great build. Can you please let me know how you routed your Z1 Oil Cooler?
G37XS13 is offline
Reply With Quote
Old 06-30-2018, 01:05 PM
  #179
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts

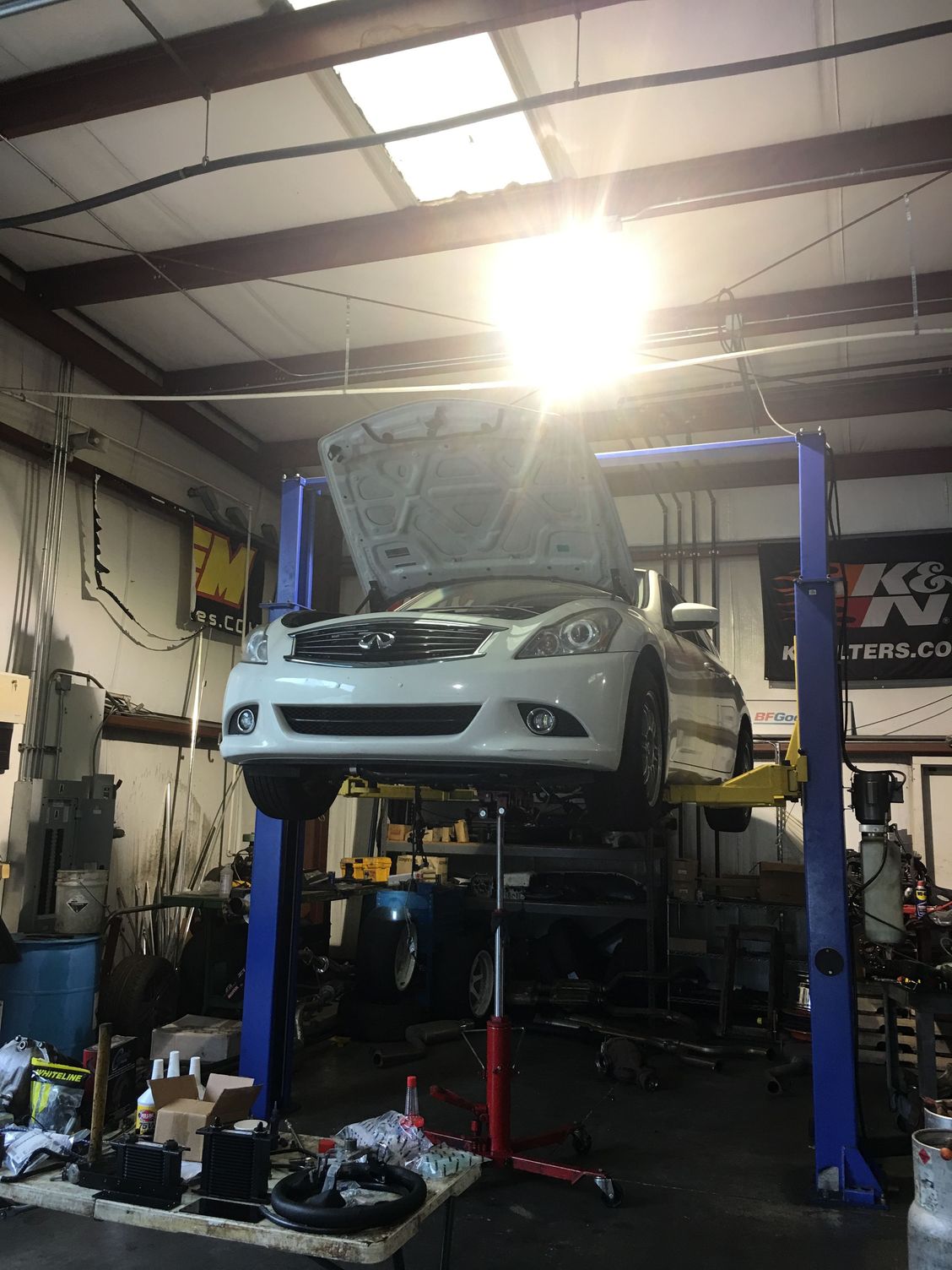

Everything in just waiting on driveshaft!!

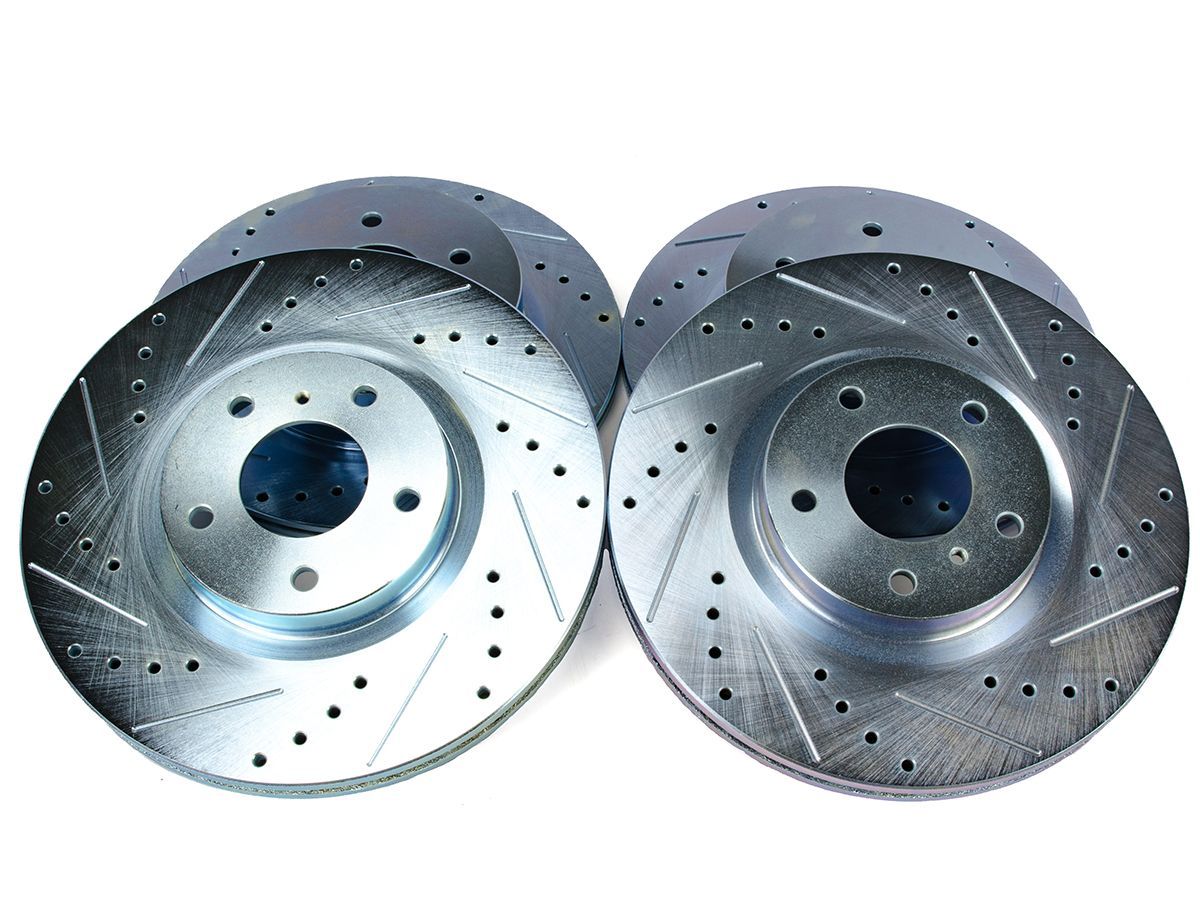

Warped my centric blanks I had on. Swapping to these. Slotted only though. I’ll be upgrading to a bbk in some time. For now this works since I have hard time finding something to clear my 17 inch rpf1

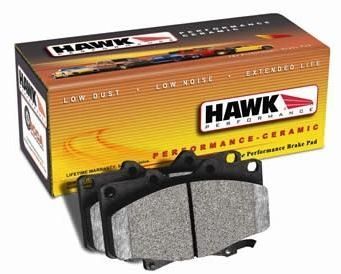

Swapping back to these from the posi quiet. Parking brake is posi quiet

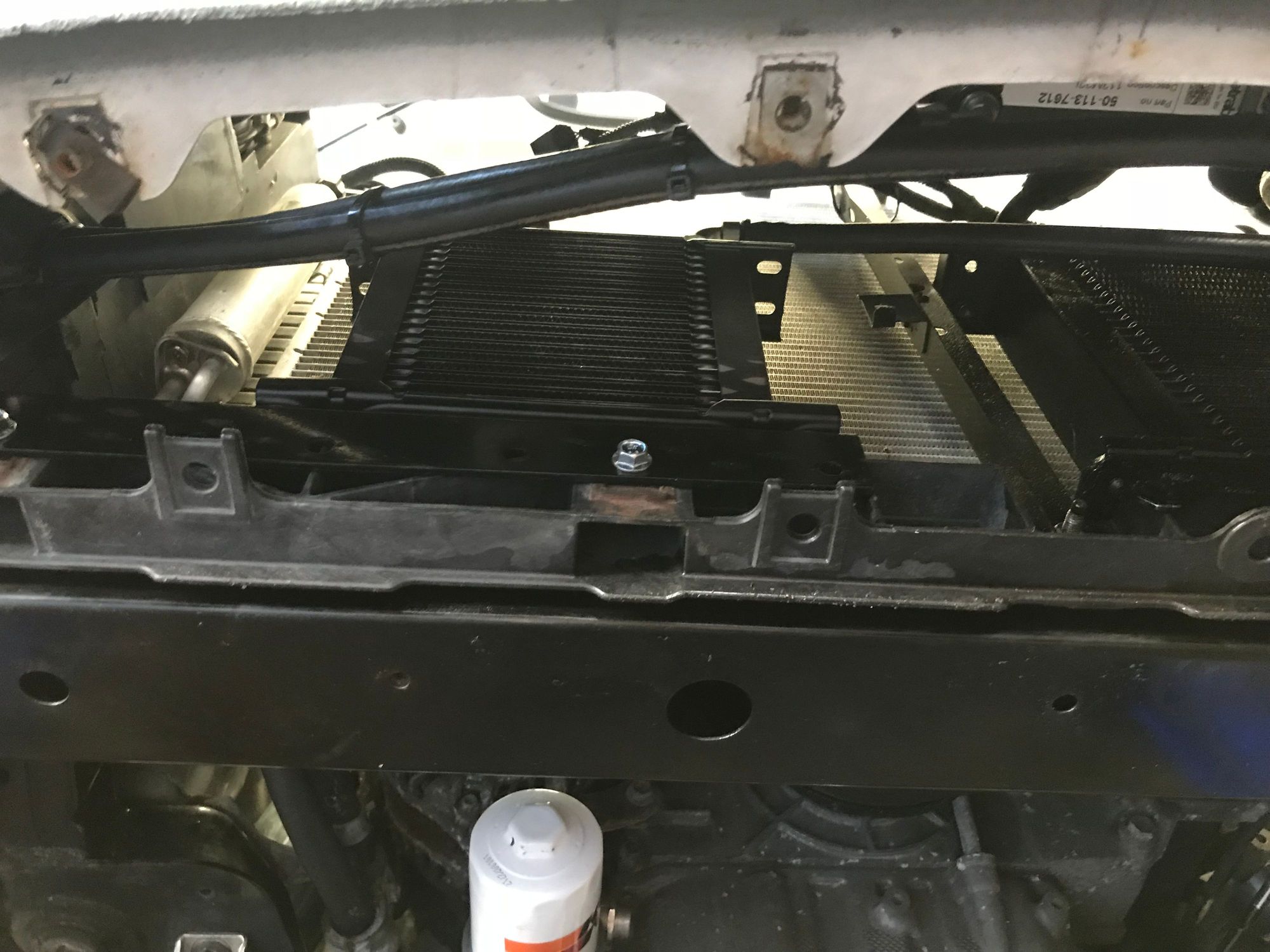

3 coolers pictured. Left side is the trans cooler. Exactly next to it to the right is the oil cooler. In front of oil cooler and the trans cooler (mounted at same height as other coolers just moved 10 inches forward or so) is the power steering cooler.

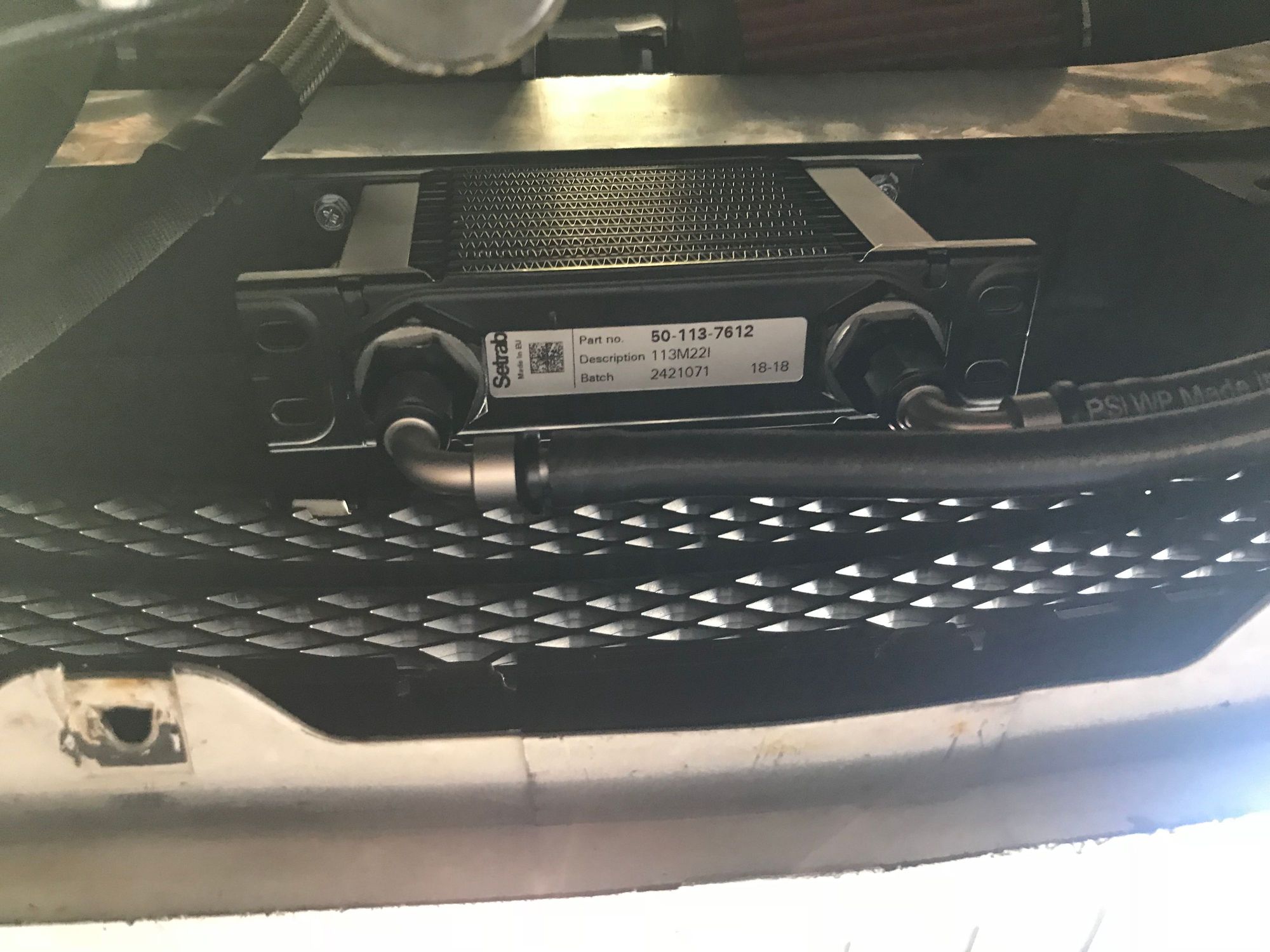

Power steering cooler.
So the diff swap and trans install went fine. We wanted to wait till after we swapped diffs just to make sure we had the right size. Driveshaft shop has a 6 WEEK wait on custom driveshafts. Ended up having to do a custom local one piece aluminum driveshaft. Also going to cost me $1000 for just the aluminum. Not happy about it at all, really really wanted one from thedriveshaftshop but can’t wait 6 weeks. The oem one won’t fit? The local shop is going to have it custom made and ready on Tuesday for install and balanced to 9k rpm. After this driveshaft is installed, this part of the build will be complete. Then we do the break in period on trans. Going real easy on it for a month. Needs a bunch of heat cycles. I have to change the fluid every 1000 miles for 3k miles. So 3 times I will have to drain and fill. Not entirely sure why 1k miles then change but I’m guessing they look at oil make sure no shavings. Also I was told my last trans the fluid was burnt up. I’m sure they test the oil make sure stuff is good? All guesses here.
lorentzoe45 is offline
Reply With Quote
The Following User Says Thank You to lorentzoe45 For This Useful Post:
G37XS13 (06-30-2018)
Old 06-30-2018, 01:16 PM
  #180
lorentzoe45
Premier Member
Thread Starter
iTrader: (4)

lorentzoe45's Avatar

Join Date: Jun 2015
Location: Gwinnett County, Georgia
Posts: 673
Thanked 72 Times in 63 Posts
Originally Posted by G37XS13 View Post
Hey Lorentzoe, great build. Can you please let me know how you routed your Z1 Oil Cooler?
Hey buddy, I’ll get a few detailed pictures for ya on Monday and upload it. They are actually rerouting the lines and swapping some of the fittings around that have the different degree angles to make it go where they want it to. Changing it up from the way I’ve had it for 2 years. I’ll be sure to post up the new setup. They said it could be routed better than I did it. Which isn’t hard to believe because I just put it in however it would fit. But I can say that I’m extremely excited to have the lines rerouted and setup updated. Currently right next to the front sway bar is the oil filter. Well that Thermostat plate has a weird angle on it and if I bottom out hard it will brake the fitting off to the oil lines and spew out oil everywhere. This actually has happened before (mentioned somewhere in this thread)

Fingers crossed.
