Modme's OEM Bracing Project

Old 07-05-2012, 10:18 PM
  #1
Modme
Registered User
Thread Starter
iTrader: (17)

Join Date: Jun 2006
Location: So Cal
Posts: 1,590
Likes: 0
Liked 66 Times in 51 Posts
Modme's OEM Bracing Project

In the 370z and G37 convertible, many additional braces are added to the car to increase the structural rigidity of the car. Given the location of these braces, I felt that a regular G37 would also benefit from the extra bracing.

While GTspec offers aftermarket bracing products, it feels a lot weaker than the Nissan OEM braces. GTspec braces are also more expensive than the OEM braces.

Thus began my project of trying 370z and G37 convertible OEM braces on my G37.

Phase 1: Front Crossmember Brace

This pair of braces connect the front engine cradle to the chassis of the car.
Parts you need:
544C4-1EA0A Right brace
544C5-1EA0A Left brace
081B7-0455M x2 bolts
11298-CA015 x2 bolts
You also need 2 M10x1.25 nuts. I couldnt find a part number for this.

Total costs: ~ $90

GTspec lateral bars = $160

This is what the braces look like:
Name:  2012-05-30140837.jpg
Views: 684
Size:  111.7 KB
Name:  2012-05-30140757.jpg
Views: 685
Size:  131.3 KB

Installed pic:



Compared to Gtspec brace:


The oem brace is 5000x times stronger and more rigid compared to GTspec. It uses three mounting points per brace versus the two bolts used by GTspec. It is also significantly heavier.

Last edited by Modme; 07-05-2012 at 10:23 PM.
Modme is offline
The following 3 users liked this post by Modme:
Bravo at (02-01-2015), Rochester (04-05-2015), Zack342 (08-23-2015)
Old 07-05-2012, 10:19 PM
  #2
Modme
Registered User
Thread Starter
iTrader: (17)

Join Date: Jun 2006
Location: So Cal
Posts: 1,590
Likes: 0
Liked 66 Times in 51 Posts
Phase 2: Rear end bracing....in progress

So those with keen version might have noticed that the G37 Convertible's and 370z's rear ends are slightly different than the G37 Coupe. The newer platforms have an additional bracket that allows more bars and braces to strengthen the rear chassis. This is what I'm talking about:

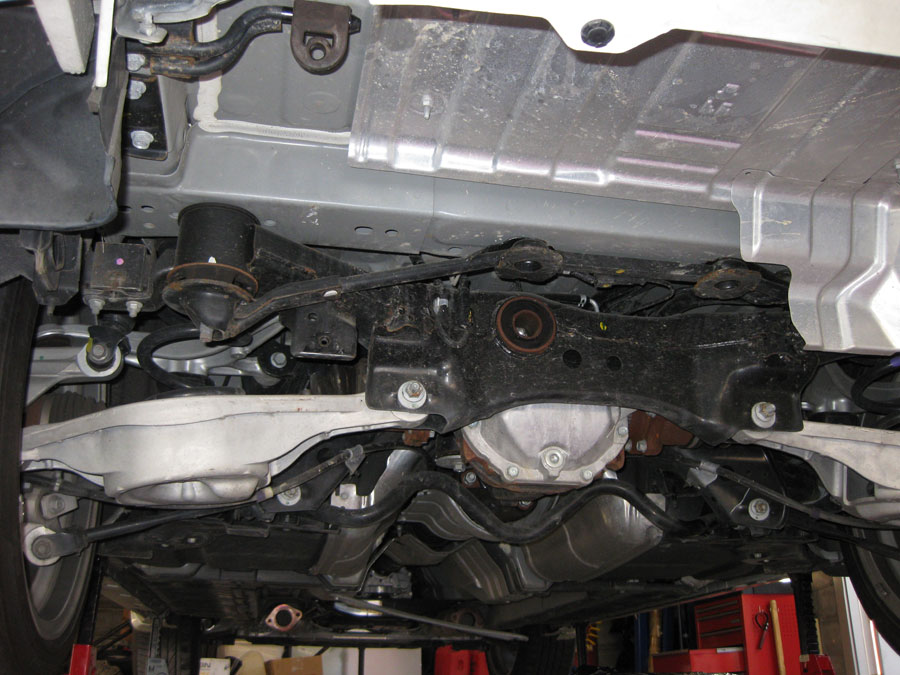

G37 Rear end:


Versus 370z Rear end:



So I sourced the bracket from a junkyard and bought the additional braces used in the 370z. The bracket must be welded onto the car's chassis.

Pics:


Name:  7a79b1cd.jpg
Views: 612
Size:  98.6 KB
Name:  60d165f2.jpg
Views: 618
Size:  103.0 KB
Name:  ffc86ade.jpg
Views: 624
Size:  76.9 KB
Name:  78e005a5.jpg
Views: 609
Size:  81.6 KB

7/22/12:

The triangular bracket is welded to the car chassis.

Name:  2012-07-21083737.jpg
Views: 625
Size:  130.6 KB

In the 370z, there are two cross braces that attach to the triangular brace to the side braces towards the middle of the car. This brace fit perfectly with the G37, even with the Ark exhaust.

Name:  2012-07-21083715.jpg
Views: 621
Size:  191.0 KB
Name:  2012-07-21083704.jpg
Views: 637
Size:  186.4 KB
Name:  2012-07-21083733.jpg
Views: 629
Size:  177.3 KB
Name:  2012-07-21083700.jpg
Views: 627
Size:  214.3 KB

Last edited by Modme; 07-22-2012 at 07:32 AM.
Modme is offline
The following users liked this post: Modme
Black Betty (06-02-2013)
Old 07-05-2012, 10:20 PM
  #3
Modme
Registered User
Thread Starter
iTrader: (17)

Join Date: Jun 2006
Location: So Cal
Posts: 1,590
Likes: 0
Liked 66 Times in 51 Posts
Phase 3: Nismo/Yamaha Performance Dampers

The performance damper is the reason that I started the whole bracing project. It was interesting to find that luxury and performance vehicles are starting to utilize this new technology to improve handling and ride. The 370z Nismo are equipped with a front and rear damper that looks like this:



Basically, the damper is pressurized with nitrogen. Not only does it serve as a strengthening function by bracing the left and right body of the car, it also serves as a harmonic damper, which reduces vibration. Here is a video demonstrating the function of the damper:

[youtube]7rhMuCUPWxE[/youtube]

So here we go, rears first:

The damper mounts to a cross brace on the rear bottom of the car. After converting my rear end to the 370z style, I am able to utilize the 370z cross brace and mount the damper to its OEM location. But since I got the non-nismo version of the brace (the nismo version of the brace costs $100), I had to make some modifications. First I welded a piece of flat rectangular steel to the brace.


Name:  1899fc4d.jpg
Views: 625
Size:  158.5 KB
Name:  e973bb99.jpg
Views: 621
Size:  200.1 KB
Name:  0834be60.jpg
Views: 620
Size:  173.1 KB

Then I aligned the damper over the brackets and drilled the 4 mounting holes:

Name:  97fc33aa.jpg
Views: 622
Size:  133.1 KB
Name:  38fe342d.jpg
Views: 609
Size:  171.7 KB

Then I tapped M10x1.25 threads on the brackets. Now the brace bolts right on.

Name:  b56d5886.jpg
Views: 613
Size:  130.4 KB
Name:  d16e0388.jpg
Views: 606
Size:  112.4 KB
Name:  0828d7c4.jpg
Views: 621
Size:  80.7 KB

Installed on the car:

Name:  1a0eddc2.jpg
Views: 601
Size:  68.6 KB
Name:  a0533bfb.jpg
Views: 621
Size:  97.5 KB
Name:  3492d81d.jpg
Views: 620
Size:  115.8 KB
Name:  a5fc60bb.jpg
Views: 610
Size:  75.9 KB
Name:  c97908cf.jpg
Views: 605
Size:  79.3 KB
Name:  17c4054f.jpg
Views: 630
Size:  109.0 KB



Front Damper:

The front yamaha performance damper is a direct fit. I had to adjust my oil cooler slightly, so that it does not interfere with the damper. Without an oil cooler, this would be a very simple plug and play.

Name:  2012-07-20212007.jpg
Views: 604
Size:  260.0 KB
Name:  2012-07-20211948.jpg
Views: 604
Size:  266.2 KB
Name:  2012-07-20212014.jpg
Views: 605
Size:  206.6 KB
Name:  2012-07-21094730.jpg
Views: 621
Size:  124.0 KB
Name:  2012-07-21091855.jpg
Views: 618
Size:  164.7 KB
Name:  2012-07-21094719.jpg
Views: 616
Size:  228.9 KB
Name:  2012-07-21094705.jpg
Views: 612
Size:  195.1 KB



Driving impressions:

It is very difficult to quantify and review suspension modifications. When you have to judge something by feeling, there's always a placebo effect that may confound the results.

With the disclaimer, I definitely felt a change in suspension characteristics after all the modifications. There is a significant difference in which the suspension adapt to bumps and imperfections on the road. The car "bounces" a lot less after going over a bump. Car seems to be able to adapt to road changes a lot quicker. This improvement is probably due to the performance dampers cancelling out the vibrations throughout the car's chassis.

This impression is only after driving 20 miles on the highway, without pushing the car's suspension. I am waiting on one more brace and will update after more driving.

Last edited by Modme; 07-22-2012 at 08:15 AM.
Modme is offline
Old 07-05-2012, 10:30 PM
  #4
harbin9er
Registered User

Join Date: Jun 2010
Location: Novi, MI
Posts: 365
Liked 7 Times in 6 Posts
yet another interesting Modme engineering thread. Subscribed!
harbin9er is offline
Old 07-05-2012, 10:35 PM
  #5
Weiboy718
Registered User
iTrader: (10)

Weiboy718's Avatar

Join Date: May 2007
Location: Homo Capital!
Posts: 4,970
Likes: 0
Liked 3 Times in 3 Posts
Great project Modme!
Weiboy718 is offline
Old 07-05-2012, 11:16 PM
  #6
soolman32
Registered User
iTrader: (15)

Join Date: Mar 2008
Location: MN
Posts: 8,127
Liked 126 Times in 107 Posts
You have my attention!
soolman32 is offline
Old 07-05-2012, 11:30 PM
  #7
jujubii
Premier Member
iTrader: (5)

Join Date: Jun 2010
Location: SoCal
Posts: 668
Liked 6 Times in 5 Posts
dear modme,

i have one request for you (because it seems that you possess the technical knowledge). could you please inspect the rear tie brace and the m-shaped lateral brace gtpsec has for the rear of the G? if you have the time, that is. my issue with these braces is that the tie brace connects opposite end of the eccentric toe bolt and the m-shape to the camber bolt (or vice versa; i dont remember). does it cause alignment issues once the braces are put on?

Henry, from temple city auto repair told me that they imposed on my alignment and there was nothing he could do. I was wondering why he just didnt loosen them, align, and the retighten


btw, i love the work you do! how much heavier are the oem braces?


love,
JUJUBII
jujubii is offline
Old 07-06-2012, 03:21 AM
  #8
G37Sam
Administrator

G37Sam's Avatar

Join Date: Aug 2008
Location: Doha, Qatar
Posts: 12,189
Liked 228 Times in 180 Posts
And subscribed
G37Sam is offline
Old 07-06-2012, 05:52 AM
  #9
Ivoidwarranties
Premier Member
iTrader: (7)

Ivoidwarranties's Avatar

Join Date: Nov 2008
Location: Omaha
Posts: 2,078
Liked 26 Times in 14 Posts
Originally Posted by Modme View Post
The oem brace is 5000x times stronger and more rigid compared to GTspec. It uses three mounting points per brace versus the two bolts used by GTspec. It is also significantly heavier.
I doubt that it is "5000x times stronger" but if you said "5000 times heavier" I would believe that.
Ivoidwarranties is offline
Old 07-06-2012, 07:17 AM
  #10
WARAT
Registered User
iTrader: (1)

Join Date: Nov 2009
Location: Houston, TX
Posts: 764
Liked 18 Times in 16 Posts
Interesting. Might do this too. Review on Handling improvement soon?
WARAT is offline
Old 07-06-2012, 07:30 AM
  #11
SwissCheeseHead
Registered User
iTrader: (6)

SwissCheeseHead's Avatar

Join Date: Nov 2011
Location: Madison, WI
Posts: 1,856
Liked 87 Times in 65 Posts
Originally Posted by Ivoidwarranties View Post
I doubt that it is "5000x times stronger" but if you said "5000 times heavier" I would believe that.
I'm sure he did all the calculations and found it it was indeed exactly 5000x stronger. lol

The braces are meant to prevent twisting of the chassis, thus making it more rigid. What kind of materials are used in the GT Spec bracing compared to OEM? I'm assuming OEM uses steel while GT Spec uses aluminum? If that is the case, then the OEM braces would inherently be stronger. Whether or not 5000x stronger is something only stress testing can answer.
SwissCheeseHead is offline
Old 07-06-2012, 07:42 AM
  #12
Rad_Slinger
Registered User
iTrader: (12)

Rad_Slinger's Avatar

Join Date: Dec 2011
Location: New England
Posts: 2,983
Liked 76 Times in 56 Posts
Figures you'd have to do this project after I buy the GTspec rear lat brace and the front tie braces.

Curious what else you're gonna come up with for braces.

In like flint.
Rad_Slinger is offline
Old 07-06-2012, 07:46 AM
  #13
Modme
Registered User
Thread Starter
iTrader: (17)

Join Date: Jun 2006
Location: So Cal
Posts: 1,590
Likes: 0
Liked 66 Times in 51 Posts
Originally Posted by Ivoidwarranties View Post
I doubt that it is "5000x times stronger" but if you said "5000 times heavier" I would believe that.
It was just a random ridiculous number than I chose to describe how much stronger the oem brace is. There is no doubt that it is stronger and heavier.
Modme is offline
Old 07-06-2012, 07:51 AM
  #14
Modme
Registered User
Thread Starter
iTrader: (17)

Join Date: Jun 2006
Location: So Cal
Posts: 1,590
Likes: 0
Liked 66 Times in 51 Posts
Originally Posted by jujubii View Post
dear modme,

i have one request for you (because it seems that you possess the technical knowledge). could you please inspect the rear tie brace and the m-shaped lateral brace gtpsec has for the rear of the G? if you have the time, that is. my issue with these braces is that the tie brace connects opposite end of the eccentric toe bolt and the m-shape to the camber bolt (or vice versa; i dont remember). does it cause alignment issues once the braces are put on?

Henry, from temple city auto repair told me that they imposed on my alignment and there was nothing he could do. I was wondering why he just didnt loosen them, align, and the retighten


btw, i love the work you do! how much heavier are the oem braces?


love,
JUJUBII
Hey Jujubii,

They shouldn't cause alignment issues if installed correctly. Those bars have slots as mounting holes that allow the concentric toe and camber bolts to slide inside freely. If you have SPC camber/toe bolt, you would need to enlarge these slots such that the concentric bolts can freely rotate inside the mounting hole, just like how you had to enlarge the OEM mounting hole.

Hope this helps.
Modme is offline
Old 07-06-2012, 08:09 AM
  #15
Modme
Registered User
Thread Starter
iTrader: (17)

Join Date: Jun 2006
Location: So Cal
Posts: 1,590
Likes: 0
Liked 66 Times in 51 Posts
Originally Posted by SwissCheeseHead View Post
I'm sure he did all the calculations and found it it was indeed exactly 5000x stronger. lol

The braces are meant to prevent twisting of the chassis, thus making it more rigid. What kind of materials are used in the GT Spec bracing compared to OEM? I'm assuming OEM uses steel while GT Spec uses aluminum? If that is the case, then the OEM braces would inherently be stronger. Whether or not 5000x stronger is something only stress testing can answer.
Well stated! Oem brace uses a thicker gauge steel than GTspec's aluminum material.
Modme is offline
