ILUCKYI

Hi can you guys with g37xs AWD sedans (2010+) please post some pictures of your cars letting me know what suspension and what size rims you have. I'm trying to get ideas. Thanks

eurtsx

iTrader: (2)

2010 G37xS
BC Coilovers
19x9.5 +43 Nismo Rays (Squared Set)

ILUCKYI

Looks nice. Are those bc's made specifically for the XS AWD sedan? How do they ride? I'm guessing u needed a camber kit right?

tbulsara

iTrader: (2)

Both my setups are square.
20x10.5
lowered on D2 Racing Coils. with dampening set on the middle setting.

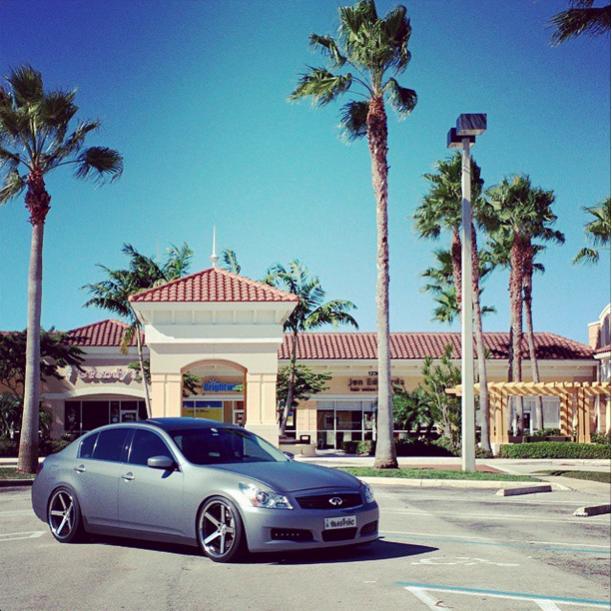

The first pic (older setup)
Stance SC5 +35 offset all around 275/30/20

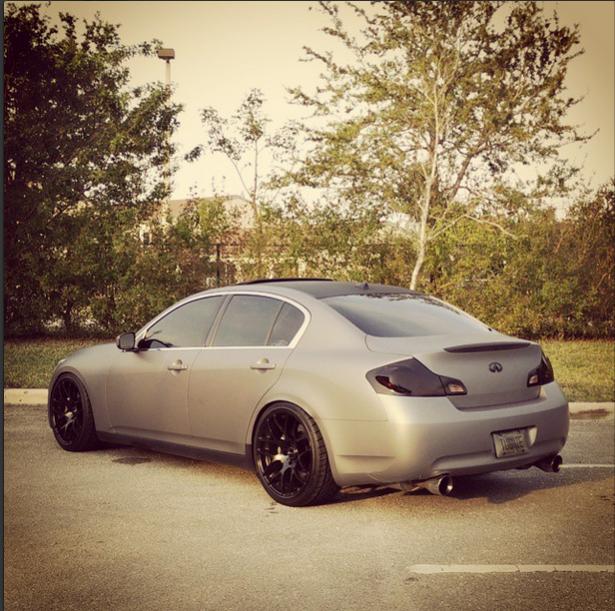

The Second (Newer Setup)
Avant Garde M310 +25

ILUCKYI

Do AWD need to have a squared set of rims? I've heard on one of the threads on here that you can't run staggered on AWD because the tires will overheat or something? That true?

Baby Jumpman

iTrader: (18)

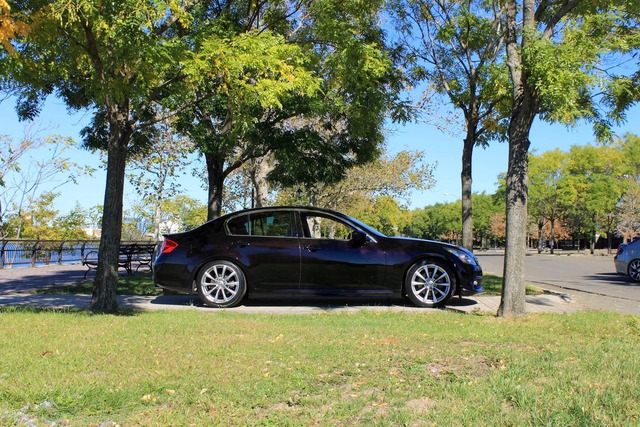

Eibach springs with 20mm spacers all around. Coupe 19x9 square setup with 245/40 tires.

tbulsara

iTrader: (2)

you can run staggered, as long as the rolling diameter of the tires is the same front and back otherwise your AWD will F*#@ up...

Baby Jumpman

iTrader: (18)

Tbulsara you running the same size tire for the second setup?

And lucky that's not true you just have to be careful with tire sizes and rolling diameters.

tbulsara

iTrader: (2)

yes, both my setups run 275/30/20 all around.
my very first setup on my car was staggered.

Sobbie84

love the whip and them rims bro... With them 20's lowered is there any rubbing when it comes to fenders?. i am trying to put 20s on my 2011 g37x sedan

Baby Jumpman

iTrader: (18)

Thanks for the quick reply my next setup will be 19x10.5 all around. My shoot for 265/30 though. I'm fine with some camber and I know I'll have to pull the front fender.

tbulsara

iTrader: (2)

when i had +35, i had to pull the front fenders,
After going with the +25, i had to get the rear pulled as well.

but then again i am running 275/30/20. if i ran 255, i could get away without pulling the rear fenders but the tire would have a great deal of stretch.

Baby Jumpman

iTrader: (18)

Hmm I'm gunna be running either+20 or +25 all around so that's good to know. I've read about the tears being rolled/pulled from the factory so I'd be abLE to trim the fender bracket and liner but if I can roll it more I'd do that.

tbulsara

iTrader: (2)

+20 is a coupe setup,... for sedans that is very aggressive. unless you want to drive with a lot of negative camber, i would not recommend +20.

My current setup were +20 and i had them shaved to +25 as when installed as +20, it was too aggressive.

Baby Jumpman

iTrader: (18)

The only thing is the wheels I like are +20, but another style from the same company is +25 so I might go with that for a little easier fit. I only considered +20 after doing the math and seeing that it'll only stick out half an inch further than my current setup.
