09 G37: Stillen Gen 3 Cold Air Intake + Grounding Kit installed (+ dynos!!)

Hey guys

This is my attempt at making my first post a useful one so let's get down to business:

1- Stillen Gen 3 Cold air intake:

Pros: awesome gains across the band, sexy growl, imo: best (reasonably priced) $/hp upgrade for the G37
Cons: A real Pain to install if doing it urself... otherwise, nothing else

2- Stillen Grounding kit:
I would like to talk a bit more about this upgrade since I previously owned a 2008 (5-spd) G37 before my current 2009 (7-speed) G37 and one of the things I disliked was the lag in shift time response. Of course, I'm not expecting GT-R spec shift times, but there was a noticeable lag which was more like a hesitance as the car tries to select the 'optimal' gear.

In short: the ground kit basically made it feel like a new car to me.

No more 'wait for the car to make up it's mind' moments as my foot steps down on the aluminum gas pedal..

No more 'hit the paddle shifts ~500rpm earlier in anticipation for the upcoming gear upshift..

so for those of you who share my problem, I highly recommend the ground kit solution!




Stillen Ground Kit:

Click the image to open in full size.




Stillen Gen 3 Cold-Air Intake:

Click the image to open in full size.



installed:

Click the image to open in full size.



Base Dyno:

Click the image to open in full size.



Dyno after intake + ground kit (everything else is stock):

Click the image to open in full size.

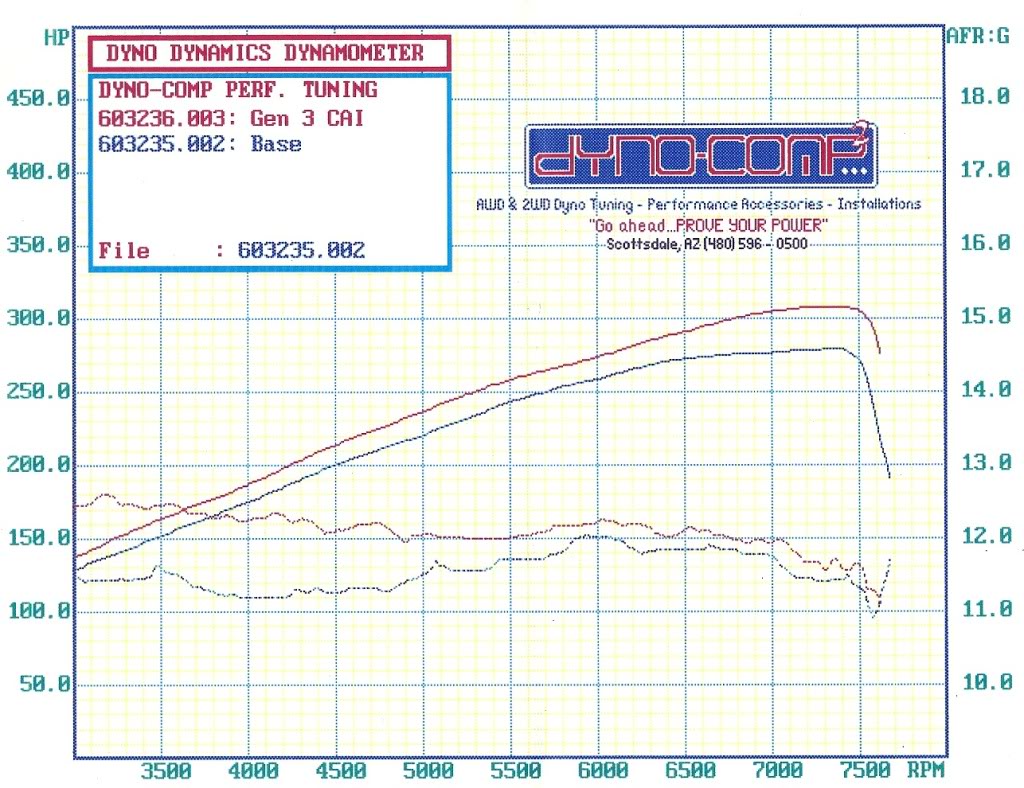

Comparison: stock vs. intake:

Click the image to open in full size.



Air- fuel ratio after install:

Click the image to open in full size.
borfoo3 is offline   Reply With Quote
Old 02-26-2011, 01:26 AM   #2
Steveo47
Registered User


Trader Score: (8)
Join Date: Jan 2010
Location: Edmonton, Alberta
Posts: 1,804
Thanks: 0
Thanked 3 Times in 2 Posts
Stevearino47 Stevearino47
nice gains! why did you go with a stillen grounding kit and not a Black Betty Kit?
__________________
|DressUpBolts|BB Grounding|Berk Testpipes|V-led's|JDM|BC-Racing|GT-SPEC|SPC|Hotchkis|ExoticSpeed|Stillen|Takeda|NRG|
Steveo47 is offline   Reply With Quote
Old 02-26-2011, 01:32 AM   #3
P Casey
Premier Member

P Casey's Avatar

Trader Score: (13)
Join Date: Dec 2010
Location: San Antonio, TX
Posts: 4,867
Thanked 25 Times in 22 Posts
Send a message via Skype™ to P Casey
awesome info. I just installed mine today. I was expecting to have a lot of trub but it was pretty easy
P Casey is offline   Reply With Quote
Old 02-26-2011, 01:33 AM   #4
chuckie311
Winning!


chuckie311's Avatar

Trader Score: (3)
Join Date: Jan 2011
Location: Las Vegas
Posts: 1,808
Thanked 35 Times in 31 Posts
chuckie311 chuckiedog311
Send a message via AIM to chuckie311 Send a message via Yahoo to chuckie311
wow those are great gains what gear did u dyno in
__________________
Mods
Gen3|Berk HFC|Ark|Eibach|Ported Plenum|4.08 gears|UpRev|Whiteline|SPC|

Dyno Numbers
3.36 gears|320whp 268tq
4.08 gears|301whp 249tq


Coming OCT 12
Z1 Headers
Z1 HFC
ECUTECK TUNE

Last edited by chuckie311; 02-26-2011 at 01:41 AM.
chuckie311 is offline   Reply With Quote
Old 02-26-2011, 01:41 AM   #5
P Casey
Premier Member

P Casey's Avatar

Trader Score: (13)
Join Date: Dec 2010
Location: San Antonio, TX
Posts: 4,867
Thanked 25 Times in 22 Posts
Send a message via Skype™ to P Casey
at what rpm r u all hearing it growl?
P Casey is offline   Reply With Quote
Old 02-26-2011, 01:56 AM   #6
Obvis07
Registered User

Obvis07's Avatar

Trader Score: (1)
Join Date: Aug 2010
Location: Irvine, CA
Posts: 403
Thanks: 0
Thanked 0 Times in 0 Posts
Send a message via AIM to Obvis07
very nice gains. i never knew that intake gave u that much HP or a grounding would help ur performance
__________________
Obsidian Black G37S - 6MT STOCK
Obvis07 is offline   Reply With Quote
Old 02-26-2011, 01:59 AM   #7
TVPostSound
Registered User

Trader Score: (9)
Join Date: May 2010
Location: Granada Hills, CA
Posts: 3,490
Thanked 92 Times in 67 Posts
Very lean AFR above 6500.
Any detonation??
__________________
'10 OB G37S 7AT Aero Coupe|Stillen CAI|Hotchkis|Koni|Swift|Michelin|IPL Exhaust
TVPostSound is offline   Reply With Quote
Old 02-26-2011, 05:16 AM   #8
borfoo3
Registered User

Trader Score: (0)
Join Date: May 2010
Posts: 75
Thanks: 0
Thanked 0 Times in 0 Posts
replying to some of your questions:
1- Honestly, I don't think there's much of a difference in choosing stillen vs black betty grounding kits since both kits seem to be very good at what they do. In my case, i just saved a bit on shipping since i was ordering the intakes from stillen at the same time..
2- I believe it was dyno'd at 5th gear
3- growling was most enjoyable in 3-4k rpm @ WOT.. nothing that would wake up the neighborhood though..
4- intake gave the hp's.. grounding smoothed the transition from engine to tarmac
5- I think I'm still within good limits (as far as the dyno guy said) in terms of A/F ratio..
no detonation as far as I can tell.

Update: Just did a 420 mile trip today from AZ to CA with a heavy rainstorm in CA.. All systems green so far, and the intakes seem to be handling the rain quite well. Hope it stays that way!
borfoo3 is offline   Reply With Quote
Old 02-26-2011, 10:25 AM   #9
2008G-Man
Registered User

2008G-Man's Avatar

Trader Score: (0)
Join Date: Oct 2009
Location: South West FL
Posts: 2,309
Thanked 101 Times in 85 Posts
Did you need to make any ECU programming?
__________________
'08 G37 Coupe | Blue Slate | Prem | and '12 M37x, Malbec w/Java | Prem | Touring |
2008G-Man is offline   Reply With Quote
Old 02-26-2011, 10:29 AM   #10
SterlingDriver
Registered User

Trader Score: (0)
Join Date: Feb 2011
Location: Utah, a pretty great state
Posts: 22
Thanks: 0
Thanked 0 Times in 0 Posts
Very nice gains for so little cost...
SterlingDriver is offline   Reply With Quote
Old 02-26-2011, 11:26 AM   #11
TVPostSound
Registered User

Trader Score: (9)
Join Date: May 2010
Location: Granada Hills, CA
Posts: 3,490
Thanked 92 Times in 67 Posts
Quote:
Originally Posted by borfoo3 View Post
replying to some of your questions:

5- I think I'm still within good limits (as far as the dyno guy said) in terms of A/F ratio..
no detonation as far as I can tell.

!
Please invest in a tune, you're running over 15:1 at top RPMs.
__________________
'10 OB G37S 7AT Aero Coupe|Stillen CAI|Hotchkis|Koni|Swift|Michelin|IPL Exhaust
TVPostSound is offline   Reply With Quote
Old 02-26-2011, 12:02 PM   #12
cvt
Registered User

Trader Score: (0)
Join Date: Apr 2006
Location: Los Angeles
Posts: 1,499
Thanks: 0
Thanked 1 Time in 1 Post
Quote:
Originally Posted by TVPostSound View Post
Please invest in a tune, you're running over 15:1 at top RPMs.
His afr is at 12.5 below 3500 and is dancing on 12 from 5500 and on. i think he's fine. a tune would just polish it up.


...still 29.6 hp from an intake is really hard to swallow. the median gains from the stillen are from 12-18 from G37s and 370s...of course it doesn't reallay matter what the number is, he has his delta and gains across the curve. i guess that's what really counts. congrats
__________________
08' G37-sport Package w/ Spoiler and Sunroof
cvt is offline   Reply With Quote
Old 02-26-2011, 12:32 PM   #13
wlmngtn
Registered User


Trader Score: (9)
Join Date: Oct 2009
Location: Wilmas, CA
Posts: 2,638
Thanked 3 Times in 2 Posts
lol grounding kit = placebo effect
wlmngtn is offline   Reply With Quote
Old 02-26-2011, 12:34 PM   #14
wlmngtn
Registered User


Trader Score: (9)
Join Date: Oct 2009
Location: Wilmas, CA
Posts: 2,638
Thanked 3 Times in 2 Posts
Really nice gains btw, as soon as my Stillen intake is powder coated, I am getting in installed.
wlmngtn is offline   Reply With Quote
Old 02-26-2011, 02:11 PM   #15
Chi-City-G
Registered User

Trader Score: (5)
Join Date: Jun 2010
Location: Chicago - Old Town
Posts: 1,128
Thanked 26 Times in 12 Posts
Just a quick question: how come it says under the customer line item on the dyno, 08 G37 for the base and the 09 G35 for the intakes? Is this just a weird error entered or was the base on your 08?

Just noticed that and wondered... Awesome gains though!
__________________
GTM Stage II Twin Turbo G37S 6MT - and the list goes on...
[IMG]http://i1181.photobucket.com/albums/x434/JSnow21/Chi-City-GSig_zps0acd1443.jpg[/IMG]
Chi-City-G is offline   Reply With Quote
