Old 12-22-2011, 01:19 AM   #1
jujubii
Premier Member

Trader Score: (5)
Join Date: Jun 2010
Location: SoCal
Posts: 660
Thanked 4 Times in 3 Posts
How to jack up your G

mods, can you please add the 'DIY:' tag to the post?

i made this video for all the noobs out there
enjoy!

please refer to this post as my suggested jackstand point may be UNSAFE!
http://www.myg37.com/forums/3311487-post4.html
http://www.myg37.com/forums/3311518-post8.html
IMG_0290.MOV - YouTube

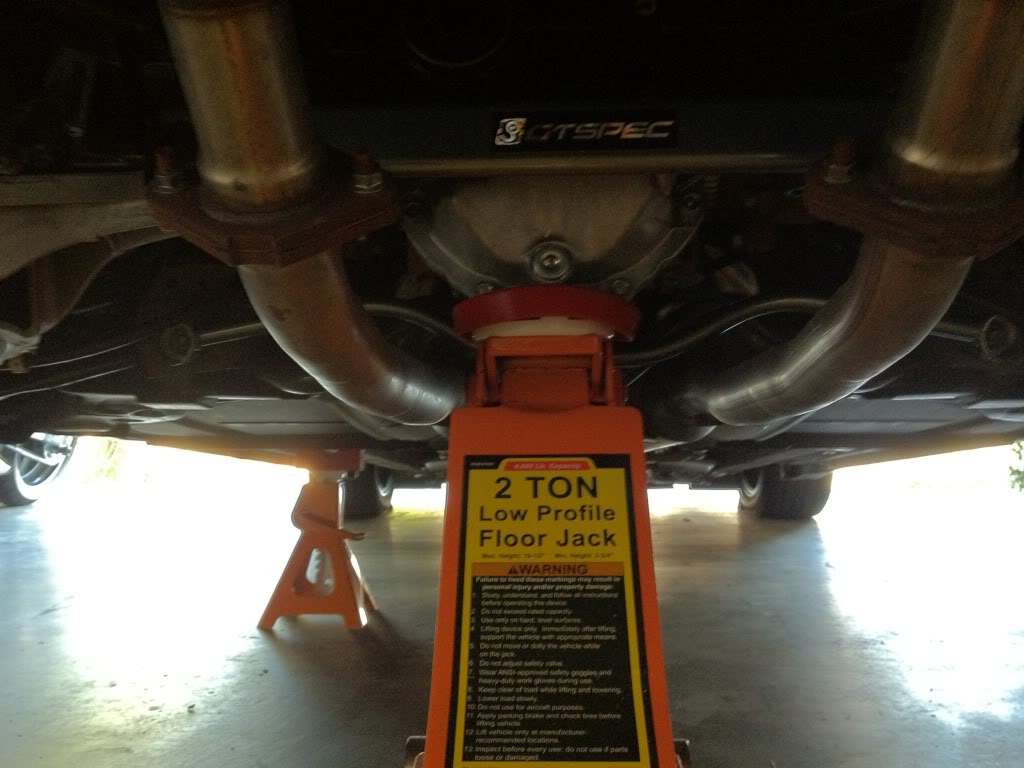

heres a picture of where to jack up your car from behind!
Click the image to open in full size.
__________________
'09coupe7AT

Last edited by jujubii; 12-28-2011 at 07:21 PM..
jujubii is offline   Reply With Quote
Sponsored Links
Old 12-22-2011, 01:47 AM   #2
Jsolo
Registered User


Trader Score: (13)
Join Date: Oct 2011
Location: Chicago
Posts: 2,637
Thanked 71 Times in 66 Posts
Thanks for the video.. Some good views of the bottom of the car for those who haven't seen it before.

Is there a part 2 for the rear?

Is the main purpose of those red jackstand covers to prevent scratching of contact point (although it looks like yours is already scratched)?

I was thinking of cutting out rectangular wood pieces (oak actually) to place in between the jackstand and the car. This way the weight is more evenly distributed along that reinforced area.
__________________
2012 6MT Sedan Eibach sways, Invidia Q300 CBE
Jsolo is offline   Reply With Quote
Old 12-22-2011, 02:02 AM   #3
Doggy
Registered User

Trader Score: (12)
Join Date: Jul 2010
Location: Sf valley
Posts: 4,355
Thanks: 0
Thanked 0 Times in 0 Posts
Send a message via AIM to Doggy
Good video
Doggy is offline   Reply With Quote
Old 12-22-2011, 02:04 AM   #4
Ibanez540r
Registered User


Trader Score: (1)
Join Date: Dec 2010
Location: Cleveland, OH
Posts: 896
Thanks: 0
Thanked 3 Times in 3 Posts
Your making things harder on yourself than need be. If your unable to get under the front center to get both sides, I think it's too much effort to break out the scissor jack and takes too long. Just lift one side UNDER THE FRAME RAIL, and put a jack stand UNDER THE FRAME RAIL. Repeat for the other side. ...probably could have had the car done before you spun that scissor jack. Or the other option is to drive the car onto pieces of 2x4s layed flat. Then use the jack in the center.

Second - PLEASE do not put your jack stands in those locations!! Your putting the weight of your car on the sheet metal floors of the vehicle! Proper location was the way you demonstrated at 7:05. Put the jack stand perpendicular to the frame. It does not matter what area of the frame as long as it's under the frame rail.

Think about it and watch the video, when you say not to put the jack stand under this "thing" at 6:30, it's the same place the weight of the car goes when using your method just on the other side of the pinch weld. The hollow sound when you tapped the jack stand to it is a good "not safe" indicator.

(BTW I did not watch the entire video, just the main steps)



Not trying to be negative, just giving some advice. Thanks for taking the time to make the video though.
__________________
2011 G37 Sport 7AT Sedan | Prem/Nav/Aero | Moonlight White / Graphite
Ibanez540r is offline   Reply With Quote
Old 12-22-2011, 02:43 AM   #5
jujubii
Premier Member

Trader Score: (5)
Join Date: Jun 2010
Location: SoCal
Posts: 660
Thanked 4 Times in 3 Posts
Quote:
Originally Posted by Ibanez540r View Post
Your making things harder on yourself than need be. If your unable to get under the front center to get both sides, I think it's too much effort to break out the scissor jack and takes too long. Just lift one side UNDER THE FRAME RAIL, and put a jack stand UNDER THE FRAME RAIL. Repeat for the other side. ...probably could have had the car done before you spun that scissor jack. Or the other option is to drive the car onto pieces of 2x4s layed flat. Then use the jack in the center.

Second - PLEASE do not put your jack stands in those locations!! Your putting the weight of your car on the sheet metal floors of the vehicle! Proper location was the way you demonstrated at 7:05. Put the jack stand perpendicular to the frame. It does not matter what area of the frame as long as it's under the frame rail.

Think about it and watch the video, when you say not to put the jack stand under this "thing" at 6:30, it's the same place the weight of the car goes when using your method just on the other side of the pinch weld. The hollow sound when you tapped the jack stand to it is a good "not safe" indicator.

(BTW I did not watch the entire video, just the main steps)



Not trying to be negative, just giving some advice. Thanks for taking the time to make the video though.
thanks for the advice! no one has really ever answered my questions (in the past) about where to put the jackstands so i browsed around and saw someone rest the jackstands the way i explained it. it made sense to me because thats where you scissor jack the car
(1) so that place definitely isnt safe?
i was weary about the frame rail cuz it feels kinda soft; you can also hear some 'hollowness' between 7:00-7:06. i havent the guts to try it yet. (2)but, just to make sure, thats where i SHOULD be putting the stands and in that manner (refering to 7:05 where the Yshaped stick is perpendicular to the rail)?

as for the 2x4 jackup method, ive driven my car up a 1" think piece of wood and my jack still wouldnt fit underneath. guess ill try 2?
as for the framreail jackup method, once ive lifted 1 side of the car, you would proceed to place a stand under the rail and proceed to the other side, correct? itd feel really unsafe to have 1 stand holding the whole car while you make your way to the other side
__________________
'09coupe7AT

Last edited by jujubii; 12-22-2011 at 02:57 AM..
jujubii is offline   Reply With Quote
Old 12-22-2011, 02:47 AM   #6
bingpwr
Registered User

Trader Score: (4)
Join Date: Oct 2009
Location: Irvine, CA
Posts: 438
Thanks: 0
Thanked 1 Time in 1 Post
Where did you get that jack pad for your hydraulic jack? I've been looking for one.
bingpwr is offline   Reply With Quote
Old 12-22-2011, 02:54 AM   #7
jujubii
Premier Member

Trader Score: (5)
Join Date: Jun 2010
Location: SoCal
Posts: 660
Thanked 4 Times in 3 Posts
Quote:
Originally Posted by bingpwr View Post
Where did you get that jack pad for your hydraulic jack? I've been looking for one.
i got them from harbor freight. i dont know why they dont have them listed on their site any more, but if you call the store they should know exactly what youre talking about.

here are the ones for the stand 2 Piece Rubber Pads for Jack Stand
- regarding the earlier post about the these pads being scratched, it was damaged cuz i used to put my stands on like in 7:12 but thats a no go!
- functionally, it prevents the scratches on your car and the dreaded metal-on-metal sound. i also feel that it helps distribute the weight a little better.
__________________
'09coupe7AT
jujubii is offline   Reply With Quote
Old 12-22-2011, 05:00 AM   #8
Ibanez540r
Registered User


Trader Score: (1)
Join Date: Dec 2010
Location: Cleveland, OH
Posts: 896
Thanks: 0
Thanked 3 Times in 3 Posts
Quote:
Originally Posted by jujubii View Post
thanks for the advice! no one has really ever answered my questions (in the past) about where to put the jackstands so i browsed around and saw someone rest the jackstands the way i explained it. it made sense to me because thats where you scissor jack the car

The scissor works there because it uses the strength of the pinch weld like an I beam.

(1) so that place definitely isnt safe?

No. It's just sheet metal. It obviously holds, but it's not made to support the car. If the car ever fell off the jack onto the stand it could very easily deform the panel

i was weary about the frame rail cuz it feels kinda soft; you can also hear some 'hollowness' between 7:00-7:06. i havent the guts to try it yet. (2)but, just to make sure, thats where i SHOULD be putting the stands and in that manner (refering to 7:05 where the Yshaped stick is perpendicular to the rail)?

It probably felt soft due to the rubberized protective undercoating. Not to confuse you, it is actually hollow, but its rectangle tube stock (steel). Very very strong. It's the frame of the car, the foundation and structural strength of the car. Completely appropriate safe place to support the vehicle

as for the 2x4 jackup method, ive driven my car up a 1" think piece of wood and my jack still wouldnt fit underneath. guess ill try 2?

A 2x4 is 1.5 inches thick. May work over the 1" board.

as for the framreail jackup method, once ive lifted 1 side of the car, you would proceed to place a stand under the rail and proceed to the other side, correct?

Yuppers. Just the corner will come off the ground, depending on how high the rear may start to come up.

itd feel really unsafe to have 1 stand holding the whole car while you make your way to the other side

For the sake of conversation, the car weighs 4000lbs. That means sitting flat it's 1000lbs a corner (actually a little more in front and a little less in rear, but you get the idea) Once you start jacking up the corner, you are transferring weight to the other three corners. By the time you place your 2 ton jack stand (4000 lbs.) under the corner, you may be supporting 6-800 pounds. Your safe. I would recommend the other suggestion first, but this is totally OK.
My message was too short to just post it like that
__________________
2011 G37 Sport 7AT Sedan | Prem/Nav/Aero | Moonlight White / Graphite
Ibanez540r is offline   Reply With Quote
Old 12-22-2011, 05:41 AM   #9
jujubii
Premier Member

Trader Score: (5)
Join Date: Jun 2010
Location: SoCal
Posts: 660
Thanked 4 Times in 3 Posts
Quote:
Originally Posted by Ibanez540r View Post
My message was too short to just post it like that
thank you very much,
this is the kind of info i needed (and probably others too!)

as long as i follow the frame rail down to the back i can put the rear on stands the same way, correct?
__________________
'09coupe7AT
jujubii is offline   Reply With Quote
Old 12-22-2011, 07:54 AM   #10
Tazicon
Registered User

Tazicon's Avatar

Trader Score: (1)
Join Date: Jul 2011
Location: Vegas Baby!
Posts: 1,951
Thanked 18 Times in 17 Posts
And one other thing, please dont wear flip flops when working in the garage....................
Tazicon is offline   Reply With Quote
Old 12-23-2011, 12:07 AM   #11
Ibanez540r
Registered User


Trader Score: (1)
Join Date: Dec 2010
Location: Cleveland, OH
Posts: 896
Thanks: 0
Thanked 3 Times in 3 Posts
Quote:
Originally Posted by jujubii View Post
thank you very much,
this is the kind of info i needed (and probably others too!)

as long as i follow the frame rail down to the back i can put the rear on stands the same way, correct?
Yes. When jacking up the back, put the jack right underneath the differential, or "pumpkin" (slang automotive term). It's the large circular thing in between your back wheels. Should have a bunch of bolts going around the edge. After you jack it up, slide some jack stands under the FRAME.
__________________
2011 G37 Sport 7AT Sedan | Prem/Nav/Aero | Moonlight White / Graphite
Ibanez540r is offline   Reply With Quote
Old 12-23-2011, 12:15 AM   #12
jujubii
Premier Member

Trader Score: (5)
Join Date: Jun 2010
Location: SoCal
Posts: 660
Thanked 4 Times in 3 Posts
Quote:
Originally Posted by Tazicon View Post
And one other thing, please dont wear flip flops when working in the garage....................
youre in luck, i'm usually barefoot.

Quote:
Originally Posted by Ibanez540r View Post
Yes. When jacking up the back, put the jack right underneath the differential, or "pumpkin" (slang automotive term). It's the large circular thing in between your back wheels. Should have a bunch of bolts going around the edge. After you jack it up, slide some jack stands under the FRAME.
yah, the differential is easy to spot v.s. the nipple (front jacking point) cuz its not as hidden and tucked in.
__________________
'09coupe7AT

Last edited by jujubii; 12-23-2011 at 12:15 AM.. Reason: grammar
jujubii is offline   Reply With Quote
Old 12-28-2011, 07:22 PM   #13
jujubii
Premier Member

Trader Score: (5)
Join Date: Jun 2010
Location: SoCal
Posts: 660
Thanked 4 Times in 3 Posts
Quote:
Originally Posted by Ibanez540r View Post
Yes. When jacking up the back, put the jack right underneath the differential, or "pumpkin" (slang automotive term). It's the large circular thing in between your back wheels. Should have a bunch of bolts going around the edge. After you jack it up, slide some jack stands under the FRAME.
updated with a picture! check the first post

btw... this is the frame rail youre talking abotu right?
Click the image to open in full size.
__________________
'09coupe7AT
jujubii is offline   Reply With Quote
Old 01-03-2012, 07:24 PM   #14
Djfarhan
Registered User


Djfarhan's Avatar

Trader Score: (0)
Join Date: Nov 2010
Location: Abu Dhabi, UAE
Posts: 3,935
Thanked 9 Times in 6 Posts
djfarhansynergy farhanashraf djfarhanashraf
Send a message via AIM to Djfarhan Send a message via MSN to Djfarhan Send a message via Yahoo to Djfarhan
thanks for sharing!
__________________
Dj farhan: http://www.cardomain.com/ride/3366312
Djfarhan is offline   Reply With Quote
Old 12-24-2012, 11:24 PM   #15
canoncleguy
Registered User

Trader Score: (1)
Join Date: Nov 2012
Posts: 177
Thanks: 0
Thanked 2 Times in 2 Posts
Thank you! I am planning to do a bunch of services as a part of 60K service and I need this info.
__________________
G37s + tanabe catback + Vossen CV3 + IPL bumper + Struct bar
