Interior Colored (Blue) LED Mod
#1
Interior Colored (Blue) LED Mod
Here’s an easy and fun mod for your G’s interior. Blue LEDs! Well, you can choose your own color. I’ve seen them in yellow, red, green, purple pink, and of course white. I tried white at first and they were good, but then I saw some pics of other cars with all these different colors.
At first I simply swapped out the old bulbs for LED bulbs, but then went with LED panels for the map and trunk lights to get more brightness. Some companies sell packages with just enough bulbs for your coupe or sedan. I haven’t seen any of them with panels, though. Also, I wasn’t interested in getting blue license plate lights. That’s a ticket waiting to happen.

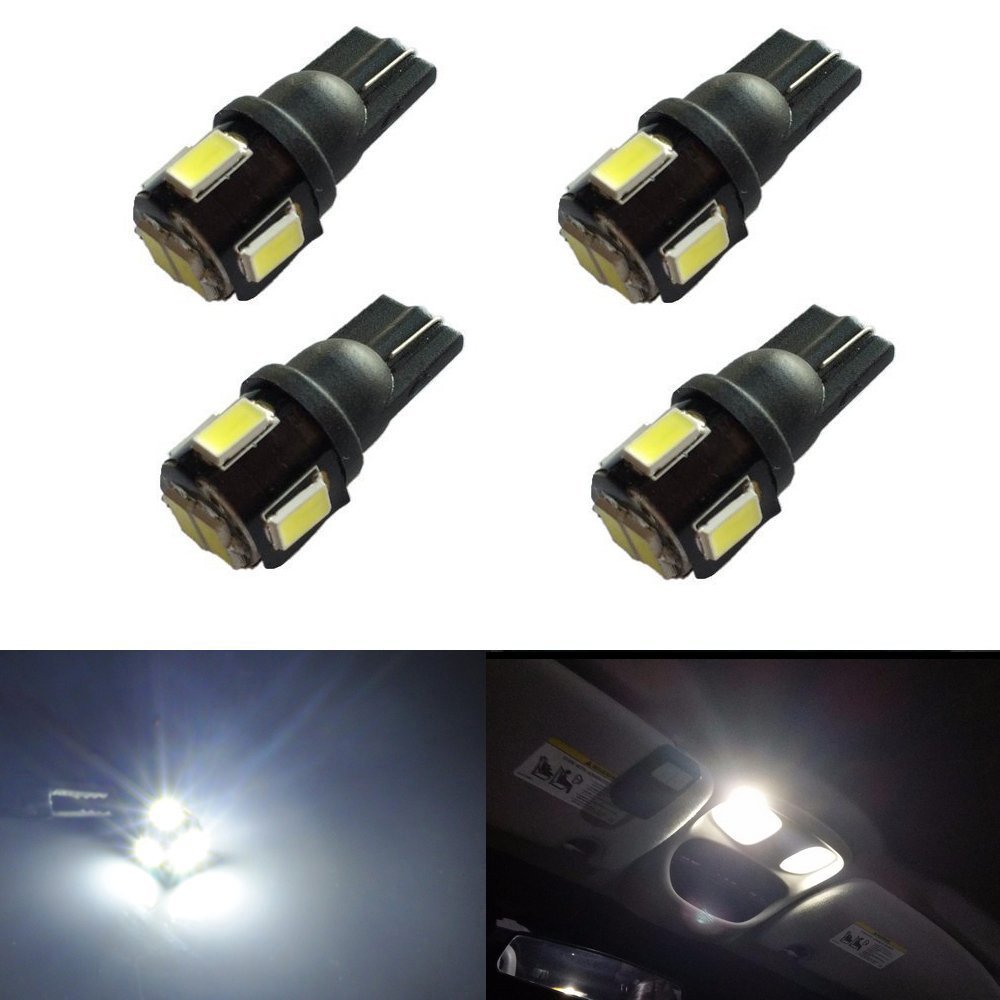

I used these white LEDs for clear corners on another car and had two leftovers to put in the G’s map lights.

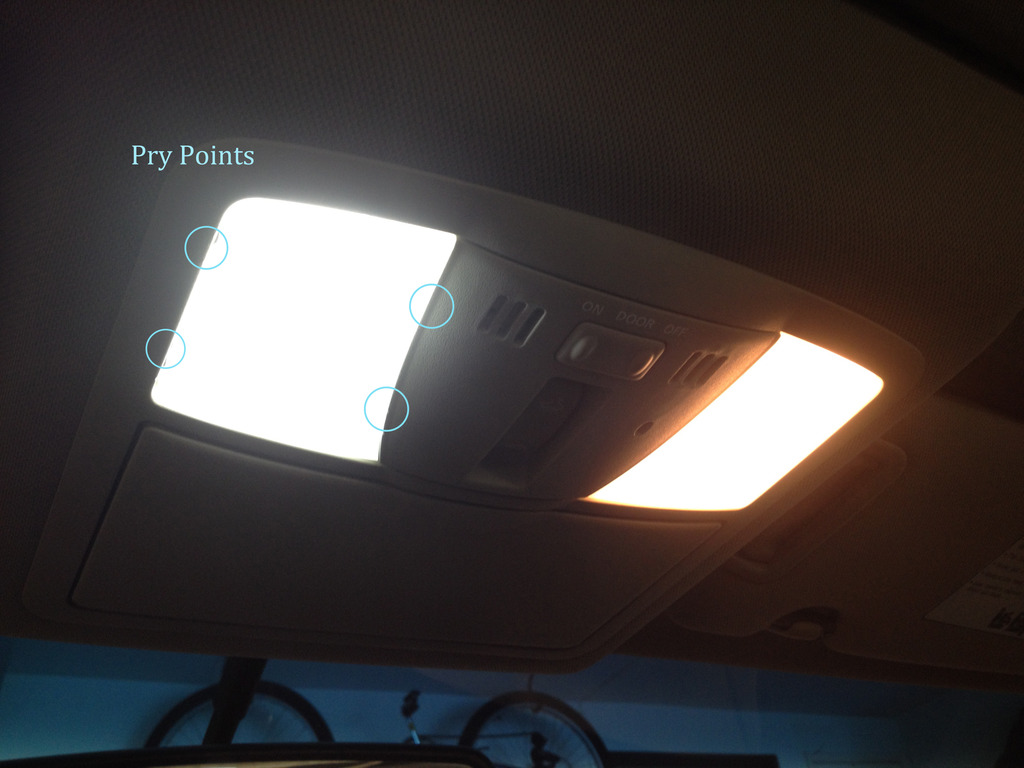

A much whiter light compared to the factory bulb! I’ve circled the points where you want to stick your flat head screwdriver and pry.

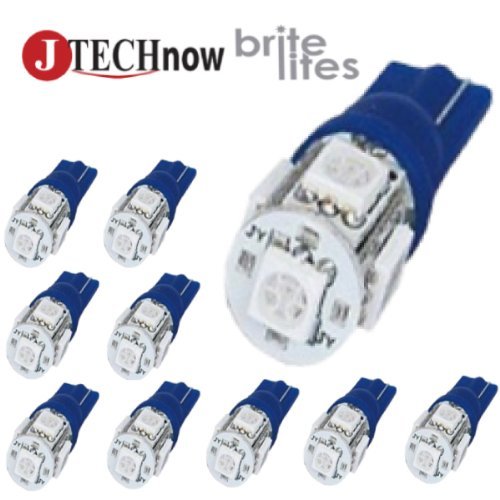

But blue is way cooler! So then I ordered these blue ones.
The bulbs have 5 little LEDs mounted on them. They were pretty cool, but not very bright. They work great in the door courtesy lights. So I’m using two in the doors and I have a bunch of leftovers.

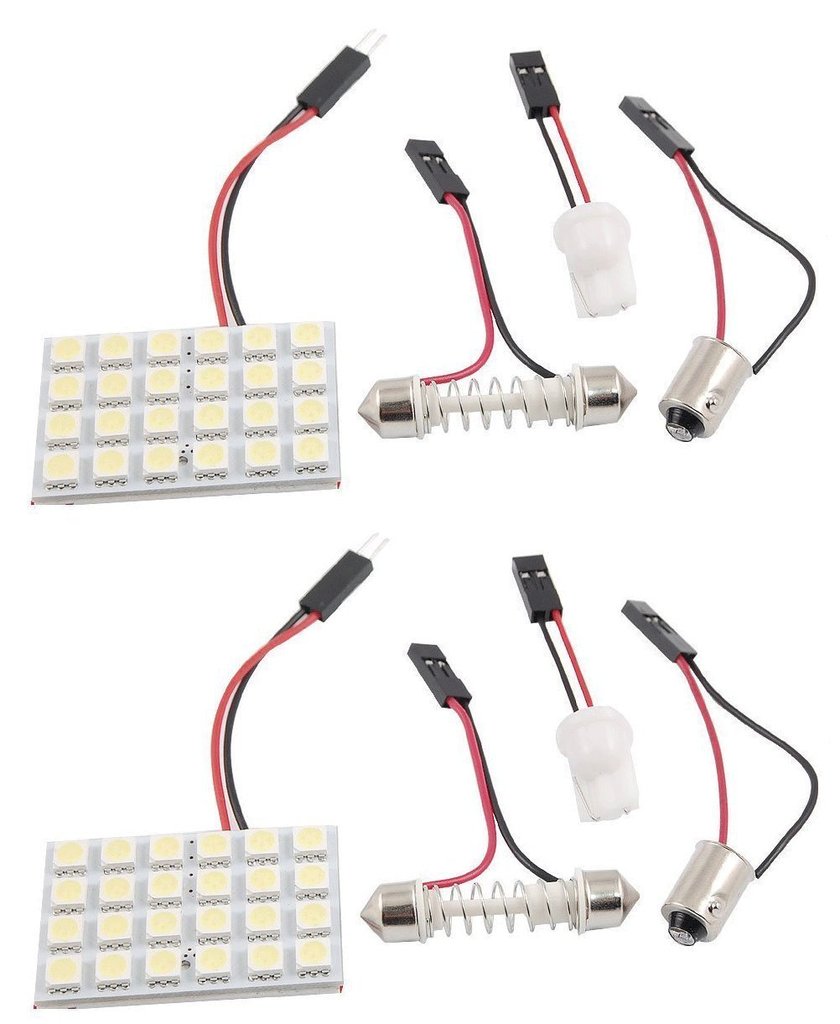

Then I found these LED panels with 24 LEDs. There are smaller ones and bigger ones. I got a 48 LED panel for the trunk, which you’ll see later. First I had to measure the space so I could order the right size.
Then I got these from Amazon.
They come with several adapters so you can use them in other vehicles. There is 3M tape on the back of the panels. I think they were supposed to be permanent but they kept falling off. When they did, you could see the individual LED dots, which I didn’t like.
So here is what they look like installed with the cover off. You can see that the 3M tape isn’t holding very well, and the panels are starting to fall down.

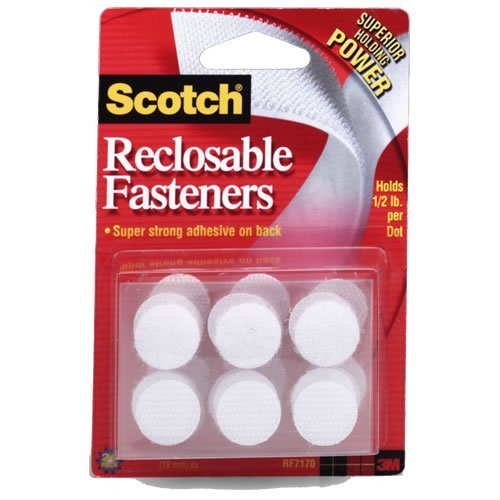

To solve the problem of them falling off, I used these Velcro dots I got from Target for a few bucks. They are way overpriced on Amazon.
Now if I want to change the color, I can just peel them on and off!

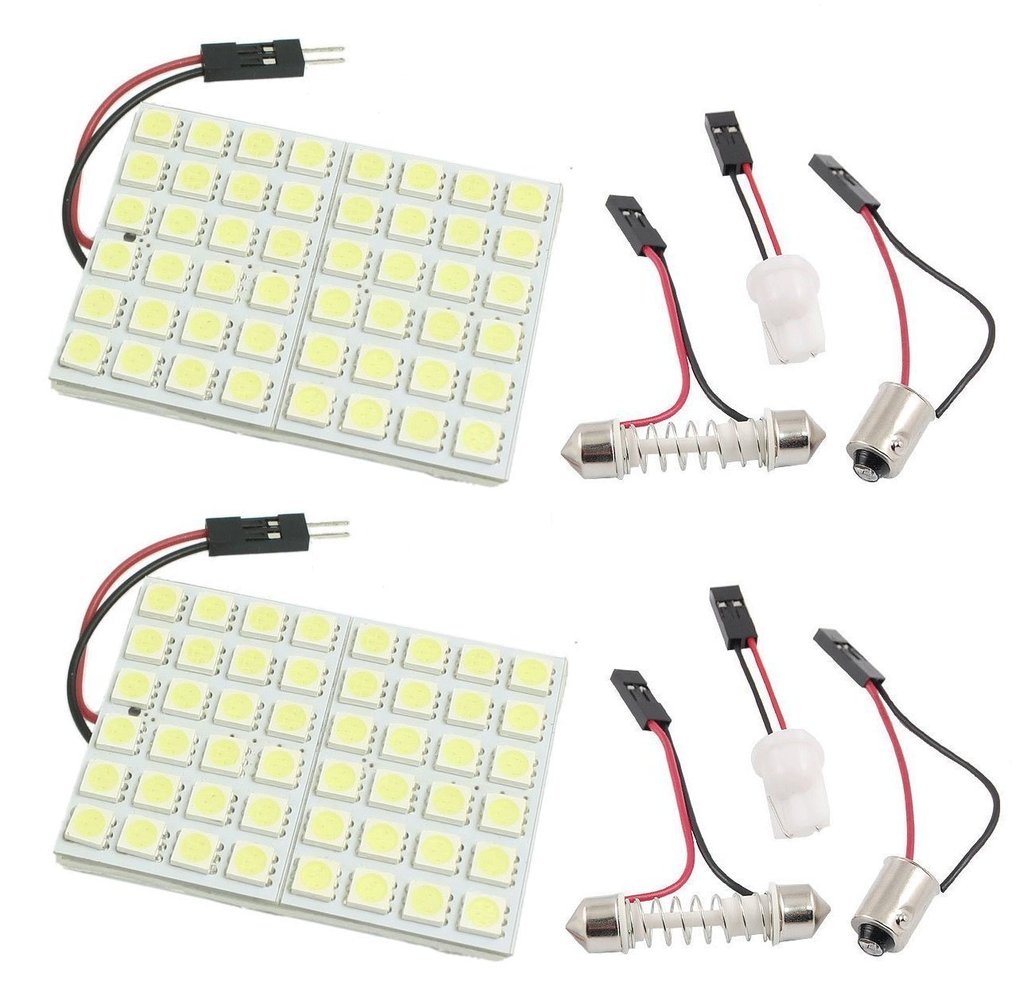

As for the trunk, I got these from Amazon.
The panel was mounted outside of any housing, so there was no size limit. The 48 is plenty bright!
You have to get on your back and slide into the trunk to get a good view of the dome light in there. Use your fingers or a flat head to pop open the cover, then pull out the bulb. Plug in the adapter and LED panel. Stick the “hook” side of the Velcro dot on the back of the LED panel. The trunk liner is Velcro friendly so you can stick that panel right onto it. You won’t be able to close the little dome, but that’s ok since it’s out of view. Just remember to be careful when loading stuff so you don’t hit it.
Here is a picture of it mounted but unplugged.
Here it is lighting up the trunk in the daytime.
And here are some more pictures.
I hope you enjoyed this post. Please post pictures of yours with colored lights! Oh and don’t turn them on when driving. They’re distracting to other drivers and I believe only cops can have blue lights on while in motion.
At first I simply swapped out the old bulbs for LED bulbs, but then went with LED panels for the map and trunk lights to get more brightness. Some companies sell packages with just enough bulbs for your coupe or sedan. I haven’t seen any of them with panels, though. Also, I wasn’t interested in getting blue license plate lights. That’s a ticket waiting to happen.
I used these white LEDs for clear corners on another car and had two leftovers to put in the G’s map lights.
Amazon.com: JDM ASTAR 4pcs Super Bright 5630 SMD 194 168 2825 W5W T10 LED Bulbs,Xenon White(Best Value in the market): Automotive
A much whiter light compared to the factory bulb! I’ve circled the points where you want to stick your flat head screwdriver and pry.
But blue is way cooler! So then I ordered these blue ones.
The bulbs have 5 little LEDs mounted on them. They were pretty cool, but not very bright. They work great in the door courtesy lights. So I’m using two in the doors and I have a bunch of leftovers.
Then I found these LED panels with 24 LEDs. There are smaller ones and bigger ones. I got a 48 LED panel for the trunk, which you’ll see later. First I had to measure the space so I could order the right size.
Then I got these from Amazon.
Amazon.com: Cutequeen Trading 2PCS Blue 5050 24SMD 24-SMD LED Panel Dome Light Lamp + T10 BA9S Festoon Adapter (pack of 2): Automotive
They come with several adapters so you can use them in other vehicles. There is 3M tape on the back of the panels. I think they were supposed to be permanent but they kept falling off. When they did, you could see the individual LED dots, which I didn’t like.
So here is what they look like installed with the cover off. You can see that the 3M tape isn’t holding very well, and the panels are starting to fall down.
To solve the problem of them falling off, I used these Velcro dots I got from Target for a few bucks. They are way overpriced on Amazon.
Now if I want to change the color, I can just peel them on and off!
As for the trunk, I got these from Amazon.
Amazon.com: Cutequeen Trading 2PCS Blue 5050 48SMD 48-SMD LED Panel Dome Light Lamp + T10 BA9S Festoon Adapter (pack of 2): Automotive
The panel was mounted outside of any housing, so there was no size limit. The 48 is plenty bright!
You have to get on your back and slide into the trunk to get a good view of the dome light in there. Use your fingers or a flat head to pop open the cover, then pull out the bulb. Plug in the adapter and LED panel. Stick the “hook” side of the Velcro dot on the back of the LED panel. The trunk liner is Velcro friendly so you can stick that panel right onto it. You won’t be able to close the little dome, but that’s ok since it’s out of view. Just remember to be careful when loading stuff so you don’t hit it.
Here is a picture of it mounted but unplugged.
Here it is lighting up the trunk in the daytime.
And here are some more pictures.
I hope you enjoyed this post. Please post pictures of yours with colored lights! Oh and don’t turn them on when driving. They’re distracting to other drivers and I believe only cops can have blue lights on while in motion.
The following users liked this post:
jroyalty7 (07-27-2015)
#2
Registered User
Not a fan of blue .... ricey, but to each his own. Most of us that do LED mods get them from either DD or V-LED. Both vendors are top notch with top notch products.
#4
Registered User
Is that a Samoyed or American Spitz? Had a Samoyed for 13 years, sweet dog.
#5
Registered User
#6
I think the vanity lights on the sedans are placed vertically next to the mirror. There might be more room in the sedan vanity housing. So there may be room for the bulbs with the wider panels in the middle.
Make sure to measure the length of the bulb first. Then when you search, include the measurement, for example "led festoon 28mm". Your results might say the bulb is for a Mazda, but as long as the length is right, it should fit.
And I'd stick with white for the vanities. Blue would be cool, if you were a smurf.
